Description
Introduction:

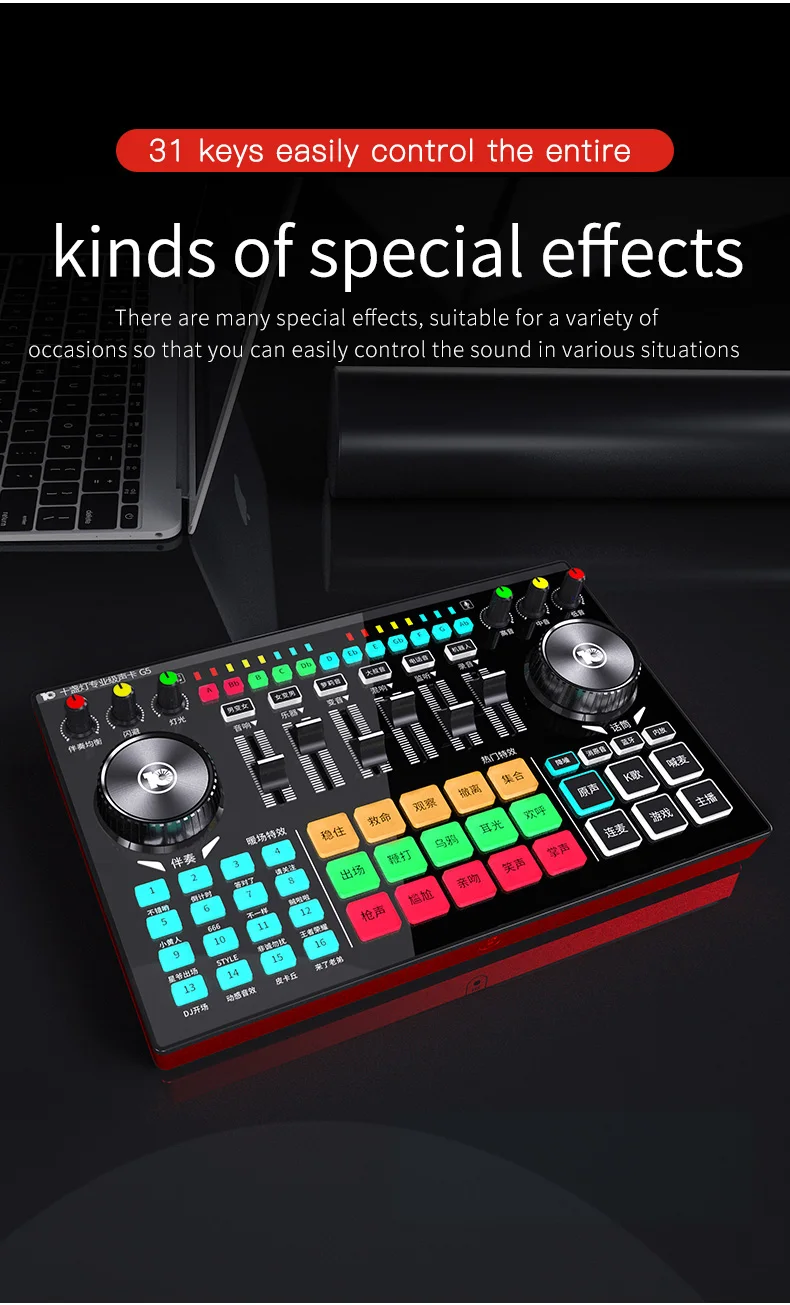

This product is a professional recording and live digital mixer, built-in high-speed digital DSP reverberation processor, support dual mobile phone live broadcast, USB high-definition digital recording, support Bluetooth wireless accompaniment, provide a variety of microphone interface access; A variety of sound ,12 professional tone, preset popular live atmosphere special effects, whether singing or hosting are easy; This product is widely used in professional live studio, recording studio, personal entertainment and other scenes, with this professional DSP digital decoding products, in voice chat, host shouting wheat, K song recording, music listening and other applications The choice of sound field effect makes people's singing more realistic and interesting, professional.

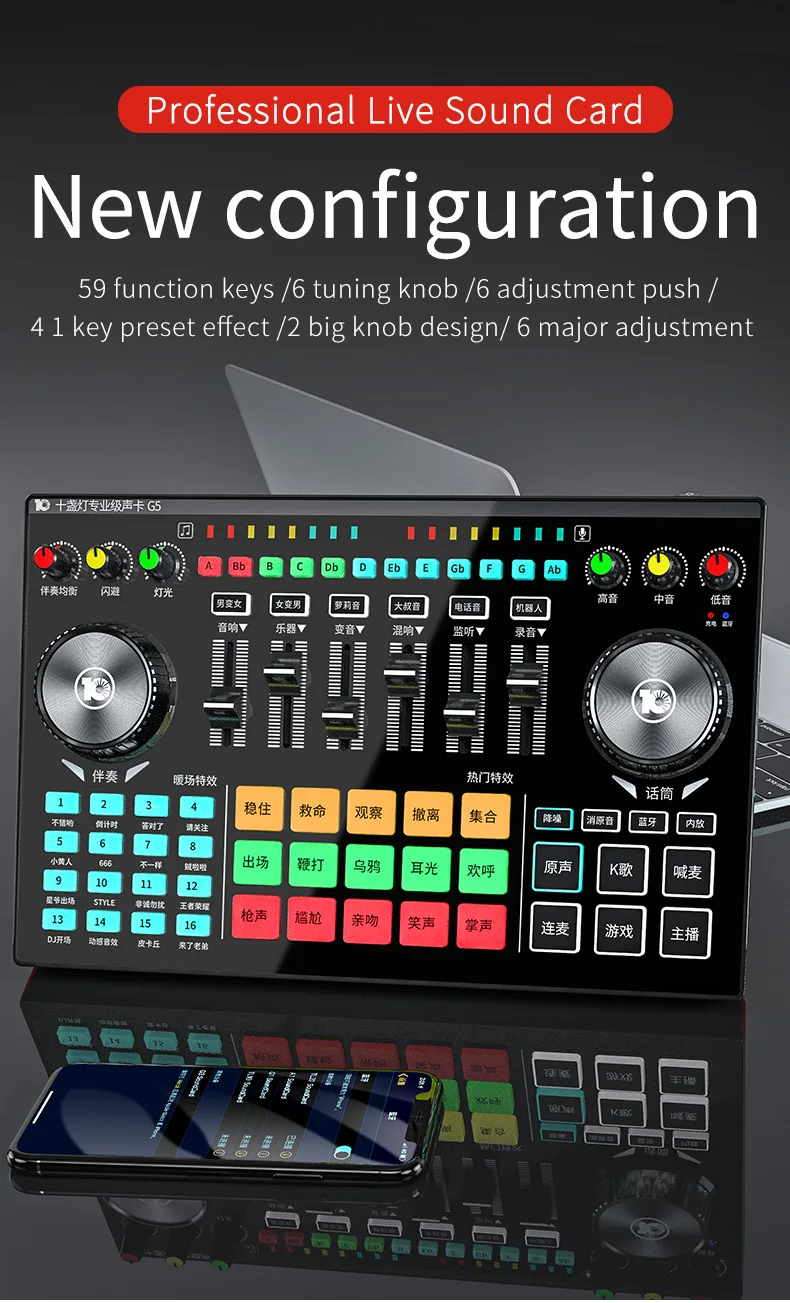

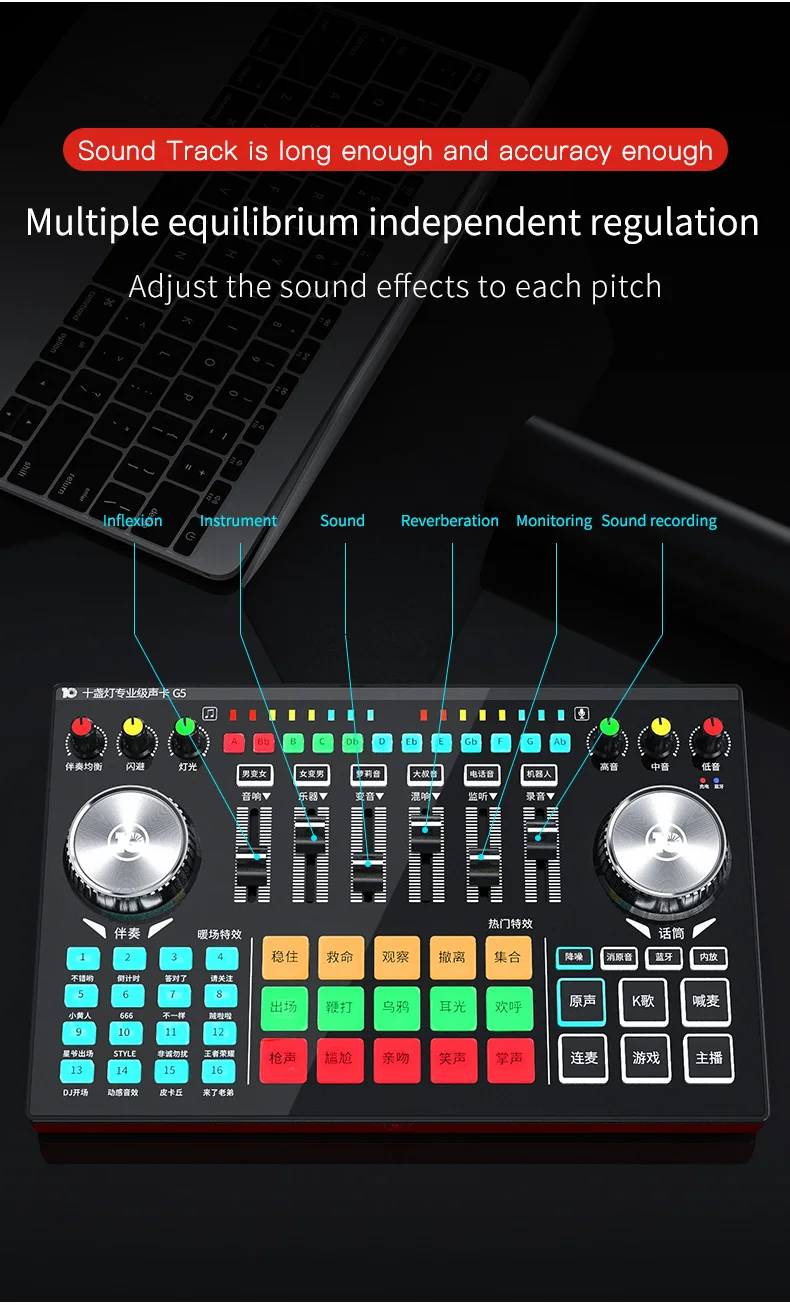

Mainframe panel definition description :

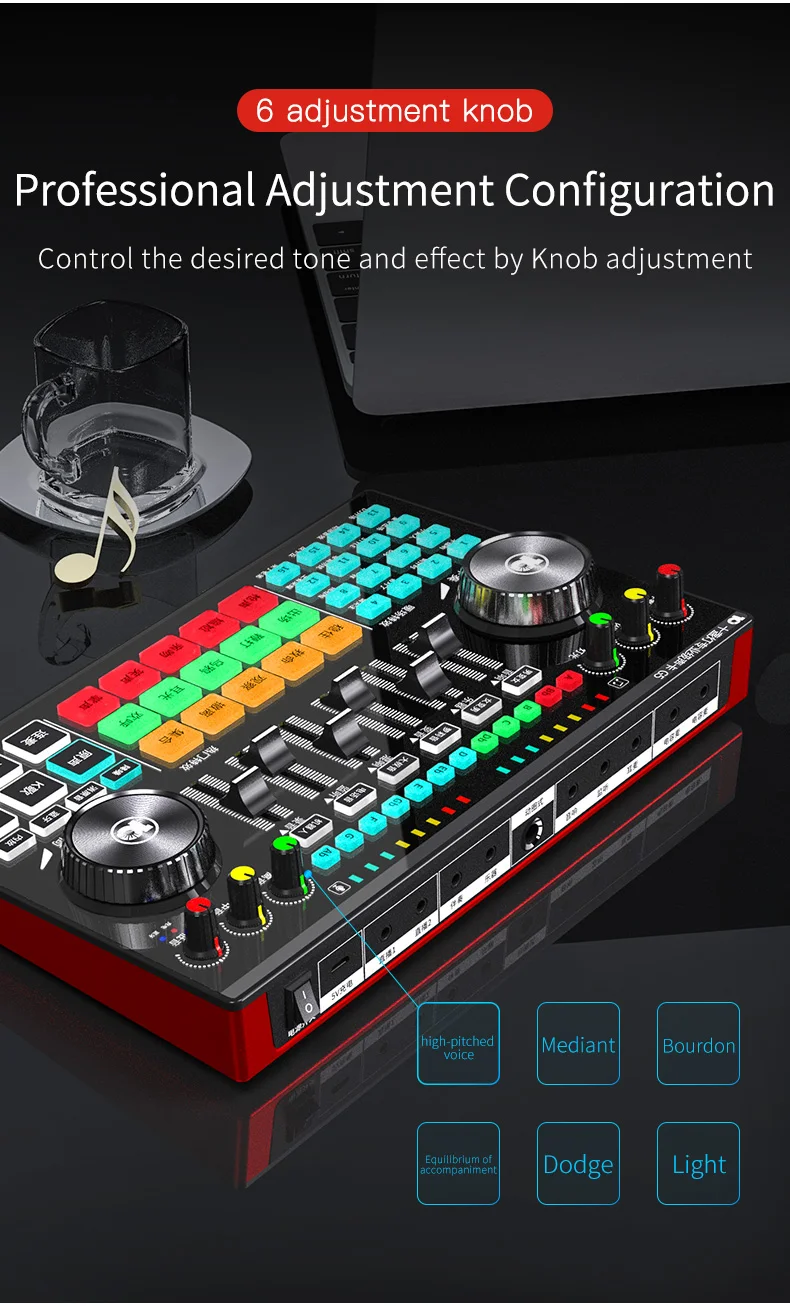

1 treble knob: adjust microphone / headset voice treble;
2 bass knob: adjust microphone/ headset voice bass;
3 Bluetooth status light: Bluetooth flashes while waiting to connect, Long light after connection;
4.Median knob: adjust the microphone / headset in the sound;
5 Battery light: Red when inserted into USB charging line at work, Green light when full;
6 microphone knob: adjust the volume of microphone / headset input;

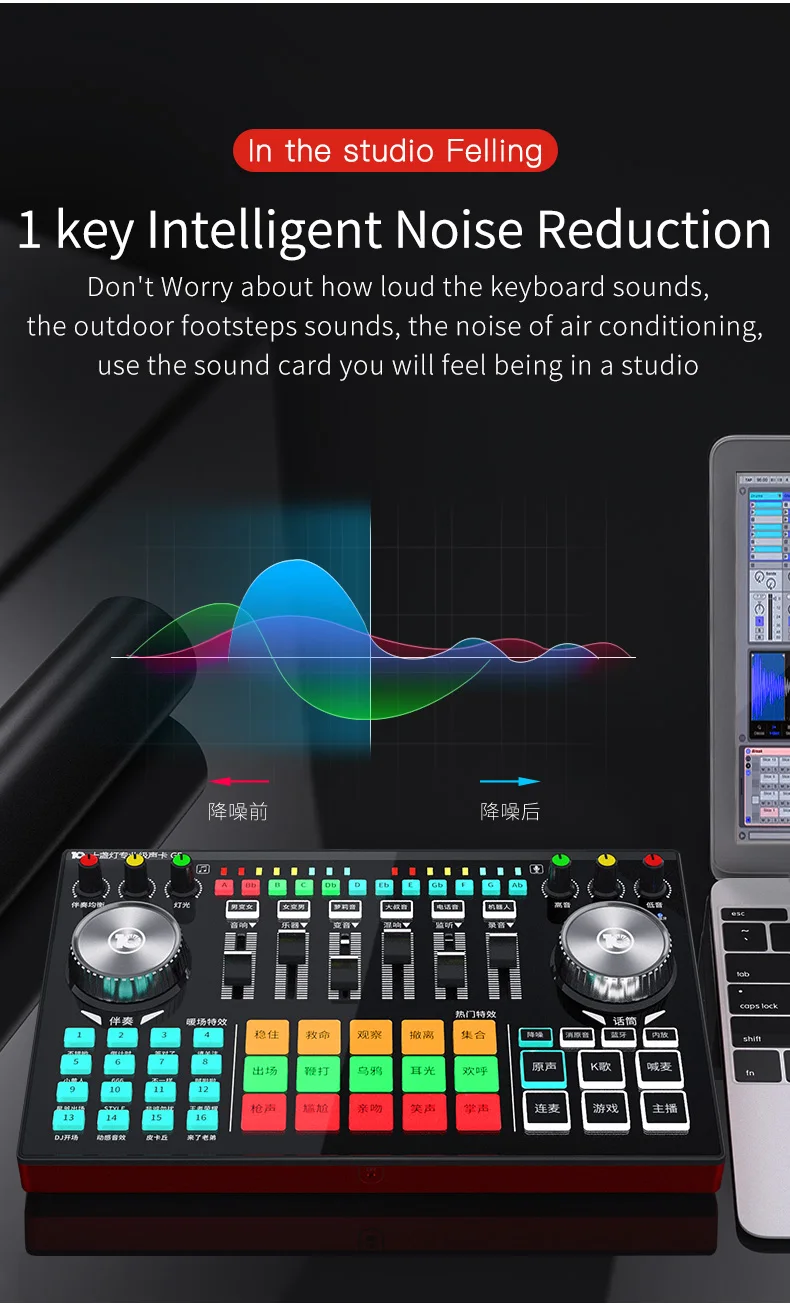

7.Noise reduction: noise reduction on/off microphone, Control microphone pickup range;

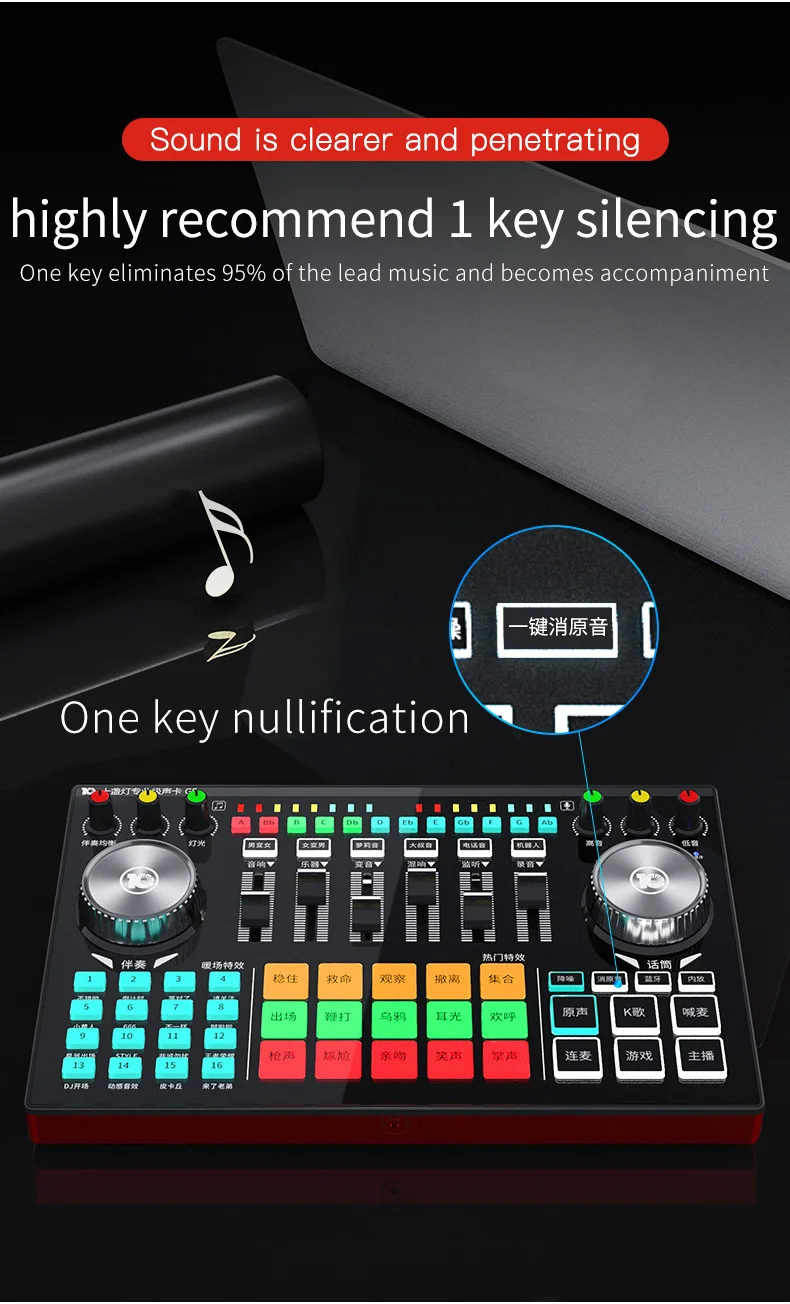

8 mute: key control Make accompaniment songs to eliminate the original sound;

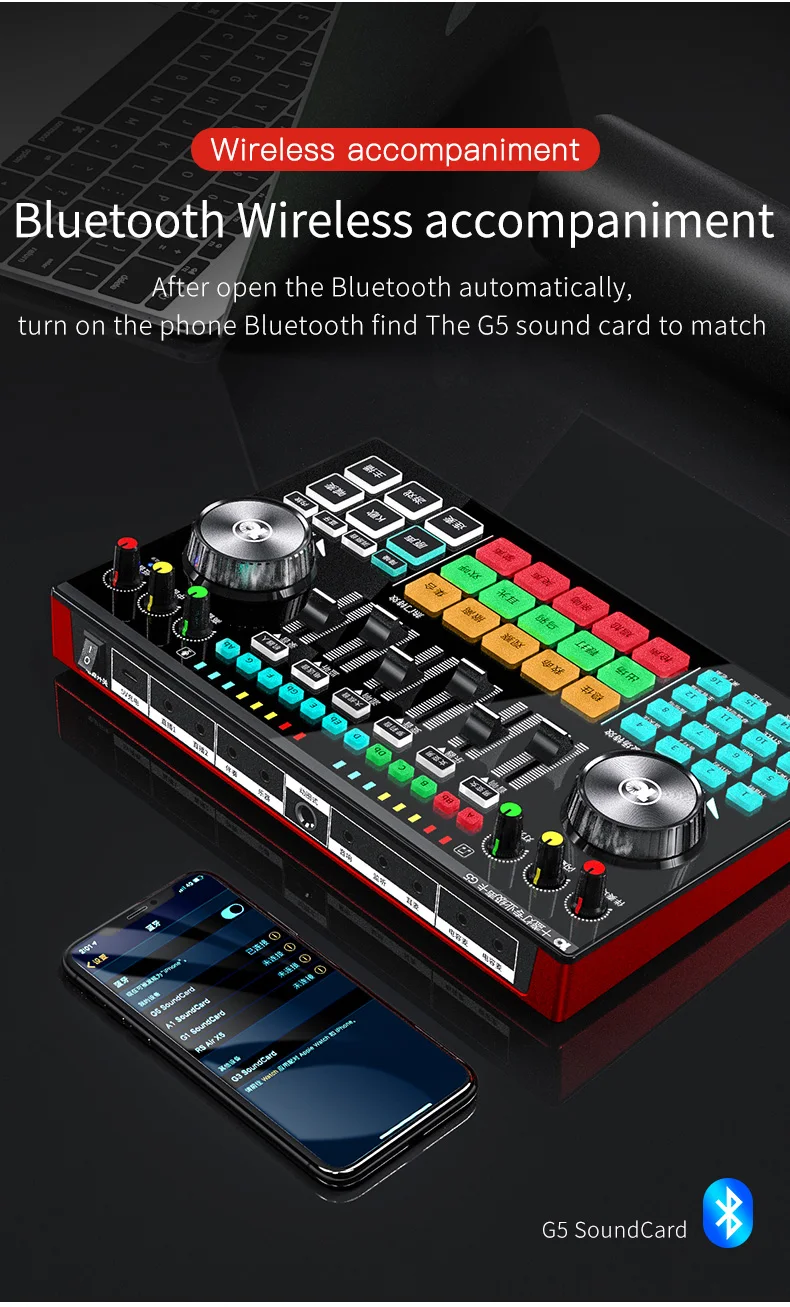

9.Bluetooth: Switch on/off sound card Bluetooth;
10. Internal release; Switch on / off internal release;

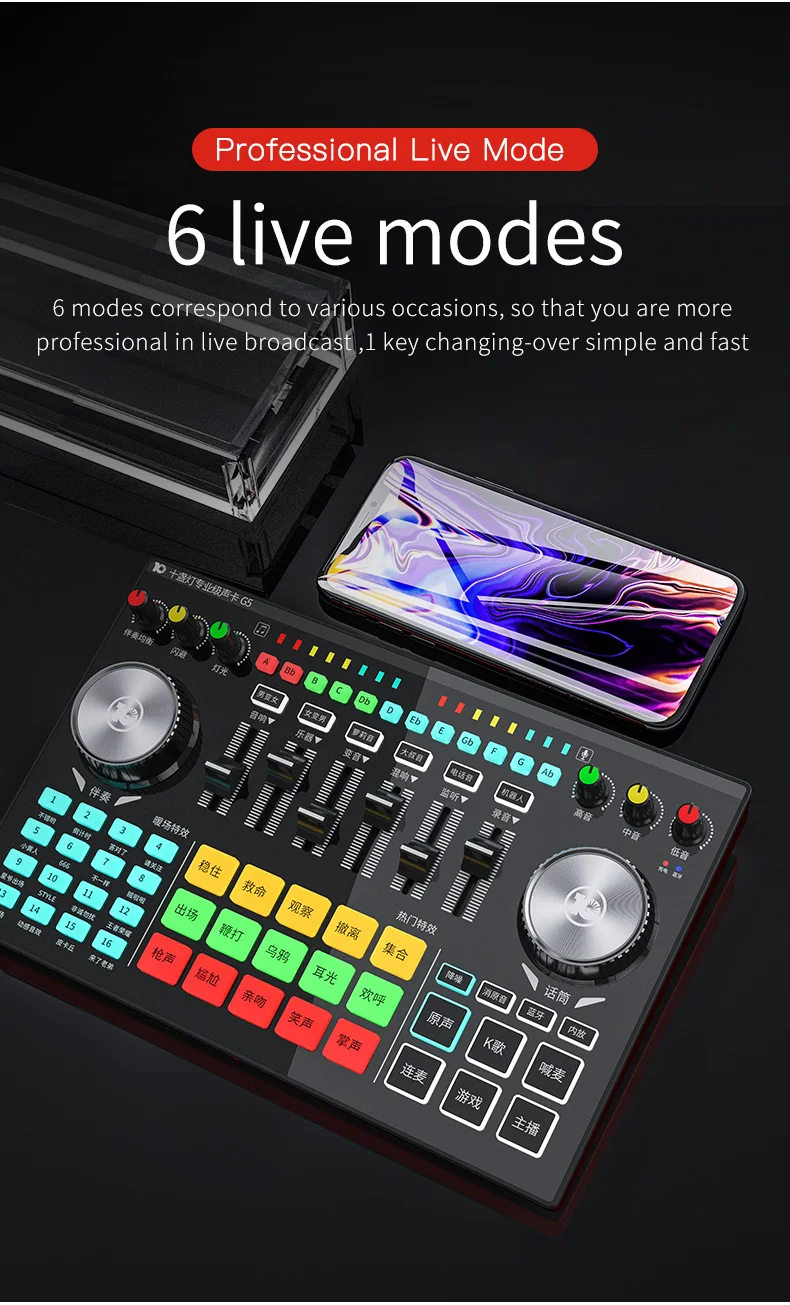

11.sound keys: switch to sound mode;
12.Key: switch to call wheat mode
13.K song key: switch to K song mode;
14.Anchor key: switch to anchor mode;
15.game keys: switch to game mode;
16.Lianmai key: switch to Lianmai mode;
17.Recording push: adjust the output volume of live / recording;
18.Monitor push: adjust earphone/ headset monitor volume;
19.Reverb : Adjust the reverberation. Reverberation from minimum to maximum in acoustic mode, Other modes of fine-tuning;
20.Hot special effects key :15 current hot special effects; Tweets
21.Fine-tuning "male female "," female male "," Lori Yin "," Uncle Yin "4 major tone mode;

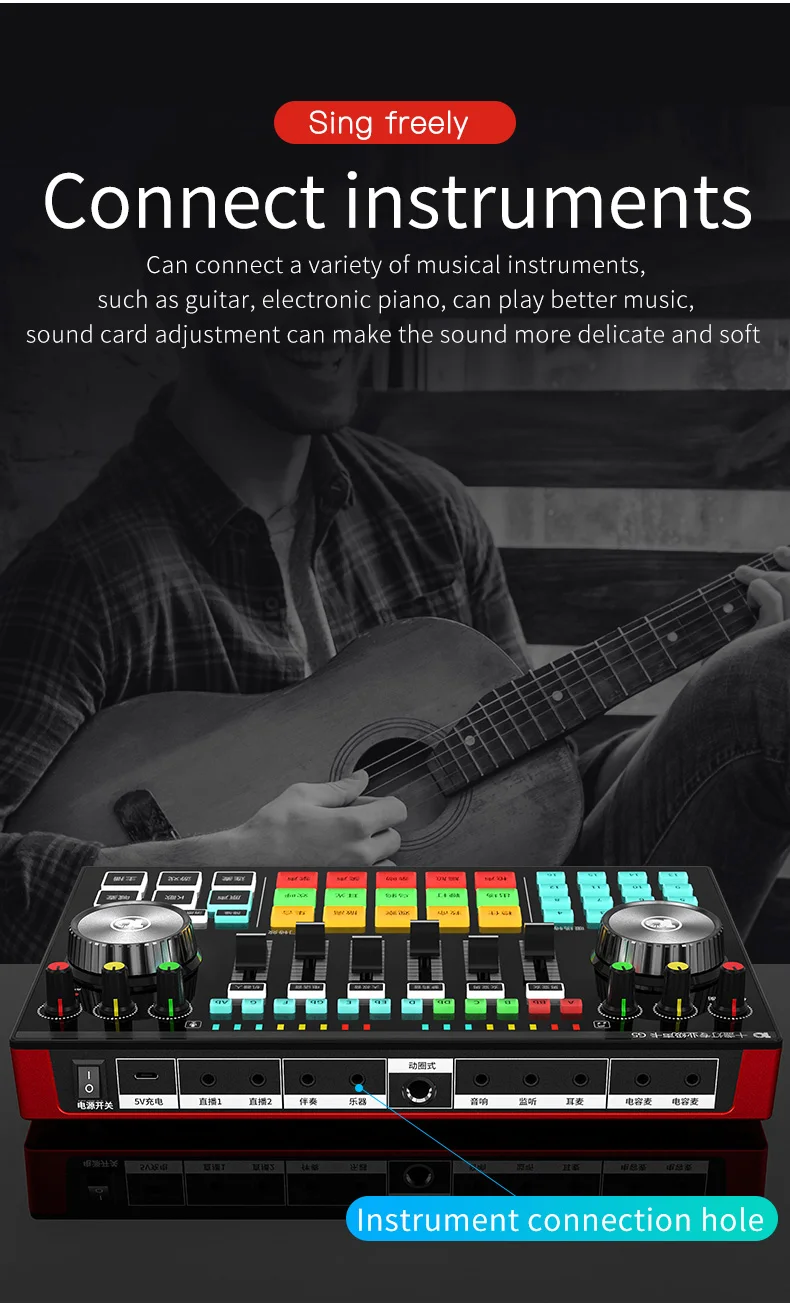

22.Instrument Push: Adjust the input volume of the instrument;
23.Audio push: Adjust the volume of audio output;
24.Warm field effects :16 popular warm field effects;
25. accompaniment knob: adjust the input volume of accompaniment music;
26. Switching keys: Switching 6 interesting tuning effects;
27.accompaniment balance knob: adjust the high and low tone of accompaniment music;
28. Avoiding knob: Adjust the size of evasive effect;
29.Light knobs: Turn off/adjust the intensity of all lights on the panel;

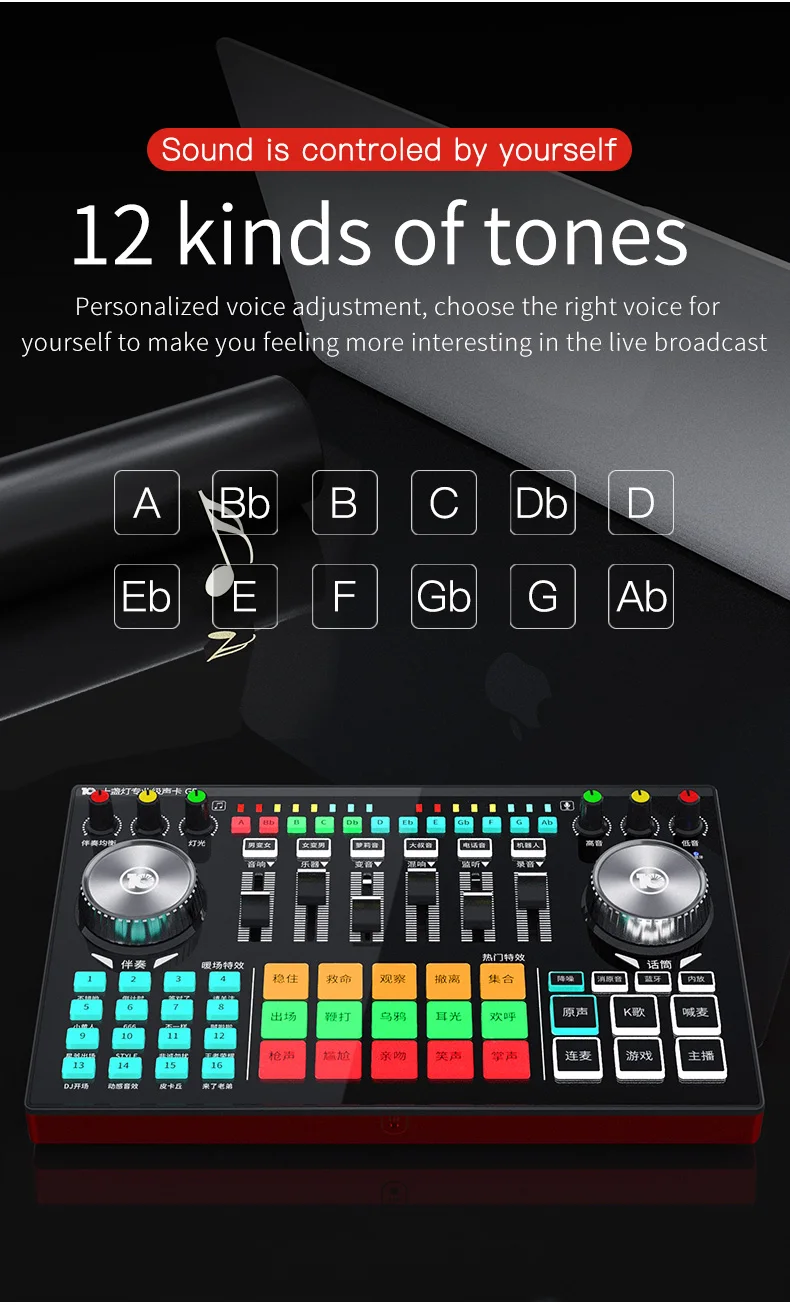

30.tone keys :12 tone keys;
31.microphone frequency indicator: real-time microphone volume display;
32.Accompaniment electric frequency indicator light: real-time accompaniment music volume display;
Quantification of sampling rate:44.1KHz/16Bit
Bluetooth Version:V5.0, compatible Bluetooth 4.2BR
Bluetooth Receiver: <12 m (no obstacles)
SNR S/N:>102dB
Frequency response:50Hz~18KHz
Output power: 10 mW Load 32Ω( Capacitive Microphone)
THD harmonic distortion: <0.3%@1 kHz (Live)
Headset interface:American Standard Four Section 3.5 mm
Microphone interface:Standard 3.5mm
Live broadcast interface:American Standard Four Section 3.5 mm
Accompaniment interface:Standard 3.5mm
Headphone interface:Standard 3.5mm
USB interface:5 foot MicroUSB type
Product Packing List:
Sound card on mixer*1
3.5 mm to 3.5 mm four-segment audio line*3
USBA-MicroUSB data charging line*1
Sound Card Operation Manual*1
Common troubleshooting:
