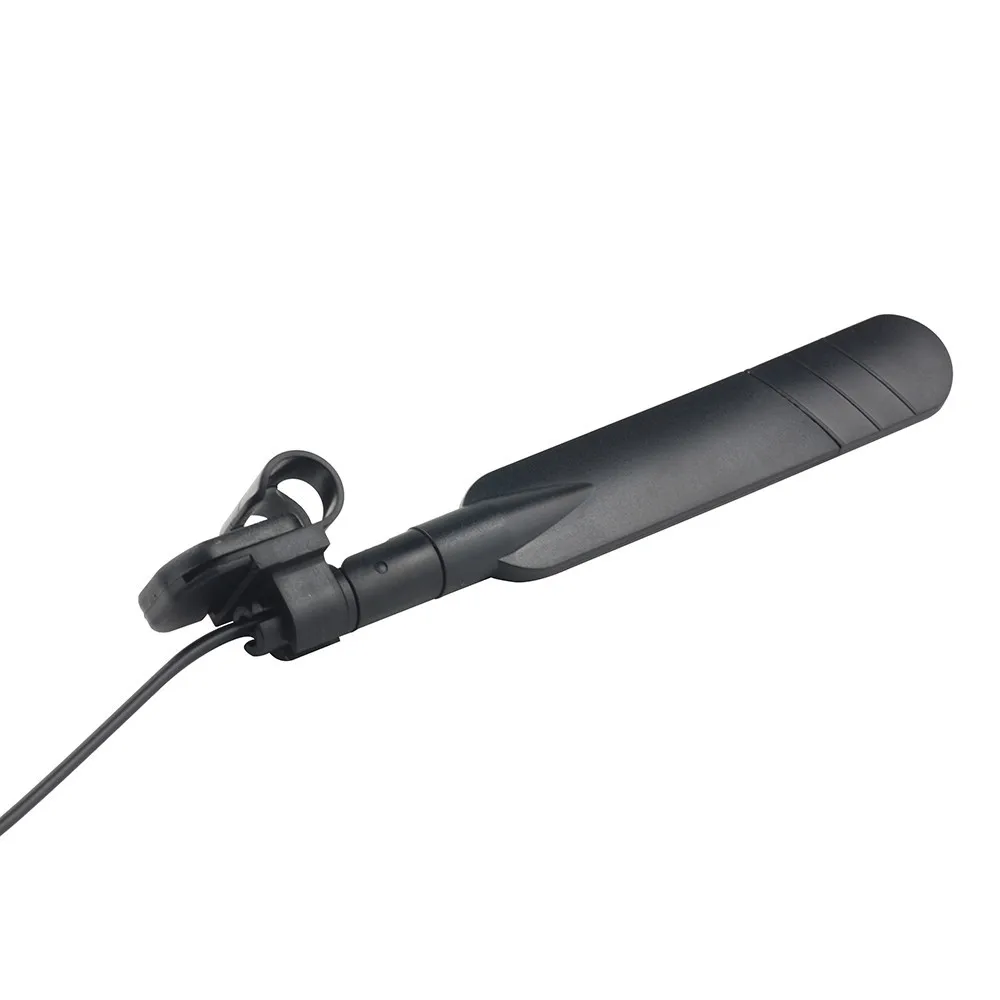

Superbat 3G Clip Antenna TS-9 Male Right Angle Connecor 5dbi Aerial for Sierra Wireless USB 301 302 305 Mobile Phone Laptop Signal Booster

Description :

High speed internet is essential in today's world. Low signal strength causes considerable reduction in data rate. For the mobile user, finding a good signal often becomes a challenge. The gain and elevation of the antenna can make all the difference. An external antenna can provide a fantastic boost to signal strength and transfer speeds. This antenna features a handy clip design to attach unobtrusively to your laptop screen. This 3G mobile broadband antenna is great for improving signal and transfer speeds. This antenna and connector assembly is all you need to get major signal improvements. It features a handy clip design to attach unobtrusively to your laptop screen.

Features:

A Clip On 5DBI 3G Antenna to suit most Huawei modems. This high gain antenna will improve reception of 3G Broadband. Great for travelling or where you are not sure of the location of the mobile phone .Mast,Lap Top Screen Clip - features a handy clip design to attach unobtrusively to your laptop screen Compatibility.

Technical Specification

Frequency Range:850-960/1710-2170MHz

GSM/GPRS/EDGE :850/900/1800/1900MHz

HSUPA/HSDPA/UMTS :2100MHz/900MHz

CDMA :1900 MHz

Antenna length:17cm

Cable length:50cm, RG174

Boosts antenna strength up to5 dBi
Enhance and maintain excellent signal quality
Clip mount allows you to easily attach and remove to back or side of laptop lid/screen
Usable indoor or outdoors
Quick, simple installation, no software required

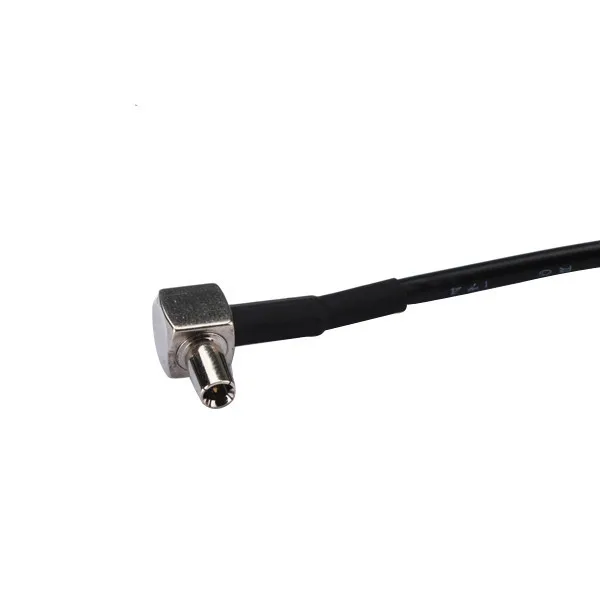

Antenna connector:TS-9 Male right angleas default, SMA/SSMB/TS9/MS147/MCX/MMCX/MC-Card FME/BNC/TNC/SMB..and so on.,please give us notes if the connector is chose !
For Example,
CRC9 connector/ adapter for HUAWEI USB Modems
SSMB-jack connector for huawei E800 E870
SSMB-jack connector for Sierra Wireless AirCard
MC-LUCENT connector for Option Wireless
MCX male for Ericcson W30/W35 data router
MMCX male for Ericsson MC95/MC99/RLMC352
SMA male for Ericsson W21/W25

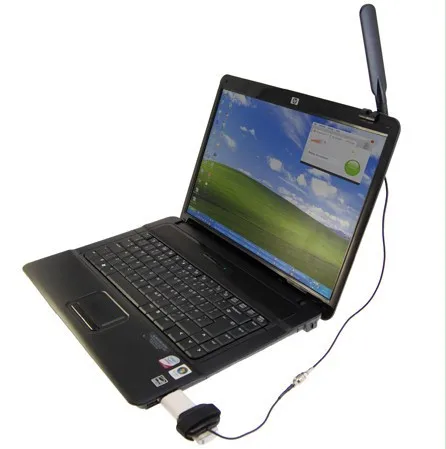

Application image

Instructions:

Power off wireless device
Plug connector into antenna port on wireless device
Power on wireless device
For best performance place antenna as close to exterior window as possible

Installation Tips:

Antenna should be mounted vertically to maximize performance
