MiniTree Fanless NUC Computer Pentium 5405u 6405u J4125 DDR4 Barebone Mini PC 2*Lan HD VGA Wifi 6*USB Students Home Use

(No reviews yet) Write a Review
  • MiniTree Fanless NUC Computer Pentium 5405u 6405u J4125 DDR4 Barebone Mini PC 2*Lan HD VGA Wifi 6*USB Students Home Use
  • MiniTree Fanless NUC Computer Pentium 5405u 6405u J4125 DDR4 Barebone Mini PC 2*Lan HD VGA Wifi 6*USB Students Home Use
  • MiniTree Fanless NUC Computer Pentium 5405u 6405u J4125 DDR4 Barebone Mini PC 2*Lan HD VGA Wifi 6*USB Students Home Use
  • MiniTree Fanless NUC Computer Pentium 5405u 6405u J4125 DDR4 Barebone Mini PC 2*Lan HD VGA Wifi 6*USB Students Home Use
  • MiniTree Fanless NUC Computer Pentium 5405u 6405u J4125 DDR4 Barebone Mini PC 2*Lan HD VGA Wifi 6*USB Students Home Use
  • MiniTree Fanless NUC Computer Pentium 5405u 6405u J4125 DDR4 Barebone Mini PC 2*Lan HD VGA Wifi 6*USB Students Home Use
$148.06 - $240.57

Description

This mini pc motherboard can install 4 types of processors:

1 Intel Pentium Gold 6405U 2.4 GHz 2 Core 2 Threads 2MB Cache TDP 15W Intel HD Graphics

2.Intel Pentium Gold 5405U Dual Cores Four Threads 2.3GHz 2MB cache TDP 15W Intel® UHD Graphics 610.

3.Intel Celeron J4125 Quad Cores Four Threads 2.0GHz Max 2.7GHz TDP 10W 4MB Cache,Intel® UHD Graphics 600

Notice:

1.We have an Official Fedex Express IP account which picks up the package that day and you will receive it about 3-7 days.


2.If you need to install Windows11, please note in the order. We will install OEM Cracked Windows 11 for you for free.Without remarks, we will install OEM Cracked Windows 10 by default.


3.Barebone Mini PC ("NO RAM SSD NO WIFI" bundle) package.DO NOT include RAM SSD HDD and WiFi(antennas), if you need WIFI, please pay extra US $6 at this link. Other bundles include WiFi(antennas).


4.DO NOT buy Barebone Mini PC ("No Ram SSD No WiFi" bundle)if you don’t know how to install the system.We can’t pre-install the system for you without a hard disk.

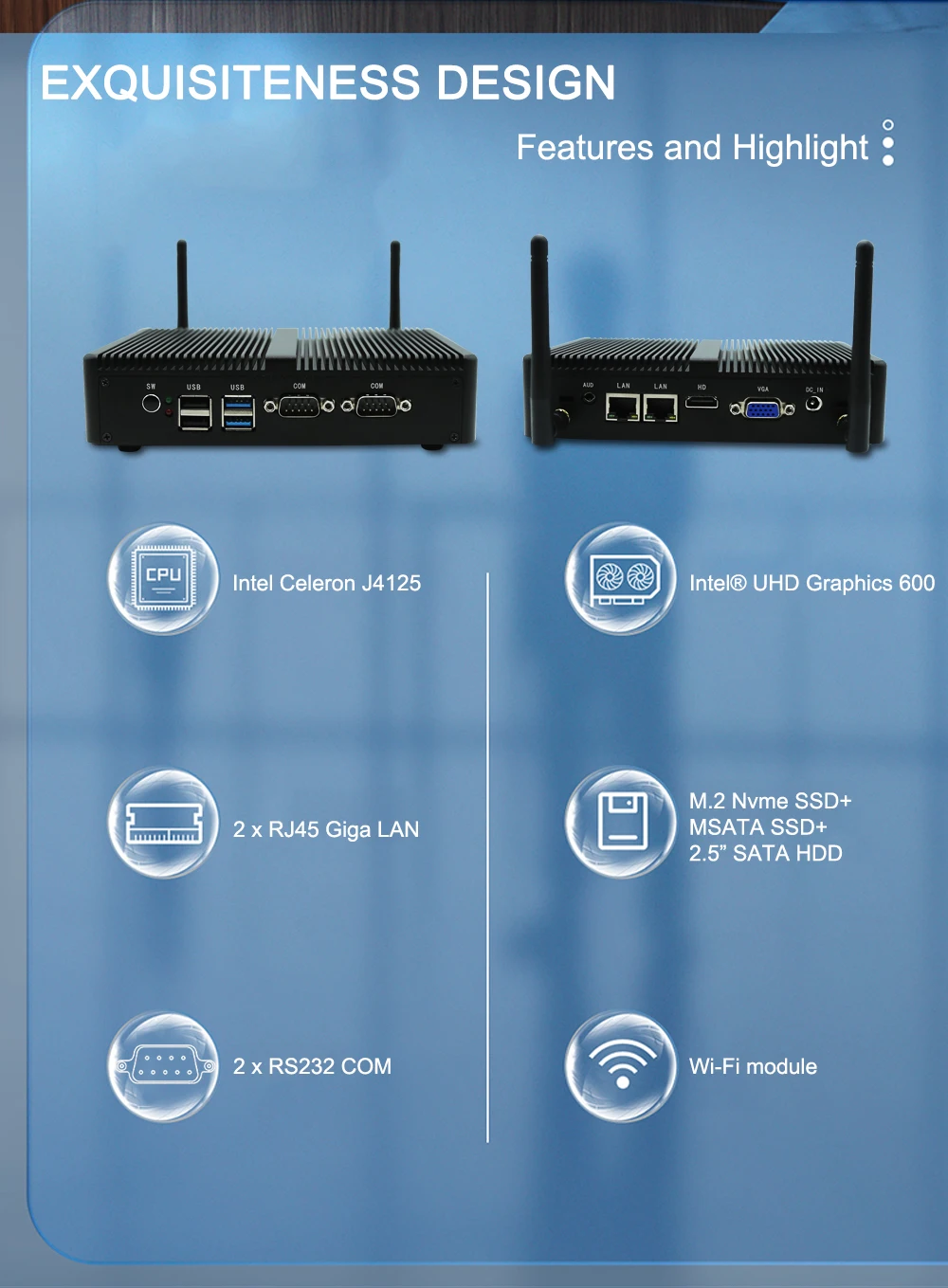

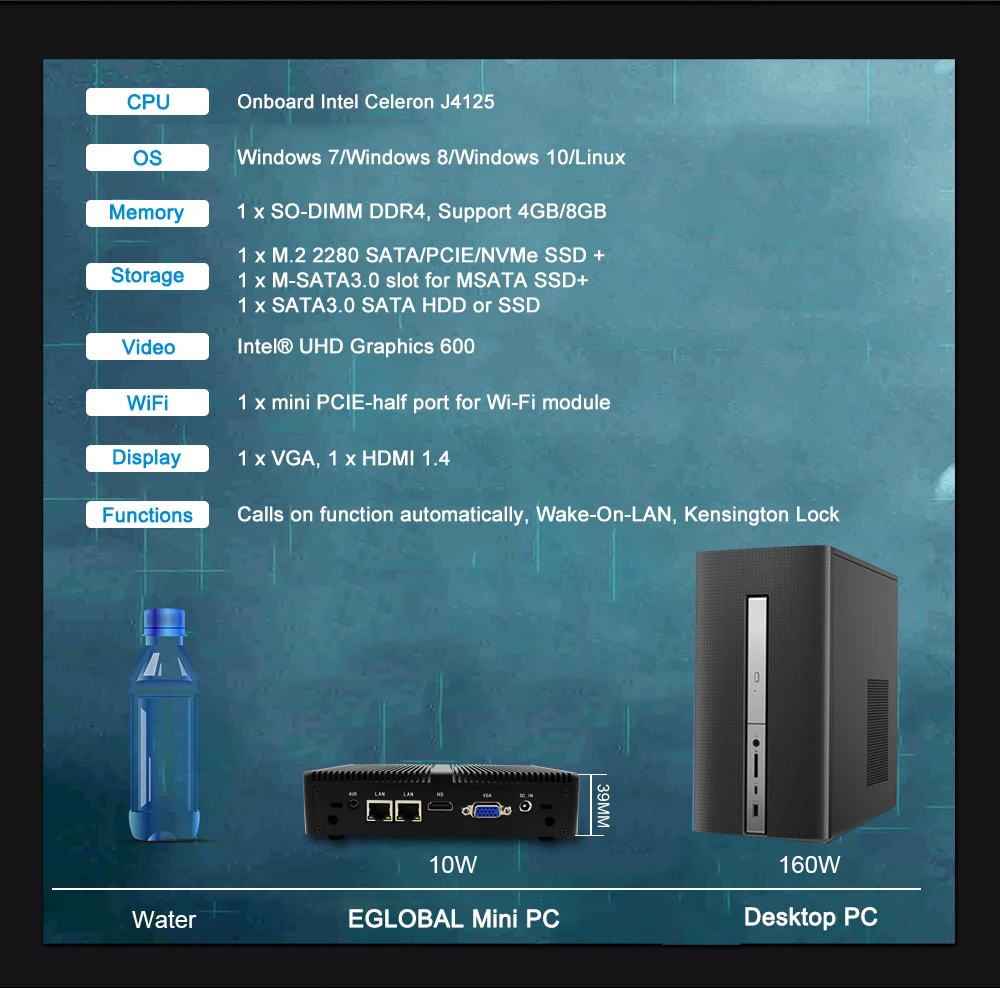

Model :M3-J4125

Onboard CPU

Onboard 14nm Gemini Lake Intel Celeron J4125 2.0GHz Quad Cores Four Threads Max 2.7GHz(Turbo boost Technology) TDP 10W 4MB Cache Intel® UHD Graphics 600.

Motherboard

Intel Gemini Lake

Memory Types

DDR4 2133MHz Non-ECC laptop memory, support max 32GB

Hard Disk

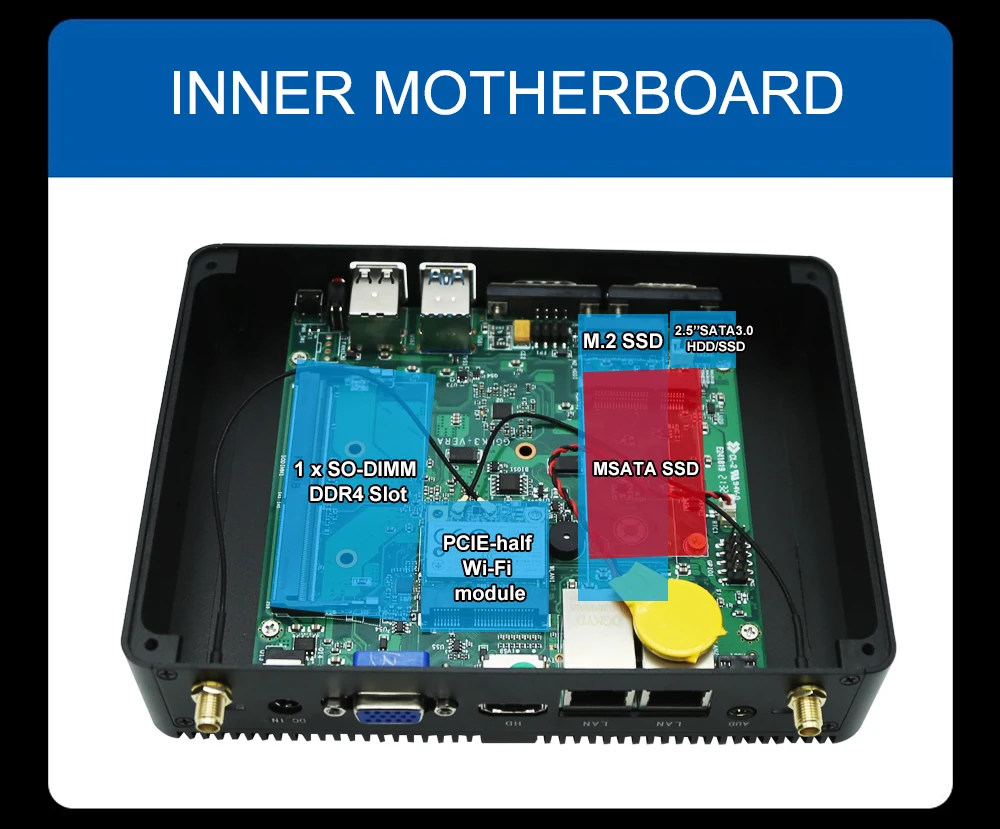

Support Intstall 1 * mSATA SSD, 1 * M.2 SSD, 1 * 2.5 inch SATA HDD / SSD

Integrated Graphics

Intel UHD Graphics 600

BIOS

American Megatrends

Network Card

2 x Realtek RTL 8168/8111/8112 1000 BaseT LAN (Gigabit Ethernet Controller)

Audio Card

Intel High Defifinition Audio Controller

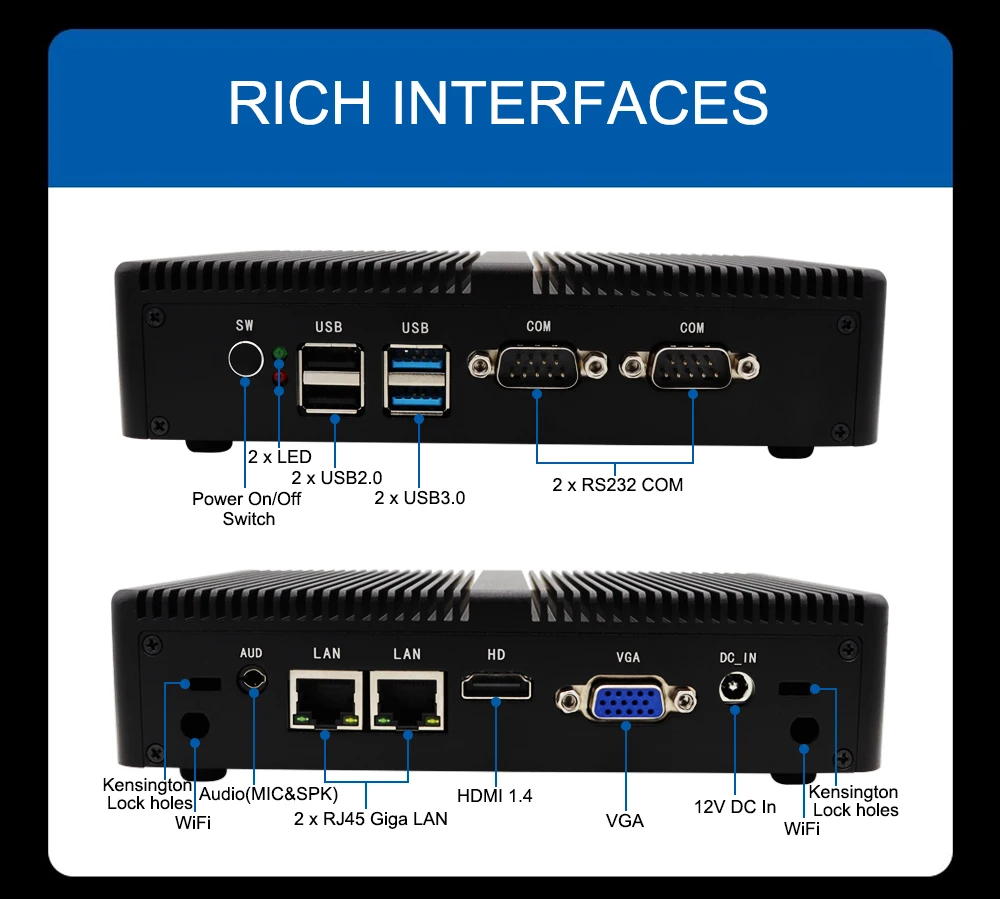

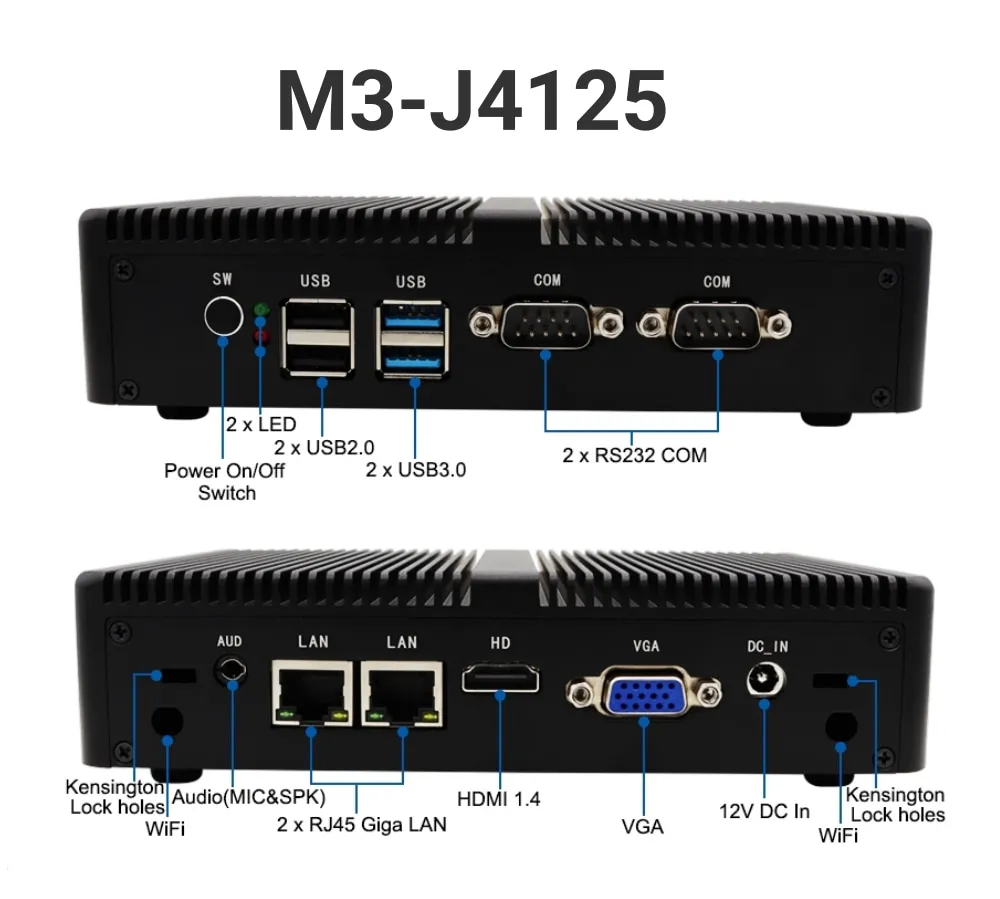

I/O Ports

• Power ON/OFF

• HDD LED+PW LED

•2 x USB 3.0

•2 x USB 2.0

• 1 × DC IN

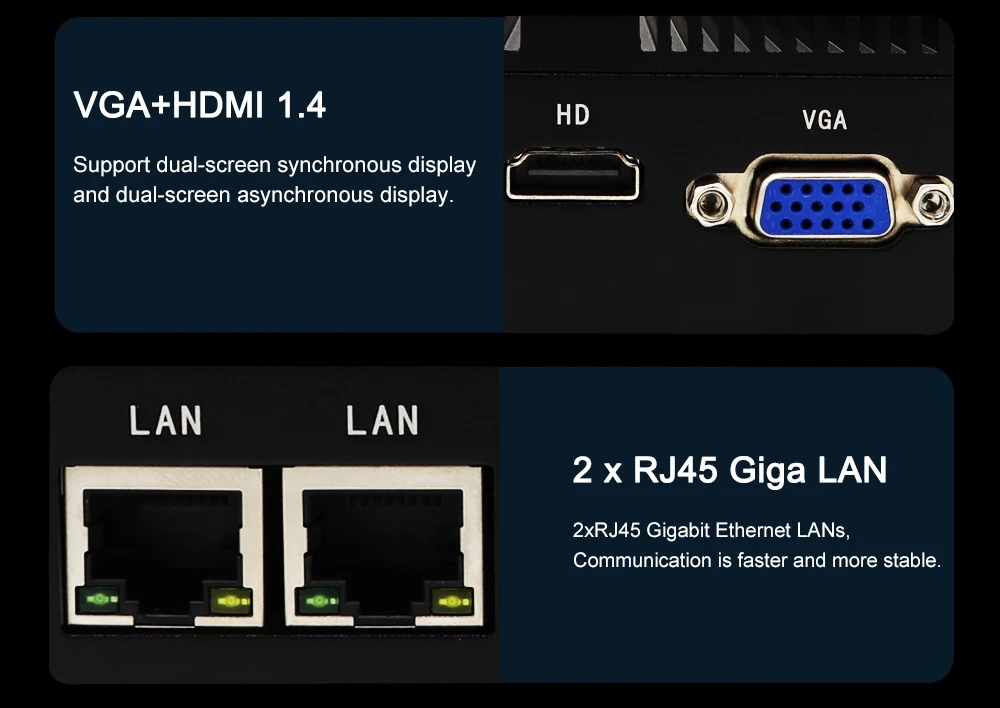

• 1 × HDMI

• 1 × VGA

• 2 × LAN (RJ-45 Ports 10/100/1000 Mbps Adaptive)

• 1 × Audio(MIC&SPK)

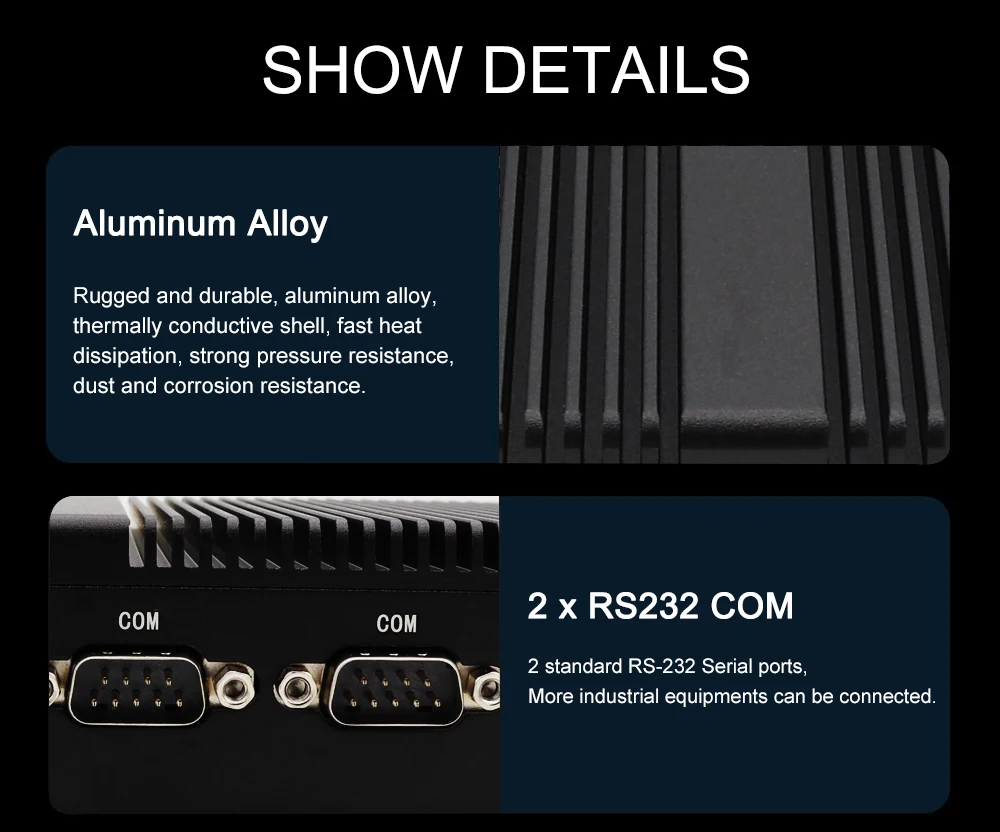

• 2 x RS232 COM

• 2 x WIFI antennas ports

Operating System

Support Windows 7/8/10, Linux, etc

RAM Capacity

4GB / 8GB / 16GB / 32GB DDR4

SDD/HHD Capacity

32G/64G/128G/256G/512G/1TB mSATA/m.2 SSD
500G/1TB/2TB 2.5" HDD/SSD

WiFi

With dual external antennas, 2.4G/5G dual-band,802.11 b/g/n

Other port

2 x Kensington Lock holes

Power Consumption

TDP 10W

Case Color

Black

Power

Input: 100-240V AC/50-60Hz
Output: DC 12V~19V, recommend 12V/5A

Storage Temperature

-20/+85℃

Operating Temperature

0℃/+70℃

Relative Humidity

0%~90% (non-condensing)

Dimension

173*127*39MM

Weight

Net 0.8kg, Gross 1.2kg

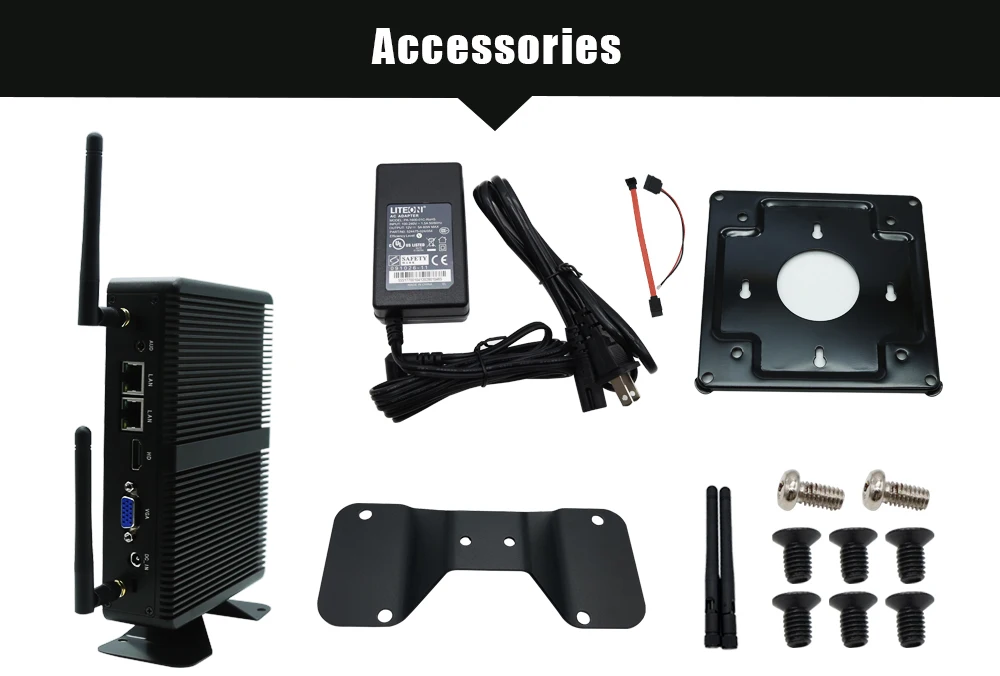

Package Content

1x Mini PC

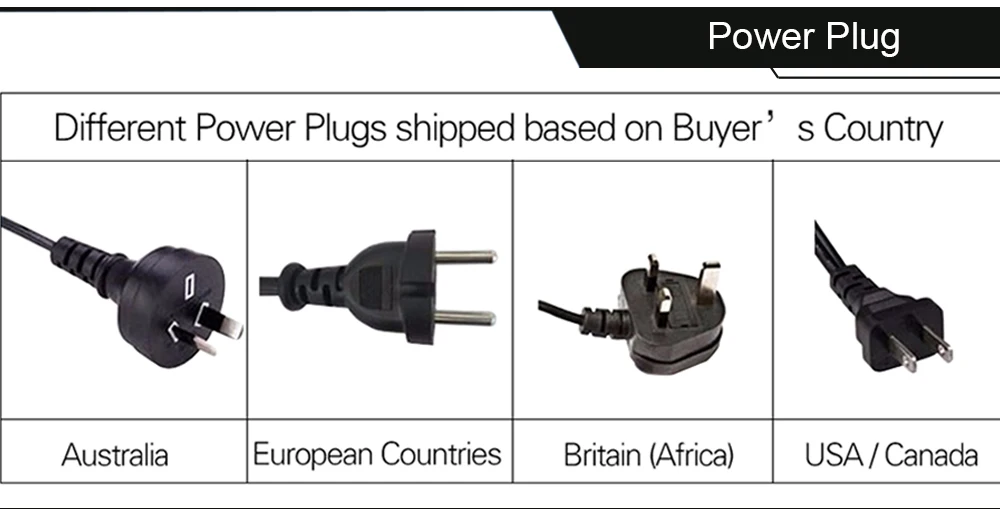

1x Power Adapter (Correct plug shipped based on buyer's country
1x WiFi Module( if you buy "No Ram No HD No Wifi" package come no with WiFi dual antennas

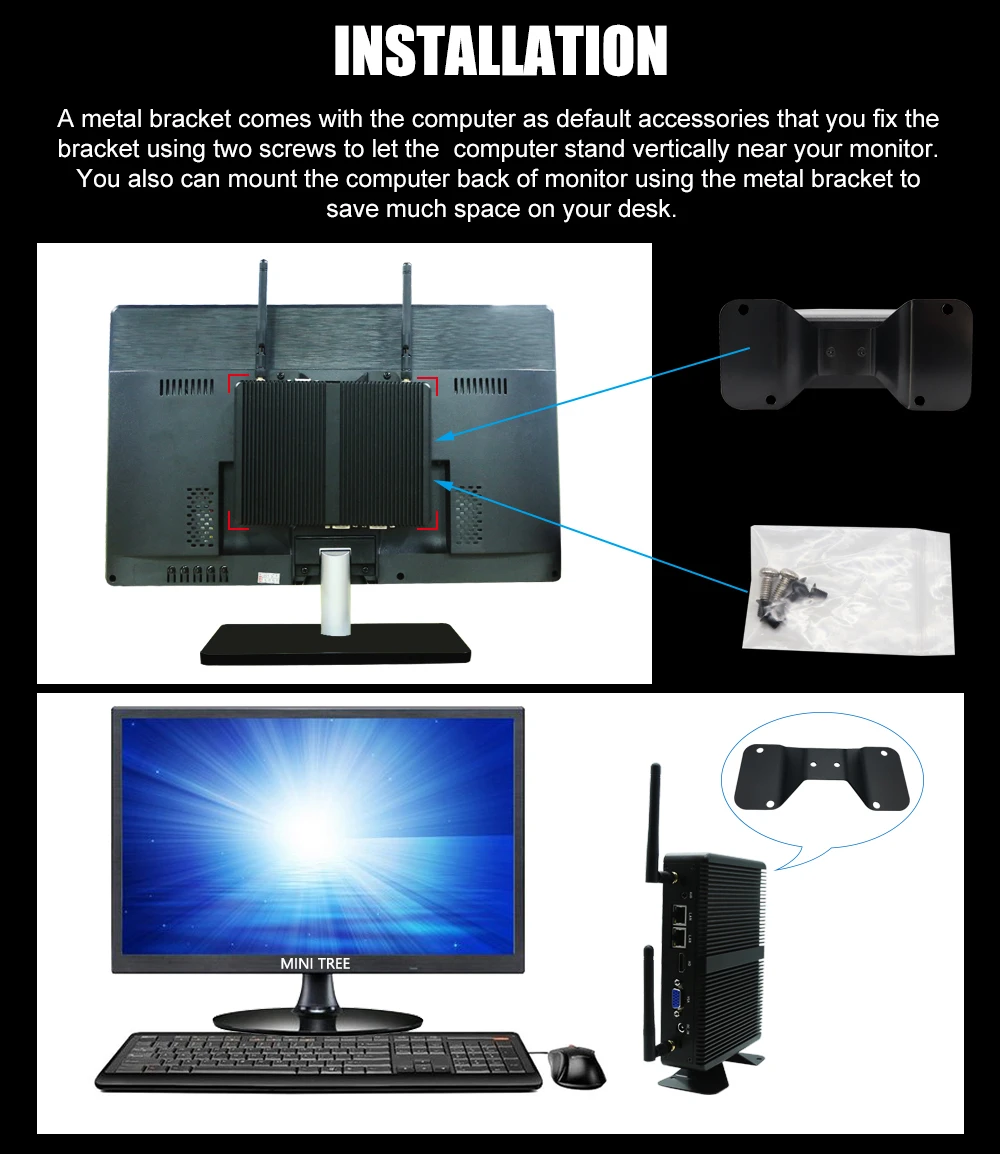

1x Stand&Mount bracket

1x SATA cables

M3-5405U /6405U

CPU

Quad Core 5405u /6405u

L3 Cache

3MB Cache, CPU Integrated

BOIS

AMI BIOS, ACPI supported

Support calls on function automatically

Support Wake-On-LAN

Chipset

Intel SHARKBAY

Memory

1* SO-DIMM DDR4 Slot

Support4GB/8GB/16GB

Storage

SSD: 32G/64G/128G/256G/512G/1TB

HDD: 160G/320G/500G/1TB

Operating System

Windows 10/Linux

Audio

ALC662 sound chip, 6-channel

Intel Panther Point HDA

Network

Onboard Realtek RTL8168E PCI-E Gigabit Ethernet NIC

10/100Mbps/1000Mbps BaseT LAN

Video

Intel UHD Graphics

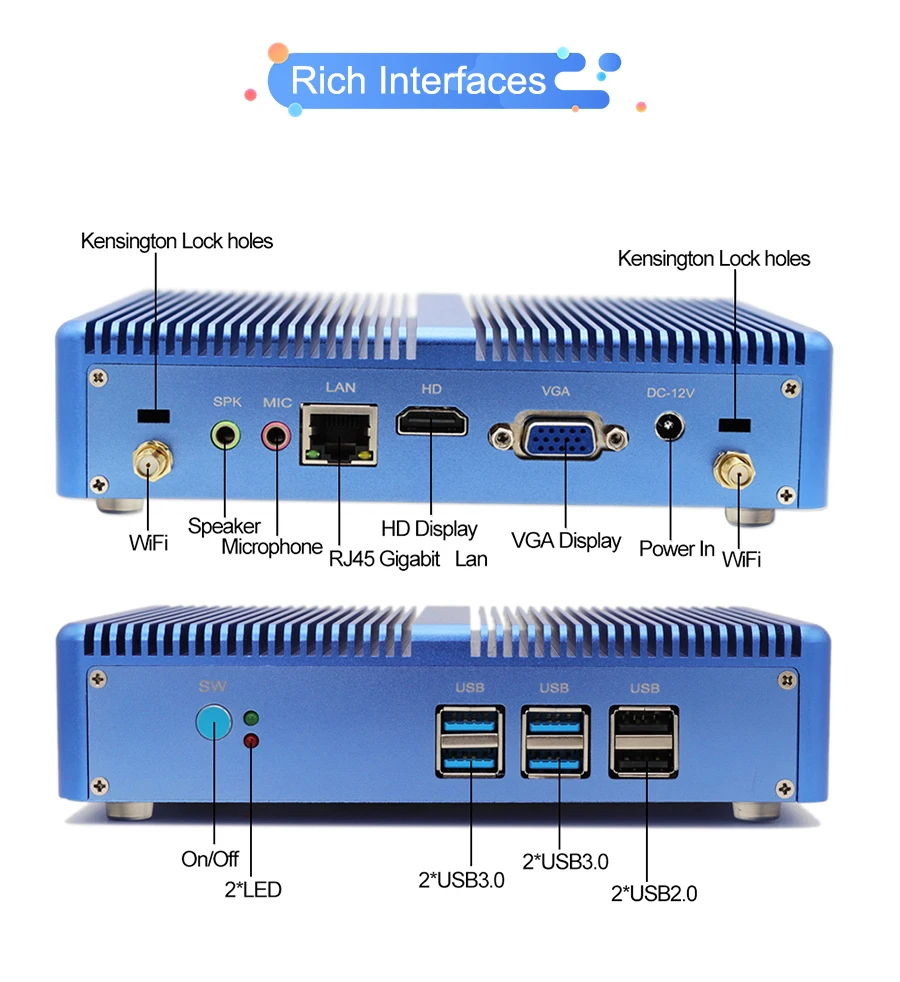

I/O port

front panel ports

2*USB2.0, 4*USB3.0, 1* Power indicator and switch

Backside ports

1*HDMI, 1*VGA, 1*LAN, 1*MIC, 1*SPK, 2*WiFi antennas

Internal ports

1*M-SATA3.0 port, support 6Gb/s

1*SATA3.0 port, support 6Gb/s

1*mini-PCIE port(WIFI&Bluetooth)

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC 12V~19V/5A

Operating Temperature

0/70 Centigrade(32F~140F)

Storage Temperature

-20/+85 Centigrade

Relative Humidity

0%~90% (non-condensing)

Energy-saving

Support Energy-saving technology, Speedstep

64 bit computing

Support 64 bit computing

Virtualization

Intel VT-x

Hyper-threading

Support Hyper-Threading

Product Dimension & Details

Size

173*127*39MM

Net Weight(Gross weight of the package)

1.0KG(1.5KG)

Consumption

15W

Shell

Silver.Blue,Black color aluminum alloy

Package Content

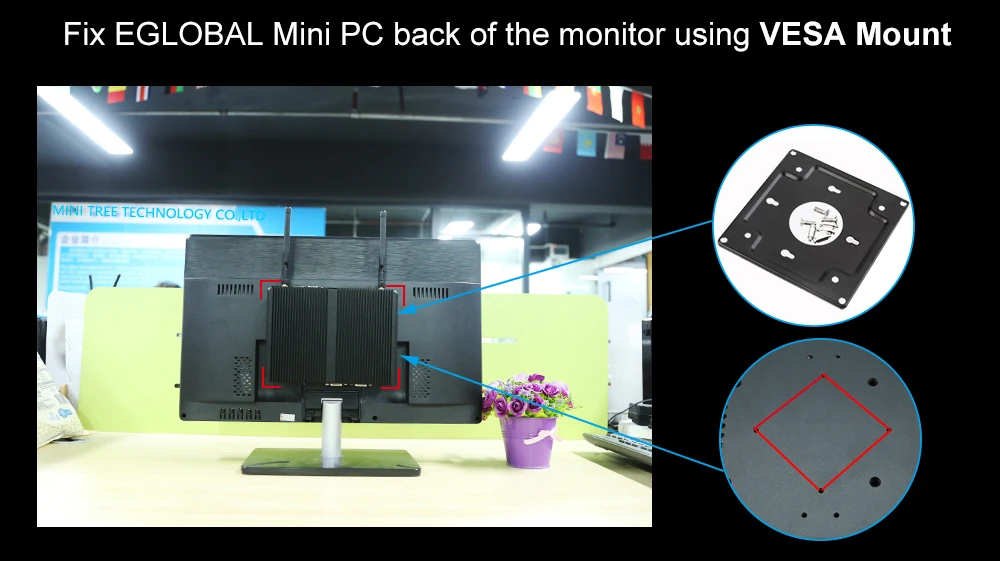

Mini PC device, power adapter, a VESA mount, dual WiFi antennas, a HDMI cable( as a gift), a Screw Bag, Warranty Card

M3-5405U /6405U
If you need to upgrade your Mini PC accessories:

1.USB Infrared remote(can turn power off but not on) add extra cost US $6.

2.USB 2.4GHz Air Keyboard& Mouse, add extra cost $25.

3.500GB 2.5'' HDD add extra $25,1TB 2.5'' HDD add extra $60,2TB 2.5'' HDD add extra $80

4.Intel AX200 WiFi6 Bluetooth5.1card add extra $30.

Uprading link:https://pt.aliexpress.com/item/1005002563622846.html?spm=5261.ProductManageOnline.0.0.15744edfI1hNum

(How many dollars to upgrade, pay how many pieces, US$1=1pcs, For example, upgrade USB IR remote, pay 5pcs for US$5,remember to leave a message indicating which one to upgrade)




1. Before you receives the goods, we go through three strict quality inspections, assembly testing, warehousing quality testing, and factory quality testing.


2.Mini Tree all computer provide 3 years warranty ,within 1 year warranty period,repair or replace for free; the second year and the third year, we can repair it, but we will charge for the parts that need to change.Excluding damage caused by intentional damage, accidents, product misuse, or any unauthorized personnel attempting to repair or upgrade. Please provide us with a video proof, and we will provide a replacement after confirming the problem.


For Operating System:

We can pre-installed well the OEM Windows 10 OS for you before shipment, if you order the Mini PC bundle with RAM and SSD, please kindly leave us message which OS you want to install. English version is for free, other languages can be selected amount Russian, Spanish, Portuguese, French, German, Arabic, Italian, Japanese, Turkish, Greek etc, Please inform us which language you want to install. Other systems we can install for free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need, seller is not responsible and make no compensation for OEM system.

For RAM and hard drives, we use well-known brands: samsung, micron, SanDisk, toshiba, hynix, critical, liteon, kingfast, phison, longsys, SCY, etc. What brand we use depends on our testing and inventory.


About RAM and hard disk storage space:

The actual available storage space may have some difference from the marked capacity. The reason we can explain is that the software configuration will take up part of the storage space.
