Description

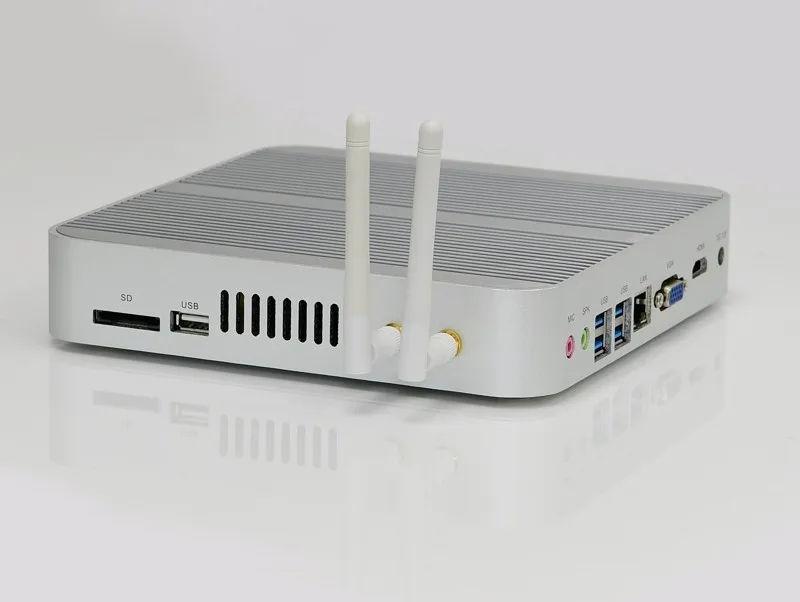

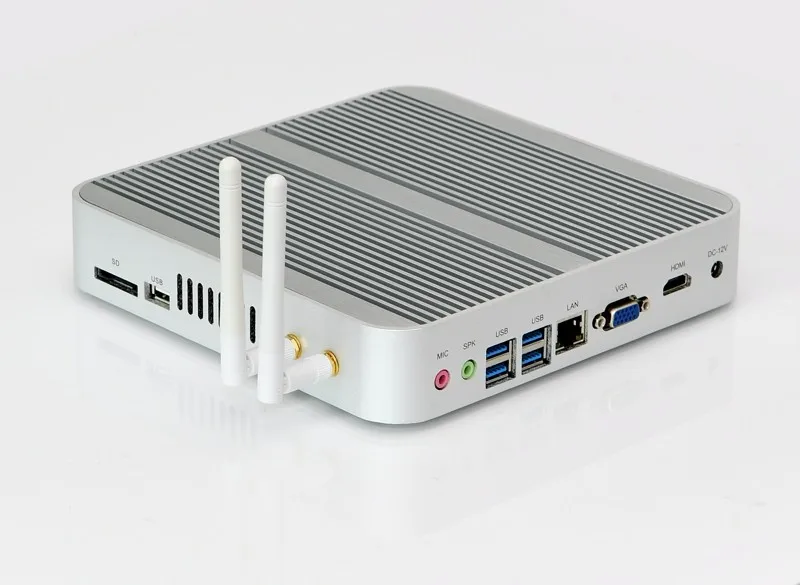

Fanless Intel Skylake Mini PC 6Gen Intel Core i3 6100U Barebone Intel HD Graphics 520 4K HDMI VGA USB3.0 Desktop Computer

Item Description:

Beautiful: Industrial aesthetic design and Reasonable interface layout;
Noiseless: Fanless system, low consumption, 0.00dB noise;
Special: Support 64 bits computing Turbo boost Hyper-Threading Virtualization technology etc, Can install 1pc 2.5'' SSD or HDD and 1pcs MSSD(5CMx3CM) together(welcome to contact our Pre-Sales if you need it) up to 512GB SSD or 1TB HDD large volume;
Stable: Newest Intel Core i3 6100U+Skylake structure+ Intel Graphics 520+Fanless professional passive cooling by alloy case, be able to work 24hours per day;
Slim: Only 37mm body thickness, can stand on desk by free bracket we supply;
Smooth: High-end Intel Graphics HD 520, fight again dedicated Graphics! Support all online games, big 3D games, large-scale mapping software, blu-ray and 4K Ultra HD streams, full 1920*1080 HD resolution, Dual monitor display;
Strong: Work with any brand monitors. Suit for multiple application for example integrate with touch devices, industries, car repair shops, security, education, home as HTPC, business, fanancial and projects;
Low-carbon green: TDP only 15W, very economical, saving a lot energy every year, low consumption but with a very amazing performance.
Certification: CE, FCC & RoHS.

Specification:

General
Processor	Skylake 14nm CPU Intel Core i3 6100U 2 cores 4 threads 2.3GHz 3MB cache TDP 15W HD Graphics 520
Operating System	Windows 10/ Windows 7/ Windows 8/ Linux
Storage	SSD: 8GB/16GB/32GB/64GB/128GB/256GB/520GB
Storage	HDD: 80GB/160GB/320GB/500GB/750GB/1TB
Memory	2GB/4GB/8GB/16GB DDR3L 1.35V Voltage
Memory Type	LPDDR3-1866, DDR3L-1600
Motherboard	Intel Skylake-ULT
Processor details
Processor Number	2 core/ 4 threads
Core code	Skylake
Technique	14nm
L1 data cache	2 * 32 KB, 8-Way, 64 byte lines
L2 code cache	2 * 32 KB, 8-Way, 64 byte lines
L3 cache	3MB, 12-Way, 64 byte lines
Characteristic	MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4, AVX2.0, SSE4.2, HTT…
BIOS	AMI BIOS, ACPI supported, support call on function automatically, Wake-On-LAN
Function	Hyper-Threading, Virtualization technology, 64 bit computing
Graphic Cards	Intel HD Graphics 520
Audio Cards	ALC662 sound chip, 6-channel
Audio Cards	Intel Panther Point HDA
Network card	RTL8168E PCI-E Gigabit Ethernet NIC
Ethernet	10/100/1000 BaseT LAN
WIFI	With dual antenna, 802.11.b/g/n(150M or optional 300M)
I/0 Port

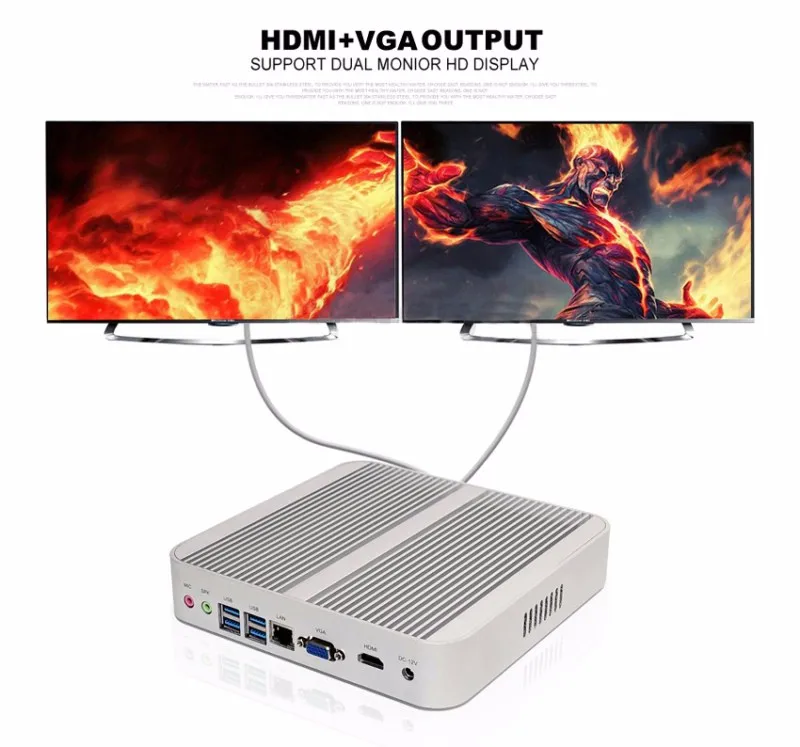

Display port	1* VGA + 1 * HDMI
USB port	4* USB 3.0, 1* USB2.0, 1*SD card reader
SATA port	1 * MSATA3.0, 6Gb/s; 1 * SATA3.0 , 6Gb/s
MINI PCIE	1 * MSATA SSD, 1 * WiFi module
Ethernet port	RJ45 10/100/1000 Mbps Adaptive
Power input port	1 inner diameter 2.5mm,external diameter 5.5mm
Audio port	Standard 3.5 Audio input and output
Power and Working Environment
Input	DC100-240V AC/50-60Hz
Output	DC 12V/3A
Consumption	15W
Noise	Fanless System
Temperature	0-70 Centigrade
Humidity	10%-90%
