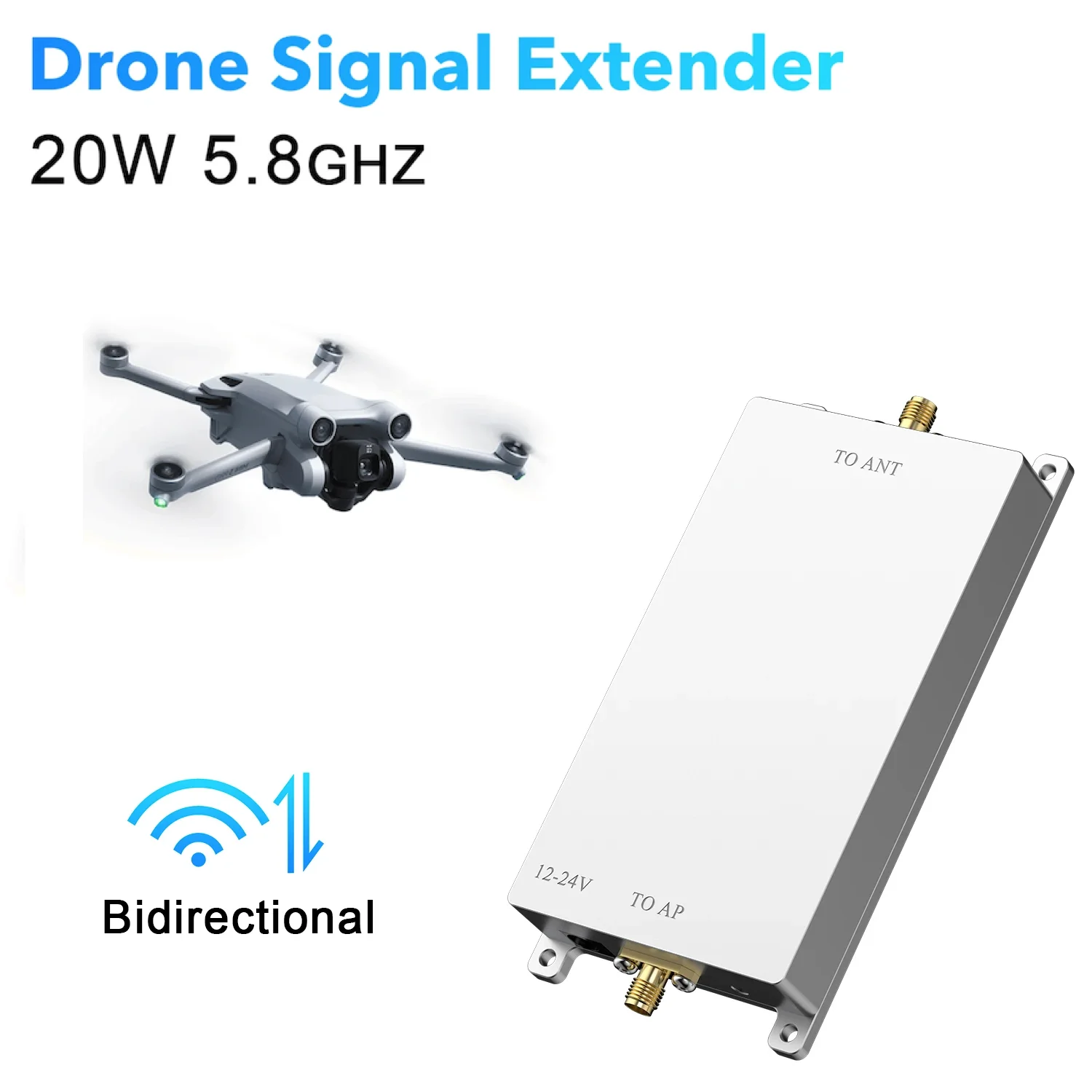

EDUP Bidirection 20W 5.8G WiFi Repeater Dual Gain WiFi Amplifier or 10W Full WiFi Signal Booster Wireless Extender for Drone
Description
For more wifi boosters, please click the pictures below:
Features:
Applications FPV Signal Extender And Drone Signal Extender
60X the power improving the link quality and coverage of certified devices
2.5dB ultra-low noise
Max Output Power(P1dB):40dBm(10W)/ 43dBm(20W)
Aluminum-alloy case by CNC, anti-interference; Designed for FPV Drones, UAV, RC equipment
Simply plug and play, no software is required.
Specifications:
Option 1 EP-AB026
WiFi Signal Booster Model: EP-AB026
Frequency Range: 5150-5850MHz
Operating Voltage: 12-24V
Receiving Gain : 18dB ±1
Transmission Gain : 18dB ±1
Max Output Power(P1dB):40dBm(10W)
Input Trigger Power: Min:3dBm Max:22dBm
EVM:3%@34dBm 802.11g 54Mbps
OFDM 64QAM BW 20MHz
Noise Figure:＜2.5dB
Current Supply：1.7A@Pout 34dBm 12V
Output Power: 40dBm
Current: 1.9A @24V, 40dBm
Efficiency: 45%@40dBm
TX/RX Switch Time Delay:＜1 us
LED State: Transmitter :Red; Receiver:Green
Operating Temperature: -30℃～70℃
Storage Temperature: -40℃～150℃
Operating Humidity: ＜95%RH
RF Connector: Input: SMA-K; Output: SMA-K
Power Socket: 5.5*2.1mm
Shell Material: Aluminum
The Option 2 EP-AB043

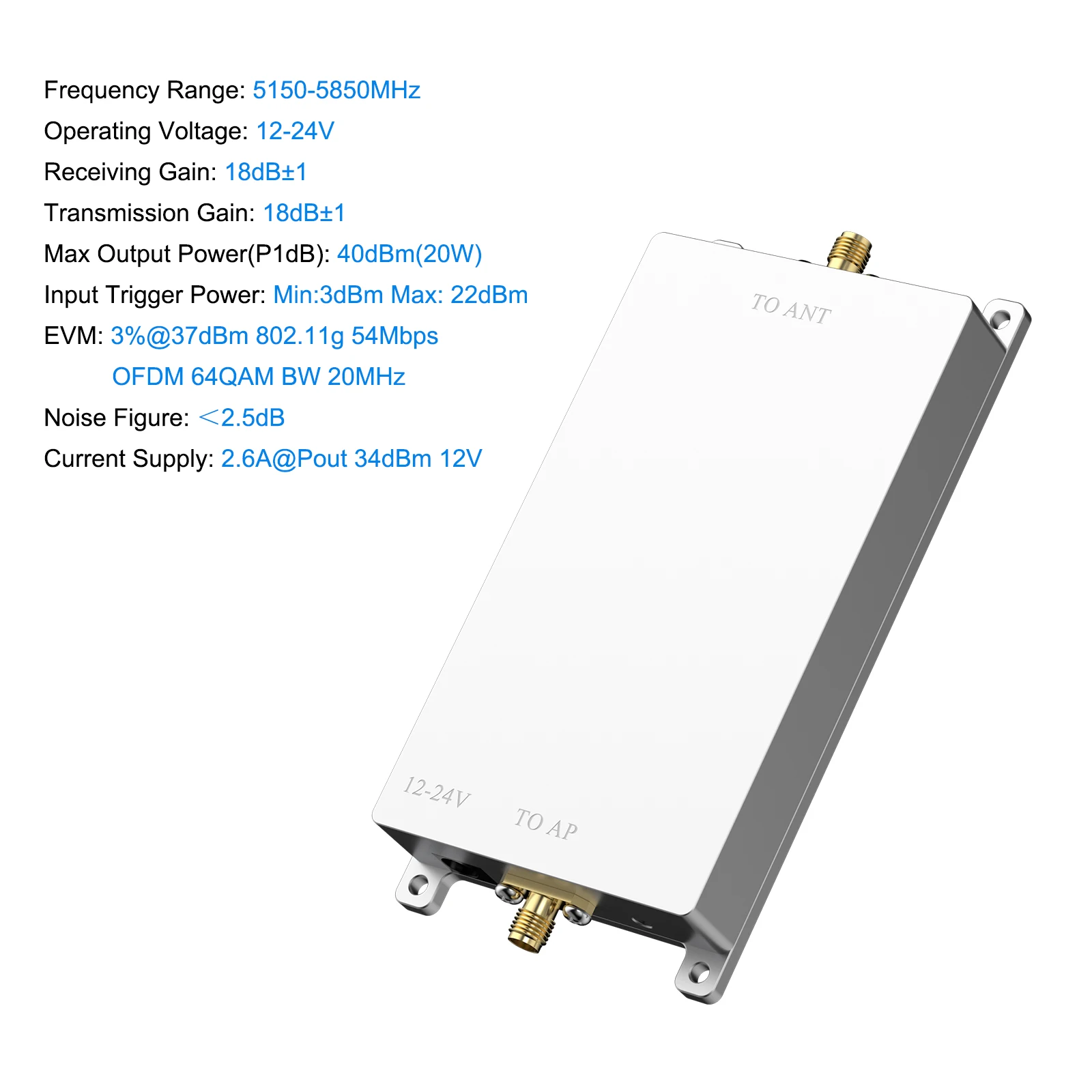

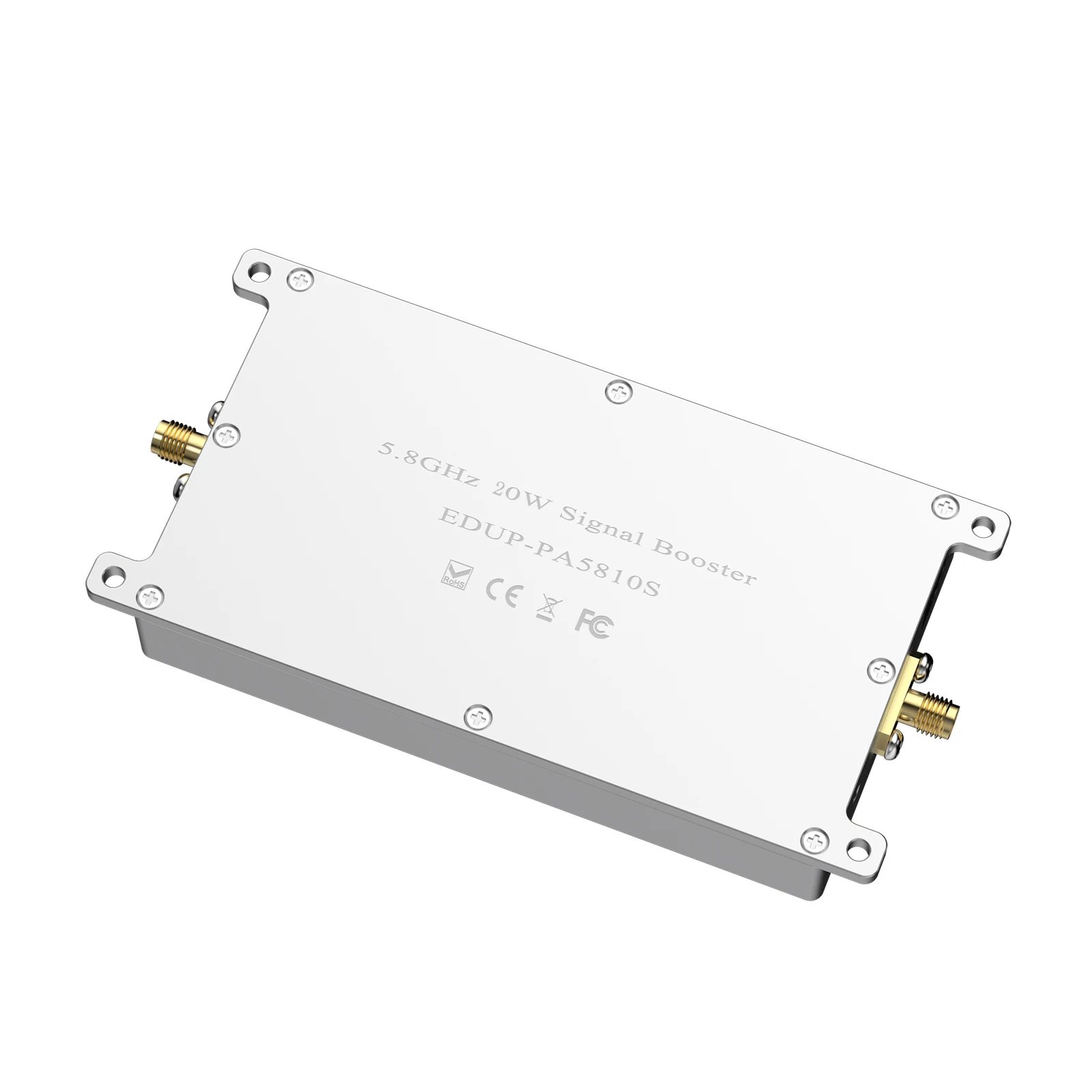

WiFi Signal Booster Model: EP-AB043
Frequency Range: 5150-5850MHz
Operating Voltage: 12-24V
Receiving Gain : 18dB ±1
Transmission Gain : 18dB ±1
Max Output Power(P1dB):43dBm(20W)
Input Trigger Power: Min:3dBm Max:22dBm
EVM:3%@34dBm 802.11g 54Mbps
OFDM 64QAM BW 20MHz
Noise Figure:＜2.5dB
Current Supply：2.6A@Pout 37dBm 12V
TX/RX Switch Time Delay:＜1 us
LED State: Transmitter :Red; Receiver:Green
Operating Temperature: -30℃～70℃
Storage Temperature: -40℃～+150℃
Operating Humidity: ＜95%RH
RF Connector: Input: SMA-K; Output: SMA-K
Power Socket: 5.5*2.1mm
Shell Material: Aluminum
Shell Size:104*60*17mm
Net Weight: 0.27Kg
FPV Signal Extender Drone Signal Extender
Router Wireless Extender router wifi Repeater
AP Signal Booster WiFi network card adapter signal amplification WiFi Amplifier
Package included:
1 x WiFi Amplifier AB026 or AB043 (you can choose the one you need )
