DC12V 1000KG Electric Drop Door Lock Magnetic Induction Gate Entry Access Control Magnetic Gate Lock 0s/3s/6s delay Function

DC12V 1000KG Electric Drop Door Lock Magnetic Induction Gate Entry Access Control

Features:

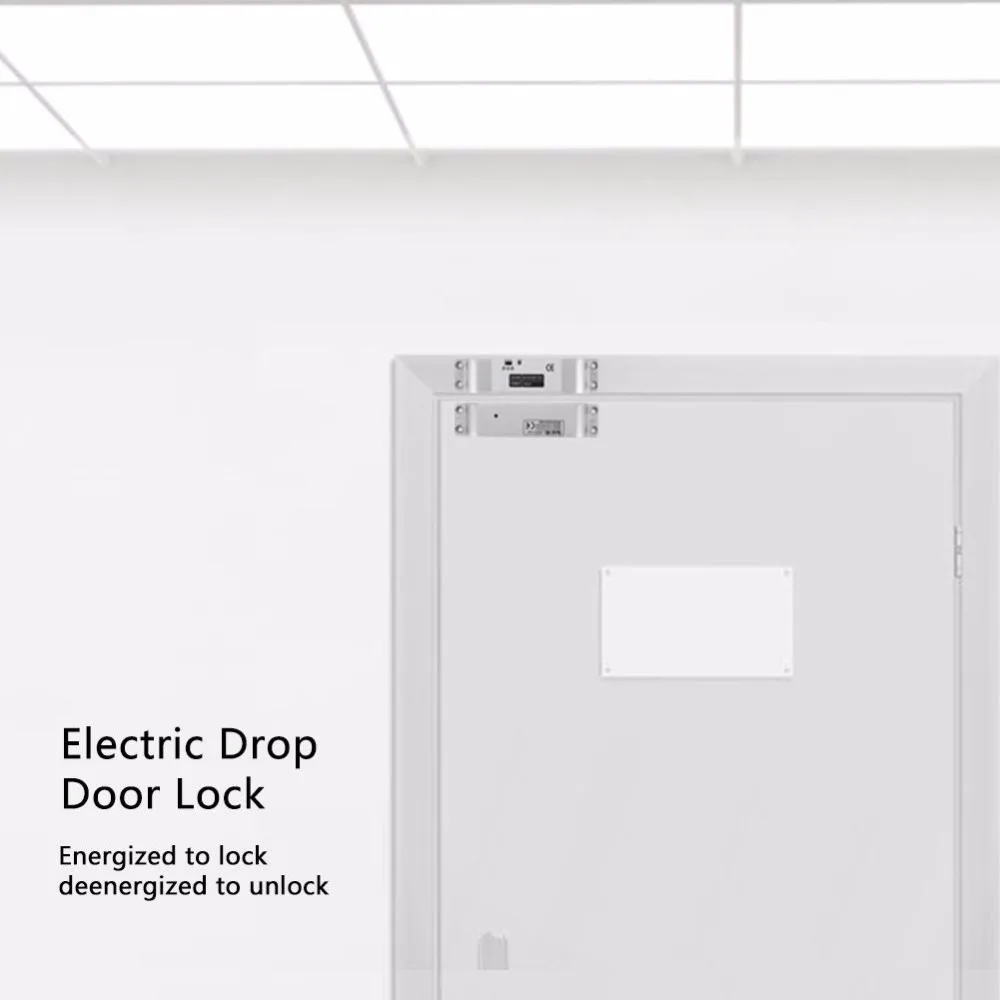

1. Energized to lock, deenergized to unlock.

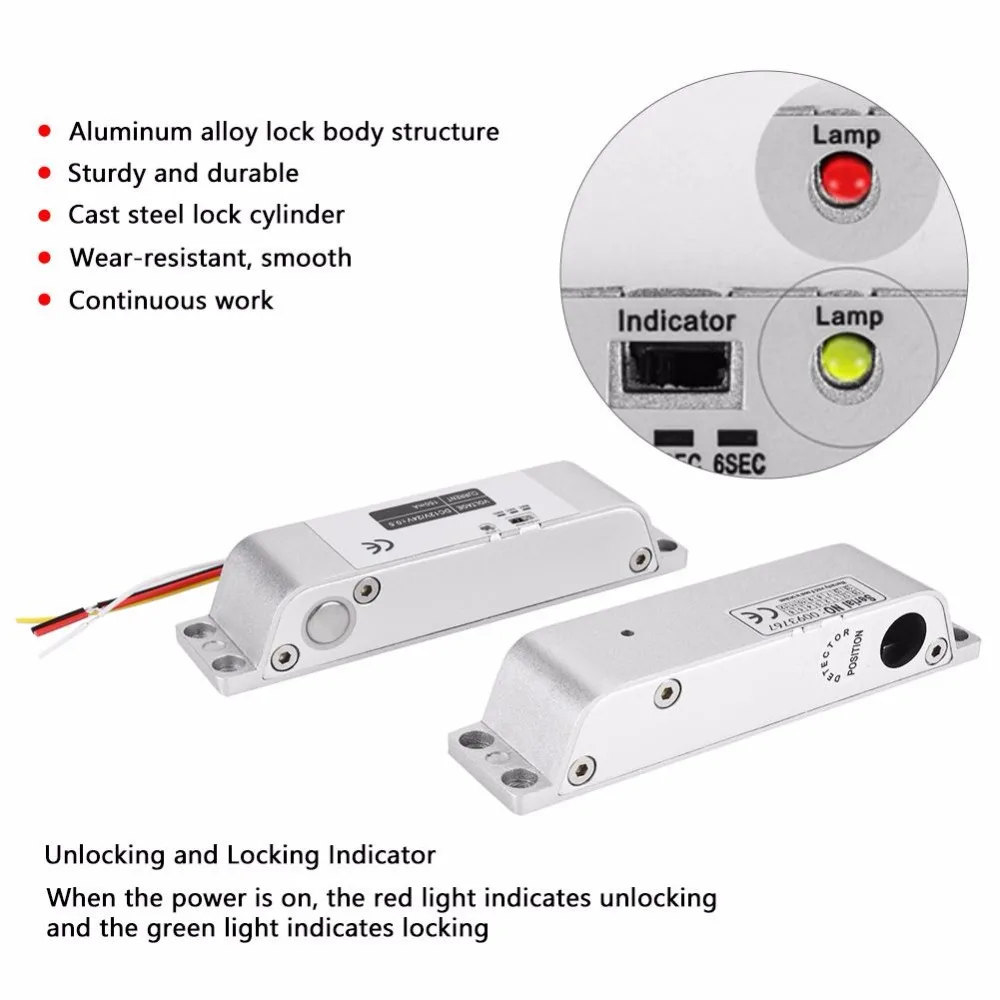

2. Aluminum alloy lock body structure, sturdy and durable.

3. Cast steel lock cylinder, wear-resistant, smooth, keeps continuous work.

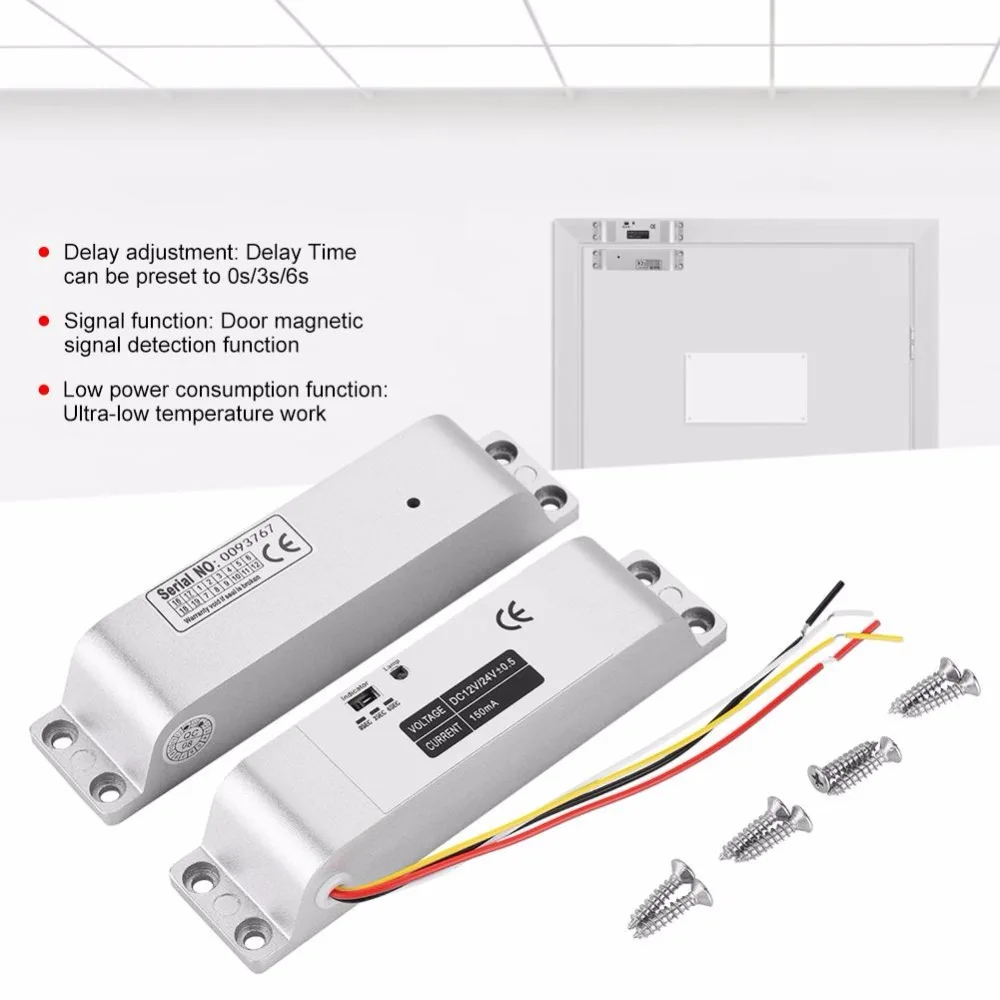

4. Delay adjustment: Delay Time can be preset to 0s/3s/6s.

5. Unlocking and locking indicator: When the power is on, the red light indicates unlocking and the green light indicates locking.

6. Signal function: Door magnetic signal detection function.

7. Low power consumption function: Ultra-low temperature work.

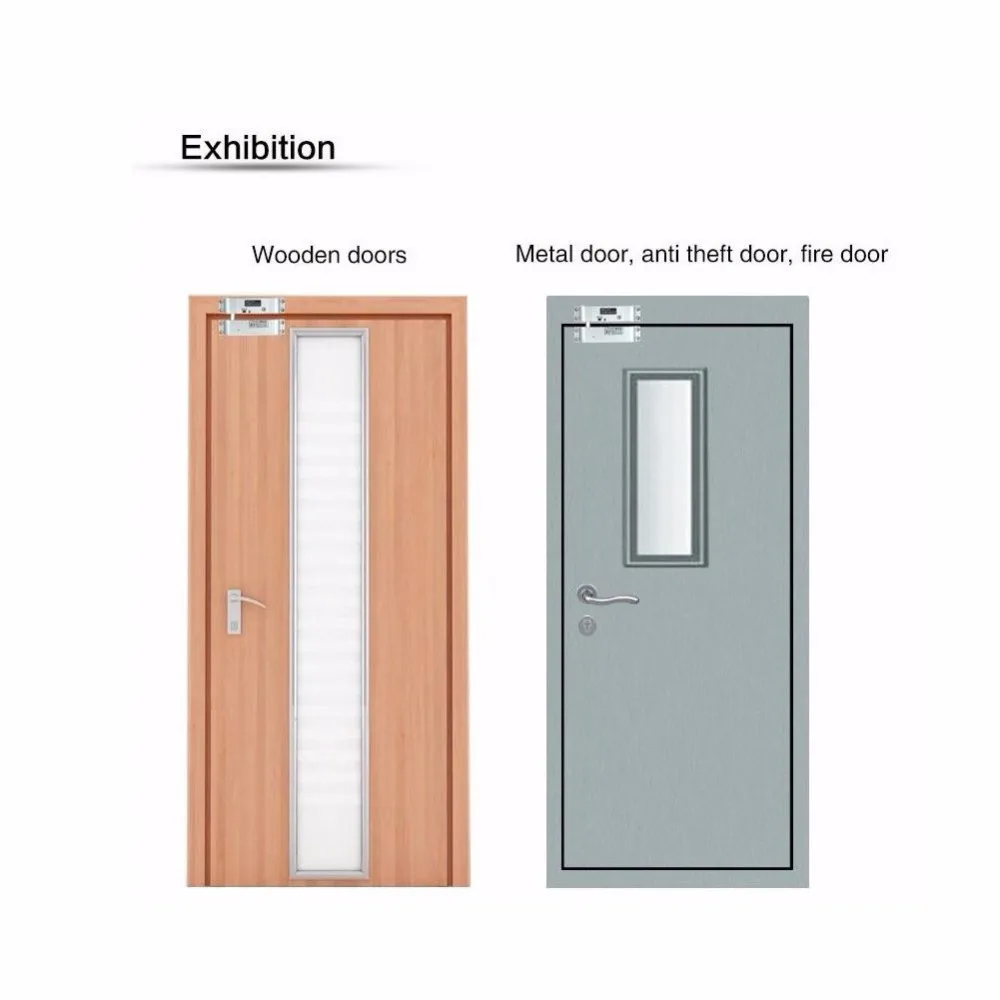

8. Applicable door type: glass doors, wooden doors, metal doors, security doors, fire doors.

Specification:
Condition: Brand New
Material: Metal
Color: Shown as picture
Input Voltage: DC 12V
Working Current: 150mA
Starting Current: 1.2A
Holding Force: 1000KG
Delay Function: 0s/3s/6s delay
Lock Cylinder Size: 12.5mm diameter, 15mm extension length
Lock Body Size: Approx.150*34*28mm/5.9*1.3*1.1in
Package Weight: Approx.515g/18.2oz

Package List:
1 * Electric Drop Door Lock
1 * Panel Cover
1 * Screw Bag
1 * User Manual
