AD208

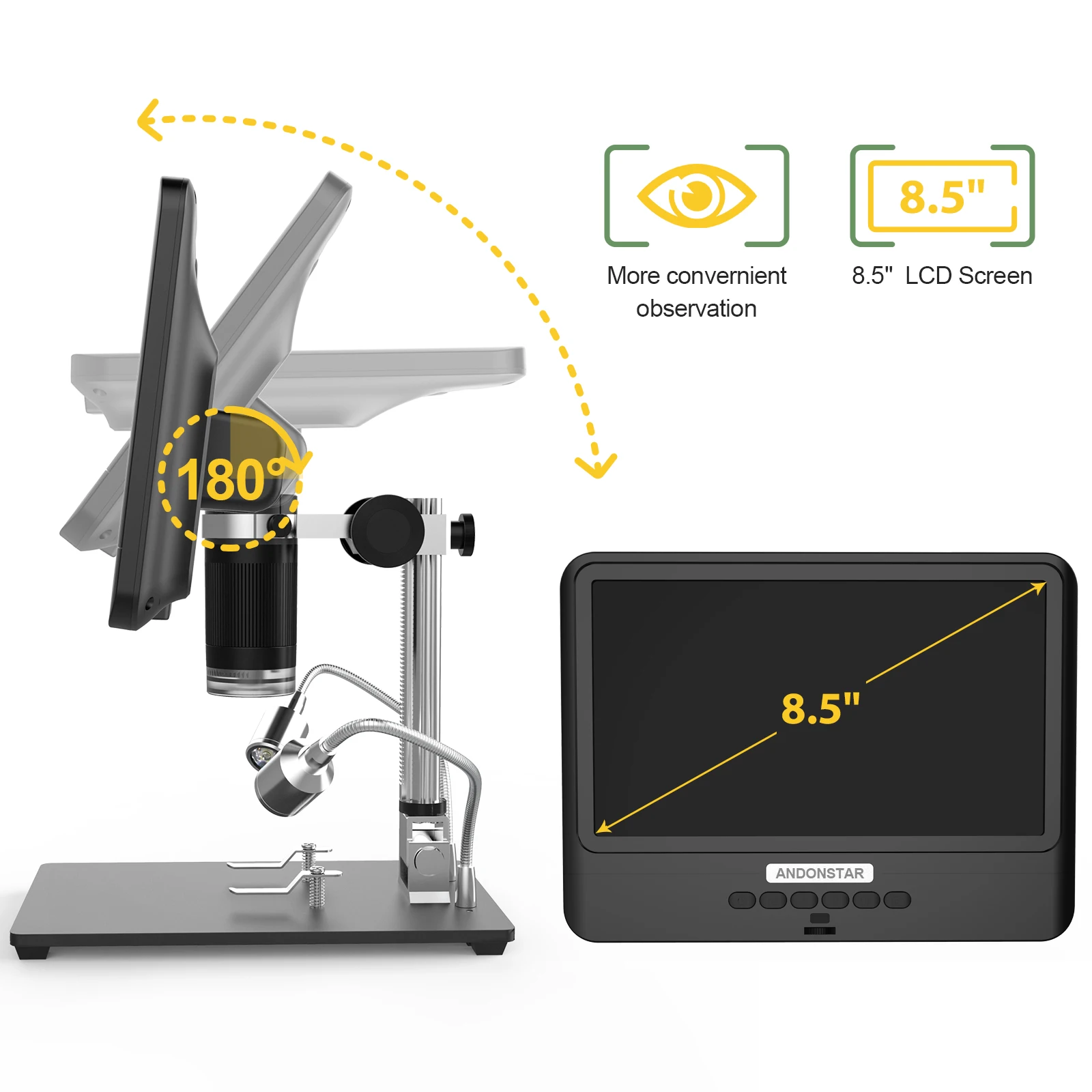

This Digital Microscope has an 8.5inch LCD screen,and angle of the microscope display can be adjusted, with 10 LED lights which can be adjusted and the im-age is clear, supports memory card recording and 12 languages, which can be widely used in our daily life. Come on and try it.

Features:
The product has an 8.5inch LCD screen, which is larger and displays clearer.
The angle of the microscope display can be adjusted to facilitate multi-angle observation.
The metal bracket can be adjusted front and rear, which can bring 3D visual effects and larger operating space.
The metal black base plate, with a clip, can fix the observation item.
2 LED lights were added to the bracket base, with 8 LED lights built in, make the im-age sharper.
Supports memory card recording and taking pictures, which is more convenient to use.
Support 12 languages: Simplified Chinese, Traditional Chinese, English, Japanese, French, German, Korean, Portuguese, Spanish, Russian, Thai, Vietnamese.
Products are widely used: re-pair of electronic products such as mobilephones and computers, anti-que identification, printed matter, textiles, jewelry, factory production lines, bid re-pairs, plant and in-sect observation, etc.
There are two types to choose from. The first type has no battery and needs to be connected to the data line; the second type has built-in lithium battery. You can choose the one you want.

Specifications:
Material: ABS+metal
Type: type1,type2(optional)
Im-age sensor: 2 mega pixels sensor
Video resolution: 1920x1080 30FPS, 1080P 1440x1080 30FPS, 720P 1280x720 30FPS
Video format: AVI
Magnification: 5X-1200X
Photo resolution: max 12M(4032x3024)
Photo format: JPG
Focus range: 10mm-160mm
Frame rate: max 30f/s
Storage: memory card, up to 32G(not included)
PC support: no
Power source: USB Direct Current 5V
Battery: 1 * lithium battery, 2200mAh(type1 not included, type 2 included)
View size: 8.5 inches
Screen resolution: 1280*800
Stand size: 200 * 190 * 120mm / 7.9 * 7.5 * 4.7in
Package size: 295 * 260 * 145mm / 11.6 * 10.2 * 5.7in
Package weight: 1650g / 3.6lb

Packing list:(optional)
Type1
1 * Microscope
1 * Stand
1 * USB Cable
2 * Clip
1 * User Manual
or
Type2
1 * Microscope
1 * Stand
1 * Battery
1 * USB Cable
2 * Clip

1 * User Manual

AD210

This microscope has 10.1-inch LCD display, 800*1280P resolution and 2-megapixel for clear definition imaging quality, and the screen can be rotated 180°. Max 260X adjustable magnification design, with photo and video recording function. 8 LED lights around the bottom of the lens & 2 auxiliary LED lights at the base of the tripod, adjustable brightness, make the imaging sharper and clearer. 180° adjustable metal bracket, adjust it front and back, bring 3D visual effect and larger working space. The two metal clips design on the black metal base plate, can fix the observation object firmly. Available for a variety of occasions, it meets the needs of all kinds of microscopy, and is suitable for circuit board identification, antiques identification, fine engraving, product appearance inspection, scientific observation, and line inspection in the electronics industry.

Features:
【10.1inch LCD Display】: Industrial maintenance microscope, 10.1-inch LCD, 800*1280P resolution and 2 megapixels for clear imaging quality, and the screen can be rotated up and down 180° for user-friendly multi-angle observation.
【Premium Lens】: Adopts quality optical lens with high optical transmittance and imaging clarity, with adjustable object distance for clearer observation.
【High Magnification】: 2 megapixel resolution and max 260X adjustable magnification design, high magnification support observe the microscopic details which is invisible to the eye. And the small magnification are suitable for observing the daily routine, beautiful in colors and rich in layers.
【Metal Base】: 180° adjustable metal bracket, adjust it front and back, bringing 3D visual effect and larger operating space. The two metal clips design on the metal black base plate, can fix the observation item tightly.
【Focal Adjustable】: The focusing wheel with a minimum focal length of 20 mm, which adjusts the imaging sharpness by turning the knob left and right, and a high focal length for long-distance observation. Use the large knobs on the optical mount to raise or lower the microscope to the desired height. Then gently rotate the focusing knob to obtain a clear imaging.
【Photo Taking & Video Recording】: With photo and video recording function. Built-in high-sensitivity chip, with faster response speed and more convenient to use.
【LED Illumination Light】: 8 LED lights around the bottom of the lens & 2 auxiliary LED lights at the base of the tripod, adjustable brightness, make the imaging sharper and clearer.
【12 Language Systems】: English, Spanish, Russian, Korean, Japanese, Thai, Portuguese, German, French, Vietnamese, Traditional Chinese, and Simplified Chinese.
【Wide Applications】: Available for a variety of occasions, it meets the needs of all types of microscopy and is suitable for printed circuit board identification, antiques identification, fine engraving, product appearance inspection, scientific observation, and line inspection in the electronics industry.

Specifications:
Name: Microscope
Material: metal+plastics
Display: 10.1inch LCD display, 800*1280
Magnification: max 260X magnification
Video format: AVI
Photo format: JPG
Photo resolution: max 12M (4032*3024)
Focusing length: min 20mm
Frame rate: max 30 frames per second
Memory card: support maximum 64G memory card (without card)
PC support: not supported
Power supplying: 5V, 2A
Light source lens: 8 LED lights around the bottom & stand base with 2 universal LED lights
Stand size: 180 * 200 * 320mm / 7.09 * 7.87 * 12.60in
Package size: 295 * 250 * 126mm / 11.61 * 9.84 * 4.96in
Package weight: 1900g / 4.19lb

Packing List:
1 * Microscope
1 * Bracket
1 * Cable
1 * Remote Controller
2 * Clip
1 * User Manual

G1200

A 7-inch LCD screen G1200 microscope, the bracket can be rotated at any angle forward and backward to suit your needs, while the lens supports 1-1200X continuous zoom. It can definitely be a fine helper for your daily work.

Features:
This is a digital microscope with continuous zoom, and it has a wide ranges of viewing options compared to other microscopes, ranging from 1 to 1200 times magnification, and finding a suitable multiple for you.
Angle adjustable can solve the problem of high reflection by the LED lights.
The microscope has a longer ranges than the others because it has certain amount of room to operate. It is very convenient to use tweezers, electric soldering iron and others under your microscope.
12 megapixel, display Screen: 7-inch LCD display, 1-1200 * continuous amplification system.
Sixteen language systems: English, Spanish, Russian, Korean, Japanese, Thai, Hebrew, Portugal, German, French, Italy, Turkey, Czech, Poland, Traditional Chinese, Simplified Chinese.
This upgrade type with 2 fill lights, allows you to get a clearer imaging when you observe, giving you a better use experience.

Specifications:
Type: power supplies type, built-in lithium battery type (optional)
Plug: EUplug, UK plug, USA plug, AUplug (optional)
Pixel: 12 megapixel
Display Screen: 7-inch LCD display
Magnification: 1-1200 * continuous amplification system.
Distance Between Object: 10MM to +∞ (different distances correspond to different multiples)
Sixteen Language Systems: English, Spanish, Russian, Korean, Japanese, Thai, Hebrew, Portugal, German, French, Italy, Turkey, Czech, Poland, Traditional Chinese, Simplified Chinese.
Battery (built-in): 1 * 3.7V 3000mAh Lithium Battery
Package Size: 205 * 160 * 80mm / 8.1 * 6.3 * 3.1in
Package Weight: 1044g / 2.3lb

Advantage:
1: Vertical microscopes have an important drawback because they are used in wide applications such as solder on PCBs, model designation of some tiny chips, and metals, and it is easy to lose sight of the details of the objects due to reflection. Our product specifically addresses this issue. It is an angle-adjustable digital microscope that solves the problem of high reflection. It's a suitable experience in the electronics maintenance industry, and it's important to note that. This machine has a longer ranges than the others because it has certain amount of room to operate. It is very convenient to use tweezers, electric soldering iron and others under your microscope.
2: Most other microscopes are two-gears magnification, either too large or too small. There will be visual regret. This is a digital microscope with continuous zoom and zoom, and it has a wide ranges of viewing options compared to other microscopes, ranging from 1 to 1200 times magnification, and finding a suitable multiple for you to.

Button Setting:
Power: press 2 seconds to turn on/off

M Button: Function setting
Screen Saver: Off * 30 sec/1 mins/2 mins (optional)
Automatic Shutdown: Off * 3 minutes/5 minutes/10 minutes
Hz Light Source: 50 Hz/60 Hz
Language options: 16 Languages
Date Adjustment: year, month, day｜hour, minute, second
Format: YES/NO
Default: YES/NO

In Video Mode:
Resolution: 1080, 720P, VGA
Circulating Camera: Off/3 minutes/5 minutes/10 minutes. When the memory card is full, the foremost video data will be deleted and the video will be saved.
High Dynamic Ranges: On/Off (When power on, the video recording function will be turned on automatically if any object moves under the lens without manual operation.)
Exposure Compensation: 7 grades for option
Date Label: Display/Close-Date and Time can be selected on the screen

In Photo Mode:
Photograph Delay: Single. 2 seconds. 5 seconds. 10 seconds.
Photo Pixels: 1.3 M * 2 M * 5 M * 8 M * 10 M * 12 M
Continuous Shootings: 3 consecutive shots
Photo Quality: Quality/Standard
Sharpness: Strong/Standard/Soft
ISO: Automatic * 100 * 200 * 400
Exposure Compensation: 7 grades for option
Date label: On/Off
Watch: Up/Down Delete Protection

D Button: Mode Keys:
Switch: Camera mode, camera mode, playback mode:
Up, Down, OK (Photo/Video, Open)
1: Powered by direct current interface (Micro USB).
2: Flash card socket, support 1-128GB. Class10 + speed
3: Light brightness regulator.
4: REST button, system restore. (If the machine is inoperable, press the button in this hole with a needle-like sharping object to restart the machine)
5: Highlight 8 LED lights with a continuous service time of up to 100,000 hours.

Special Intelligent Angle-adjustable Aluminum Alloy Support:
The nearest distance between the machine lens and the object is about 10mm, when the magnification is the maximum. On the contrary, the farther away the lens is from the object, the smaller the magnification is.
Short distance high magnification, tall distance small magnification.

Notes:
Please allow 1-30mm error due to manual measurement.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.

Package List:
1 * G1200 Microscope
