Specification:

- Name: Tachometer
- 7 Colors Backlight
- High Precision
- Size:85mm
- Signal : Pulse
- Working voltage: 9-32VDC
- Working current: ＜120mA
- Backlight :7 Color backlight
- Engine hours: 0.0-99999.9H
- Working temperature: -30-70℃
- Storage temperature: -40-85℃
- Waterproof and dustproof grade IP67.
- Functions: current tacho/RPM and hour
- Operation mode: LCD display, stepper motor
- Tachometer fit for Car /Truck/ Boat /Diesel Generator Engine /Gasoline Engine

Package Included

1 X Boat Tachometer
1 X Cable
1 X Installation

Feature:

- Waterproof:IP 67
- Excellent anti-fogging function;
- With curved glass( with anti-fog function).
- 316 Stainless steel bezel with curved glass;

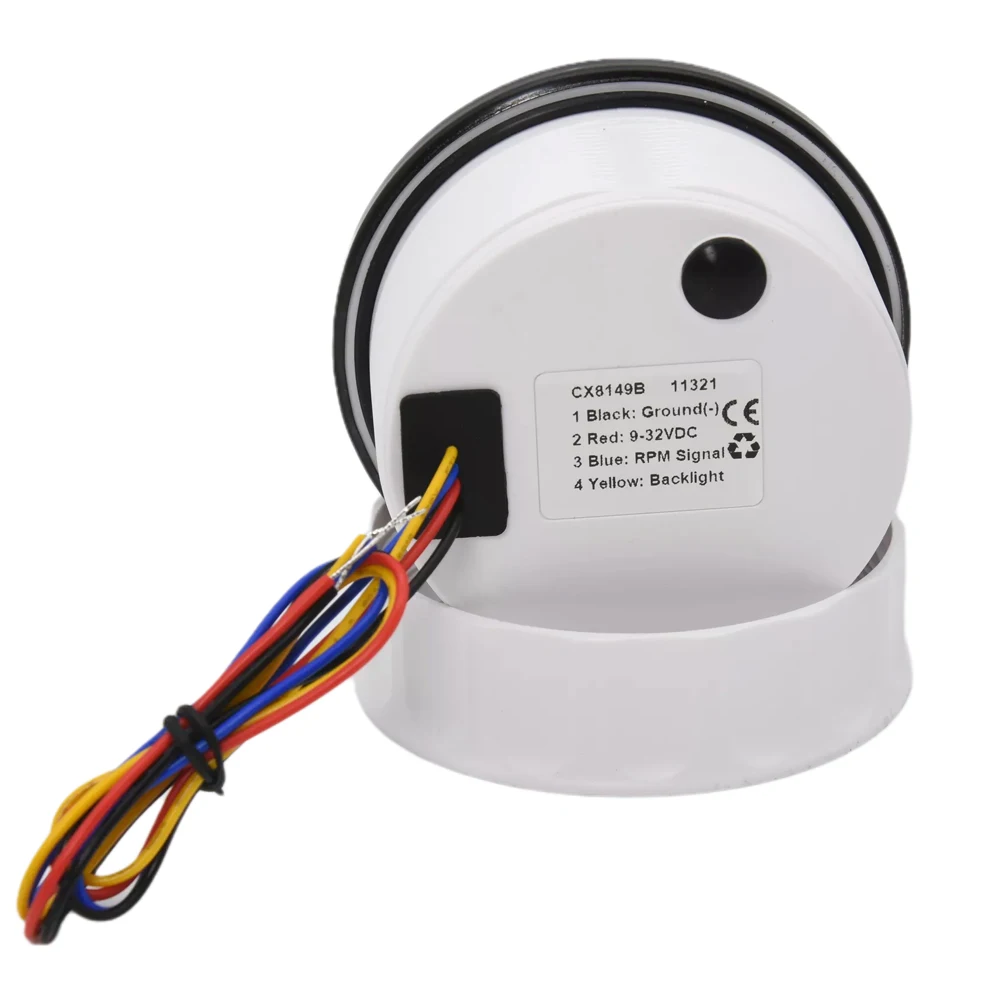

- Convenient Installation by multi-plug socket connecting way;

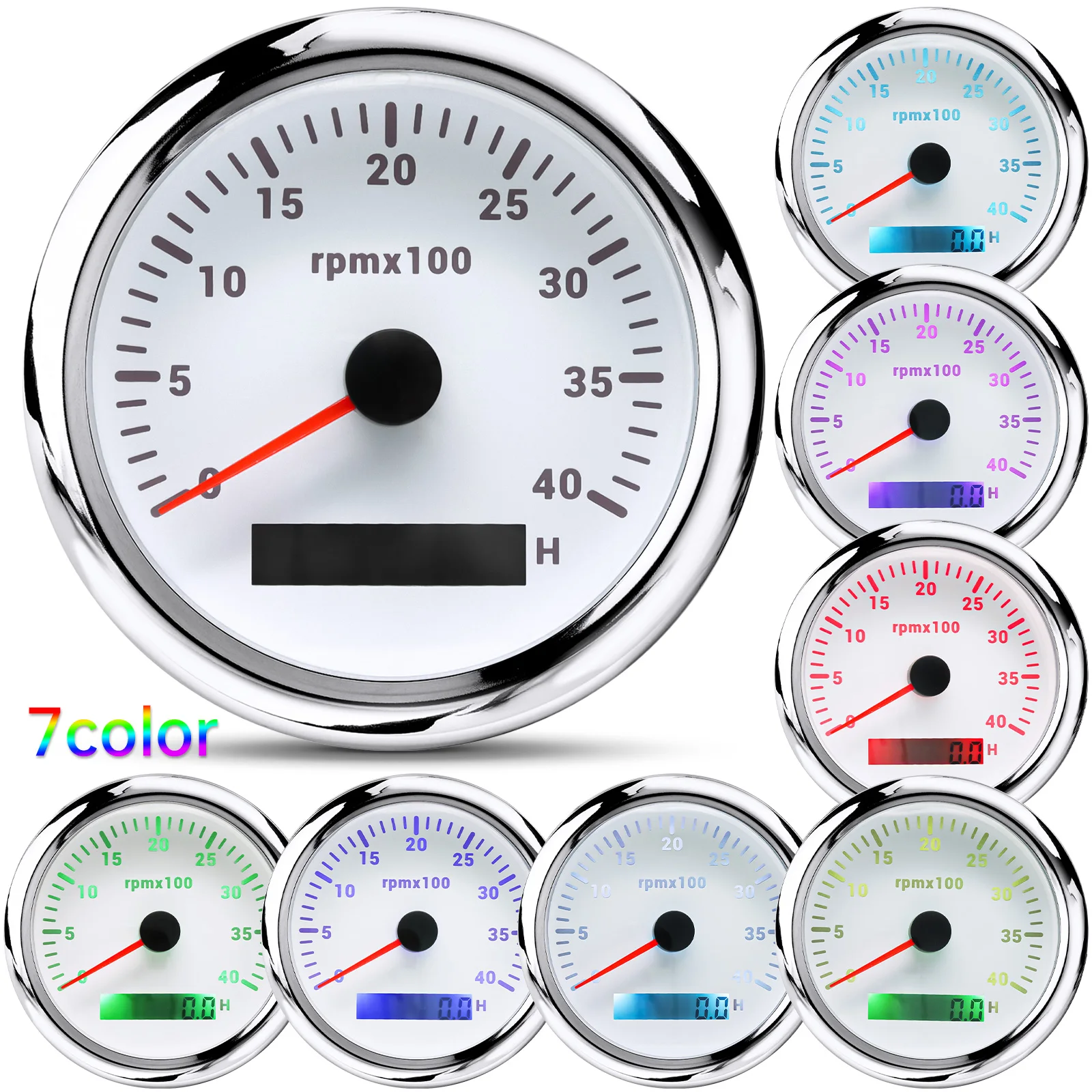

- ( red,yellow,orange,green,blue,purple,white ), customers can adjust any color that you like
- Tachometer fit for Car /Truck/ Boat /Diesel Generator Engine /Gasoline Engine

Indicating Range:

0-8000RPM[85MM Diameter]
0-7000RPM[85MM Diameter]
0-6000RPM[85MM Diameter]
0-4000RPM[85MM Diameter]
0-3000RPM[85MM Diameter]

Sensor Specification:

1].Name: Tachometer Gauge Sensor

[2] Use for Gear Rotation Speed Measurement

[3] Combining The Advantages of Stable Signal, Wide Range of Operating Temperature, Small Size, Simple Assembly, Etc

[4] Signal Duty Factor: 47±5%

[5] Output Signal: Sine Wave

[6] Operating Temperature:-40 to 85℃

[7] Inductance Distance: Less Than 1mm

[8] Tooth Module: 2~6

[9] Connecting Way: Two Wires Connecting

[10] Protection Rank:Waterproof IP67

Please attention:

Please attention we have 2 model sensor size: 80mm*18mm (L*W) , 72.12mm *16mm(L*W)

Package Included(as picture):

1X Tachometer Gauge Sensor
