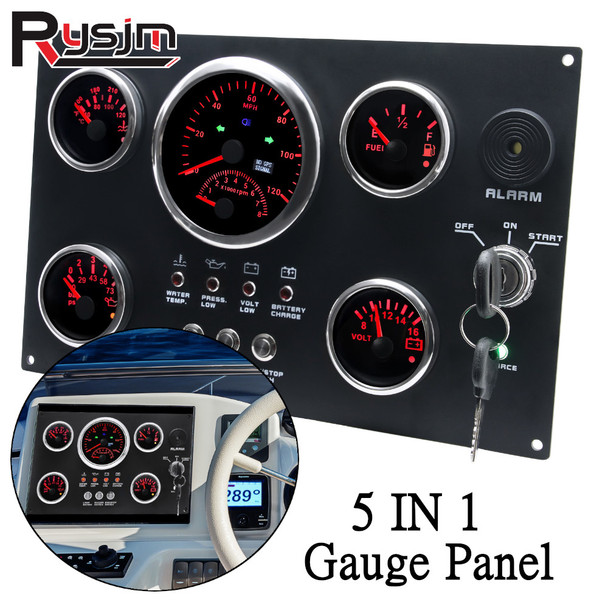

2022 New 5 Gauge Set with Instrument Panel 0-120MPH/0-8000RPM Red LED Backlight For Marine Yacht Boat Temp Fuel Volt Car Gauges

Features:

-Analog Display Tachometer & Digital Display Hour Meter.
-Clear Lens, 316 Stainless Steel Bezel with ABS Plastic Housing.
-Black Faceplate, Red Needle with RED LED Illumination.
-With IP67 Waterproof, Rustproof, Anti-Fog & UV-Resistant.
-Hour Meter Records to 99999.9 Hours & --Automatic Roll Over Resolution 0.1 Hour.
-Volt Gauge, Fuel Level Gauge, Water Temperature Gauge & Oil Pressure Gauge with Warning Function.
-Gauge Set (Except Volt Gauge) Requires 12 / 24 -Volt Negative Ground Systems.
-Volt Gauge Requires 12 Volt Negative Ground Systems.
-One Year Limited Warranty for Non-Human -Factor Damage & Free Lifetime Technical Support.

(1). GPS Speedometer Gauge

- Fixing dimension: 85mm(3-3/8")
- Indicating Range: 0-120MPH and 0-8000rpm
- Working Voltage: 12V/24V
- Total Mileage Adjustable, Mileage Range: 0-99999.9 miles
- GPS Blind Area Odometer Compensation
- OverSpeed Buzzer Alarm (Value Adjustable)
- Indication light: LEFT, HIGH BEAM, RIGHT
- Backlight: Red
- Working temperatures: - 40 to 85°C
- Operation mode: LCD display, stepper motor

(2). 85mm Tachometer

- Name: Tachometer
- 7 Colors Backlight
- Size:85mm
- Signal : Pulse
- Working voltage: 9-32VDC
- Working current: ＜120mA
- Engine hours: 0.0-99999.9H
- Working temperature: -30-70℃
- Storage temperature: -40-85℃
- Waterproof and dustproof grade IP67.
- Functions: current tacho/RPM and hour
- Operation mode: LCD display, stepper motor
- Tachometer fit for Car /Truck/ Boat /Diesel Generator Engine /Gasoline Engine

(3).Fuel Level Gauge

Name: Fuel Level Meter
Material: 316 stainless steel
Working voltage: 9-32V(12V/24V)
Waterproof level: IP67
Application range: 240~33ohms/0-190ohms
Mounting hole: 52mm
Color: Black

(4). Water Temperature Gauge

- Diameter: 52mm/2.05inch
- Measuring range: 40-120℃
- Item Color: Black Silver
- Working voltage:9~32V DC
- Input signal:301~22ohms
- Backlight: Red
- Working current:≤60mA

(5). Oil Pressure Gauge

Dial: Black
Material: 316 Stainless Steel, PC
Size: 8x8x7cm / 3.1x3.1x2.75 inch
Working Temperature: -40~85℃
Protection Level: IP67
Working Voltage: DC 8~16V, DC 18~32V
Output Signal: 10~184 ohms
Working Current:<100mA
Display Accuracy:<3°
Indicating Range: 0~10bar/0~145psi
(Or 0-5bar/0-73psi)
52mm (2") mounting hole
Oil Pressure Gauge:0~10bar (0~145psi)

(6). Voltage

- Diameter: 52mm/2.05inch
- Measuring range: 8V-16V/16-32V
- Color: Black
- Backlight: 7 colors backlight
