15 inch Intel J4125 i3 i5 i7 Touch Screen Panel PC Industrial Tablet ResistanceTouchscreen Desktop Mini All In One PC for Win 10
Description
Rack mount touch panel pc of Parameter
Brand: Metawesome
Material: Metal frame, iron metal back cover
Memory: optional RAM 4GB/8GB DDR3 System Memory
Storage:optional 64GB/128GB /256GB SDD
System: WIN7/8/10 pro
Graphic: Intel HD Graphics
Color: black (customizable color welcomed)
Weight: about 6Kg
Parameter
Intel Celeron-J1800 (Dual cores, 1m high-speed L2 cache, 2.41 GHz-2.58 GHz, TDP power consumption:10w)
Intel Celeron-J1900 (Quad cores, 2m high-speed L2 cache, 2.00 GHz-2.41 GHz, TDP power consumption:10w)
Intel Celeron-J4125 (Quad cores, 4m high-speed cache, 2.00 GHz-2.70 GHz, TDP power consumption:10w)
Intel Core i3-3217U (Daul cores, 3m high-speed cache, 1.80 GHz, TDP power consumption:17w)
Intel Core i5-3210M (Daul cores, 3m high-speed cache, 2.00 GHz, TDP power consumption:18w)
Intel Core i3-4120U (Dual cores, 3m high-speed cache, 2.00 GHz, TDP power consumption:15w)
Intel Core i5-4200U (Quad cores, 3m high-speed cache, 1.600GHz-2.6 Ghz, TDP power consumption:15w)
Intel Core i5-4300U (Dual cores, 3m high-speed cache, 1.900GHz, TDP power consumption:15w)
Intel Core i7-4600M (Dual cores, 4m high-speed L2 cache, 2.90 GHz, TDP power consumption:37w)
Intel Core i7-4600U processor (Dual cores, 4m high-speed L2 cache, 2.10 GHz-3.30GHz, TDP power consumption:15w)
Intel Core i5-6200U (Dual cores, 4m high-speed cache, 2.30 GHz, TDP power consumption:15w)
Intel Core i5-8265U (Quad cores, 6m high-speed L2 cache, 1.60 GHz-3.90GHz, TDP power consumption:15w)
Intel Core i7-8565U (Quad cores, 8m high-speed L2 cache, 1.80 GHz-4.60GHz, TDP power consumption:15w)
Intel Core i5-10210U (Quad cores, 8m high-speed L4 cache, 1.60 GHz-4.20GHz, TDP power consumption:15w)
Intel Core i5-1135G7U (Quad cores, 8m high-speed L8 cache, 2.40 GHz-4.20GHz, TDP power consumption:28w)
Parameters of LCD Touch screen：
Touch screen type: Resistive touch screen (Single-point touch)
Touch screen interface: sub
Light transmittance: 80%
Life expectancy: 35 million times (theoretical value)
Brightness: 300cd/m2
Contrast ratio 500:1
Viewing Angle Horizontal(left/right): 150° (75°/75°)
Vertical(up/down): 150°(75°/75°)
Response Time：30 (Typ.) (Tr+Td) (MS)
Frame Rate：60Hz
Color system：PAL/ NTSC
Interface：1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio
power requirement of system：+ 12V DC power input
Power adapter：input：100〜250VAC，50 / 60Hz
output：60W Adapter（12V 5A）
Working temperature：-20°C〜60°C
Relative humidity：0％〜90％relative humidity, no condensatio
Plug：AU,EU,USA,UK plug available
Menu Languages English,Francais,Italiano,Deutsch, Espanol,Russian,Traditional Chinese, Simplified Chinese,etc
VISA Hole distance：75*75mm
Dimension of Embedded industrial panel pc computer
Sensitive resistance touch screen industrial pc computer
Standard Single touch with 5ms reponse time, sensitive touch and no any blind spot.
Super strong current sensing provide with more stable and operation.
With HD LCD Screen, the picture clear, broad version, full of rich color.

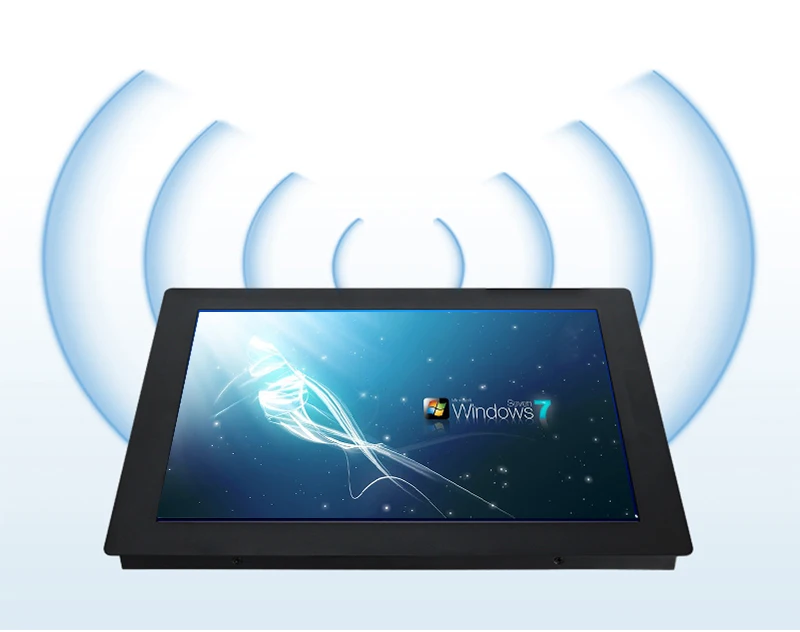

The Industrial pc equied with Built-in WIFI And External WIFI For Option
No cable, to avoid wiring problems, all industrial pc computers are built-in wifi (default), if you need external Wifi, please leave message when ordering or contacu us.
Low-power U series chipset. Energy saving, low consumption
All these motherboards are brand new products, including chips and other accessories with professional industrial grade motherboard, low-power U series chipset. Energy saving, low consumption, the performance of components is stable, suitable for various complex and harsh environments

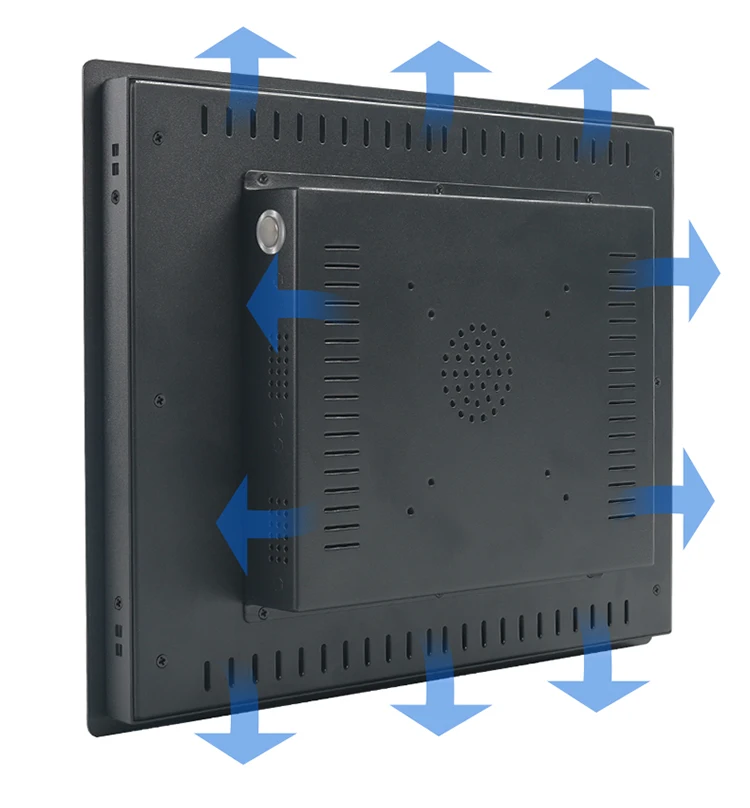

Efficient heat dissipation back cover
Metal frame design, the whole machine is more efficient in heat dissipation, no big noise in operation, and nore intimate in use.
Multi direction scientific cooling holes, cold-rolled sheet metal body and low-power hardware enable the machine to maintain a healthy temperature.
Installation:
There are eight small holes behind the product, the distance between the four installation holes inside is 75mm x 75mm, and the outside four mounting holes are 100mm x 100mm, equipped with wall hanging installation accessories and embedded installation accessories, the installation mode is flexible, and the following installation methods are for reference only.
About Taxs
1. Buyers are responsible for paying tax involved, such as import tax, VAT, etc.
2. If you have special requirement, please leave a message to us when you make order.
3. Due to the tax problem, buyer refuse to receive the goods, buyer need to responsible for the freight back and forth. Thank you for you cooperation.
About Payment
1.Pls make sure the shipping address, zip code and tel-number are correct before payment.
2.The buyers are responsible for all additional custom fees, brokerage fees, duties and taxes for importation into your country.
3.We also can accept other payment terms if you think those are convenient for you to order.
4.Welcome to contact us by chat tool directly or leave a message if you order in bulk, we will allow you some discounts.
5. Refund will be done by ESCROW on aliexpress or by Paypal.
About Customs
1. The buyer shall be fully responsible for the payment of related expenses, such as distribution fee, storage fee, brokerage fee, tax or value-added tax, etc.
2.If you have any special request for price, please leave a message with us when ordering.
3.If the buyer refuses to accept the goods due to tariff issues, the buyer shall be fully responsible for the return of freight.
About Delivery
1. We can't control the delivery time because it's handled by a third-party service. If the package fails to arrive within the expected time, please contact us, we will extend the delivery date before there is a dispute, and will try our best to help you hurry up.
2.All goods will be packed to ensure that they arrive in good condition.
