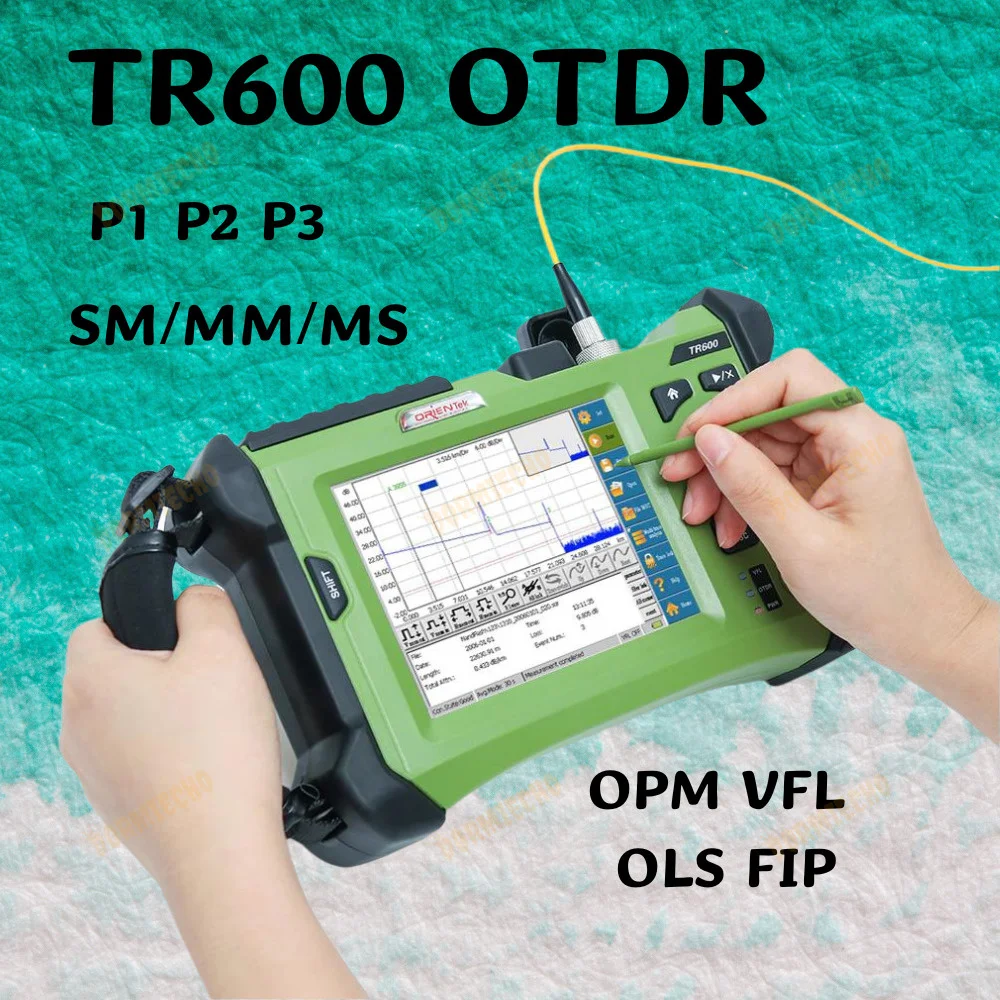

100% High Quality TR600 OTDR with OPM + VFL + OLS + FIP 850 1300 1310 1490 1550 1625 nm SM MM MS Cable Tester P1 P2 P3
Description
100% High Quality TR600 OTDR with OPM + VFL + OLS + FIP 850 1300 1310 1490 1550 1625 nm SM MM MS Cable Tester P1 P2 P3
Notes:
For the different models, please kindly read it carefully and chose the type that you need.
1. Support Languages: English/French/ Spanish/ Portuguese/ Russian/Korean
2. Come with test results PC analysis Software
3. TR600-P3Dynamic Rang: 38/36/34dB, other specifications are the same with TR600-P2.
4.TR600-P2/TR600-P3can test Active Fiber, They also can pass 1 level
splitters1:8 1:16.
5. Optical connector three choices: FC/UPC SC/UPC LC/UPC (APC can be optional). Default connector is FC/UPC.
6. TR600-P1 and TR600-P3 only accept offline order.
MOQ is 5set/model.
Model | MM OTDR TR600 MV10A |
Wavelength(nm) | 850/1300 |
Dynamic range(dB) | 21/19 |
Pulse width (ns) | 5,20,40,80,160,320,640,1280,2560,5120,10240,20480 |
Display | 5.6 inch TFT LCD touch screen |
Event blind zone (m) | 3 |
Attenuation blind zone (m) | 13 |
Linearity (dB/dB) | ±0.05 dB/ dB |
Loss threshold (dB) | 0.05 |
Loss resolution ratio (dB) | 0.01 |
Sampling resolution ratio (m) | 0.125 to 8 |
Sampling point | 32k |
Distance uncertainty (m) | ±(1 m + 5×10-5× distance + sampling interval) |
Distance scope (km) | 0.3 to180 |
Memory capacity of trace | SD Card (4G), > 10000 pieces |
Duration of measurement | Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable |
Optical interface | FC/UPC(Include) SC/UPC & LC/UPC ( optional ) |
Data interface | USB interface, SD card interface |
Visual Fault Locator | Available |

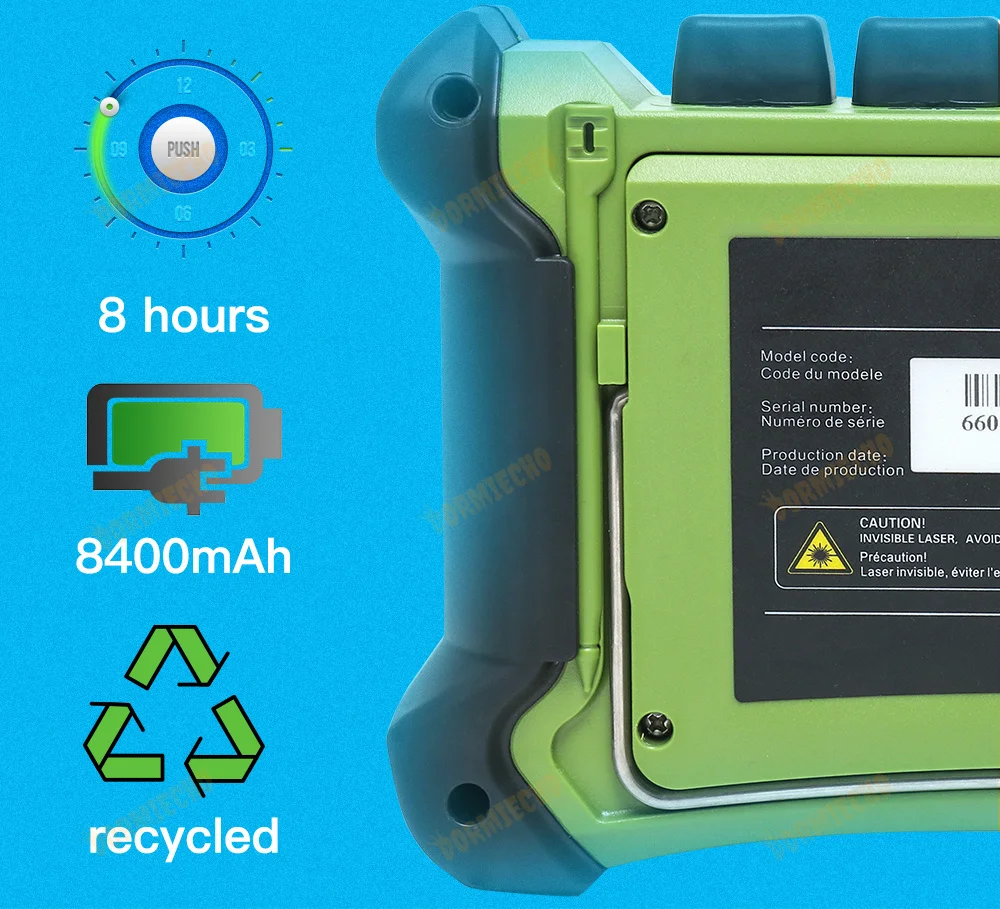

Power supply | Lithium battery; continuing working duration ≥ 8 hours |
Warranty period | 12 months |
OTDR TR600 Specifications:
