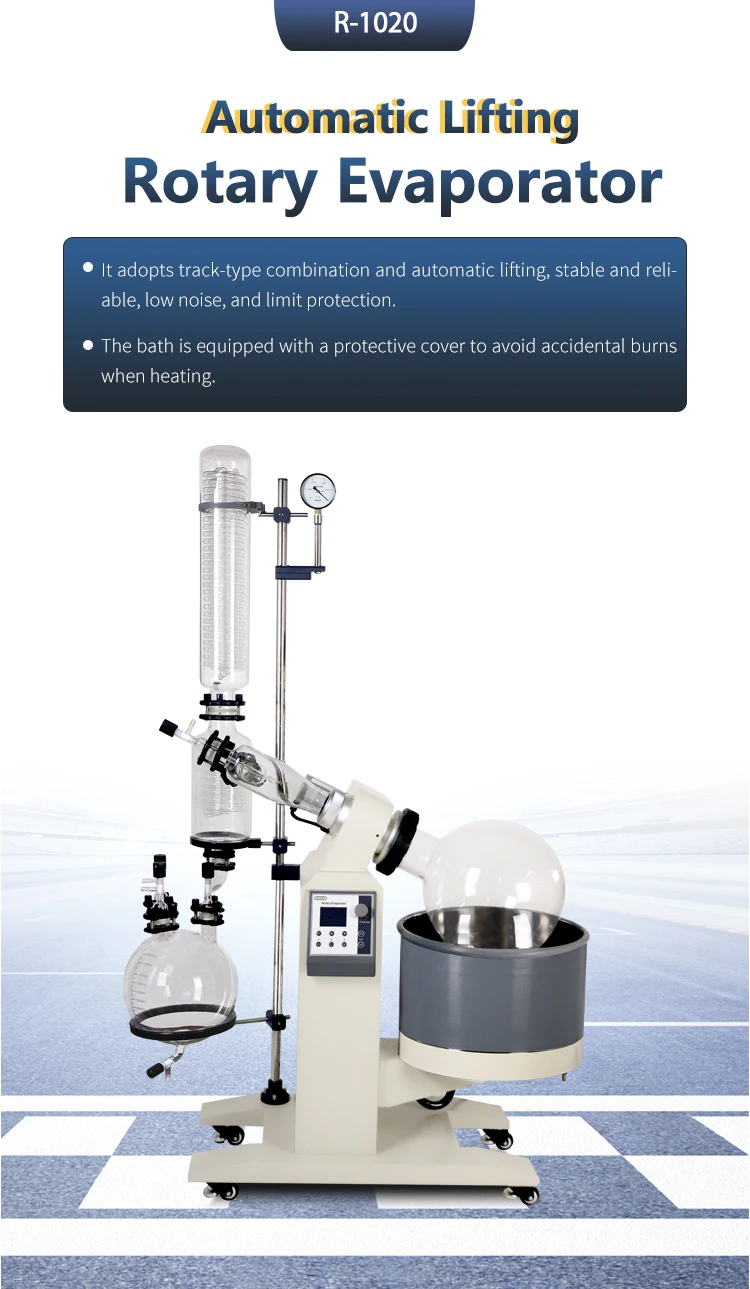

Introduction:The rotary evaporator can be rotated under constant heating and negative pressure to form a thin film for efficient evaporation, followed by condensation and solvent recovery. It is particularly suitable for the concentration, crystallisation, separation and solvent recovery of heat-sensitive materials. Some models can also be used for reflux extraction. It is one of the essential instruments for the chemical industry, pharmaceutical industry, universities and research laboratories. It is also the main means of extraction and concentration in analytical experiments.We support customisation if other requirements arise.

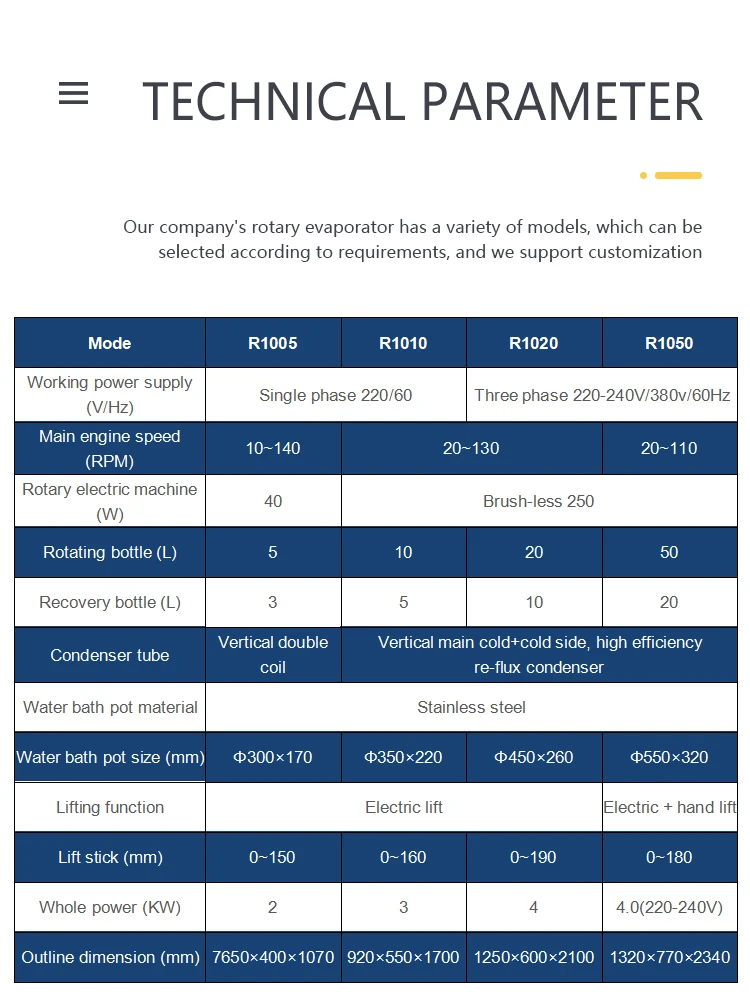

Voltage: 110V/220V

Rotational Speed:20-130rpm

Motor: Brushless otor

Max Vacuum:399.9Pa(under 3mmHg)

Evaporation Bottle Capacity：20L

Receiving ottle capacity：10L

Evaporation Power： Water >5L/h   Alcohol  11L/h

Water/Oil Bath Power: 4KW

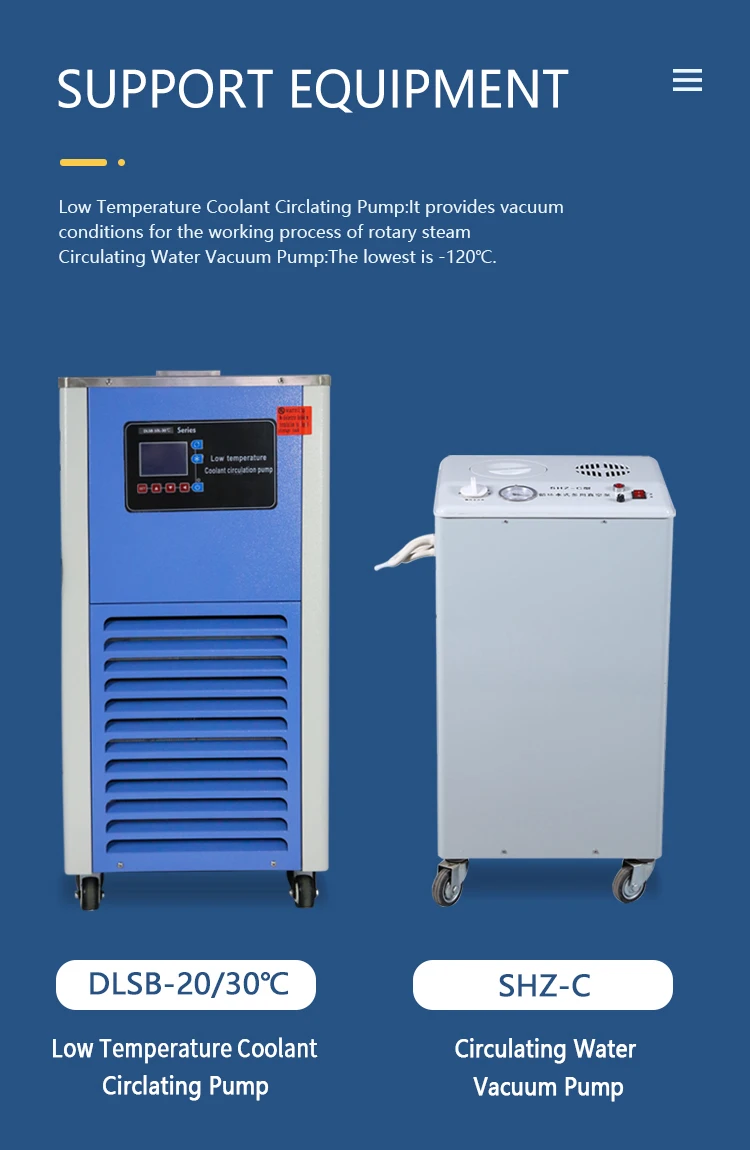

• Usage: Need to connect the low temperature pump, vacuum pump to use.

• Other: Support Customization
