Important NOTE:

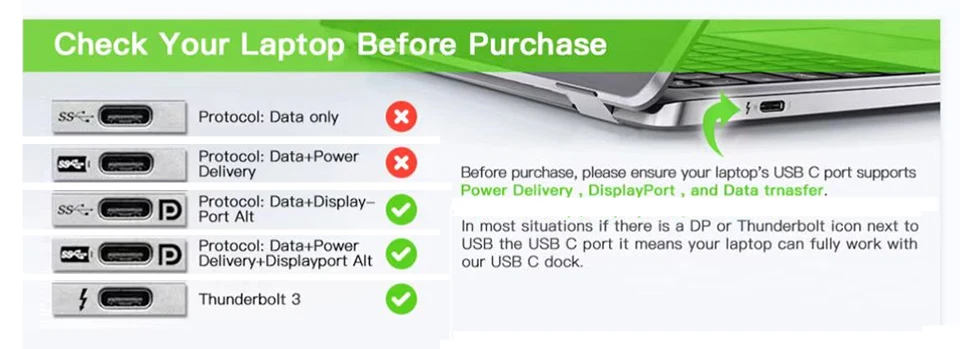

1. Please Check Your Computer Interface Carefully Before Purchase.

2. When DP to HDMI cable/adapter is used for DP port, the DP to HDMI cable/adapter must support 4K@60Hz. If the DP to HDMI cable/adapter only supports 4K@30Hz, the external display will be black.

3. Please remember to connect the power adapter to power the docking station first, and then connect other devices and monitors to the thunderbolt 3 dock.

Main Ports of Thunderbolt 3 Docking Station

1 X DP port DP1.4 — 4K @ 60Hz
1 X Thunderbolt 3 port (IN) — 40Gbps, PD60W charging(For connecting to the host)
1 X Thunderbolt 3 port (OUT) — 40Gbps, PD15W charging
1 X S/PDIF — Experience amazing sound which do not receive any RFI or EMI signal disturbances.
2 X USB-A — USB2.0 480Mbps
2 X USB-C — USB3.2 10Gbps
1 X Gigabit Ethernet — 10/100/1000 BASE-TX Auto MDI / MDI-X, 1000Mbps
1 X DC IN — 20V 3.25A power input
1 X SD & TF slot — SD2.0
1 X USB-A — USB3.1 Gen1 5Gbps
1 X USB-A — USB3.1 Gen1 10Gbps
1 X Audio in & out — 3.5mm stereo audio output & MIC input

Thunderbolt 3 Dock Station with Display Port

The thunderbolt docking station dual monitor can extend dual 4k@60Hz displays via the Thunderbolt 3 port (OUT) and DisplayPort 1.4.

Can extend single display[8K@30Hz (7680x4320) / 5K@60Hz (5120x2880) UHD] via the Thunderbolt 3 port (OUT) or DisplayPort 1.4.

40Gbps Ultra-Fast Data Transfer Dock

The 2 Thunderbolt 3 port fully support 40Gbps bandwidth, leting you easily handle your demanding workflow.

Four USB C and USB-A ports supports 10Gbps data transfer, which frees many of your external devices from being limited to USB 3.0 speeds.

Also with 2 USB-A 5Gbps and USB2.0 Type-A for your multi work needs

Thunderbolt 3 Docking Station Fast Charging

The Thunderbolt 3 port (IN) can charge a Tablet or Ultrabook at up to 60W.

The Thunderbolt 3 port (OUT) supports 15W charging, so you can charge your other devices such as your smartphone or tablet.

Powerful Compatibility Docking Station

Compatible with most USB-C or Thunderbolt 3 laptops today and with USB4 or Thunderbolt 4 laptops of the future.

Thunderbolt 3 Docking Station Packaging List

Portable Mini Size , Strong Carton Package

Yottamaster Thunderbolt 3 Docking Station USB A Type C Multi Port Hub Dock DP 8K 4K Video PD 60W Charging For Macbook Laptop PC
