OBDII Store Promise

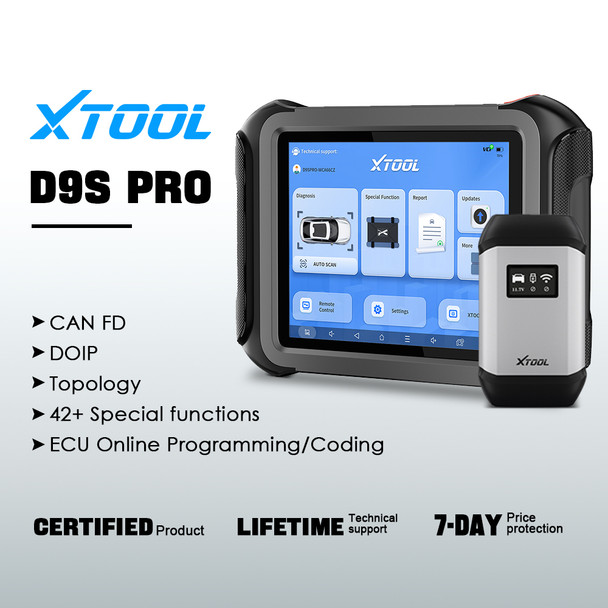

? 100% Original XTOOL D9SPRO WIFI Diagnostic Tool
? 5 Years Warranty & Lifetime Professional Tech Support
? Wholesale & Dropshipping Supported
? Contact us to get VIP Price

XTOOL D9S PRO is an Upgraded Version of D9PRO and D9, The Latest Upgraded Smart Wireless WIFI Car Diagnostic Tool in 2024, Supporting DOIP & CAN FD & Topology Map. The Most Advanced Car Tool Based on Android 10.0 System, Aimed at Professional Machinery, Workshops, with intelligence WIFI Connection, Performs OE-Level Comprehensive Diagnostic Topology, 42+ Special Functions, ECU Programming and Coding, Bi-Directional Control, Professional Key Programming, VAG Guide Function, ECU Configuration, etc. Please Check Compatibility with VIN.

ALL-IN-ONE Diagnostic Tool XTOOL D9S Pro

1.WiFi Connection Diagnosis: Compared to Bluetooth and Cable Connection Diagnostics, WIFI Connection Diagnostics has a faster transmission speed and a Longer Communication Distance, more free and not limited by the length of diagnostic cable, make work is more efficient, convenient and stable.
2. Full System Diagnostics: XTOOL D9S Pro is an OE-level full diagnostic scanner as it can scan ECUs in different types of vehicle systems and subsystems such as engine, TCM(Transmission), SRS(Airbag), ABS, TPMS, BCM, BODY, AC and much more, read /clear codes, view the live data from each available system, perform active tests to check the work status of modules
3. 42+ Maintenance Services: XTOOL D9S Pro is designed for mechanics and workshop, garages. Along with the 42+ maintenance service functions like Oil Reset, EPB, SAS Adjustment, DPF Regeneration, Reset control unit, Rain/Light Sensor, A/C Relearn, HV Battery, VGT Relearn, VIN write etc.
4. ECU Programming for Benz/ for BMW/ for VW +Flash Hidden Functions: XTOOL D9S PRO Support ECU programming for BMW, for Benz and for VW.  After replaced the existing software/firmware in the electronic control unit, program new ECUs, and fix software-controlled driving performance and emission issues.Reflash/reprogram hidden functions for ECM, TCM, BCM and other modules to customize your car is supported.
5.Supports DOIP & CAN FD: D9S Pro can works for the Doip protocol and CAN FD. CAN-FD data frame newly adds EDL bit, BRS bit, ESI bit in the control field, and adopts new DLC encoding method and new CRC algorithm (CRC field is extended to 21 bits)
6.Module Topology Map: Faster system-wide diagnostics with Topplogy Map for a clear view of the communication structure between modules, as well as all conditions per system tp read/clear codes, real-time data PID graphics for all vehicle systems.
7.Bi-Directional Control/Active Test: The XTOOL D9S PRO supports active Test / bi-directional control, allowing commands to be sent from a tablet to control vehicle modules and systems to perform specific functions and tests. Like Turn on/ off Windows/Doors/Wipers/Sunroof, Cycling ABS motor pump, EVAP Test, Component Match, etc.
8.Auto Scan & Auto VIN: AutoVIN functions allowing you to quickly figure out Vehicle Identification No. (VIN) to perform fast diagnostic.
9.15 Languages Supported:Arabic, German, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Traditional Chinese, Vietnamese, Turkish.
10.WIFI & USB Connection Diagnosis: Multiple connection methods facilitate users to diagnose in or outside the car. Wireless WIFI diagnosis work is more efficient, convenient and stable. (The WIFI connection distance from the vehicle is about 30-100M)
11.Top Hardware Configuration & 3 Years Software Update: Android 10.0 systems, 9.7'' Touch Screen, 6400mAh Battery, 1024*768 Resolution, Quad-Core 1.5GHz CPU Processor, 4G RAM & 128G. D9S Pro come with 3 years free update. You could use the functions normally without upgrade after 3 years.

XTOOL D9S PRO Full System Diagnostic Tool With Intelligent Topology Map

XTOOL D9S PRO is an OE-level full diagnostic scanner as it can scan ECUs in different types of vehicle systems and subsystems such as engine, TCM(Transmission), SRS(Airbag), ABS, TPMS, BCM, BODY, AC and much more, read /clear codes, view the live data from each available system, perform active tests to check the work status of modules, providing you with a Dealership- Level only diagnosis, getting the accurate and in-depth results across all automotive systems. D9S Pro is capable of performing OE level diagnostics on 10,000 vehicles globally to read & clear codes, reset monitors, turn off warning lights, view live data & graphing, export data as CSV, retrieve freeze frame, perform active tests, Resets, Relearns, Matchings, Adaptations, Initializations and etc.It is the best choice for individual users, small maintenance workshops and professional automobile maintenance personnel！
- Read/Clear Codes
- View the Live Data stream
- View the Freeze Frame of faults
- Perform Active Tests
- Read ECU Information
 -Display Advanced Identification

Intelligent Topology Mapping Change Everything

- Equipped with color coded module status for faster full system diagnostic results.
- View the communication structure between modules clearly with all the situation of each system.
- One click to display the fault code and enter the system executive function directly.
Note: Topology Map Compatibility For GM/CHRYSLER/JEEP/DODGE/FORD/TOYOTA/NISSAN/ For
HONDA/BMW/BENZ/HYUNDAI/MAZDA(MORE COMING SOON). DO NOT available for All Vehicle Makes. Please come to us for compatibility check.

42+ Maintenance Service Make Repairing Easier

1. ECU Configuration: Re-flash the hidden function of the car and customize the vehicle as need.
2. ABS Bleeding: Perform to bleed the brake system to restore ABS braking sensitivity and obtain a firm brake pedal.
3. Fuel Trim Reset: Reset the fuel trims provides for a chance that your adaptive fuel map could become stable.
4. IMMO / Key Programming: Disable a lost vehicle key to protect the vehicle from being stolen and add the new key.
5. Oil Reset: Reset the new calculation of Engine Oil Life System for an accurate reading of the next oil change.
6. EPB: Reset the calipers, brake discs or pads after the electronic parking brake system is repaired.
7. BMS Match: Reset after replacing the battery to clear the low battery fault information of the original battery and protect the new battery.
8. DPF Regeneration: Clear PM from the DPF filter through oxidation or combustion to stabilize the filter performance.
9. Injector Coding: Code a new injector to better identify injectors to accurately control fuel injection.
10. SAS Adjustment: Clear the fault steering angle sensor memories, perform reset steering angle sensor, and turn off steering wheel warning light.
11. Throttle Relearn: Reset the throttle actuators to accurately regulate throttle (or idle engine) operations, helps keep your idling and acceleration smooth.
12. Airbag Repair: After replacing the Airbag, reset the Airbag data and clear the collision data.
Also Including: TPMS Reset, Air Suspension, Gear Learning(Crankshaft Relearn), Gearbox (Transmission) Match, Headlight Adjustment, Window Initialization, Seat Configurations, Power Balance, Electronic Pump Activation, Disable Transportation, Tire Refit, A/F Reset, Start/Stop Reset, Language Change, Transmission Service Fast Relearn, Fuel Injector Balance, Crankshaft Sensors Relearn, Idle Learn, Zero- Point Calibration, Fuel Alcohol Composition Reset, Actuator Calibration Test, WCS Reset, VIN Registration(Write), Injector Balance Rate Programming, etc are all available.
Note: Please come to us with the vehicle Make/Model/Year/VIN to check compatibility before order.

XTOOL D9SPRO Advanced ECU Programming

XTOOL D9S Pro professional diagnostic scan tool can perform Online ECU Programming For BMW/Mercedes Benz/Volkswagen, Offline ECU Programming For Ford/Lincoln/Mazda and ECU Coding For Volkswagen/Audi/Skoda and etc to program/reflash ECUs, perform Online Calibrations, Online Parameterizations, and customize car settings.
√ Perform Online ECU Programming on ECM, PCM, BCM of Specific For BMW/BENZ/VW: Replace the existing software, firmware in the ECU；Program/reflash new modules after ECU replacement；Fix software -controlled driving performance and emission issues.
√ Perform Offline ECU Programming on Specific For For/Lincoln/Mazda: Copy the codes from old module to the new one when you have swapped the ECU/Module from a doner car；Perform Programmable Module Installation(PMI) to reprograms the adaptive data for certain components after repairs or replacements.

Advanced ECU Coding（Online Coding）Function

√ Used to reflash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements.You can use our XTOOL D9SPRO to stimulate all the possibilities of the vehicles.
√ After we replace control units, bad actuators, or certain parts we need to do the coding to make the replaced parts being stored and recognized by the ECU. Almost all systems that include engine, fuel, injector, gear shift, ABS, airbag system, and so on can be coded with this scanner. Before the coding, please read and record the original module’s information.
Incluing: Recode Changed Modules; Optimize Vehicle Performance; Re-Flash Hidden Functions; Renew ECUs Coordination; Reprogram; Adaptive Data; Improve Fuel Efficiency; Reduce Power Loss; Improve the Durability of Mechanical Parts,etc.
Please Note: ECU Coding changes preprogrammed options which depend on the type and number of electronic features already built in. Thus, ECU coding is not universally compatible and varies for different vehicles.

XTOOL D9SOPRO With Powerful Key Programming Function

The IMMO service can disable a lost vehicle key and program the replacement key fob. One or more replacement key fobs can be programmed. like programming new key fobs, Read PIN code/pin code calculation,Check number of keys, Generate key, Add key, All key lost.

- Read PIN Code/Pin Code Calculation
- Check Number of Keys
- Generate Dealer Key
- All Key Lost
- Add Key
 -Delete Key
Note: This Key Programming Function is not Universally Compatible, Please Check Compatibility with us if necessary.

Bi-Directional Controls /Active tests

XTOOL D9S Pro is a bi-directional scan tool with ECU codding, allows you to receive information to and from the vehicle’s onboard computer and can send commands to the vehicle ECU to perform active tests without using the vehicle's controls, like A/C Clutch on/off, Fuel Injectors, (Cycling) ABS Pump Motor, window, door, sunroof, etc. That’s helpful for DIY mechanics, speeding up the troubleshooting process when it’s time to make repairs. Accurately figure out whether a specific system, component, or a subsystem in vehicles goes well and locate the problem by interactively operating and testing the vehicle's related actuators. Such as:
- Turn on The Radiator Fan
- Modulate the Throttle
- Open/Close Windows
- Operate Mirrors- Turn on/off The Lights
- Turn on/off The Sound Horn
- Test Door Lock

XTOOL D9SPRO Diangostic Tool Provide More Comprehensive Functions:

* WIFI Connection: D9SPRO offers wireless connection feature to achieve remote diagnosis at a long wireless range, get rid of the shackles of cables, Wireless WIFI diagnosis work is more efficient, convenient and stable. (The WIFI connection distance from the vehicle is about 30-100M)
* Auto Vin Auto Scan: Simplify the vehicle diagnostic process with just one click. XTOOL D9S PRO scanner tool adopts the latest car VIN technology, allowing technicians or repairers to easily identify vehicle information such as manufacturer, model, year and place of manufacture, etc.
* 8 In 1 Live Data Graphing: Up to 8 real-time data PIDs can be viewed at the same time, such as oil pressure, fuel temperature, coolant temperature, transmission oil temperature, fuel trim, O2 sensor, etc., displayed in text or graph form.
* Support CAN FD/DOIP Protocols: With CAN FD Protocol covers for GM MY2020+ models. No extra CAN FD adapter needed. With DoIP Protocol covers for BMW E/F/G Chassis/Jaguar/Land Rover vehicle.
* Intelligent Topology Map: XTOOL D9SPRO intelligent diagnostic tool has a module topology, which can scan all available car modules, and the topology map displays the diagnostic status in different colors, showing the communication structure between modules, which greatly improves the maintenance efficiency of the workshop.
* For VAG Guided Functions: XTOOL D9SPRO can perform complex functions such as special functions, ECU coding, etc., to help your diagnostic step by step with instructions for VW/Audi/Skoda, etc.
* 3 Years Free Update and Lifetime Technical Support: D9SPRO is equipped with one-click online update and 3-year free update to get the latest software, which can support more functions and new model coverage. Even after the free update has expired, the device will still work normally. If you encounter any problems, our technicians will serve you for free for life.

XTOOL D9SPRO Supported 15 Languages

Arabic, German, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Traditional Chinese, Vietnamese, TurkishNote: English is default language, if you need other language, please contact seller.

Wide Coverage for 99.9% Vehicles, Including DoIP, CAN FD Protocol Vehicles

XTOOL D9S PRO diagnostic tablet can work on 10,000 vehicles globally to perform all systems diagnostics and emission check,Up to 2023, 2022, including cars, SUVs, minvans, 12v light-duty trucks, including for GM 2020+ vehicles that are CAN FD compliant,for BMW E/F/G Chassis / Jaguar / Land Rover vehicle makes that are DoIP protocol compliant,and 99.9% OBDII/EOBD vehicles for emission check.For American Vehicles: For BUICK, For CADILLAC, For CHEVROLET, For CHRYSLER, For DODGE, For FIAT(BRAZIL), For FORD, For FORD(AUSTRALIA), For GM, For JEEP, For LINCOLI, For GM（BRAZIL）

For European Vehicles: For ABARTH, For ALFA ROMEO, For AUDI, For BENTLEY, For BMW, For BUGATTI,For CITROEN , For DACIA, For DR, For EUROFORD, For FERRARI, For FIAT, For GAZ, For OPEL(SOUTHAFRICA), For IVECO, For JAGUAR, For LAMBORGHINI, For LANCIA, For LANDROVE, For MASERATI, For MAYBACH, For MERCEDES, For MINI, For OPEL, For PEUGEOT, For PORSCHE, For RENAULT, For ROLLSROYCE, For ROVER, For SAAB, For SEAT, For SKODA, For SMART, For SPRINTER, For VAUXHALL, For VAZ, For VOLVO, For VW, For BORGWARD, For ASTON MARTINA.

For Asian Vehicles: For ACURA, For DAEWOO, For DAIHATSU, For HM, For HOLDEN(AUSTRALIA), For HONDA, For HYUNDAI, For IKCO, For INFINITI, For ISUZU, For KIA, For LEXUS, For LUXGEN, For MAHINDRA, For MAHINDRA(INDIAN), For MARUTI,For MAZDA, For MITSUBISHI, For MVM, For NISSAN, For GTR(NISSAN, For PERODUA, For PERODUA(MALAYSIA, For PROTON, For PROTON(MALAYSIA, For SAMSUNG, For SAIPA, For SSANGYONG, For SUBARU, For SUZUKI, For TLISUZU, For TOYOTA, For UNITED PAKISTAN, For VINFAST
For Chinese Vehicles: For BRILLIANC, For BYD, For CHANGAN, CHANGAN-FORD, , For CHANGHE, For CHBUICK, For CHCADILLAC, For CHCHEVRO-KET, For CHERY, For CHSUZUKI, For DFCIROEN, For HONDA(DF), For DFNISSAN, For DFEUGEOT, For ECUAID, For FAW(TIANJIN, For FOTON, For GOLDEN(XIAMEN, For GONOW, For MITSUBISHI(GAC, For GREAT WALL, For HONDA(GAC, For HAFEI, For HAIMA, For HCBMW, For JAC, For JIANGHUAI, For JMC, For JOYLONG, For LIFAN, For LYNKCO, For MG(SAIC, For NJFIAT, For QOROS, For MAXUS, For SGM, For TOYOTA(CHINA, For VENUCIA, For WULING, For XINKAI, For YQMAZDA, For ZHONGGSHUN, For ZHONGXING, For ZOTYE, For SOUEAST, For ROEWE(SAIC), For JIQING(FAW), For HUANGHAI, For LANDWIND, For EXEEDTY, For NISSAN(ZHENGZHOU), For DFPV, For JETOR, For DFFX, For CHERY EV
Note: Not all car models are supported, send specific car models to consult the seller before buying

XTOOL D9S PRO Parameters

OS System: Android 10.0
Processor: 4 Core Processor 1.5GHz
Storage: 4G+128G
Battery: 6400mAh
Display: 9.7-inch
Capacitive, 1024×768
Resolution Connectivity: USB/Wi-Fi (2.4GHz & 5GHz Dual-Frequency)
Output: Microphone/ LoudspeakerPorts: USB3.0/DC charging port/VGA port/DOIP Port
