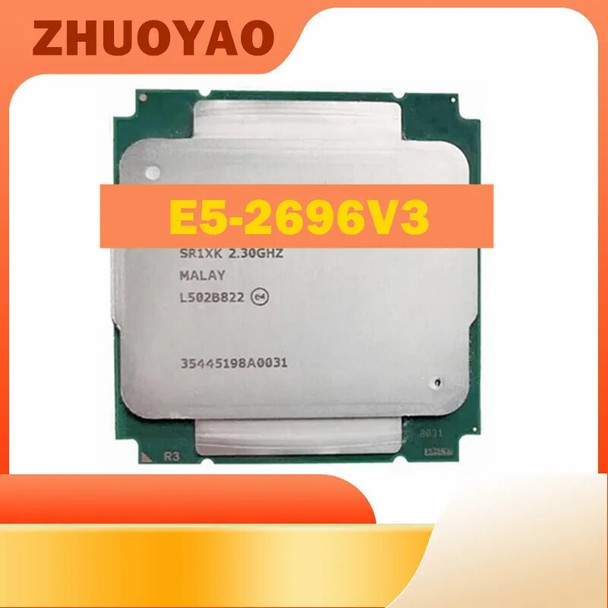

Xeon E5-2696V3 CPU 22nm 18 Cores 36 Threads 2.3GHz 45MB 135W processor LGA2011-3 for X99 server motherboard 2696V3
Description
Tips:
Each item have been tested critically before shipment effected ,We have
build several testing stations specially for CPU ,please buy it with worry-free.
See before installing CPU:
1, remove the original CPU, clean up the dust on the fan and heat sink, clean up the residual heat sink in the original grease, especially hard grease must be thoroughly cleaned, this is very important!
2, in the correct direction into the new CPU, and at the top of the CPU coated with a thin layer of grease. Don't put too much, just can fill the gap between the top of the CPU metal contact and heat sink. The most ideal (in packets we presented silica gel as an example, squeeze appropriate 1/2 grease)
3, put it back to the heat sink, the first finger pressed fins move up and down a few times, so that the inside of the grease evenly spread and exhaust air, then according to the digital sequence tagging screw fins on (or diagonal) gradually tightened, each rotation laps screwed under a screw, not a put a screw in the end, the successive rotation until the fixed balance.
4, if the CPU in the machine after the point is not bright, can use the eraser to wipe the metal contact CPU plate (sometimes CPU floor dust or sweat may contact), or to the motherboard (the motherboard BIOS discharge clearance data). The memory can also be used on no eraser.
Note: for CPU, such as the discovery of CPU temperature is too high, or when the temperature is high and low instability, CPU and memory is not bright, please carefully check the above 4 to check, the vast majority of the problems can be solved.

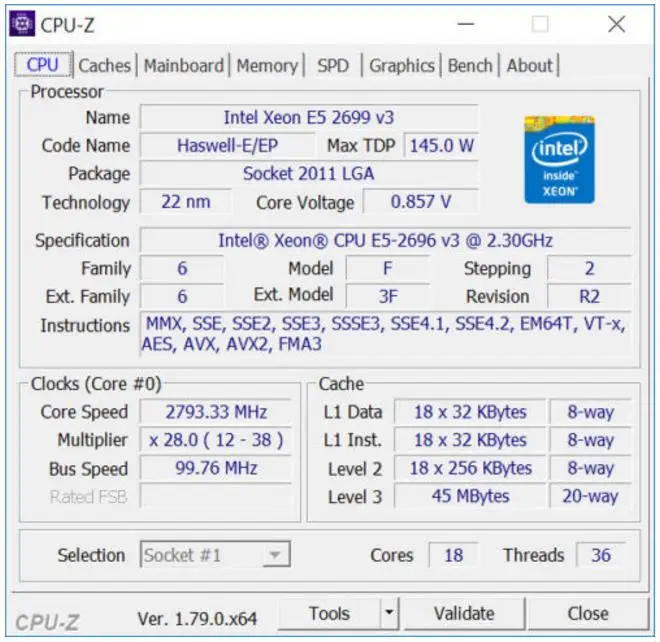

Xeon E5-2696 v3 specifications
listings on auction and classifieds sites
General information | |||||||
Type | |||||||
Market segment | Server | ||||||
Family | |||||||
| |||||||
CPU part number |
| ||||||
Frequency ? | 2300 MHz | ||||||
Bus speed ? | 5 GT/s DMI | ||||||
Clock multiplier ? | 23 | ||||||
Package | 2011-land Flip-Chip Land Grid Array | ||||||
Socket | Socket 2011-3 / R3 / LGA2011-3 | ||||||
Size | 2.07" x 2.01" / 5.25cm x 5.1cm | ||||||
Introduction date | |||||||
S-spec numbers | |||||||
| |||||||
Architecture / Microarchitecture | |||||||
Microarchitecture | Haswell | ||||||
Platform | Grantley-EP | ||||||
| Haswell-EP | ||||||
CPUID | 306F2 (SR1XK) | ||||||
Manufacturing process | 0.022 micron | ||||||
Data width | 64 bit | ||||||
The number of CPU cores | 18 | ||||||
The number of threads | 36 | ||||||
Floating Point Unit | Integrated | ||||||
| 18 x 32 KB 8-way set associative instruction caches | ||||||
Level 2 cache size ? | 18 x 256 KB 8-way set associative caches | ||||||
Level 3 cache size | 45 MB 20-way set associative shared cache | ||||||
Multiprocessing | Up to 2 processors | ||||||
Features |
| ||||||
Low power features |
| ||||||
