Description
WiFi Extender 802.11ac Wifi signal repeater 5g wifi amplificador 2.4G/5Ghz Wi-Fi Amplifier 1200M~1800M wifi router Access point
Note: The differences in the four different product options show you as below.
Q&A
CF-WR761AC Specification
Product Description
CF-WR761AC is a gigabit dual-band repeater with OLED smart screen. Innovative OLED compared with the traditional repeater, the user's setup and use are more simple and intuitive. Xiaobai can also get started easily, and he knows the working of his repeater like the back of his hand. It is suitable for scenarios with incomplete routing coverage of houses such as large flats, villas, duplex buildings, and corporate offices.
Features
●Wi-Fi expansion, eliminating dead spots of wireless signals;
●OLED screen display, working status - - clear at a glance, the device is easier to use and easier to use;
●1200Mbps dual-band, stronger anti-interference, high speed, more compatible with gigabit home routing;
●4 antenna signal enhancement, signal coverage and wall penetration are significantly improved;
●The antenna can be rotated flexibly, and the user can adjust the angle of the antenna to adjust the signal transmission and reception;
●Support WiFi to wired, can be connected to TV, computer, etc. to connect with wired and stable work;
●Scientific heat dissipation design, the device supports 24h stable work without disconnection, avoiding overheating and aging of components;
Typical Application
CF-WR761AC is suitable for scenarios such as duplex buildings, large flats, villas, and offices where large-area routers are not fully covered.
Specification:
![](https://ae01.alicdn.com/kf/Sedc9298ce6f0451d927a8ec743565c342.jpg)
![](https://ae01.alicdn.com/kf/Sef7fbae28bd9468aae9d04b0c3b7007ev.jpg)
![](https://ae01.alicdn.com/kf/S4c272413433e442091dd953c5a11205ef.jpg)
![](https://ae01.alicdn.com/kf/S2f774f355fe54bed8914e5a72fe1178as.jpg)
![](https://ae01.alicdn.com/kf/Sa1cf07e305f0405db46fcc25997217b9m.jpg)
![](https://ae01.alicdn.com/kf/S37257a39314d4c86abaa75987e26926ak.jpg)
![](https://ae01.alicdn.com/kf/Sa61a1c629ddb43b0b5810802403be9a1F.jpg)
![](https://ae01.alicdn.com/kf/Sf3686904692448208a1ddc307db02fa9D.jpg)
![](https://ae01.alicdn.com/kf/S945c210916724f8fbd34c2f9133a4120G.jpg)
![](https://ae01.alicdn.com/kf/S0a22ac16cd674b85a4a7fe7a99fcfa64W.jpg)
![](https://ae01.alicdn.com/kf/S7ad75b774c60445392a80f662f63852fA.jpg)
![](https://ae01.alicdn.com/kf/S131123ca105e426a8776bbb18b4ce6e98.jpg)
![](https://ae01.alicdn.com/kf/S1afc846a6c3c4e1c84cd7e6aef76f6a5p.jpg)
![](https://ae01.alicdn.com/kf/S3a77cd8d03344542a3f674ccb89e497fY.jpg)
![](https://ae01.alicdn.com/kf/S0e239454c8e847d6bbe93e7e76b409fct.jpg)
JW-XR182 Specification As Below
Product Description
XR182 is a WiFi6 repeater with OLED smart screen. Innovative OLED screen design,Compared with traditional repeaters, users are more simple and intuitive to set up and use. Xiaobai can also get started easily, and he knows the working of his repeater like the back of his hand. It is suitable for scenarios with incomplete routing coverage in large flats, villas, duplex buildings, and corporate offices.
Specification:
●Brand: COMFAST
●Model: XR182
●Colour: White
●Operating mode :Repeater / Router / AP
●Chipset:MT7621A+MT7905D+MT7975D , 128MB DDR2 / 16MB FLASH
●Antenna: 4*2dBi high-gain Omnidirectional antenna
●Wireless Standard:IEEE802.11a/b/g/n/ac/ax standard
●RF Parameters:Transmit Power:200mW(23dBm)
●Acceptance Sensitivity: -96dBm
●Working Frequency: 802.11b/g/n: 2.412GHz- 2 472GHz ;802.11ax/ac/an/a : 5.180GHz-5.825GHz
●Transmission Rate:2.4GHz : 574Mbps ;5.8GHz : 1201Mbps
●Physical interface : 1*10/100/1000Mbps WAN/LAN RJ45 Ethernet port;
●Button:1*RESET/WPS Button ;
●Power :100-240V,56/60Hz
WiFi Expansion
Eliminating dead spots of wireless signals
Features
●OLED screen display, the working status is clear at a glance, the equipment is easier to use, and the usability is stronger;
●WIFI supports 802.11ax (WiFi6), and supports 802.11 ac (WiFi5) downwards,b/g/n(WiFi4);
●1800Mbps dual-band, stronger anti-interference, high speed, more compatible with WiFi6 home routing;
●4 antenna signal enhancement, signal coverage and wall penetration are significantly improved;
●The antenna can be rotated flexibly, and the user can adjust the angle of the antenna to adjust the signal transmission and reception;
●Support WiFi to wired, can be connected to TV, computer, etc. to connect with wired and stable work;
●Scientific heat dissipation design, the device supports 24h stable work without disconnection, avoiding overheating and aging of components;
WiFi6 repeater, support 1800Mbps dual band
XR182 supports a new generation of WiFi6 standard, supports 2.4&5.8GHz dual-band, includes WiFi6 OFDMA, BSS coloring, TWT technology, 1024QAM, WP A3 security encryption and many other performance advantages, the wireless rate can reach 1800Mbps, user experience Significant upgrade.
WPA3 Wireless Alliance Security Certification
Upgraded from 128-bit encryption to 192-bit encryption
Enhanced 4 antennas to improve signal coverage and coverage depth
Factors such as walls, obstacles, and co-channel signal interference all weaken the WiFi signal to varying degrees. The XR182 is equipped with an enhanced version of 4 antennas, which has a wider range of signal transmission and reception and is more stable.

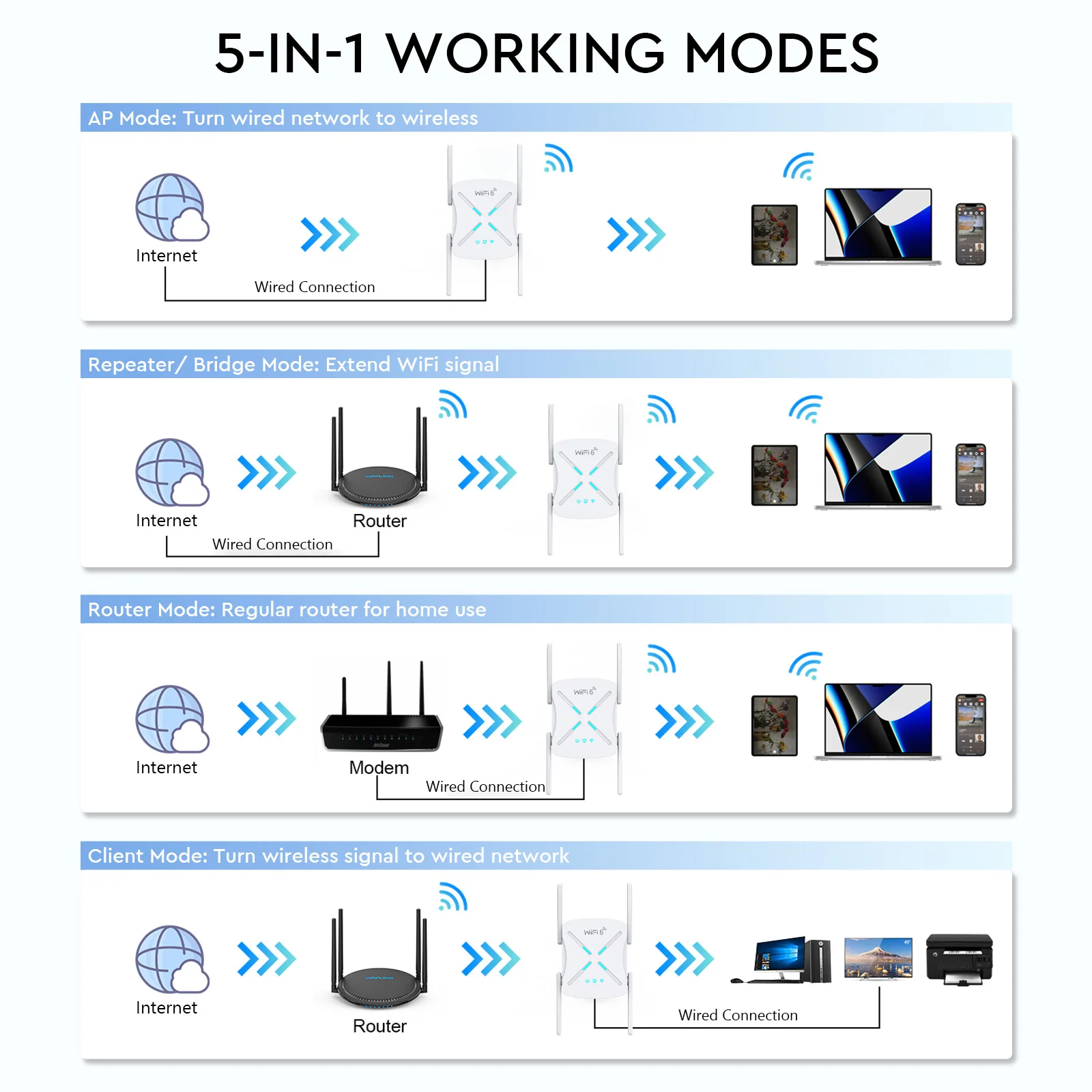

Multimodal application
XR182 supports AP, repeater, and routing modes. Users can set different modes to meet the needs of different scenarios, and the application is more flexible. For example, when the WiFi signal is amplified, choose the repeater mode; when using an analog router, you can choose the routing mode; if the repeater is too far from the main route, you can choose the AP mode.
Product Application Scenarios
XR182 is suitable for scenarios such as duplex buildings, large flats, villas, and offices where large-area routers are not fully covered.
repeater 6
wifi ax repeater
wi 6 repeater
wifi 6 extenders
wifi 6 signal
wifi signal 6
wifi 6 repeater 3000
wifi 6 repeater 5ghz 1800
wifi 6 repetor
wifi 6 repeater 5ghz 1 900
wifi 6 amplifier 400mpbs
wifi 6 range extenders ;
wifi extended range
wifi extender 6
wifi range boosters
wifi repeat 5g
wi 6 repeater
grass wall backdrop
CF-WR302S Specification As Below
Feature:
Access to the Internet for computers located on the edge or outside of the range of your access point.
Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards .
Provides up to 300Mbps transmission rates.
Support 2.4 GHz WLAN networks.
Maximum WLAN security with WPA2, WPA and WEP (128/64).
Software wizard for simple setup.
2*5dBi antennas integrated
Support Wireless Repeater Mode and Standard AP Mode.
Provides one 10/100Mbps Auto-Negotiation Ethernet LAN ports.
correct the language and the stablility of signal
revise default reboot
former version need reticle to reboot,but now do not need.
The 2 version can support Chinese,English
Specification
Product Type: WIFI Repeater
Color: White
Plug Type: EU/US /UK/AU Plug
Voltage: AC 110-240V
Frequency Range: 2.41-2.48GHz
