PCB Size

17cm * 11.7*2.5cm

Unit Packing Way

Wiegand brand package (carton)

Case Size

30.8cm* 24.12cm * 7.45m

Accessories

User Manual, warranty card

Features

General Function Introduction

B01 stand alone access controller is a device combined the most advanced chip technology and mechanics of communication. User can connect the controller with one reader for entry and one button for exit; also it allows to connect one reader for entry and one reader for exit to realize more safer door access control request.

Operation Interface

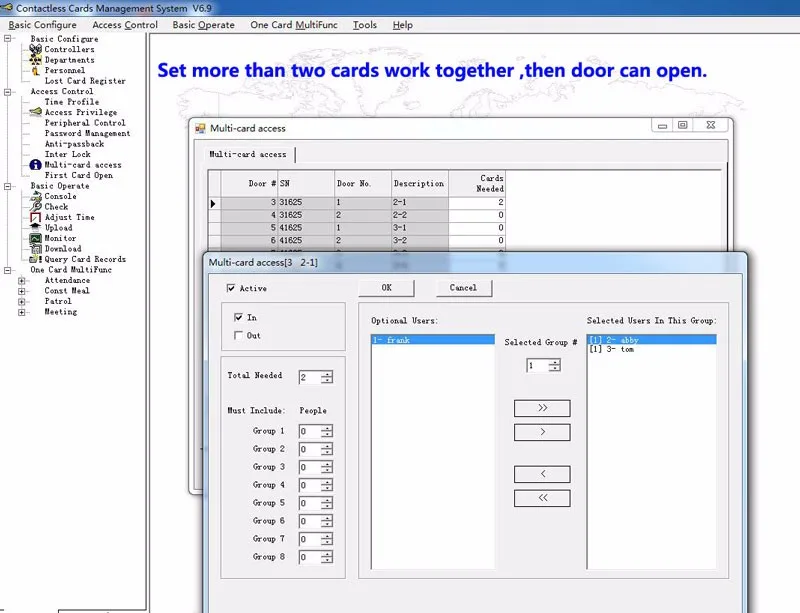

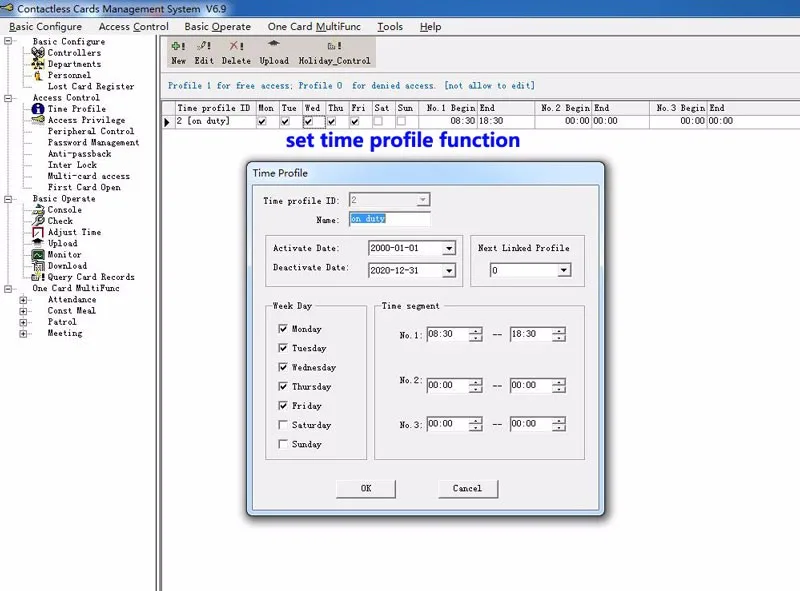

software to use comples functions

Language

User can switch the language of the management/control interface between Chinese and English freely.

CPU

It adopts 16 bit CPU and can provide fast,stable,convenient and simple operation platform.

Support

Support offline work. Apply TCP/IP communication. Allow direct connection with computer via network cable. Support LAN ,remote control

Advanced Technology

We adopt 16bit CPU in this device to ensure fast arithmetic speed, and to establish a high tech platform for future expansion functions.

User can manage and control the hardware through any piece of computer via network cables, and even realize remote unlocking, remote management, remote monitoring of the door status through internet.

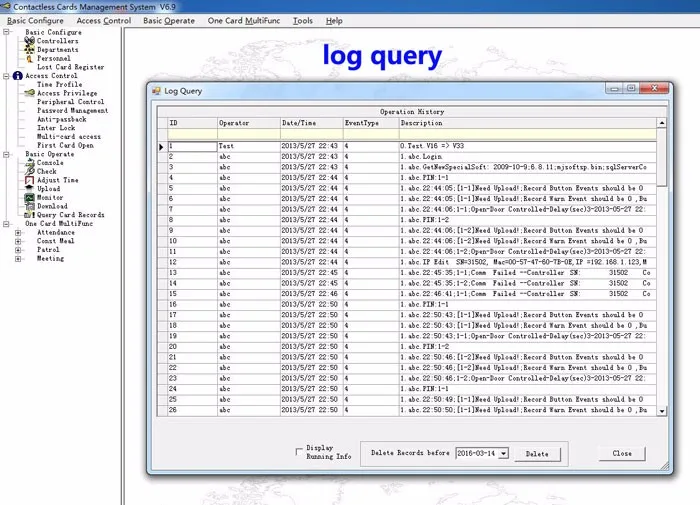

The device can store 100 000 records.

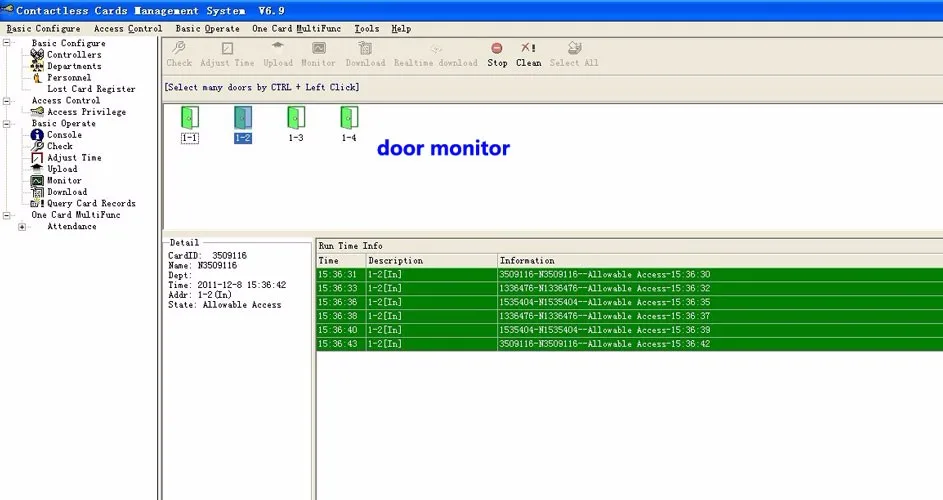

This device allows user remote monitor the door status with the help of door sensor, and can remote unlock the door via computer.

Humanization

Compared to standard stand alone access controller (without LCD), this device can show you the card user ' s name, department the user belongs to; it supports vague search with card number and card user name, and supports event buffer records checking. In cases that there are many card users, this function would be more convenient than standard stand alone access controller.

Affordable

This device is priced between standard stand alone access controller and networked access controller.

Safe

Compared to standard stand alone access controller, this device separates the reader and the controller to individual parts so to realize higher safety request of your customer.
Login user name and password are revisable.

Stability

Wrong connection of reader or data cable will not destroy the device or unlock the door illegally.
Effect inhibition of static electricity and surge from input and feedback interference from electronic locks.

Compatibility

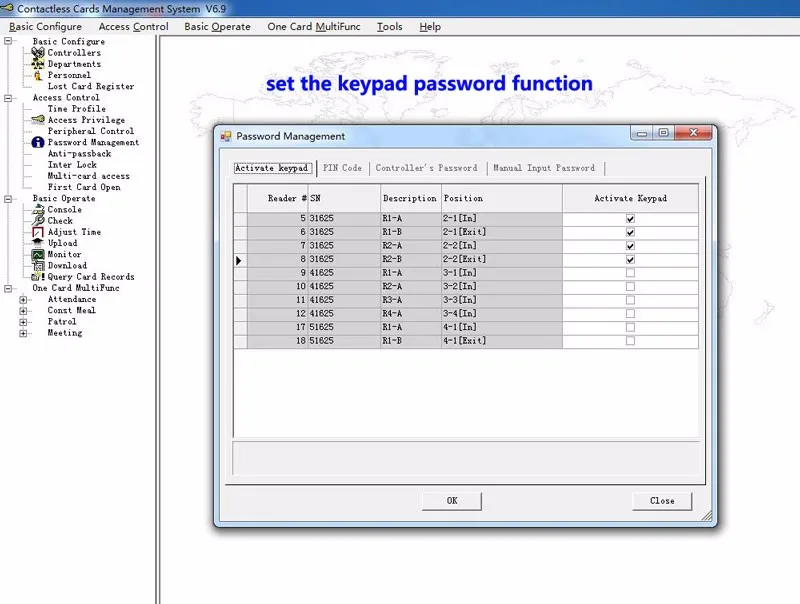

This device is compatible with all RF reader which is with any type of Wiegand stantard communication format available in the market. It supports at most 8 groups of password. User can name for each group of password.

Basic Specification for power supply

WGJXDY-03 Power supply and case

The power supply can support the controller, reader and one to two additional electronic locks.It has charge-discharge function. If connect with standard 12V 7AH storage battery, when power cut, it can ensure the door access control system work properly.

Specification

Door

1

Card Reader

2

Card User q'ty allowed

20 000

Department q'ty allowed

Max 100

Event buffer

100 000

Communication

TCP/IP

Language

Simplified Chinese and English

Database

sql server

Delay time for unlocking

0-999 seconds

Password

at most 8 Groups allowed

Output Voltage

12VDC

Power

30W

Charge-discharge function

Yes
