Description

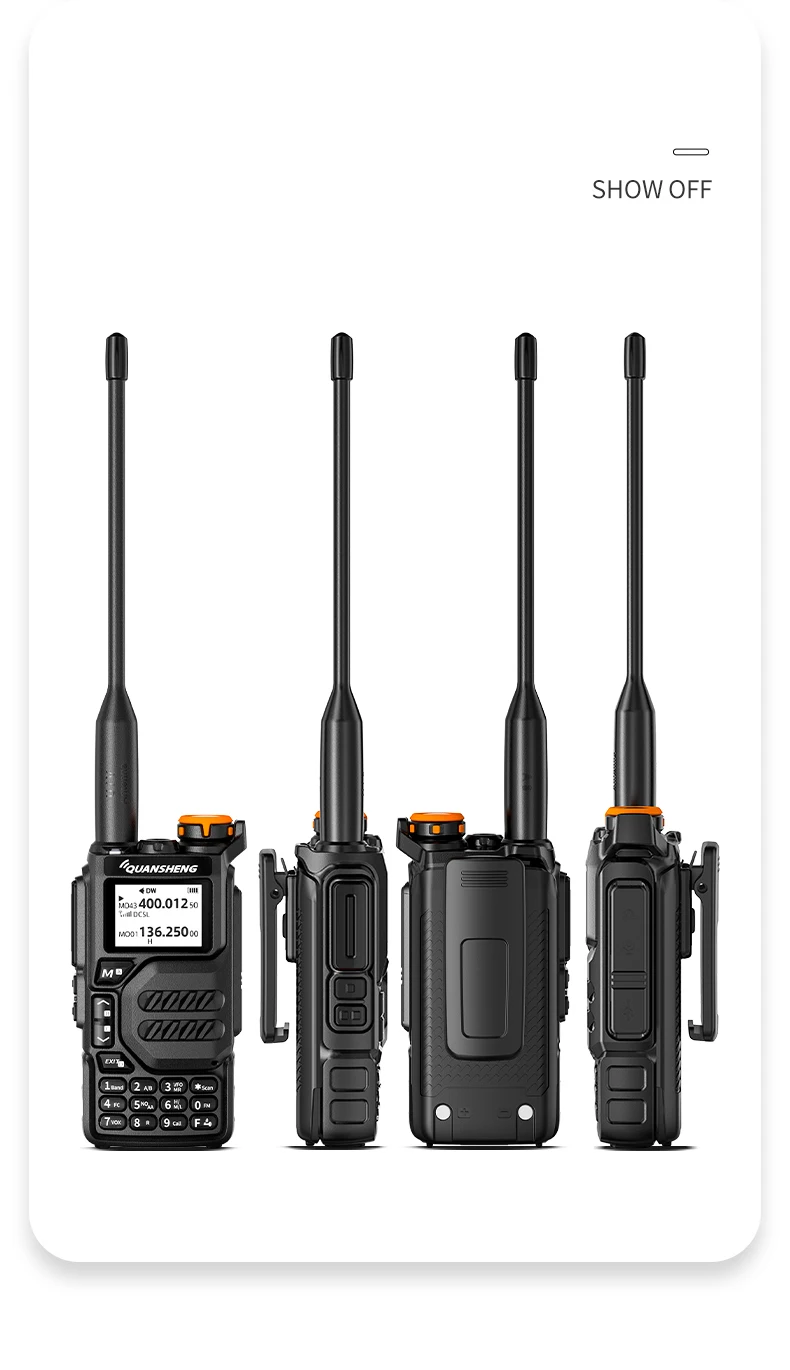

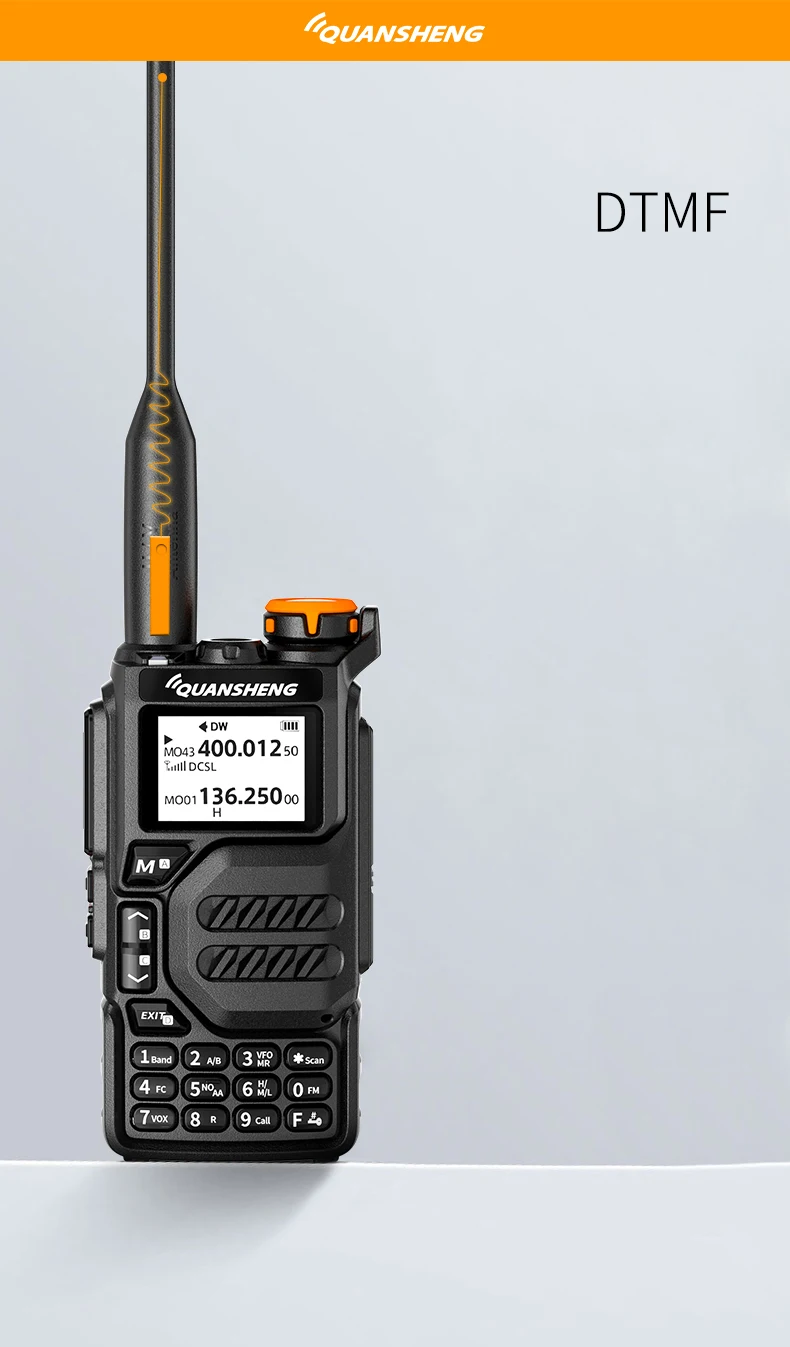

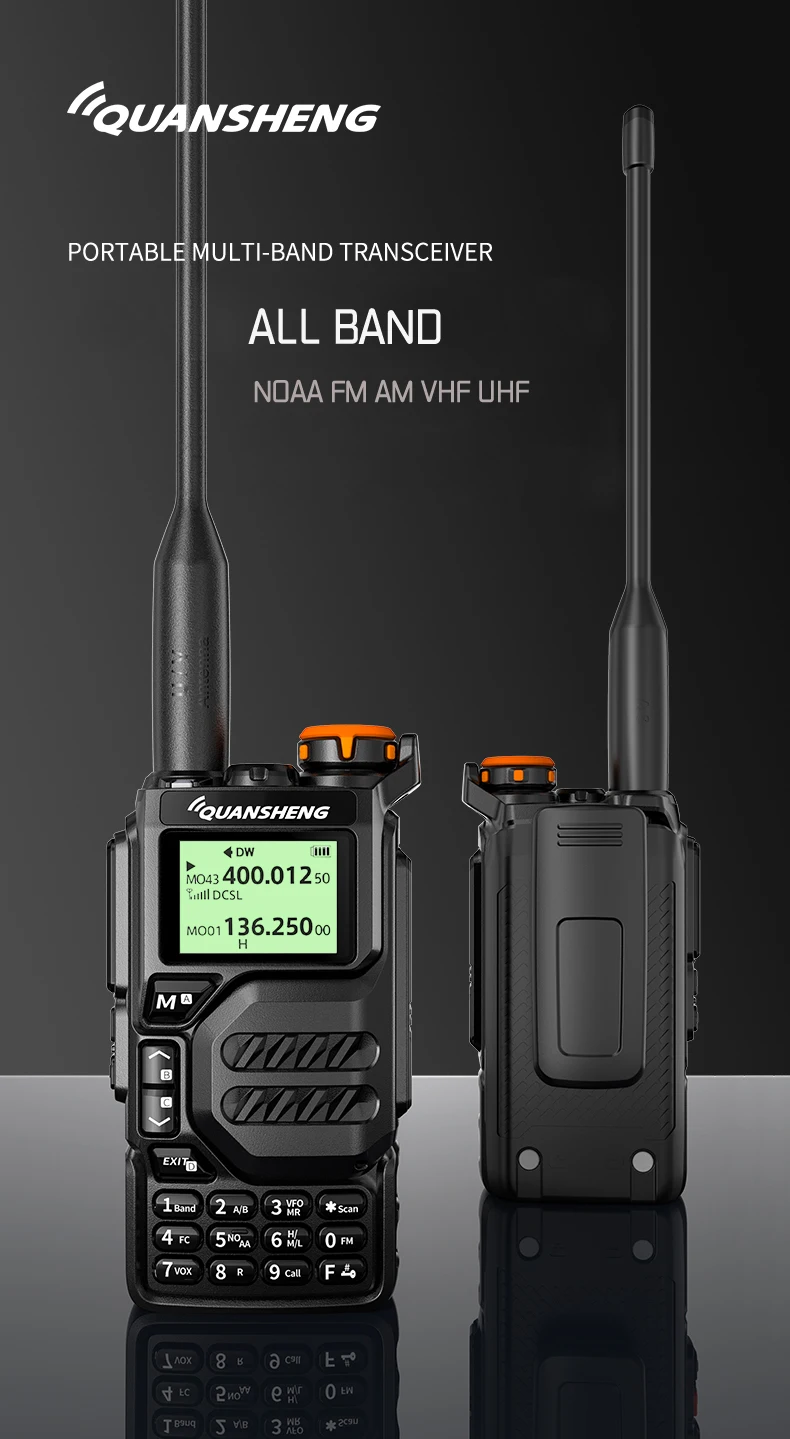

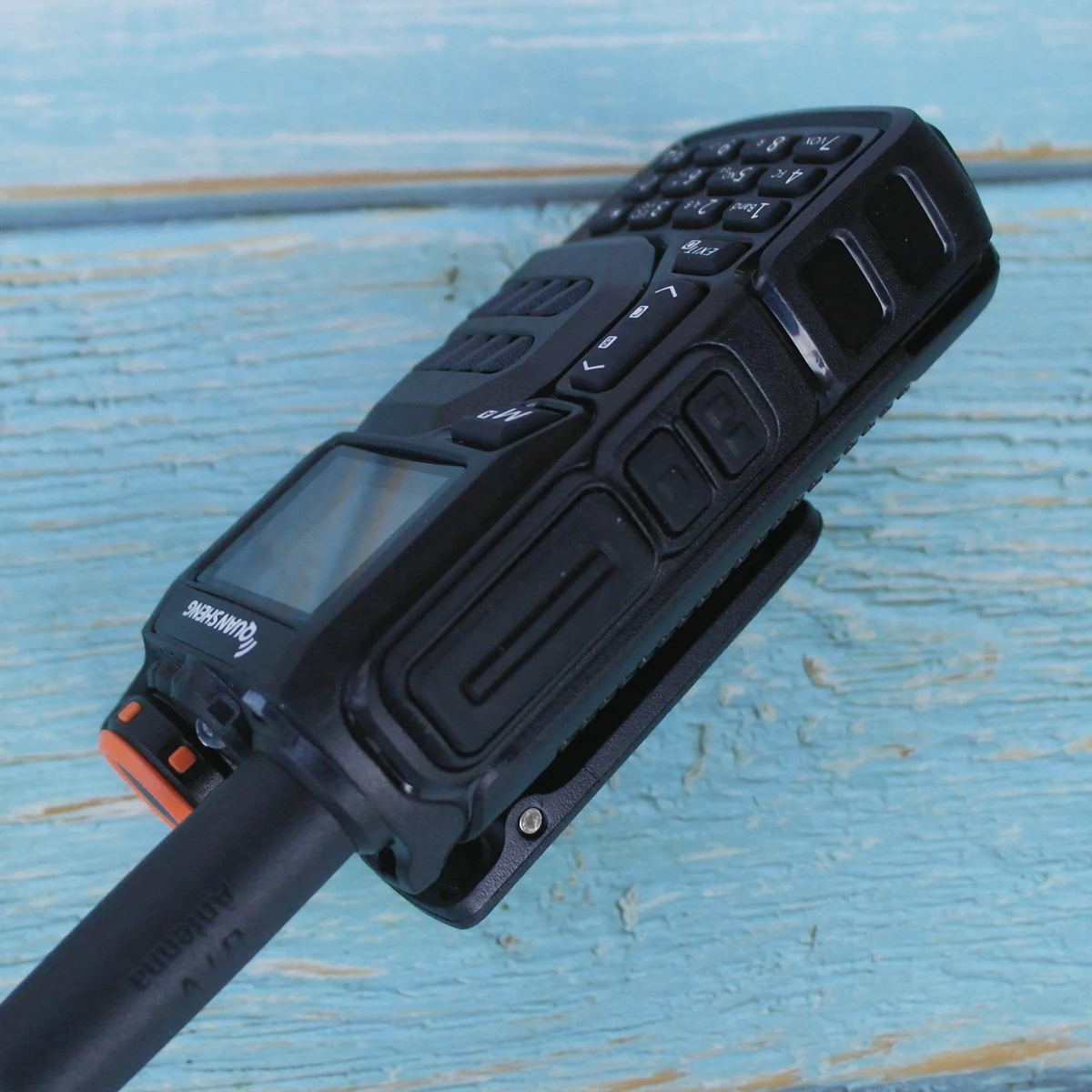

Quansheng UV-K5 50-600MHz 200 Memory Channel 5Watt Air Band Aviation Receiving Walkie Talkie DTMF FM Scrambler NoAA Wireless Frequency Copy

Features:

-10 Channels America NOAA weather forecast

-VHF UHF dual band Transmit and Receiver, 50-600MHz full band Receiving

- Frequency Range:

F1:50.0000-76.0000MHz(RX only)

F2:108-.0000-135.9750MHz(RX only)

F3:136.0000-173.9750MHz(TX and RX both)

F4:174.0000-349.9750MHz(RX only)

F5:350.0000-399.9750MHz(RX only)

F6: 400.0000-469.9750MHz (TX and RX both)

F7:470.0000-600.0000MHz(RX only)

FM Radio: 76.000-108.000MHz

10 USA NoAA Weather Forecast Channels

-Air Band Receiving

-Cross-band Communication

-Wireless Frequency copy from other radios

-Wireless Radio Replication from othe Quansheng TG-K5 Radios

-Auto/Manual Emergency Alert

-FM radio

-8-Group Scrambler

-Frequency/DCS/CTCSS Scan

-Digital Signal CTCC/DCS

-1600 mAh Rechargeable Li-ion Battery Pack

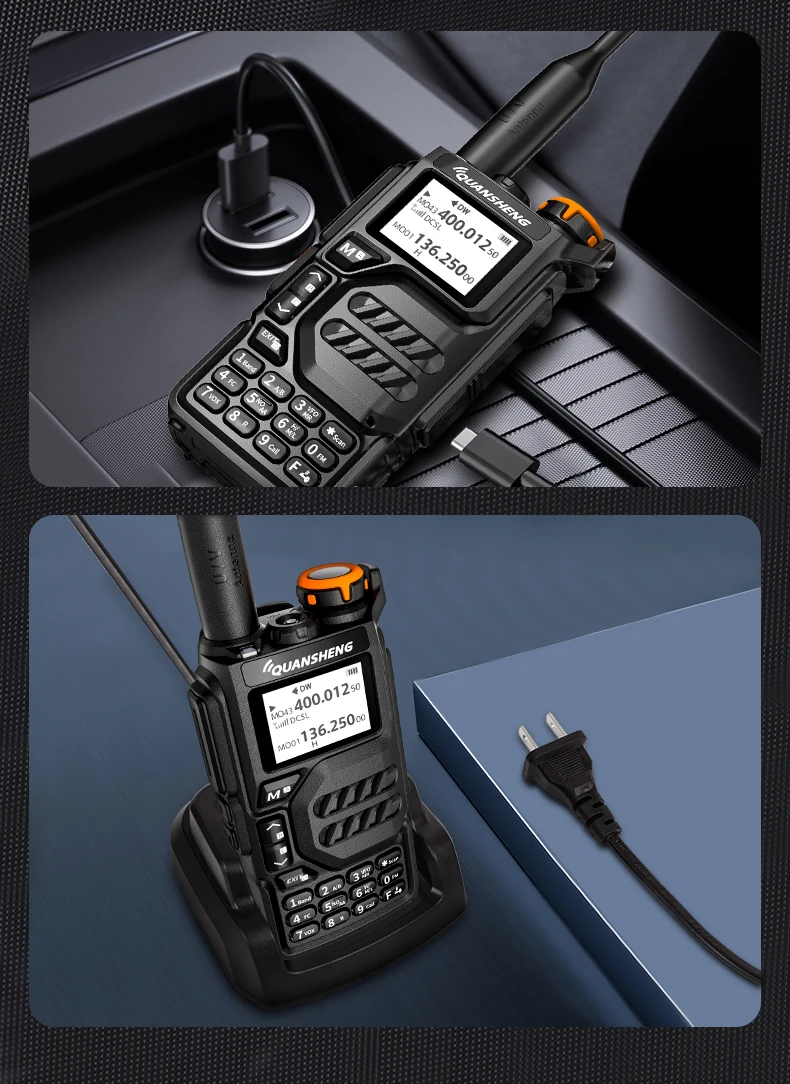

-TPYE C and Desktop Cradle Charging

-VOX (Voice operated Transmission)

-Dual BAND STANDBY

-DTMF AND 1750 Tone

-BUTTON F+ Button 3 to switch Channel mode to Frequency Mode

-200 Memory Channels

-Built-in high light Torch

Specifications:

General
Memory Channel Number:	200
Channel Number for FM Commercial Radio:	20
NOAA Memory Channel Number:	10
Frequency Stability :	±1ppm
Modulation :	FM:16KΦF3E@25KHz/11KΦF3E@12.5KHz
Dimension:	115mm60mm37.5mm
Weight:	243g
Working Temperature	-20°c~ +60°c
Antenna Impedance	50 ohm
Receiving Parts
Referenced Sensitivity	FM(12dB SINAD)	F1 (50-76MHz): -121dBm F2(108-135.9975MHz):-121dBm F3(136-173.997MHz):-123dBm F4(174-349.9975MHz):-123dBm F5(350-399.9975MHz):-123dBm F6(400-469.9975MHz):-123dBm F7(470-599.9975MHz):-121dBm
	WFM(20dB SINAD)	WFM(76-108MHz):-110dBm
	AM(10dB S/N)	F2(108-135.9975MHz):-113dBm
Audio Rated:	≥0.5W
Audio Distortion	≤10%
Transmission Parts
Frequency Range:	136-173.9975MHz	400-469.9975MHz
Output Power	5W	4W
Working Current	≤1.5A	≤1.5A
Max.Frequency Deviation	≤5KHz(25KHz),≤2.5KHz(12.5KHz)	≤5KHz(25KHz),≤2.5KHz(12.5KHz)
Modulation Distortion	≤5%	≤5%
Spurious Radiation	≤7.5uW	≤7.5uW
Adjacent Ch. power	70dB(25KHz),60dB(12.5KHz)	70dB(25KHz),60dB(12.5KHz)
Inter-modulation	40dB	40dB
