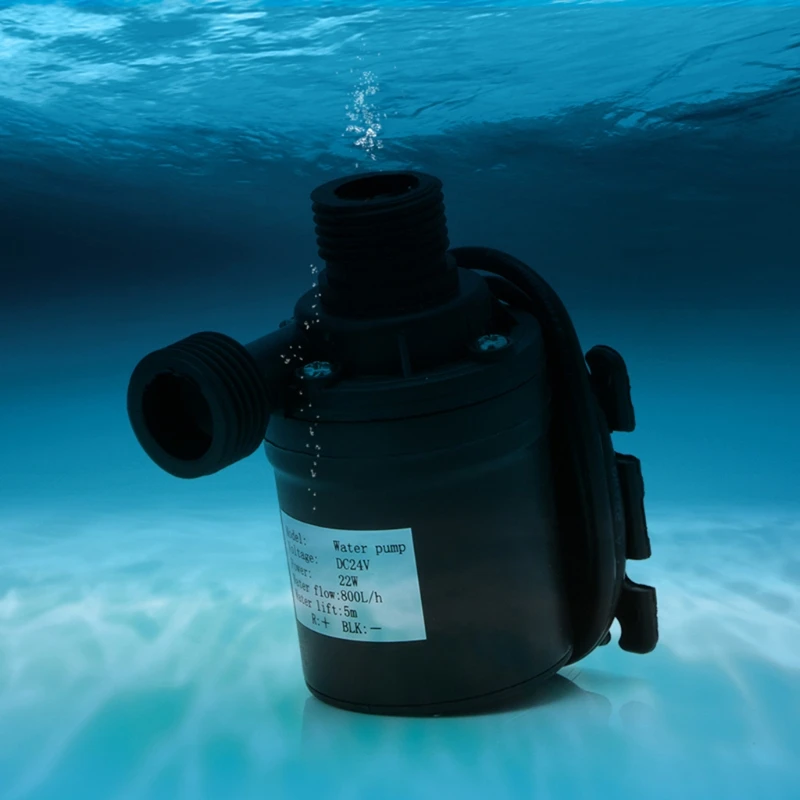

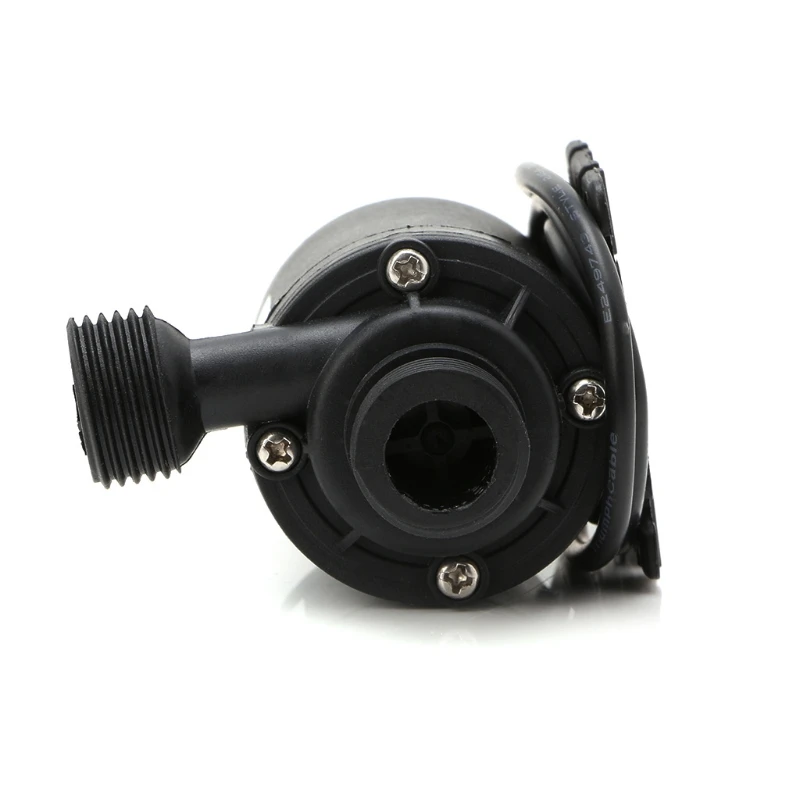

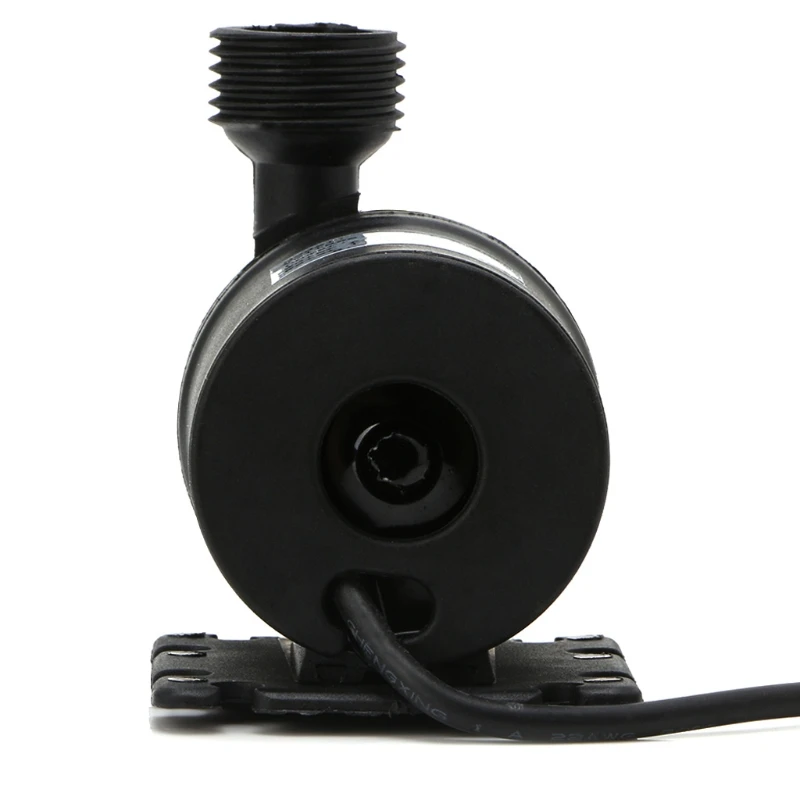

Water Pump 800L/H 5m DC12V 24V Solar Water Heater Brushless Motor Circulation Electronic Component Outdoor Garden Yard Fountain

Features:

This DC pump uses advanced electronic components and high-quality wear-resistant shaft

It is smooth operation, high efficiency, good performance, long service life,

Can be a long time continuous work, low noise, safety and environmental protection.

It is widely used in industry, scientific research, aerospace industry

Usage:

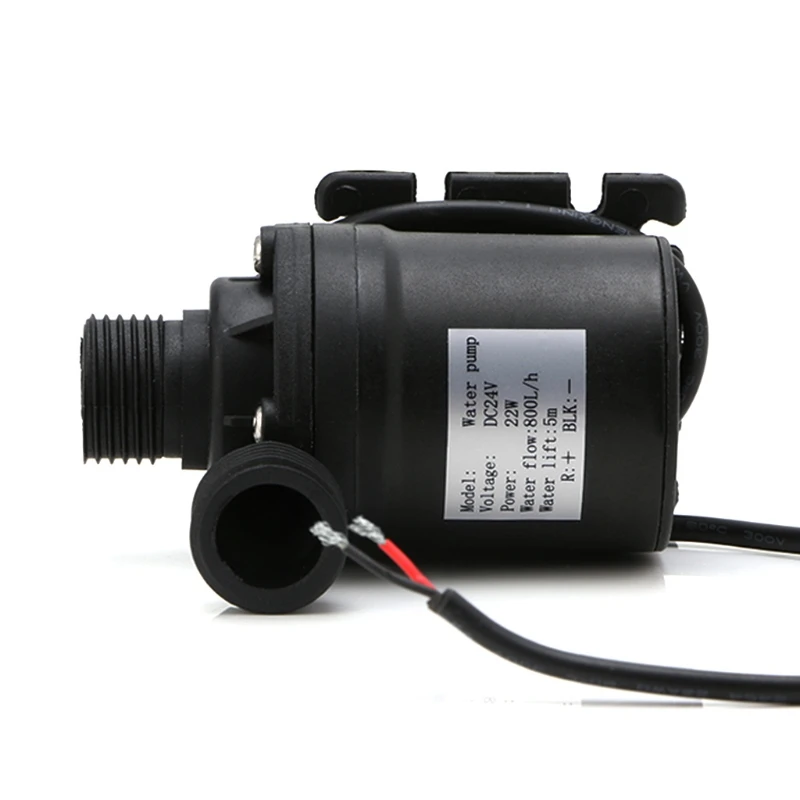

The water pump cable (red line is positive, do not take the wrong) received a suitable power supply (the battery can be a battery, it can be a power converter), and then a good water pipe, then pump into the water, Can be used normally.

(Note: The DC brushless pump is a centrifugal pump, the pump water flow with the increase of the head decreases.No diving without self-priming function, prohibit no water free.)

Specification:

Name: Water pump

Material: Plastic

Color: Black

12V/24V:

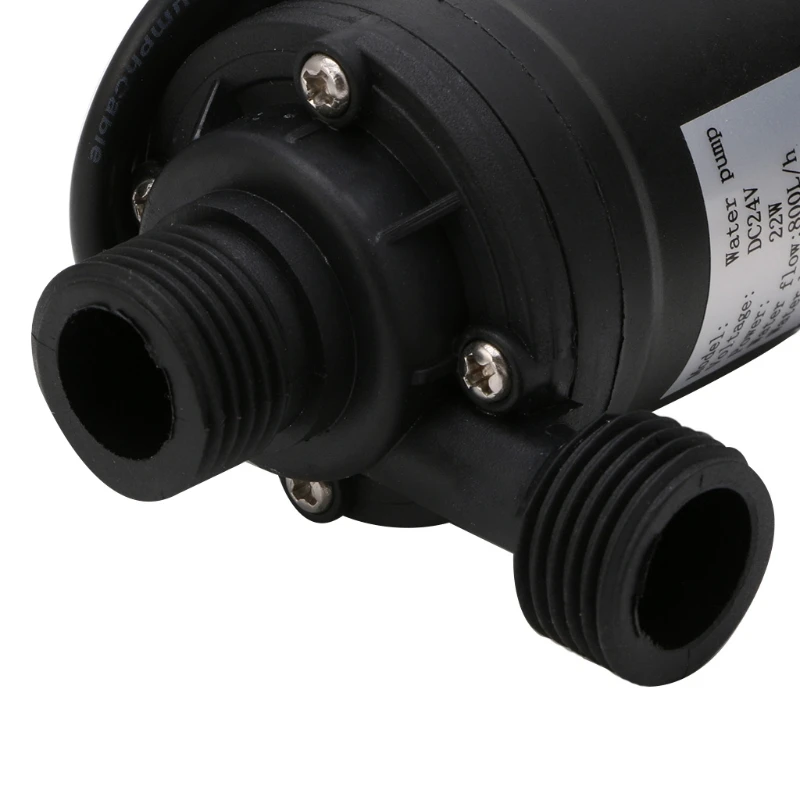

Inlet/Outlet: 1/2" male thead

Voltage: 12V DC/24V DC

Maximum Rated Current: 1000MA

Power: 22W

Max Flow Rate: 800 L/H

Max Water Head: 5m

Max circulating water temperature: 100°C

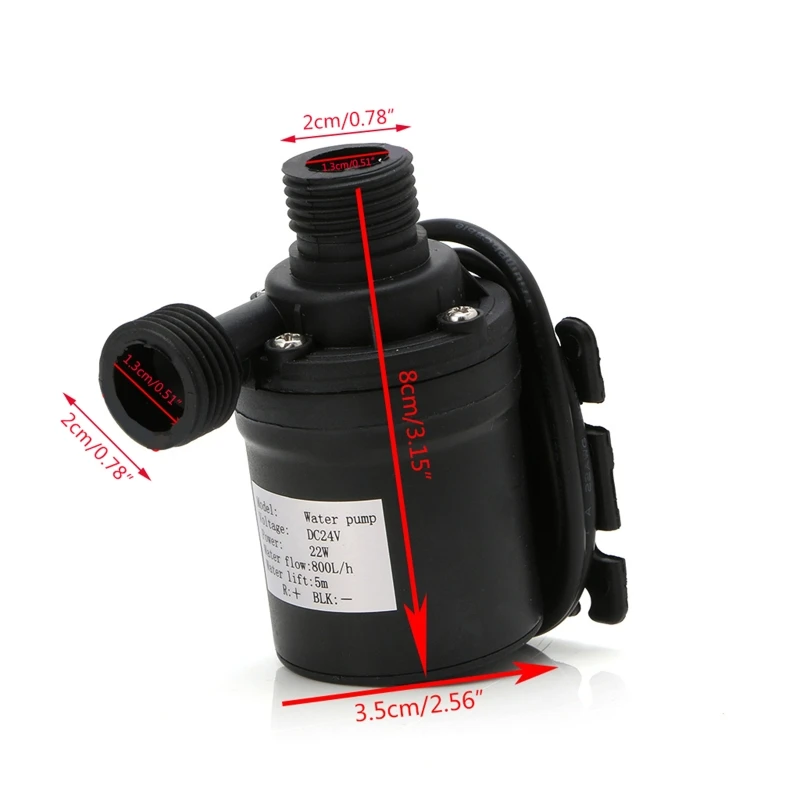

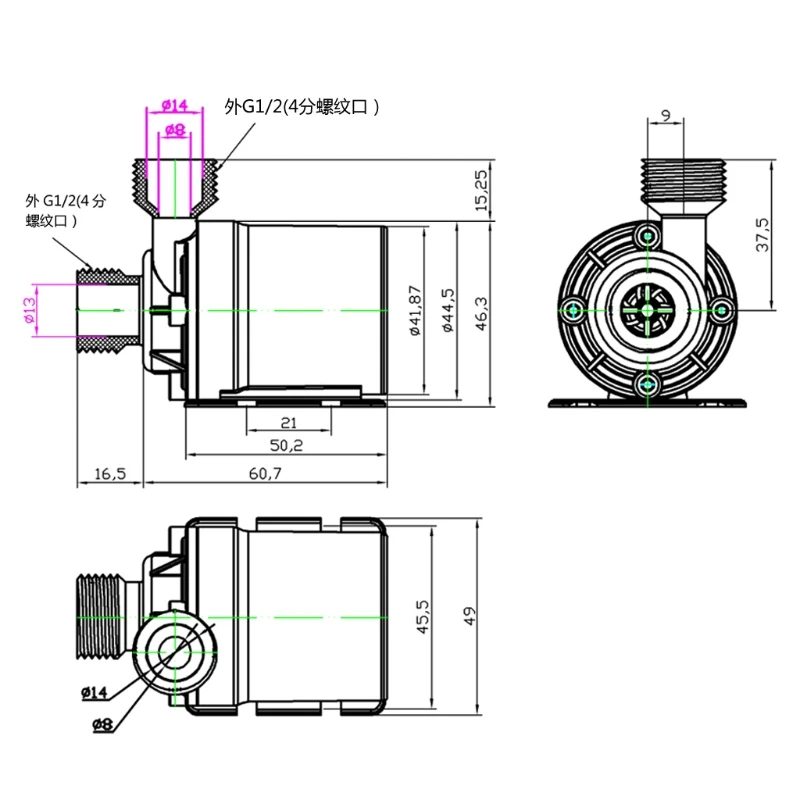

Size: About 6.5cm(D) x 8cm(H)

12V with Plug:

Working Method: Can Be Used Continuously

Maximum Working Temperature: 70℃

Power Consumption: 19w

Max Load Power: 19w

Maximum Flow: 800l/h

Maximum Static Lift: 6m

Noise: <35db

Waterproof Grade: Ip68 (submersible Installation)

Life: More Than 10000 Hours

Rated Voltage: 12v

Maximum Speed: 9500rpm

Note:

1.Do not take the wrong pump positive and negative

2.Prohibit not through the power converter will be connected directly to the 220V power supply pump.

3.Is strictly prohibited for strong acidity, alkali and other damage to the pump medium.

4.The pump is suitable for medium temperature 1 ℃ -100 ℃.

Package includes: 1 x Water Pump
