Walkie talkie Repeater Full Duplex Two Way Radio Repeater Mini Analogue Repeater Customizable RETEVIS RT97 10W UHF (or VHF)
Description
Note: 1:RT97 repeater has four versions for option: ①UHF fixed frequency version:(UHF/ TX frequency:463.3125MHz，RX frequency:453:3125MHz,offset:10MHz) ②VHF fixed frequency version:(VHF/ TX frequency:162.6125MHz，RX frequency:152.6125MHz,offset:10MHz) ③Customizable frequency version:(TX frequency and RX frequency can be customized between UHF (400-470MHZ)orVHF(136-174MHZ). Offset: >5MHz.) If you need customize,please tell us : RX frequency, TX frequency, Offset, Charger type. Offset ≥5MHz and ≤12MHz ④GMR frequency version:(GMRS/ TX：462.5500/RX：467.5500 MHz,8 Channel) Default Frequency of GMRS version:
2:Each built-in duplexer can only be set to a fixed RX(receiving) frequency and TX(transmitting) frequency during production,not a frequency range. So if you want to customize, please provide us with TX frequency point, RX frequency point, offset,adapter type. |
Get to know RT97 Full Duplex Mini Repeater
Advantage 1: Retevis RT97 is a 10w Full Duplex Mini Two Way Radio Repeater（UHF or VHF）Duplex mode on two frequencies allow it receives simultaneously while sending.
Advantage 2: Frequency range can be customized according to your using requirement：
Advantage 3:Small and compact,solid and dust-proof.
Advantage 4: Simple and convenient installation, flexible operation, can be operated in fixed or mobile.The use of antenna can be selected according to actual demand.
Advantage 5：Convenient and multiple power supply methods.Multi working power selection,working with the matching power adapter,and also can work under DC12V~24V power or car power.
Advantage 6: Color LED display
Advantage 7:The repeater is used to increase transmission range of two way radio. When the transmission distance between two radios exceeds the range of the signal radiation, the repeater can forward the received signal from one to another,which can provide reliable,clearly, efficient communication service and expand the transmission range and communication capabilities between two radios, greatly improving your work efficiency.
1，Communication signal coverage of underground parking lots and storys in properly communities.
2，Communication signal coverage of the Fad zones of hotel, KTV and other entertainment venues.
3，Communication signal coverage of the front and rear cars of the moving fleet.
4，Communication signal covering of mining,ports,forest and enterprises,etc.
Highlights of RT97:
1, Customizable: The TX frequency and RX frequency can be customized between UHF (400-470MHZ) or VHF(136-174MHZ). Offset: >5MHz
2, Output power: 10W.
3, Small size: With the package size: 310×283×170mm. Very small and easy to carry, you can use it outdoor.
4, Car charger: Provide the car charger, you can use this repeater in your car.
5, Multi-charger way: Not only provide the car charger, but also provide the DC12V~24V power. Very convenient.
6, LCD display will help you know the TX and RX frequencies, CTCSS/DCS code.
7, the equipment can be reused, the cost is very low.
If you want to customize the TX frequency and RX frequency, please contact us!
Technical parameters:

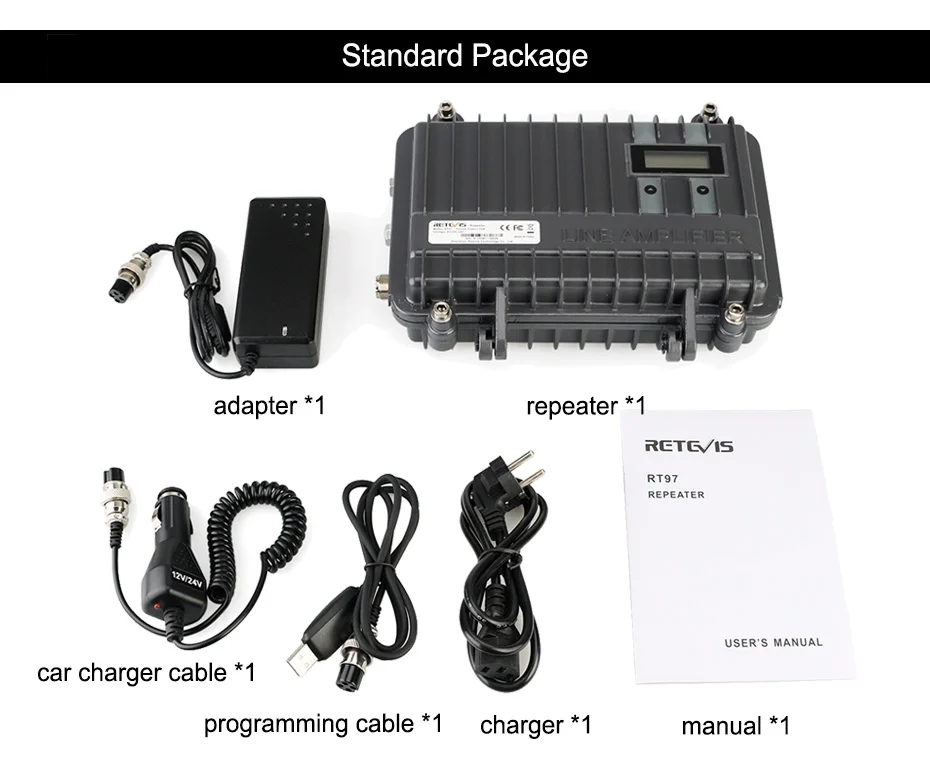

Package include:
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
FAQ
Q1:I need the Walkie Talkie that supports 10 Kilometer. Can you please suggest which one I can buy?
A1:Usually the radio can not reach 10Km in the city.So you should also purchase a repeater.If your radio power is 10W,with RT97, it can achieve 10Km coverage.
Q2: I am very interested with this repeater.Do you accept custom repeaters? What data do I need to provide?
A2:Yes, RT97 repeater is customizable.It usually need 15-20 days process time.You should tell us the TX frequency,RX frequency and offset.
Q3:Should the repeater transmit frequency be higher than the receive frequency?
A3: If the repeater's TX frequency is higher than RX frequency,the effect of receiving and transmitting signals will be better.Otherwise the effect will not be very good
Q4:If I customize the repeater, can it be with 8MHz offset frequency ?
A4: Yeah,we accept the offset in the 5-10MHz range
Q5:Do I need to buy other repeater accessories?
A5:Yeah,the standard package do not include the feeder and base antenna.So you should buy them individually.
(Good news,now if you buy the RT97 repeater,we will send you black 5 meters black feeder as free gift,so now you just need to buy the antenna.)
Q6: How about the delivery time?
A6: Usually it needs 15-20 days process time after providing the frequency data.So after you made the order,pls help us extend the processing time by another 15 days.And when get the repeater from factory,we will send the parcel via DHL or Fedex. Then you can get the repeater more fast.
Q7: In the video,i saw two lines frequency on the screen,it means the repeater can achieve dual receive function?
