VoIP phone-13.3 inch Video Phones console-Suport 4G or 5G, Android 11, camera, Mic, speaker, RS485, 2*RJ45, PSTN
Description
The YS4000 Android console phone is developed based on high
quality CPU on the native Android11 OS to support the installation of
third-party A&V dispatching applications which are Android or B/S
structure.
It features a large 13.3" display with multi-point capacitive
touch screen (1920x1080 resolution) to deliver intuitive contents, and a high
sensitive goose-neck microphone, or hand-held intercom and two physical speed
dial buttons, and a built-in 5-megapixel camera.
The YS4000 supports 4G or 5G wireless connection and a analog
line port for double security scenario. This Android interactive operation
console is most welcomed by enterprises in Electricity, Metallurgy, Chemical
Industry, Petrolleum, Coal,Mine,Transportation,Public security industries and so
on.
Features
l1080P Video
Call
The YS4000is equipped
with a 5-megapixel HD cameras, supports 1080P HD video quality. The camera has
a privacy cover and the angle can be adjustable by need.
It supports H.264、H.265 codec to realize HD video transferring.
lFriendly Use
Design
The YS4000 has a sturdy
quality bracket reflecting the people-centered product design concept. The user
can adjust the tilt angel according to different use scenarios.
lThree-screen Presentation
In order to meet
presentation demand, excepting for its’ own HD display, the YS4000 can also project
two HD displayers with different contents through its’ HDMI output interfaces.
lTwo
Customized Keys
It comes with two customized
function Keys that can be defined according to different business applications,
such as one-push-broadcast, one-push-call, etc.
lSupport
mounting on other display bracket
YS4000 supports mounting on standard 75mm four-hole display
bracket, So that user can operate at any angle and any altitude to facilitate
the use of customers in different industries.
lSupport
Further Application Development
In order to boost the process of secondary application
development to achieve value-added on projects, we provide SIP SDK and video
library for the communication system integrators and software developers in
command and dispatch, emergency command, transportation and other industries.
lDifferent
scene accessories are provided for choice
Such as with goose-neck microphone, or with hand-held
microphone , or with finger printer or 4G SIM card.
Specification of this VoIP phone-13.3 inch Video Phones console-Suport 4G or 5G, Android 11, camera, Mic, speaker, RS485, 2*RJ45, PSTN
CPU: RK3568 ARM® Cortex-A55 quad- core 64 Bit processor, Up to 2.0GHz
GPU: ARM®ARM G52 2EE support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0, Vulkan 1.1
NPU: Support 1T
Video codec: Support 4K 60fps H.265/H.264/VP9 video decoder, Support 1080P 60fps H.265/H.264 video encoder
Display: 13.3inch 1920*1080
PMU: RK809 PMU
RAM: 4GB
Storage: 16GB
OSD: Android 11
Power Supply: 12V/ 2A
Wireless wifi: Support 2.4、5G dual-band WiFi.
Bluetooth V5.0
LAN: 2*LAN 10/100/1000M RJ45 Jack
TF card: Support
Speaker: 3W
POE: IEEE 802.3at(optional)
3.5mm Earphone
RS-485 Jac: Support 3.3V output
USB type-c Jack: OTG for upgrade
USB A: USB2.0 * 2
PSTN Jack: Optional
Camera: 5-megapixel with privacy cover and adjustable angel
4G: optional
Dimension: 435mm*247mm*38mm
1、Handset
It is a electromagnetic induction
handset. The speech channel come from the handset when it is picked up, This model
doesnot support control the speech channel through App
2、Goose-neck
microphone
The
goose-neck MIC is an analog input MIC. The phone can’t gain voice without
connecting of this goose-neck Mic when hands free mode.
3、Indication
light
The developer can customize the status of
light on application. Please refer to the API indication introduction.
4、CALL key
CALL key is a standard android key when
monitoring F8 get value 138
5、PTT key
PTT key is a standard android key when
monitoring F7 get value 137.
6、Camera
5-megapixel camera, Photo resolution is
2592x1944 maximum, the video recording resolution is 1920x1080.
7、Hands-free
MIC
The phone is designed for both goose-neck
and hands-free types, So that it preserves a MIC space. (Attention: when with
goose-neck MIC, the hands-free MIC is not available)
8、Hands-free
Speaker
When in hands-free mode, the speck output
is through the speaker.
9、Main
Display
The
display is 1920*1080 IPS screen，touchable capacitive touch panel；
The
factory default dpi is 220.

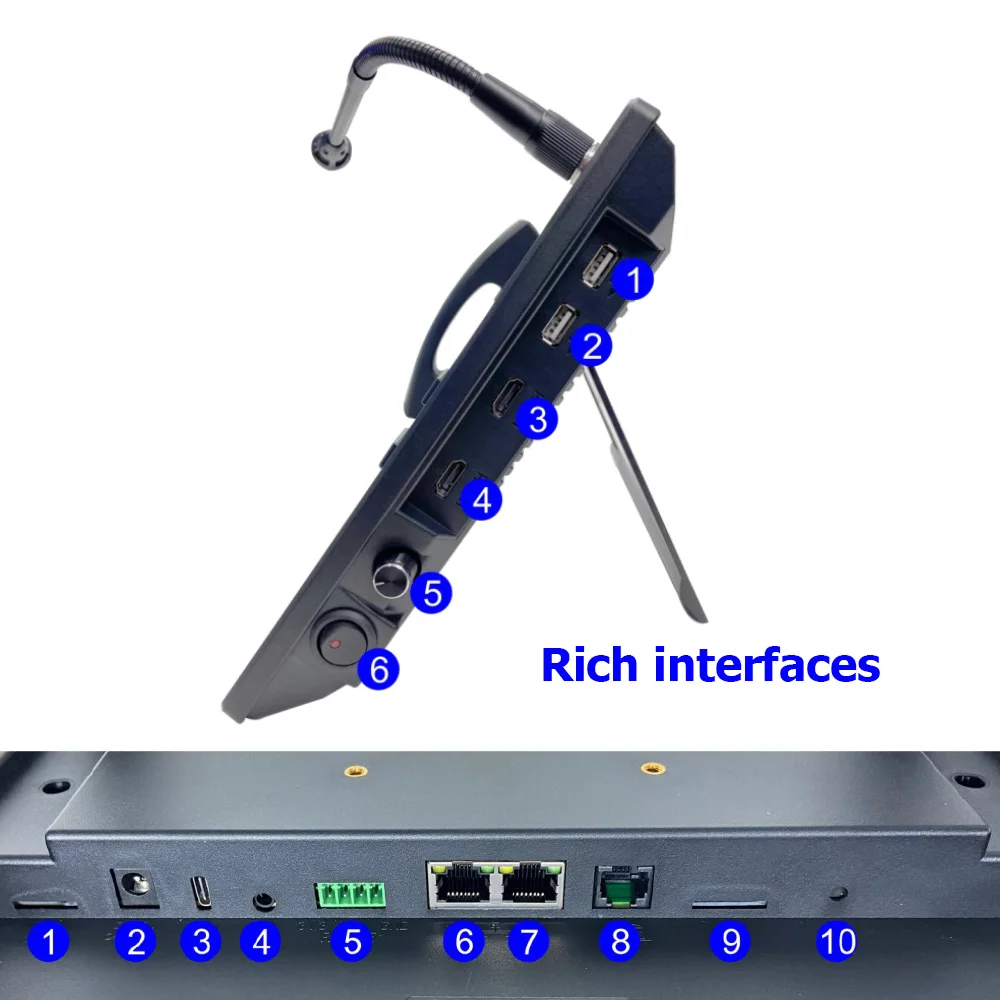

1/2、USB A HOST jack
USB
2.0 HOST jack, The maximum load is 5V 0.8A。
3、HDMI
The interface is RGB to HDMI output，Support1920*1080P
60 frames maximum.
4、HDMI
The interface is the original HDMI
output, Support HDCP1.4/2.2、support HDMI1.4 and HDMI2.0,support 4096x2304@60Hz maximum.
5、Knob
The
knob provides 5-gear key value. The App can monitor the status of the knob. For
example, turn the volume, turn the back-light and other function requirements.
Please refer to API file for further development.
6、Power on/off button
This
button can power on or off the device. Due to the protection principle of
Android OS, Please don’t turn off the device after the data written or during
the device boot process. It constantly lights red while operation status, but lights
off when shutdown.
1、TF card
For extended device storage
2、DC input
12V DC input
3、USB TYPE-C
Factory
default is device mode, it can connect to PC for adb debug or file
transferring; can be a HOST output by OTG；or you can switch it to output mode by below
orders：
#1.Force host mode
echo host >
/sys/devices/platform/fe8a0000.usb2-phy/otg_mode
#2.Force peripheral mode
echo peripheral >
/sys/devices/platform/fe8a0000.usb2-phy/otg_mode
#3.Force otg mode
echo otg >
/sys/devices/platform/fe8a0000.usb2-phy/otg_mode
4、3.5mm earphone
Support
output voice under handset or hand-free mode
5、RS485
The
pins from left to right correspondingly are 3.3V DC (500Ma,donot
overload)、RS485-B、RS485-A、GND; The software node is /dev/ttyS9.
6、Gigabit Ethernet Port
The
default is without VLANshielding。
7、POE/Gigabit Ethernet Port
The
default is without VLANshielding；POE
function optional；If the POE was not workable, please check whether it has POE module
or not.
8、Analog telephone line port
PSTN
is optional choice, so it is necessary to check that it comes with PSTN module
and application. We provide SDK for secondary development application
9、Standard
SIM card slot
10、Upgrade
key
Upgrading the firmware by USB, the device will switch to loader
mode
