Description
USB Linker Programmer Brushless ESC BLHeli BL32 BLS Parameter Setter Suite Open Source Speed Control Programming RC FPV Drone

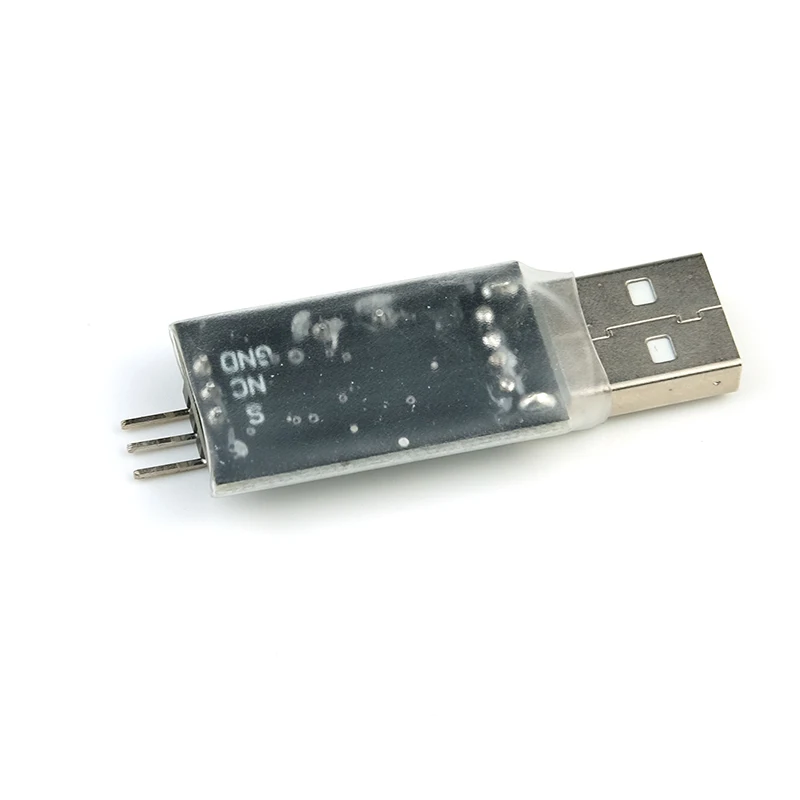

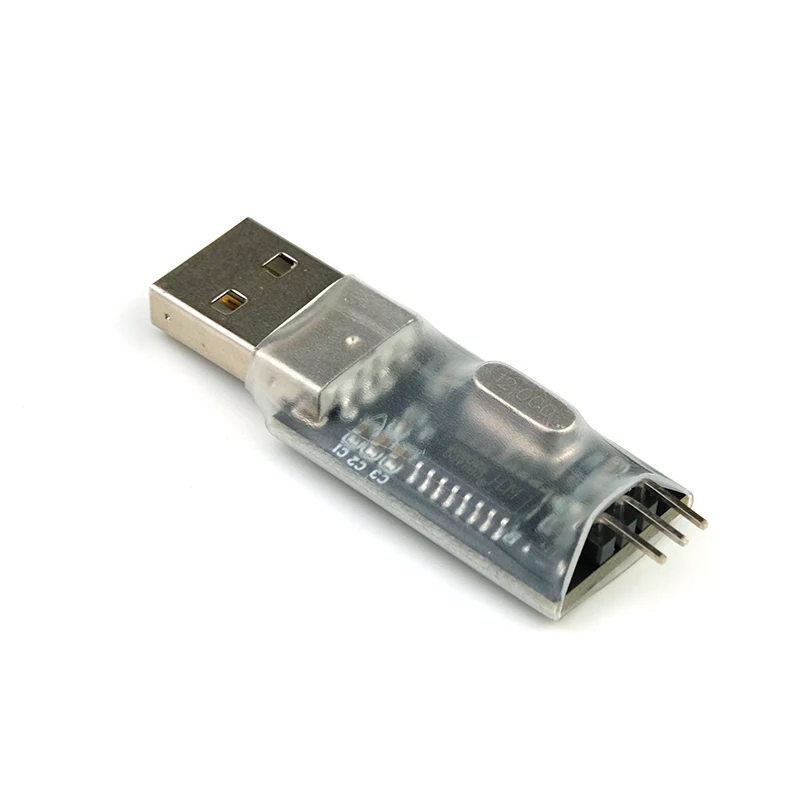

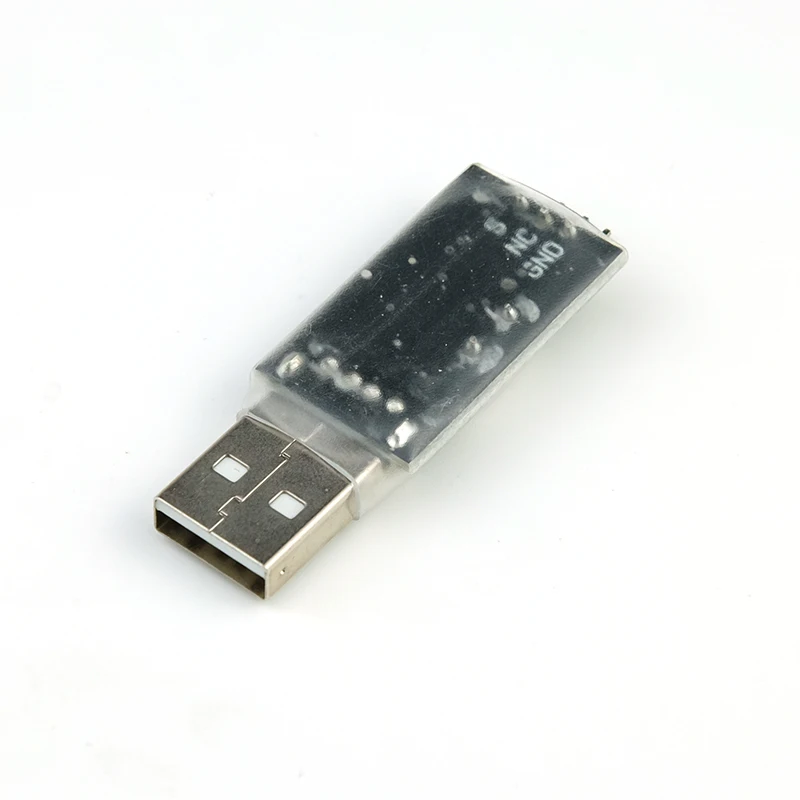

- Item name: USB linker programmer
- Used for BLHeli open source ESC. As long as the ESC is marked with BLHeli (BLHeli-S, BLHeli-32), it can be used.
Connection method:(between the encoder and the ESC signal line)
The black wire is plugged into GND, and the white wire is plugged into S/UART. The red wire can be connected or not. The ESC needs to be connected to the power supply.
Features:
- BLHeli open source ESC special. (Send the assistant software).
- BL-S/BL-32 can use BLHeli-16 and BLHeli-32 software.
- BLHeli-16 software Supports ESC of SIL and ATMEL chips ;BLHeli-32 software Supports ESC of STM chips.
- Connect the ESC signal line end to the computer USB interface and connect with the assistant software.
- Convenient to set up various functions of open source ESC on the computer.
- The ESC can be set to one-way or two-way, and the motor starts current size. One-way ESC commutation.

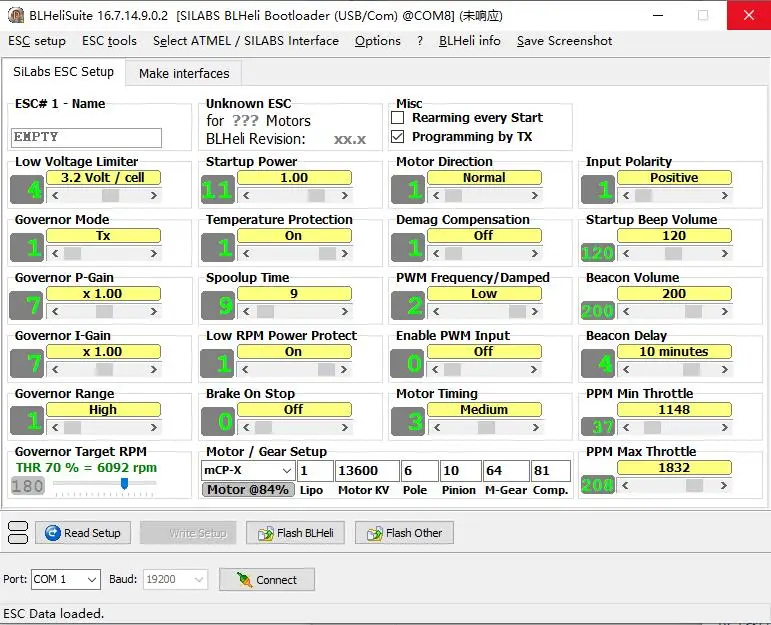

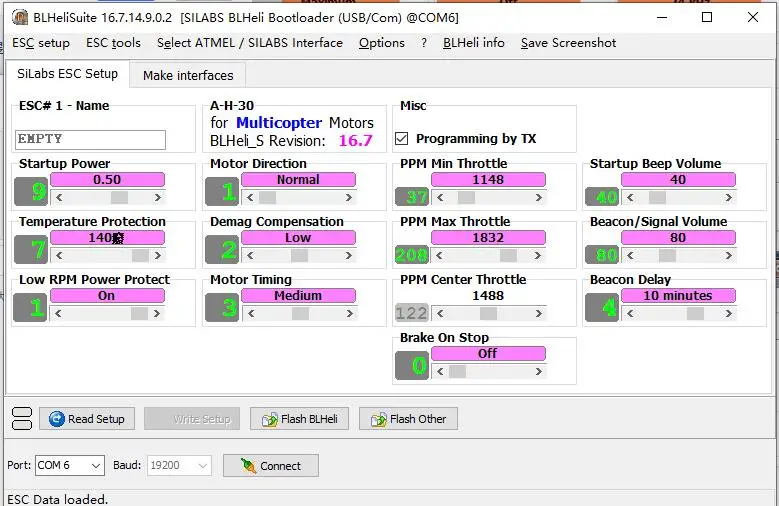

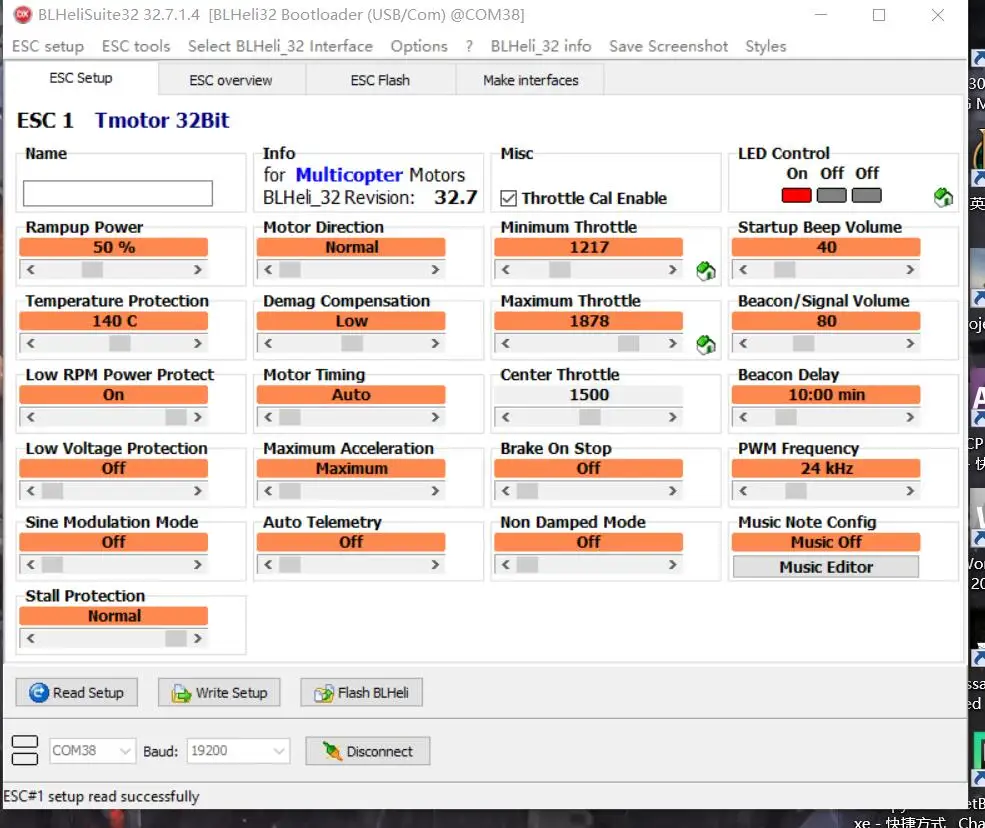

(Download the software, The ESC need to be powered when connected) :
https://pan.baidu.com/s/11B2kBDDDNtN4K4uNH0nsyw?pwd=1234
Extraction code: 1234 , Serial port Driver: http://www.downza.cn/soft/297205.html
![](https://ae01.alicdn.com/kf/S4f6ed61fd9484d64a642360a05e1fe06r.jpg)
![](https://ae01.alicdn.com/kf/Sccaa18cb227841009f06e27b91d1165cc.jpg)
![](https://ae01.alicdn.com/kf/S7977c077c5ae4dc18df4293ad260e8941.jpg)
![](https://ae01.alicdn.com/kf/S546f94d8184e4633b0c4b0bff65cfabdQ.jpg)
1 x BLHeli USB Linker
