USB-C Dual 4K Docking Station with Power Delivery

----USB3.1 Type-C and Standard-A connectors compatible both Type-C Laptop

Working Online & Online Class Companion, Make Learning,working Efficient and Convenient.

Better Connection for the Better Performance

USB Power Delivery

Plug your dock into a nearby socket, then connect your dock and laptop. Then this dock is turned into a power socket for charging your laptop when necessary.

Not only for connectivity, but also for charging

USB 3.0 Ports

In contrast with traditional USB ports, USB 3.0 port is bi-directional that reads and writes data simultaneously with maximum speed of 5Gbps, thus it is time-saving and efficient for data transmission.

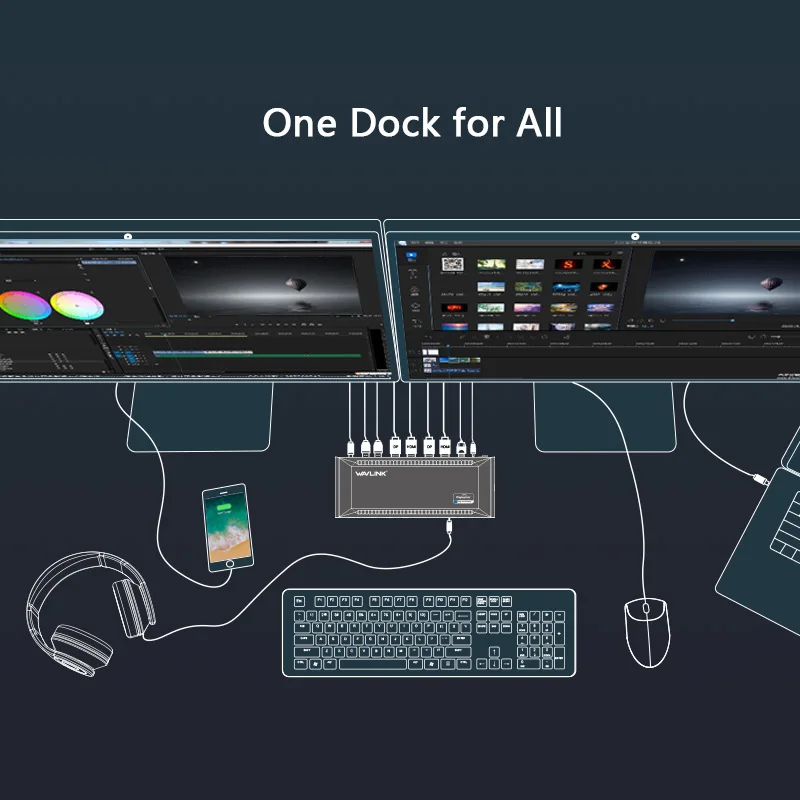

One Dock for All

The WAVLINK UG69PD2 allows you to easily connect various devices at the same time, helping you keep your workspace organized and efficient at all times.

Please select the plug as your request

Product Describtion

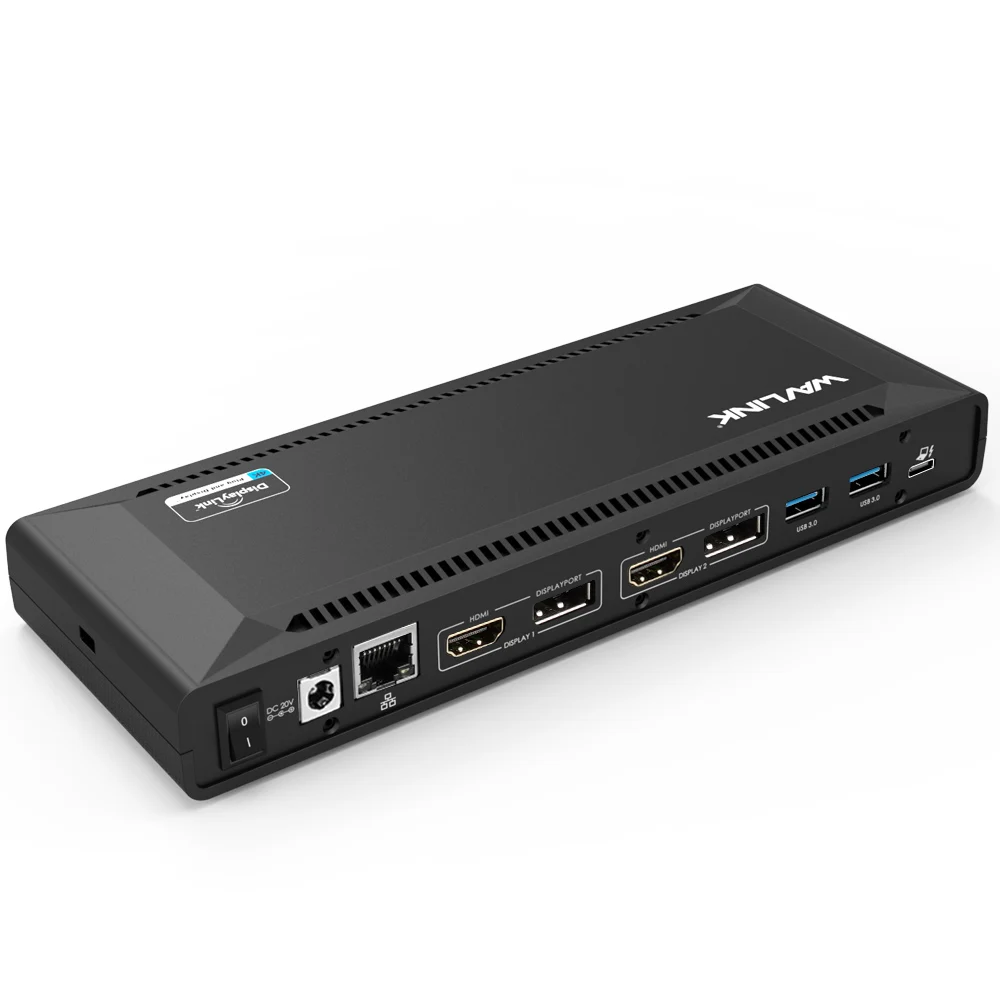

Wavlink USB C Universal Docking Station 5K USB-C Gen1 Dual 4K Display HD HDMI Power Delivery USB 3.0 Gigabit Ethernet For Mac OSLAPTOP/Universal Docking Station

Wavlink - Bringing Technology to Life
Wavlink USB C Dual 4K with Power Delivery Docking Station is an all-in-one solution that could not only provide a variety of connectivity but also power and charge your laptop. Besides, using  one single USB C connection from the dock to your PC, you can easily connect your PC to one 5K (5120 x 2880) @60Hz UHD display (DisplayPort Only) or two 4K (4096 x 2160) @60Hz UHD displays. Display Link Certified, DL- 6950 chip. So the USB C PD Dock helps increase your productivity or flexibility in the office or your home.

Usb c docking station 5k, usb c dual 4k docking station, usb c dual 4k docking station with power delivery, usb c PD dock, usb c docking station for Mac OS, usb c dual 4k laptop docking station

Not only for connectivity, but also for charging
The Wavlink USB C PD Docking Station keeps you from juggling between power shortage and connectivity. You can charge your laptop by connecting to the USB C PD Dock. What even better is that your Smartphone can be charged simultaneously through the fast charging USB C ports.

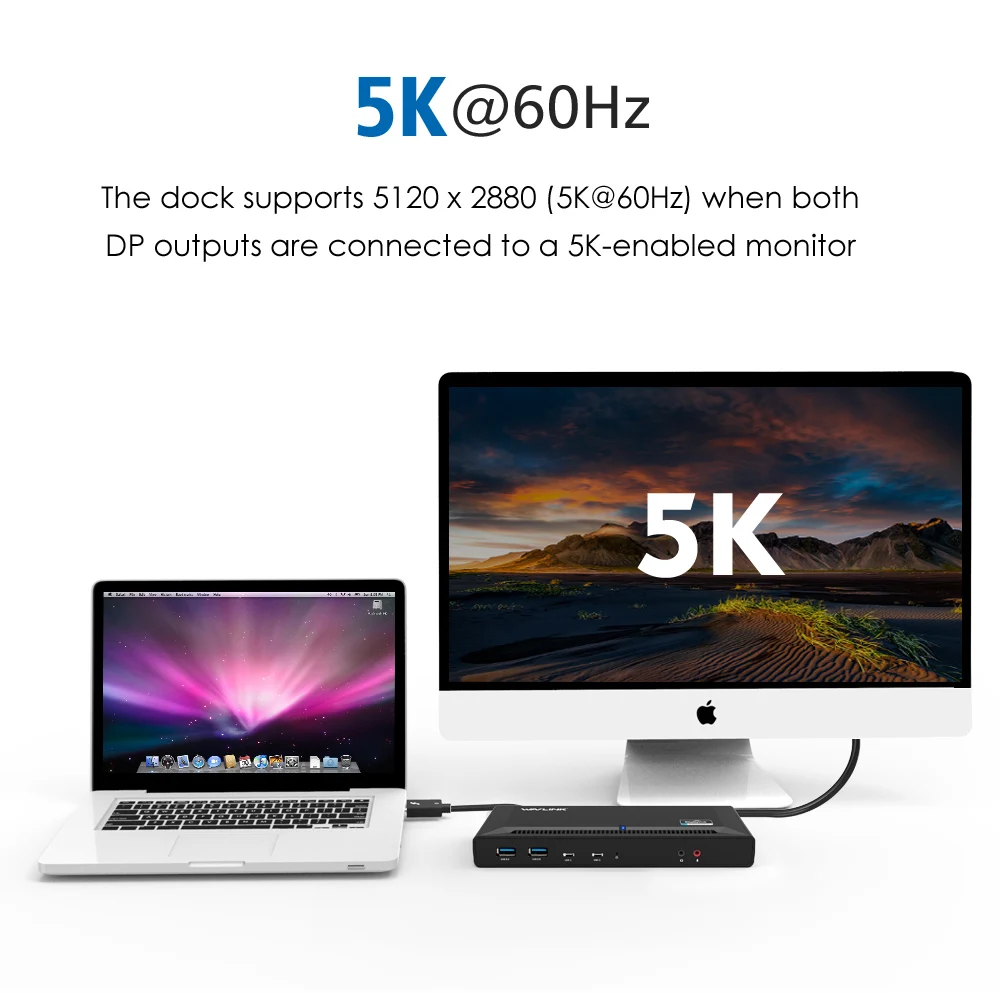

5K@60HZ Output
14.7 million pixels give you amazing feast vision, showing every details clearly as like be personally on the scene. It also helps to improve operational efficiency on images and video editing.

Multitask with Dual 4K Displays
Featuring the DisplayPort and HDMI port, Wavlink Docking Station gives you the flexibility to connect your displays as needed. It supports dual monitors or a single high resolution 5K monitor. It will greatly help you facilitate high-resolution works, graphically intensive images, video editing, CAD drawings, medical imagery and more.

SuperSpeed 4 USB 3.0 Ports & 2 USB C Type C Ports
SuperSpeed USB3.0 provides up to 5Gbps data transfer speeds, which is 10 times faster than USB2.0. The Wavlink Universal Dock features 4x USB 3.0 ports, 2 USB C ports, allowing for SuperSpeed data transfer between peripherals while charging.

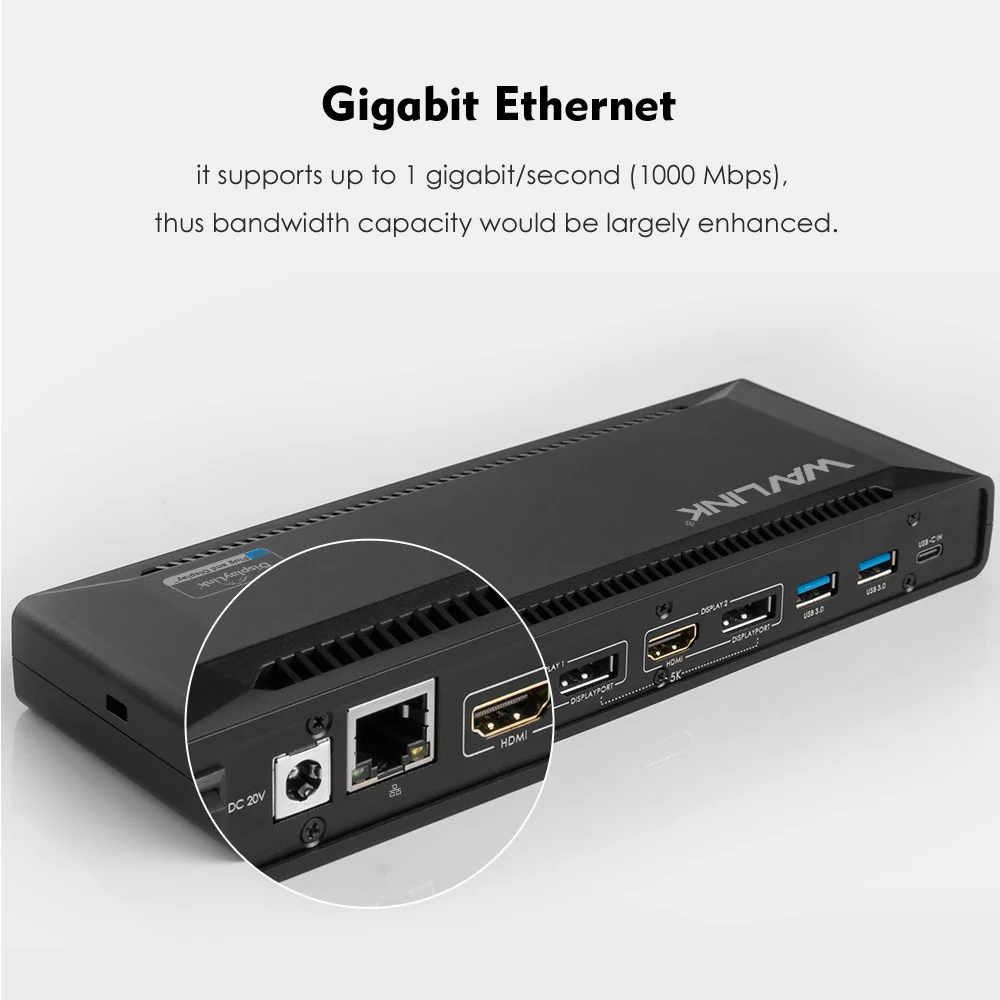

Blazing-fast Gigabit Ethernet
Wired network connections are faster and more reliable than any Wi-Fi. The dock helps you tap into the full performance of wired network connections with built-in Gigabit Ethernet port.

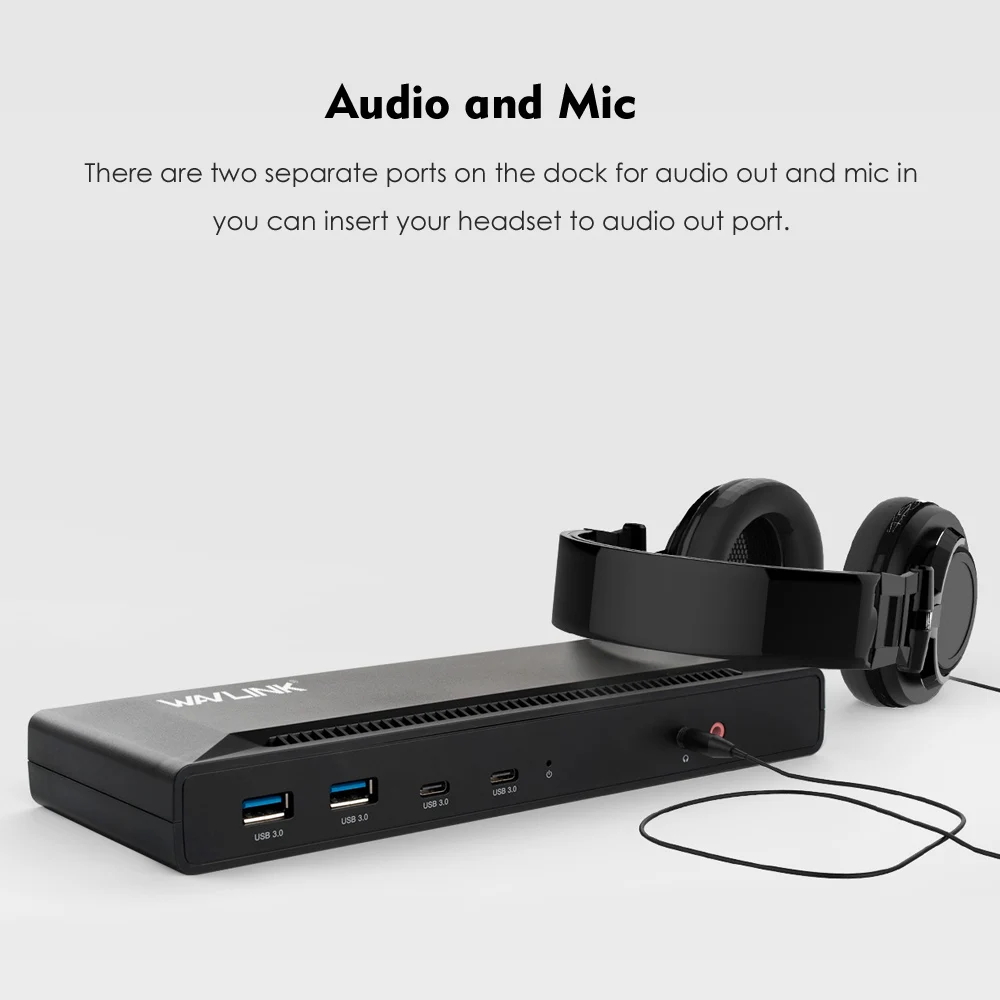

Crystal-clear Sound
With separate microphone input and amplified audio output,you can enjoy crystal-clear conference calls or any other project benefits from having your voice heard. You’ll be amazed at the immersive music it gives you.

Specification
Hardware

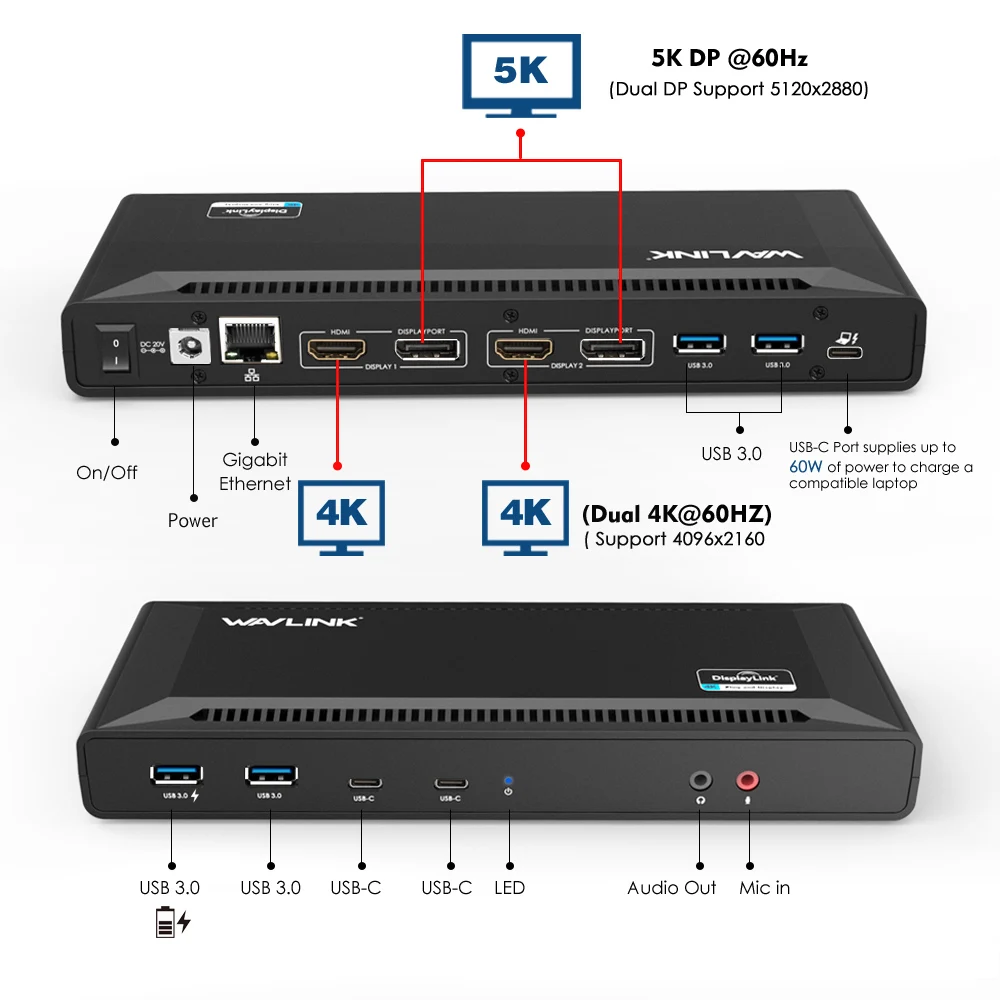

Ports
1 xUSB-C(to Host); 2 xDP; 2 xHDMI; 4 xUSB3.0 Type-A ports; 2 x USB-C Gen1 ports; Earphone and Microphone Jack; RJ45 Jack; LED; On/Off Switch
Button  On/Off Switch
LED  Blue Color LED
Chipset
DL6950  FL5002 VL813
Flash  64Mb
Power Supply  DC20V/5A 100Watt
Power Plug  US/EU/UK or by request
Rated Volt./ Freq./Current  100-240 Va.c. 50/60Hz, 2A Max , CLASSⅡ
Operating System Support  Microsoft Windows & Apple Mac OS

Working Standards
1. Hub running at USB3.0 speed
2. Upstream Charging 60Watt
3. DP or HDMI resolution Max. 4096 x 2160 p60
4. Ethernet running at Gigabit
5. 2.0 channel Audio

Dimensions
Unit Dimensions  223 X 80 X 26MM (L x H x W)
Weight  330.6g; 889.9g (Package Included);

Housing Material  ABS
Shell color  Black Color
Package Dimensions  313*150*60mm (L x W x H)

Package

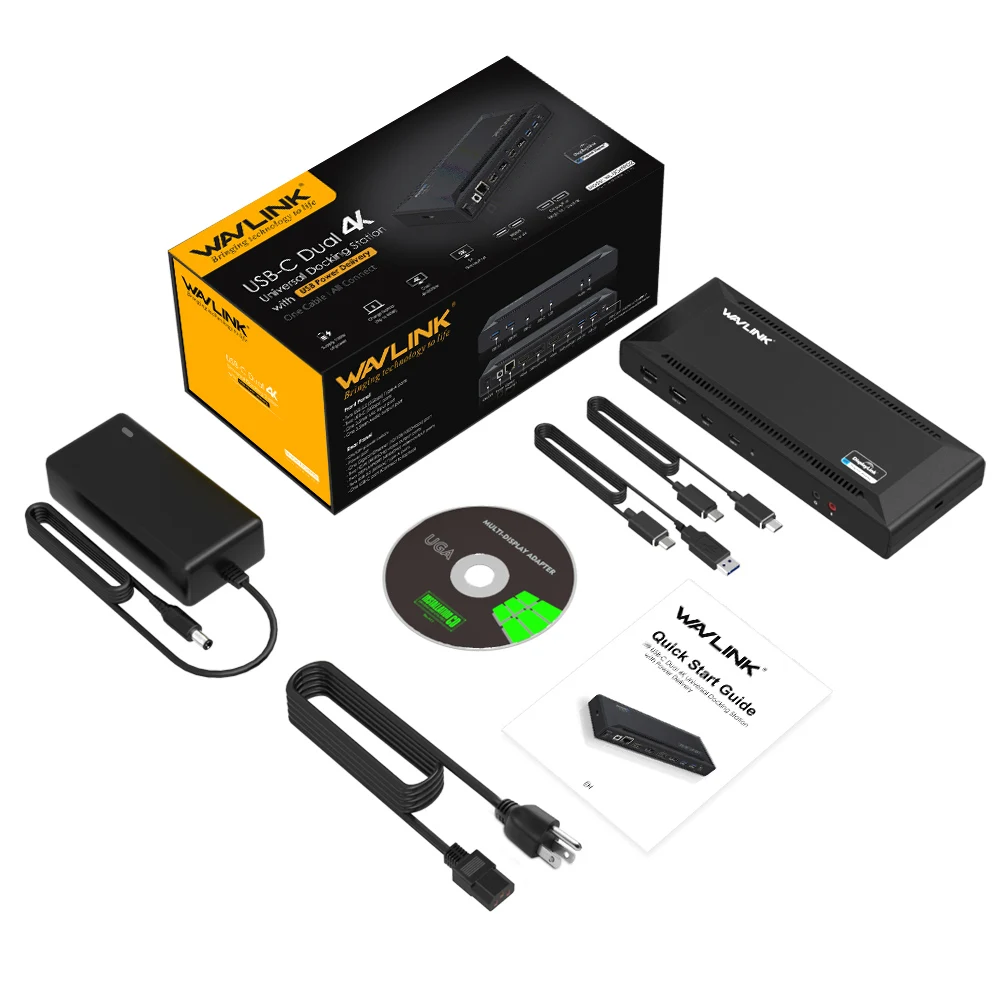

In the box
1x USB-C Universal Docking station
1x USB-C to C Cable(E-Mark Chip)
1x User Manual
1x Software Installation CD
1x DC20V/5A 100W Power Adapter

Note:
1) In order to support 5K video output, must connect both DisplayPort outputs to a single 5K TV/Monitor.
2) Driver download: http://www.displaylink.com/downloads.
Doesn't support Mac OS 10.3.4. If you require mirror or extended mode displays, we recommend that you stay on macOS 10.13.3 or earlier at this time.
