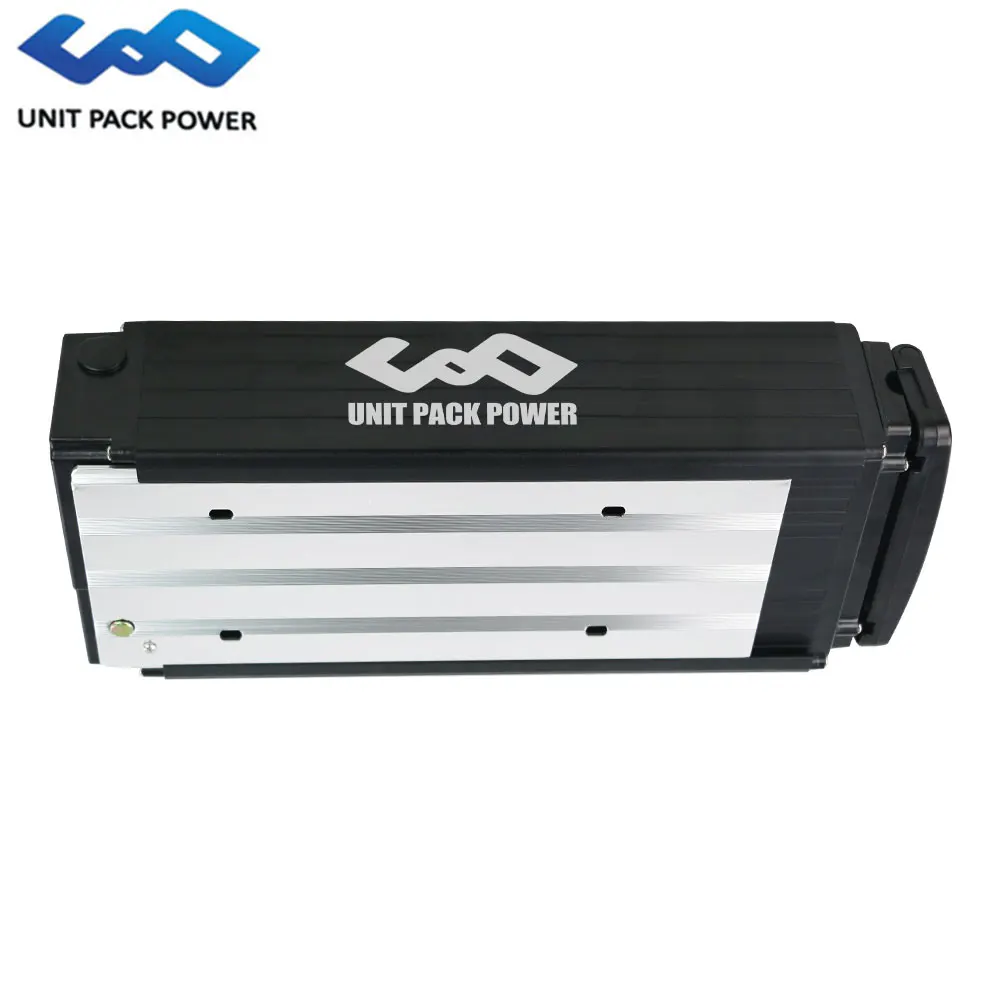

UPP 48V 1000W Electric Bicycle Battery 48V 17.5Ah 20Ah 31.5Ah 52V 28Ah 1500W High Capacity Lithium Bike Battery Bafang BBS01 02
Description
Parameter | 36V 20AH 20A BMS Grade A 2500mAh | 36V 22.5Ah20A BMS Grade A 2500mAh | 48V 17.5Ah30A BMS Grade A 2500mAh | 48V 20Ah50A BMS Grade A 2500mAh | 48V 20Ah30A BMS Grade A 2500mAh |
Nominal Voltage | 36V | 36V | 48V | 48V | 48V |
Nominal Capacity | 20AH | 22.5Ah | 17.5Ah | 20AH | 20AH |
Nominal Watt Hour | 720WH | 810WH | 840WH | 960WH | 960WH |
Composed Type | 10S8P | 10S9P | 13S5P | 13S8P | 13S8P |
Number of Cells | 80PCS | 90PCS | 80PCS | 104PCS | 104PCS |
Battery Pack Cell | 18650 Grade A Brand 2500mAh | 18650 Grade A Brand 2500mAh | 18650 Grade A Brand 2500mAh | 18650 Grade A Brand 2500mAh | 18650 Grade A Brand 2500mAh |
Built-in BMS | 20A | 20A | 30A | 50A | 30A |
Fit Motor Power | 36V 250W 500W (0-500W) | 36V 250W 500W (0-500W) | 48V 500W750W 1000W(0-1000W) | 48V 500W1000W 1500W(0-1500W) | 48V 500W750W 1000W(0-1000W) |
Battery Weight | 6.1KG | 6.1KG | 6.1KG | 7.8KG | 7.8KG |
Charge Cut-off Voltage | 42V | 42V | 54.6V | 54.6V | 54.6V |
Discharge Cut-off Voltage | 28V | 28V | 36.4V | 36.4V | 36.4V |
Battery Charger | 42V 2A | 42V 2A | 54.6V2A | 54.6V3A | 54.6V3A |
Charging Time | 11Hours | 12Hours | 10Hours | 7.5Hours | 7.5Hours |
Cycle Life | 1000 times | ||||
Charge Temperature | 0-45℃ | ||||
Discharge Temperature | -20-65℃ | ||||
Protection Function | Over charge, Over discharge,Over current, Short circuit | ||||
Battery Size | 370*150*84MM | ||||
Parameter | 48V 31.5Ah 50A BMS Samsung 3500mAh | 52V 20AH 30A BMS | 52V 20AH 40A BMS | 52V 28AH 40A BMS |
Nominal Voltage | 48V | 52V | 52V | 52V |
Nominal Capacity | 31.5AH | 20Ah | 20Ah | 28Ah |
Nominal Watt Hour | 1512WH | 1040WH | 1040WH | 1456WH |
Composed Type | 13S9P | 14S8P | 14S8P | 14S8P |
Number of Cells | 117PCS | 112PCS | 112PCS | 112PCS |
Battery Pack Cell | 18650 Samsung 3500mAh | 18650 Grade A Brand 2500mAh | 18650 Grade A Brand 2500mAh | 18650 Samsung 3500mAh |
Built-in BMS | 50A | 30A | 40A | 40A |
Fit Motor Power | 48V 500W 1000W 1500W(0-1500W) | 52V 500W 750W 1000W (0-1000W) | 52V 500W 1000W 1500W (0-1500W) | 52V 500W 1000W 1500W (0-1500W) |
Battery Weight | 8.5KG | 8.2KG | 8.7KG | 8.7KG |
Charge Cut-off Voltage | 54.6V | 58.8V | 58.8V | 58.8V |
Discharge Cut-off Voltage | 36.4V | 39.2V | 39.2V | 39.2V |
Battery Charger | 54.6V3A | 58.8V 3A | 58.8V 3A | 58.8V 3A |
Charging Time | 11.5Hours | 7.5Hours | 7.5Hours | 10Hours |
Cycle Life | 1000 times | |||
Charge Temperature | 0-45℃ | |||
Discharge Temperature | -20-65℃ | |||
Protection Function | Over charge, Over discharge,Over current, Short circuit | |||
Battery Size | 370*150*84MM | |||
