Dual Band 5GHz/2.4GHz WiFi Repeater Wireless WiFi Range Extender with 4 Antennas 3 Modes UK/US/EU Wide Coverage for Home Hotel
Feature:
1. Dual Frequency: 2.4Ghz and 5.8Ghz. The range extender mode perfectly elevates the wireless signal to previously inaccessible or hard to connect areas.

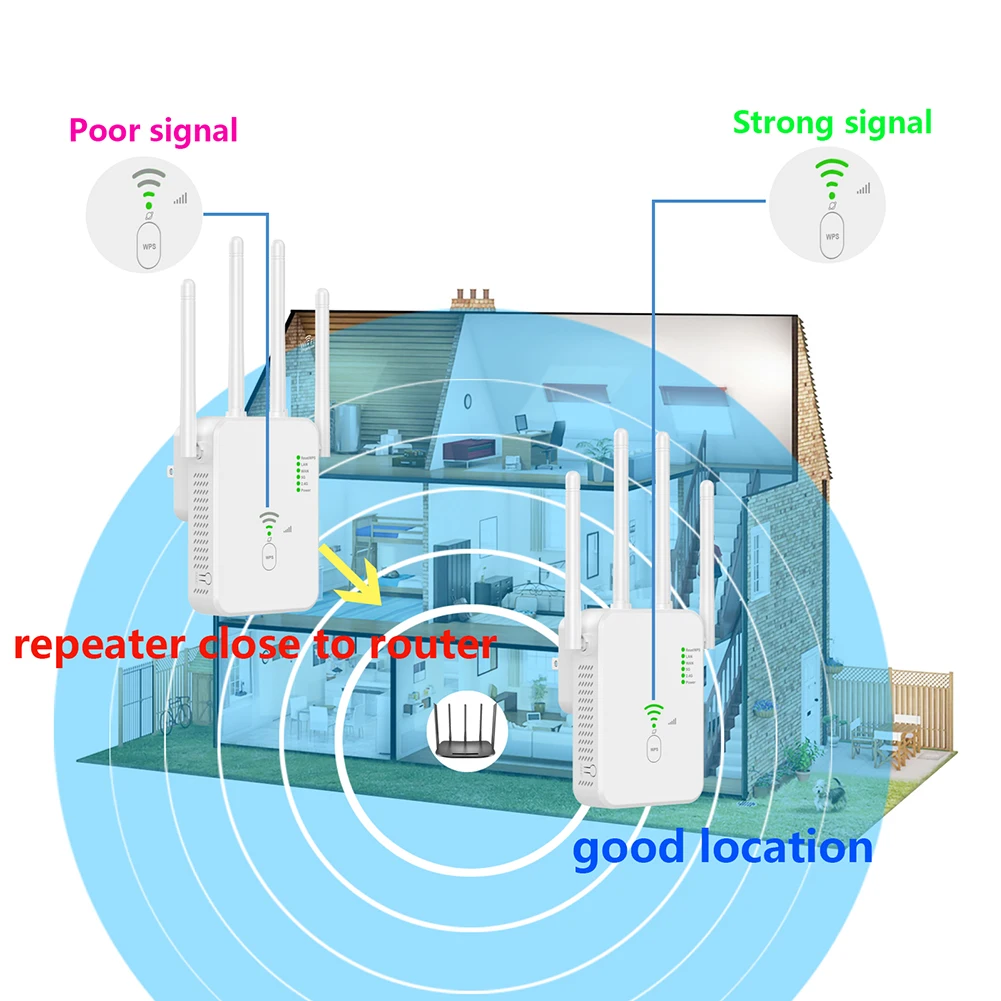

2. Signal Indicator: It is helpful to find the correct location for the range extender. Small size and wall mounted design for flexible deployment and mobility.

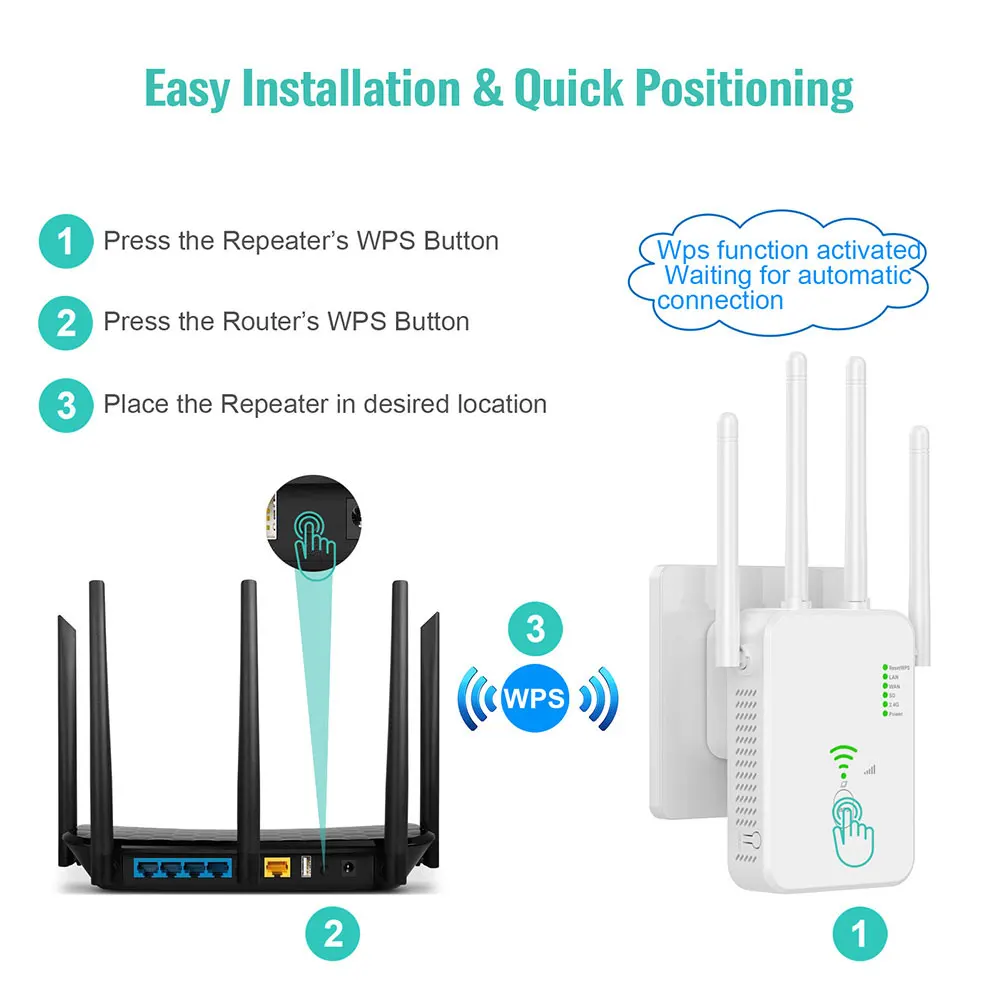

3. WPS Button: It can quickly pair with the upper layer router. The upper layer router also has a WPS button in the repeater mode.
4. Encryption: 64/128 bit WEP; WPA/WPA2.

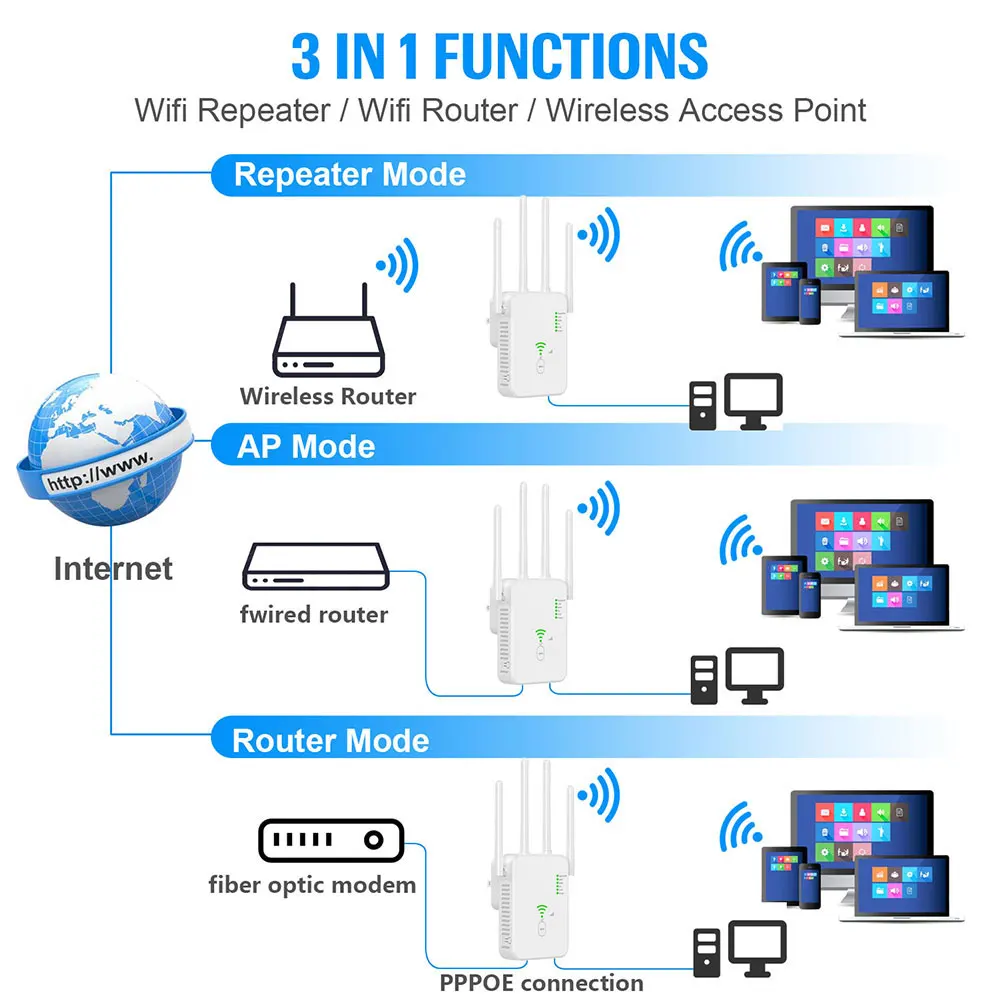

5. Three Working Modes: AP mode. Repeater mode and router mode. WLAN access point/client according to IEEE 802.11ac, n, g, b.
Specification:
Model: U10
Color: black, white (optional)
Specifications: US, EU and UK (optional)
Chipset: MT7628+MT7612 (MT7613)
Standards: IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Wireless signal:
5GHz
11ac: Up to 867Mbps (dynamic)
11a: Up to 54Mbps (dynamic)
2.4GHz
11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Frequency range: 2.4 GHz and 5.8 GHz
Wireless transmission power:<20dBm (EIRP)
Modulation type: DBPSK, DQPSK, CCK, OFDM
Receiver sensitivity:
5GHz:
11a 6Mbps: -91dBm@10 % PER
11a 54Mbps: -74dBm@10 % PER
11ac HT20 mcs8: -68dBm@10 % PER
11ac HT40 mcs9: -63dBm@10 % PER
11ac HT80 mcs9: -59dBm@10 % PER
2.4GHz:
11g 54M: -79dBm@10 % PER
11n HT20 mcs7: -77dBm@10 % PER
11n HT40 mcs7: -74dBm@10 % PER
Wireless security: 64/128 bit WEPWPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Interface: 2 * 10/100M LAN

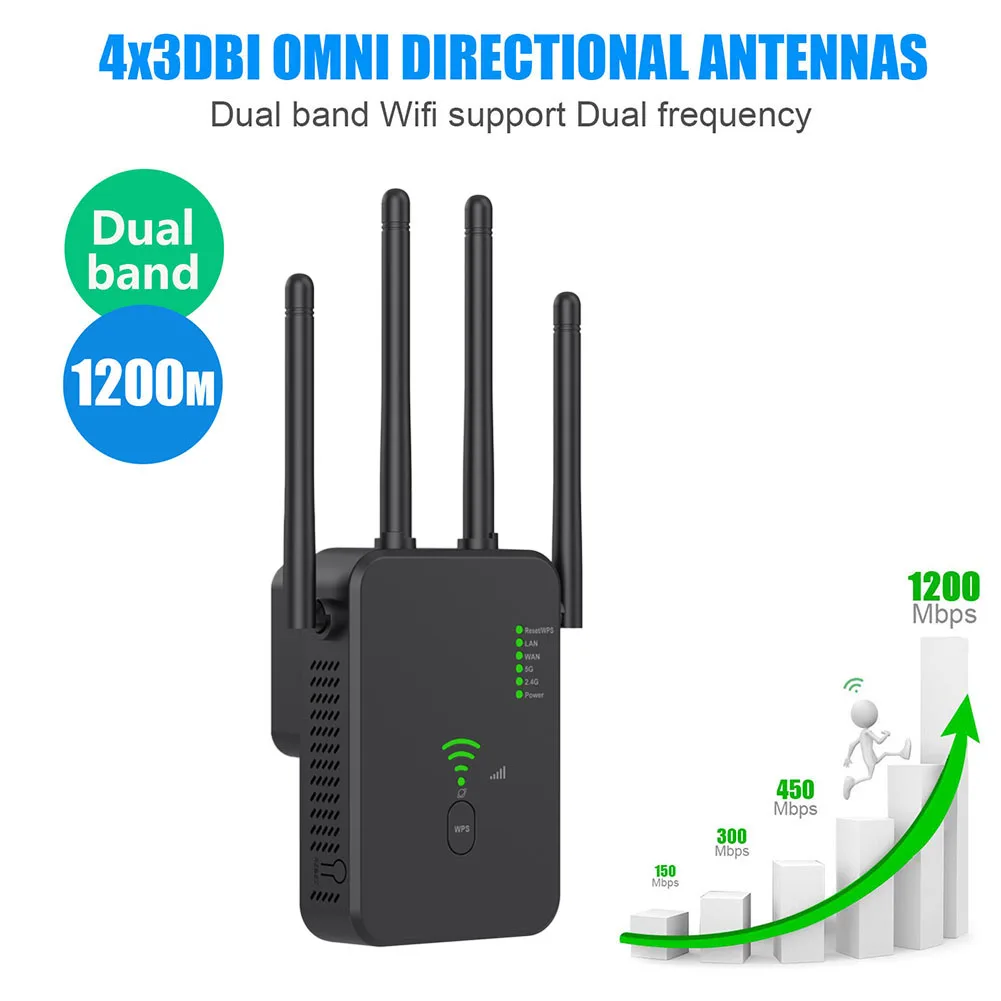

Antenna type: 4 * 2dBi antenna
Power supply: input AC100~240V
Operating temperature: 0 ° C~40 ° C (32 ° F~104 ° F)
Storage temperature: - 40 ° C~70 ° C (- 40 ° F~158 ° F)
Relative humidity: 10%~90%, non condensing
Storage humidity: 5%~95% non condensing
Product size: about 160 * 80 * 80mm/6.30 * 3.15 * 3.15inch
Package size: about 200 * 110 * 90mm/7.87 * 4.33 * 3.54inch
Net weight: 160g
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Packages:
1 x Repeater
1 x Network cable
1 x Instructions
