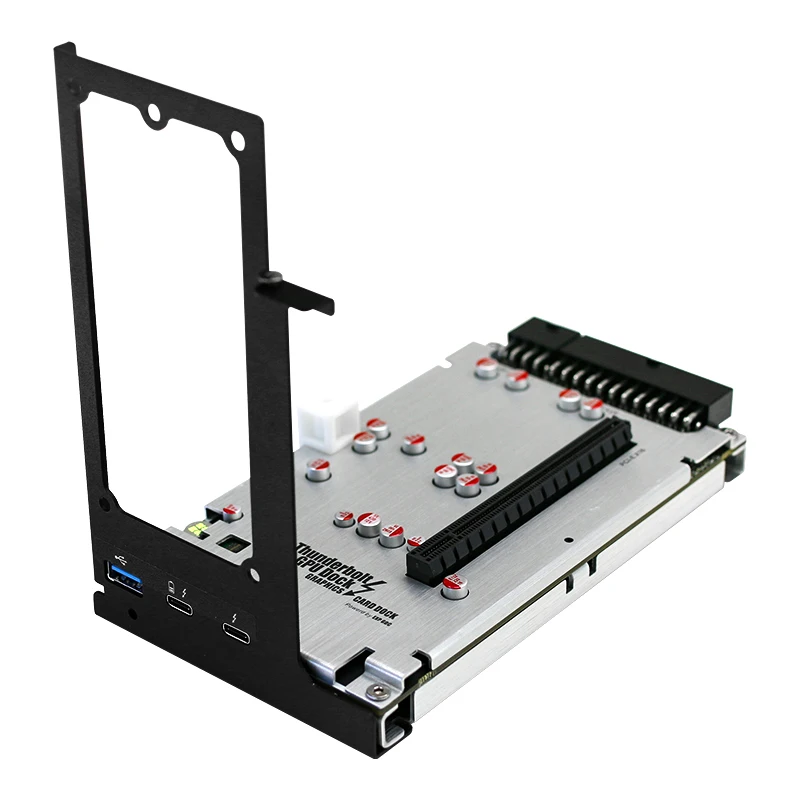

TH3P4G3 Thunderbolt-compatible GPU PCIe Video Card Dock Laptop to External Graphic Card Support PD Charging 40Gbps

This is the upgraded version TH3P4G3 , the Thunderbolt-compatible GPU Dock. If your laptop have Thunderbolt-compatible 3 or Thunderbolt-compatible 4 interface, you can use it to connect a external graphic so that to play game,video editing,image processing and so on.
It comes with SFX and ATX power holder, so that you can use it more convenient.

Note:

It does not support the Macbook with M1 chip.
When you use Mac OS for Macbook, it only support AMD version graphic card. And when you use Windows system for Macbook, it only support Nvidia version graphic card.

Note: the graphic card and power is not included!

Specification

1. Model: TH3P4G3
2. Thunderbolt-compatible 3/4

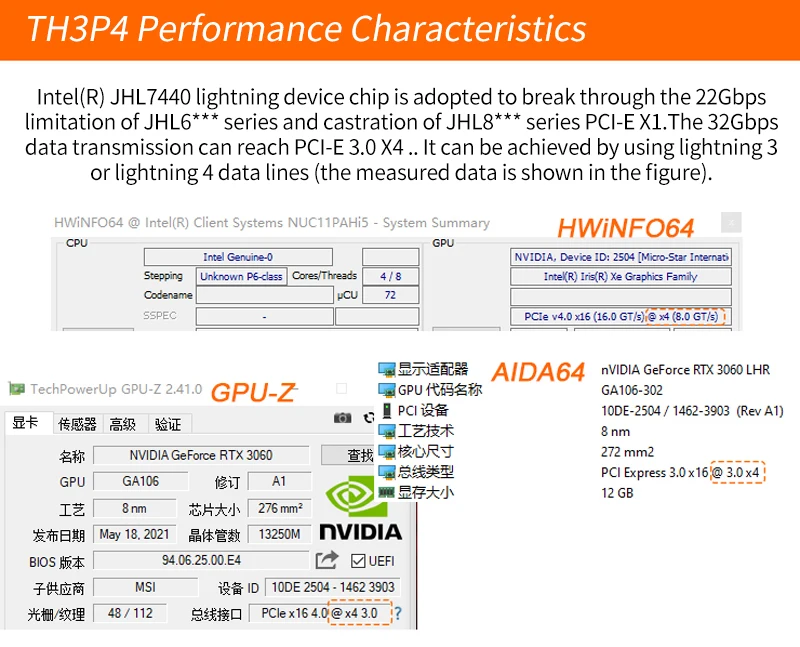

3. Speed: 40GB/S
4. Aluminum alloy shell
5. Size: 200mmx140mmx40mm approx
6. Weight: 480g approx
7. USB 3.0 port extension, 5Gbps
8. Power: ATX/SFX/FLEX/other
9. Note:
Thunderbolt-compatible: Max 5V 3A
Thunderbolt-compatible/PD: Max 20V/3A (60W)
USB 3.0: Max 5V 2A

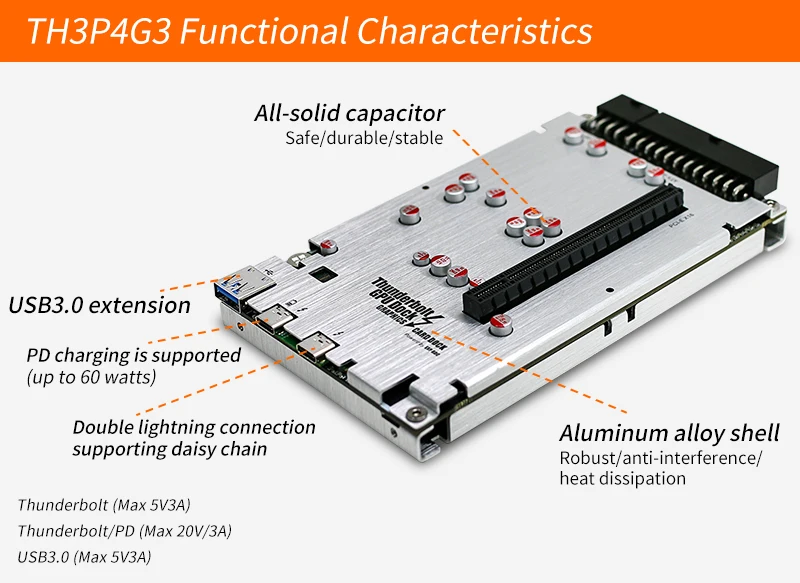

Features

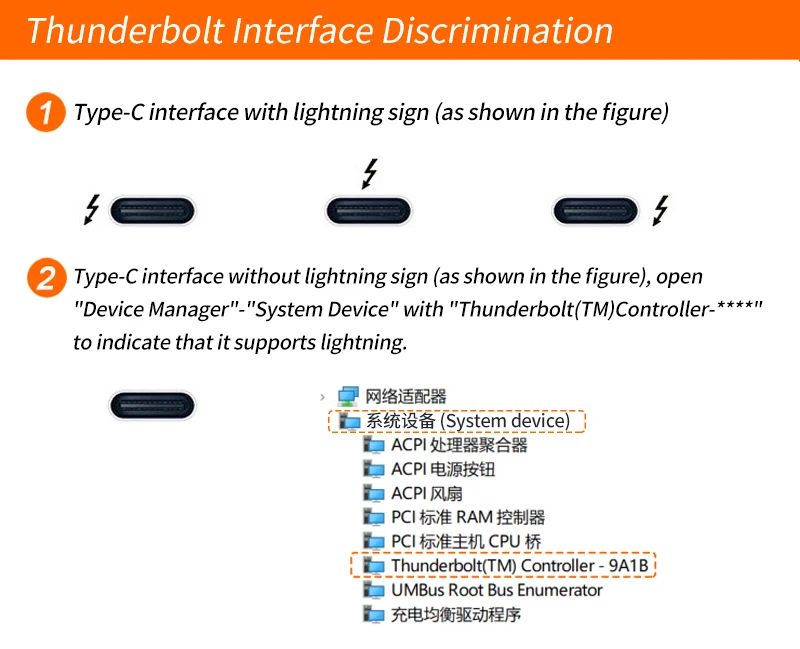

1. Suitable for the laptop have Thunderbolt-compatible 3 or Thunderbolt-compatible 4 interface.
2. Easy to use. There is user maunal with the product.
3. Compatible with most mainstream graphics cards
4. Support 60W reverse charging (for Laptop)
5. Support daisy chain

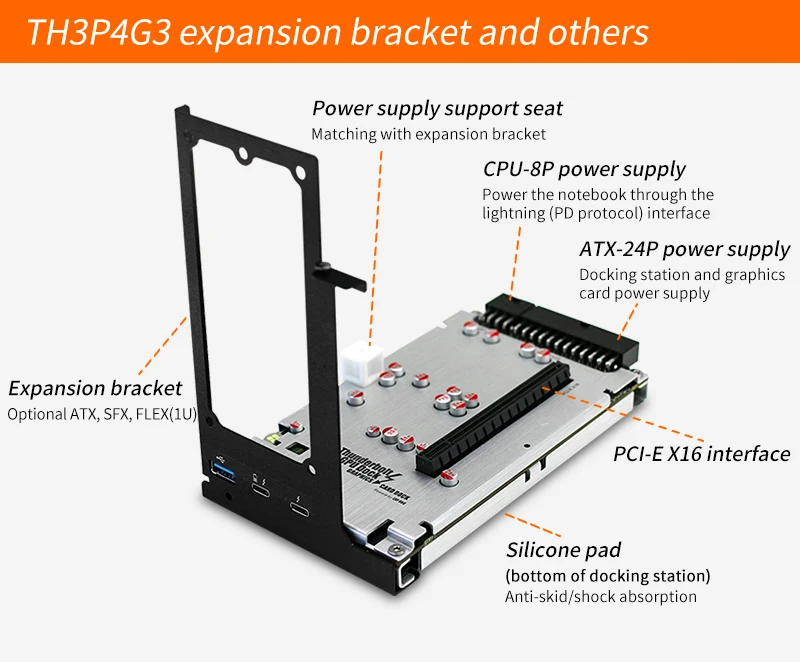

6. Come with SFX and ATX holder, be convenient to install the graphice card, power supply and dock together.

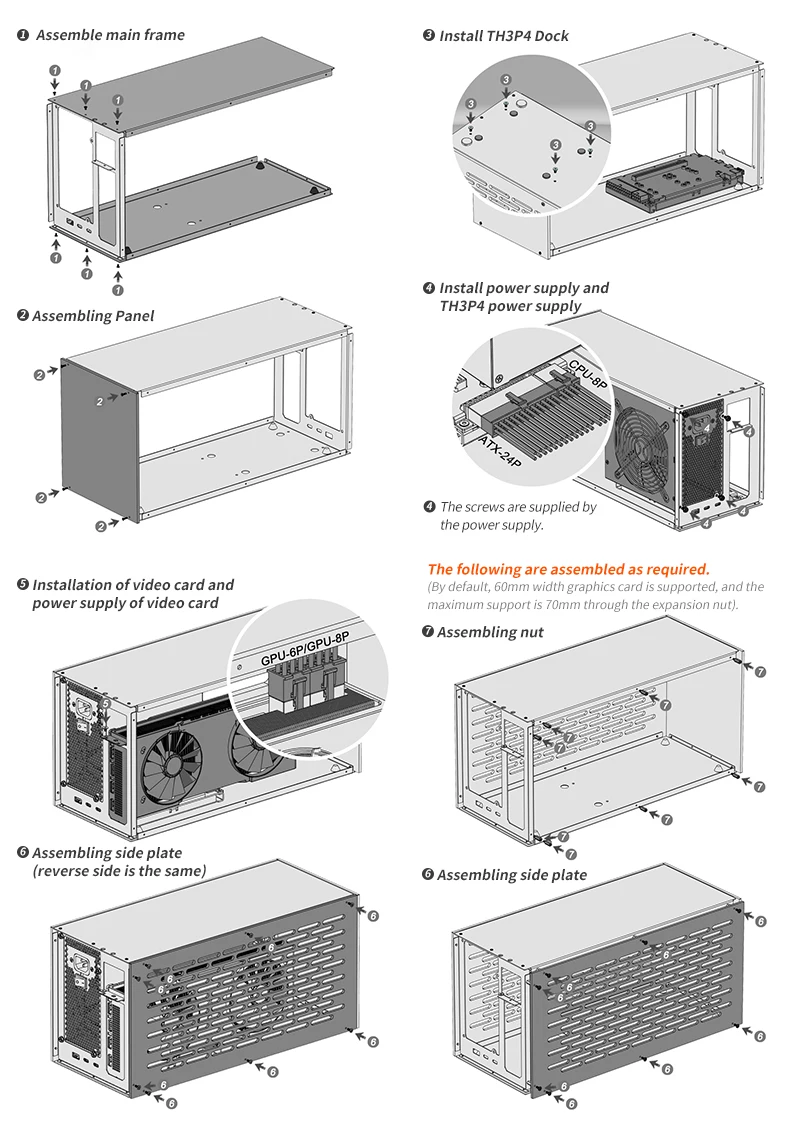

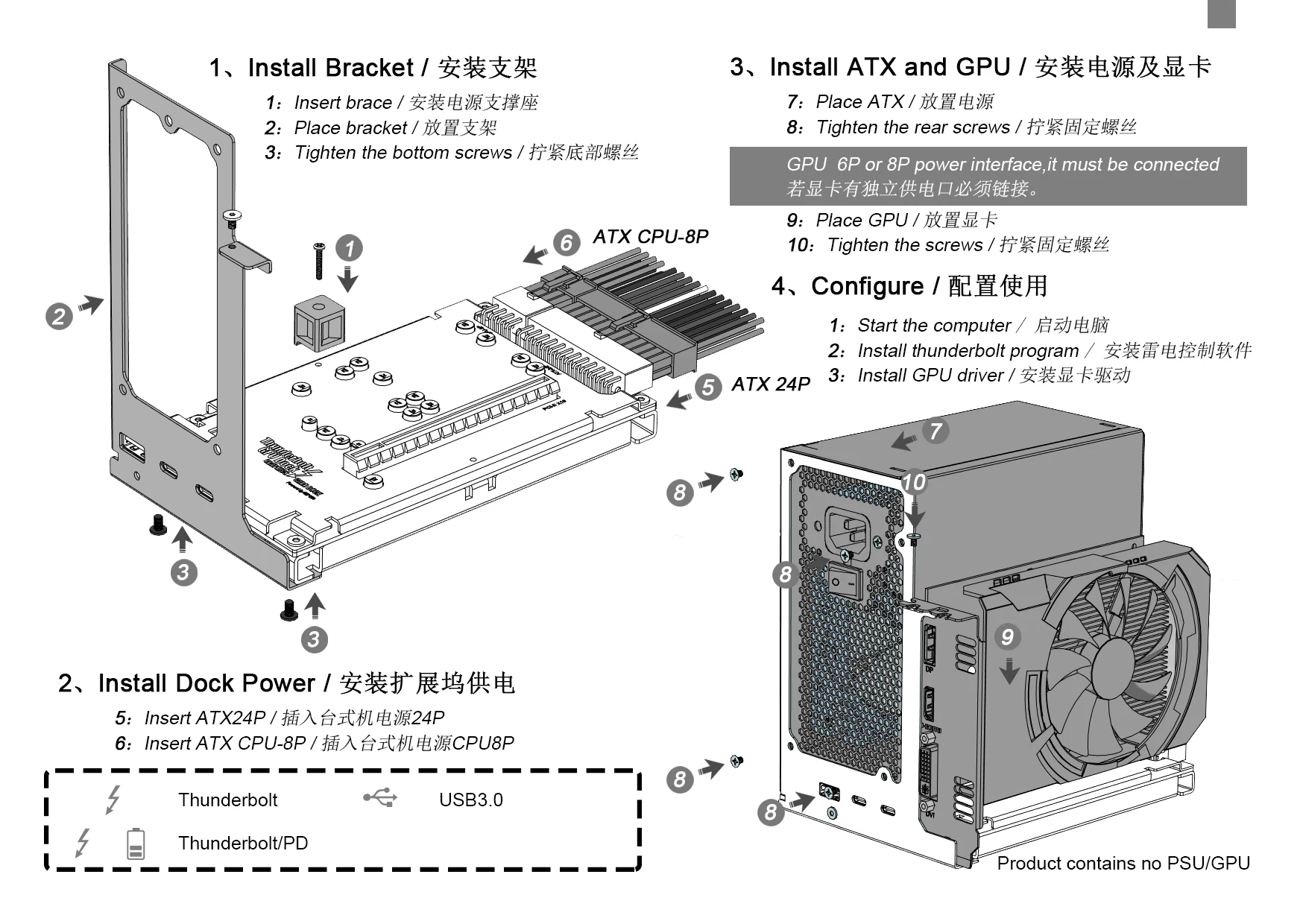

Installation Configuration

The user manual include the installation guide

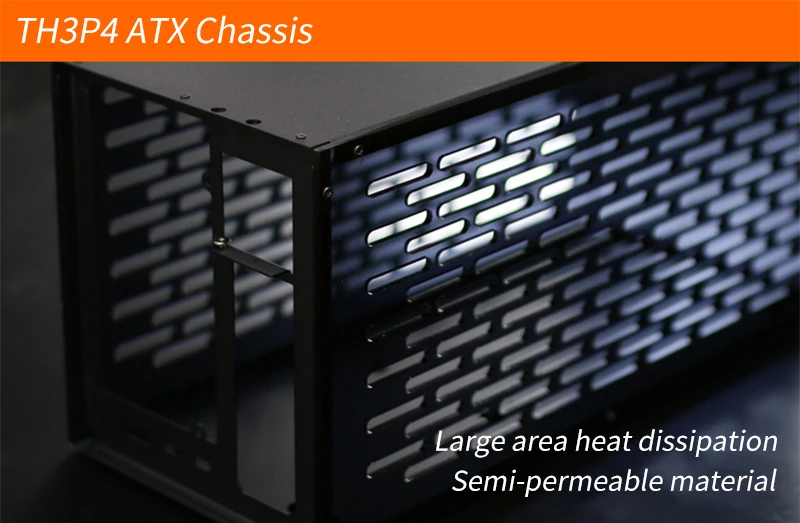

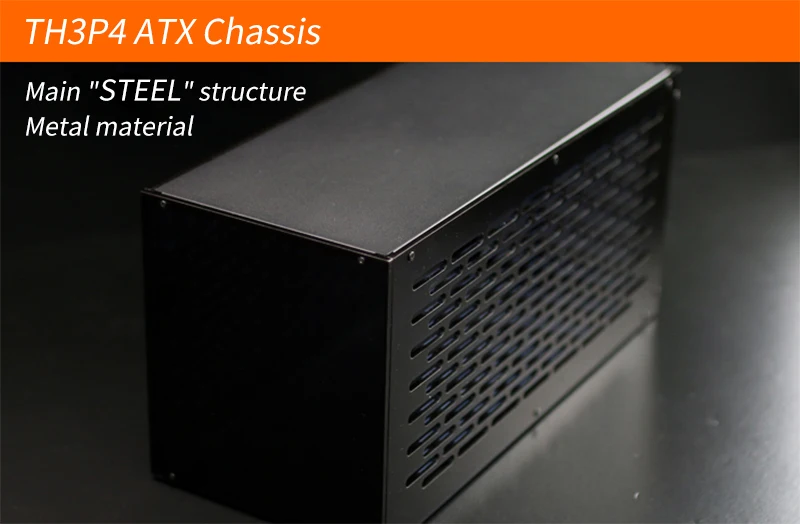

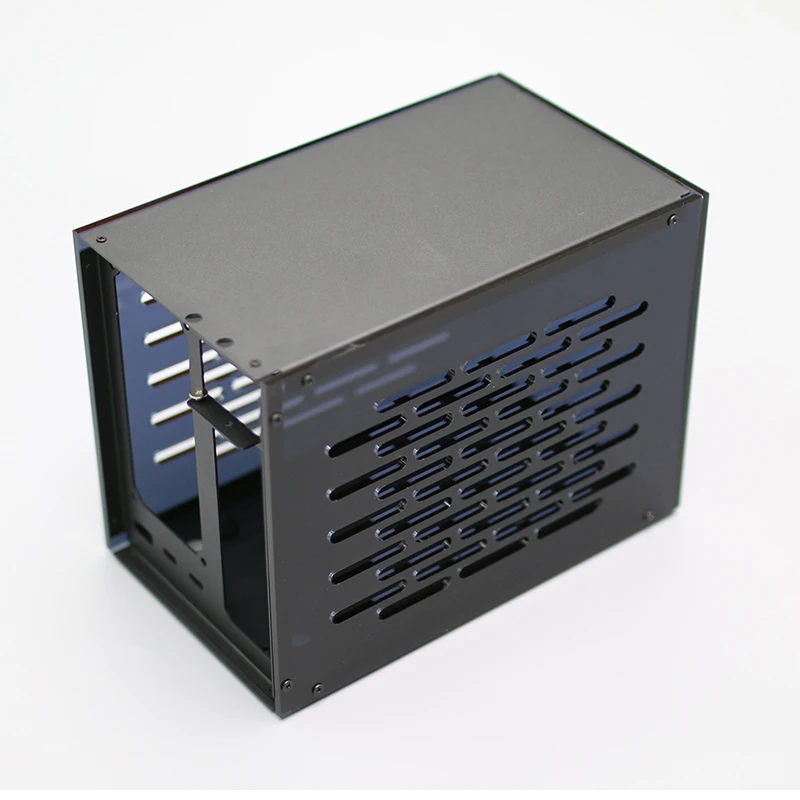

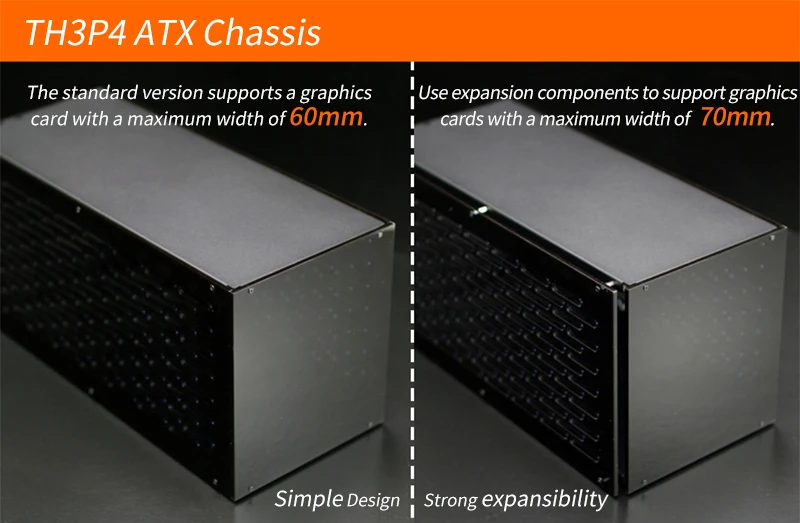

Meatal Case 1:

Specification

1. Material: Aluminum frame + 2 acrylic side plate
2. Weight: 1500g approx
3. Dimension: 366mm*182mm*160mm approx
4. Support max size of graphic card:
340mm*160mm*70mm
5. Use for: Install EXP GDC TH3P4G3 thunderbolt-
compativble GPU dock with power supply

Features

1. The case is a metal frame, strong and stable;
2. The 2 side of plate is acrylic material, you can see the device inside through the acrylic.
Please tear up the protection film on the acrylic before use it.

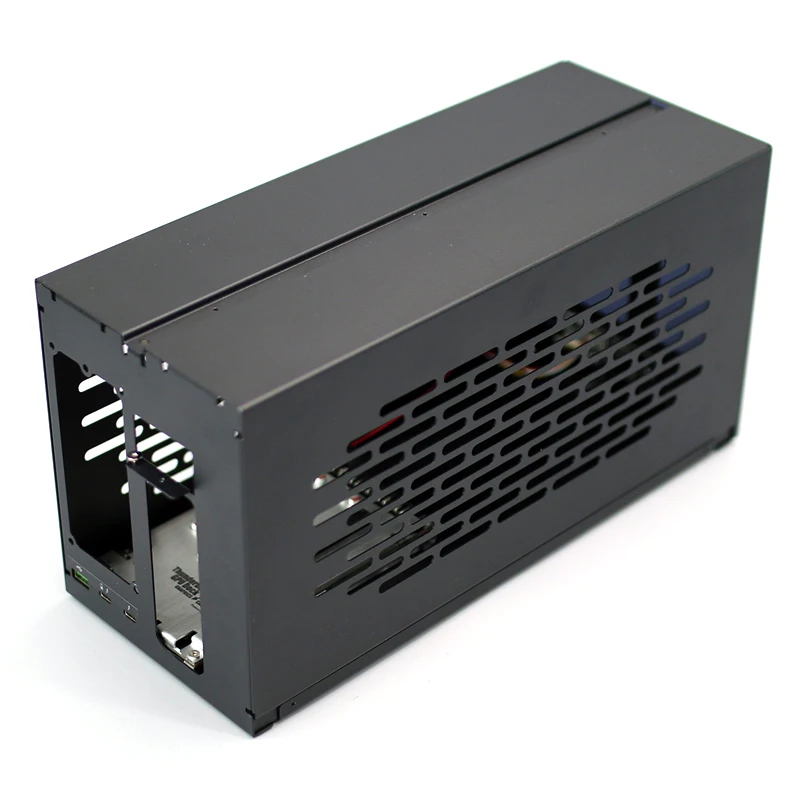

Meatal Case 2:

Specification

1. Material: Aluminum frame + 2 acrylic side plate
2. Weight: 950g approx
3. Dimension: 210mm*160mm*128mm approx
4. Support max size of graphic card:
200mm*150mm*50mm
5. Use for: Install EXP GDC TH3P4G3 thunderbolt-
compativble GPU dock with power supply

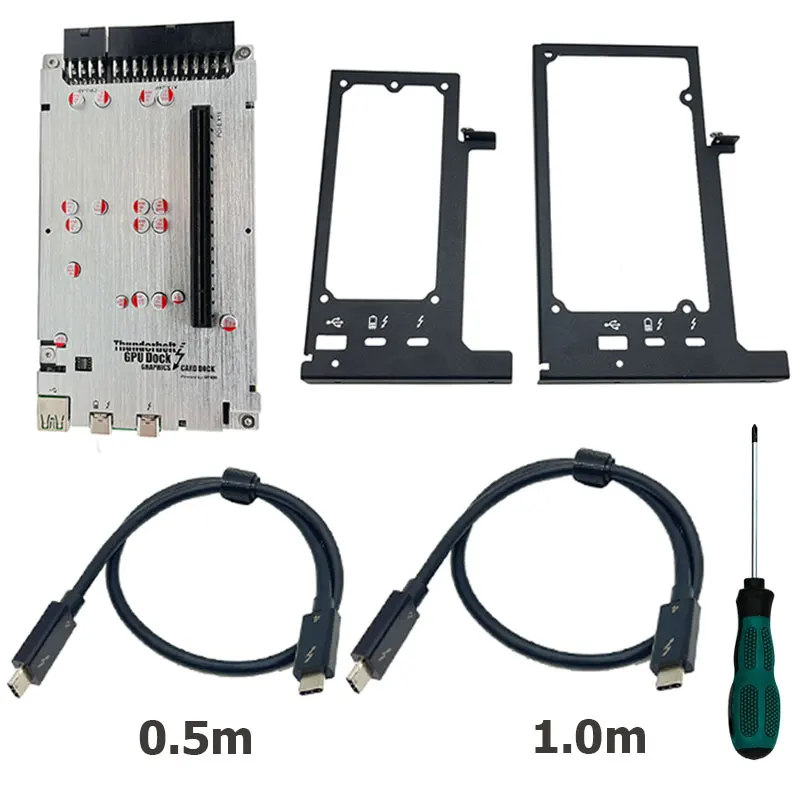

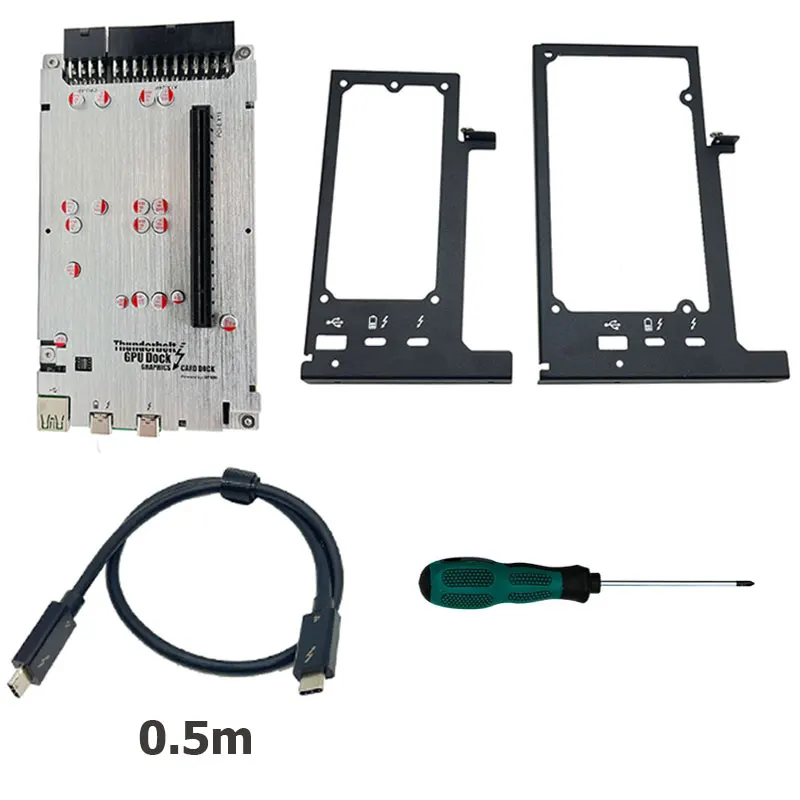

Packing List

Option 1

1 x TH3P4G3 Thunderbolt-compatible GPU Dock
1 x 0.5m Thunderbolt-compatible Data Cable
1 x SFX Power Holder
1 x ATX Power Holder
1 x User Guide
(not include GPU )

Application

Not include power and graphic card
