Description

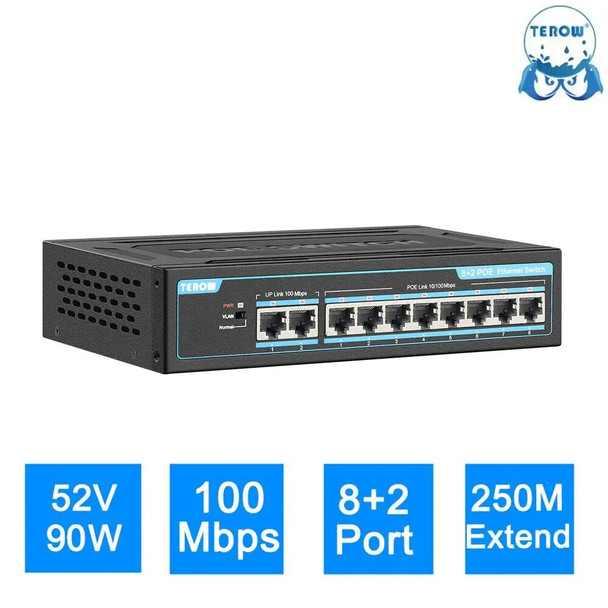

10 Ports 100Mbps POE Switch

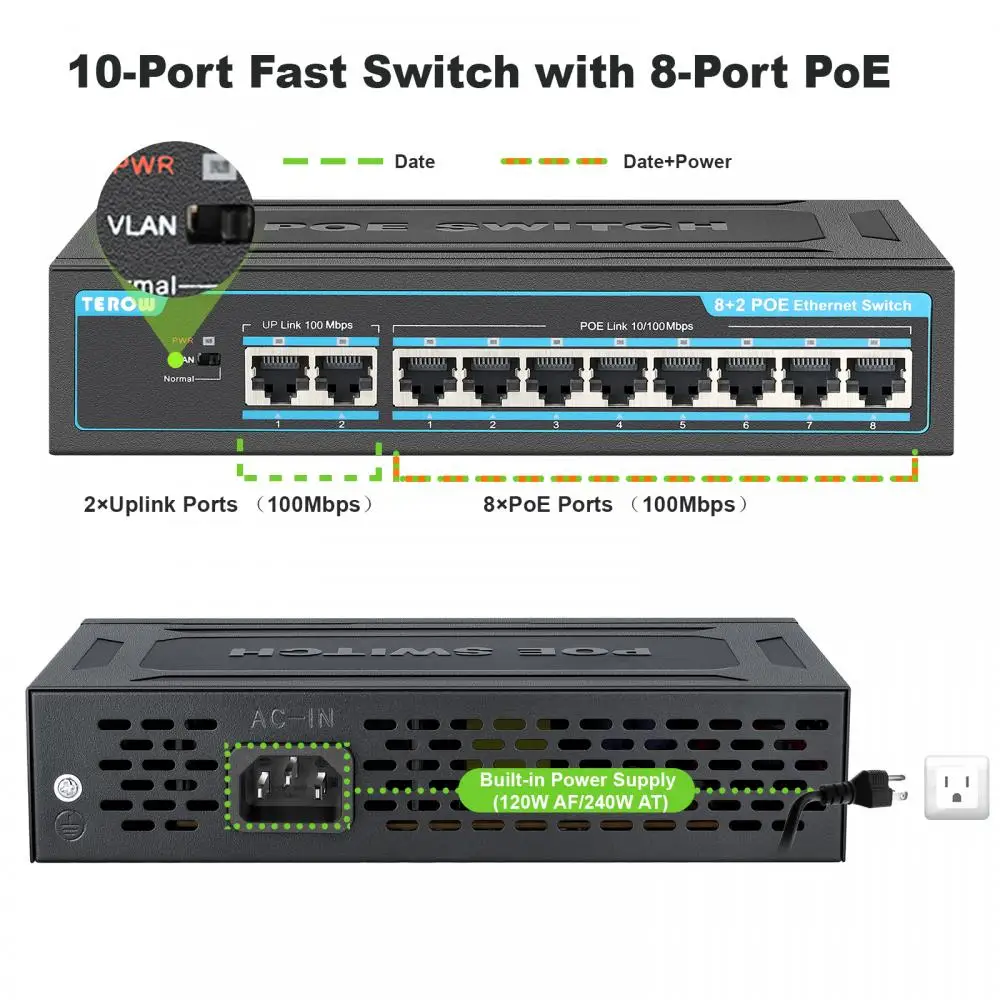

Model:8 100Mbps POE ports + 2 Uplink 100Mbps ports

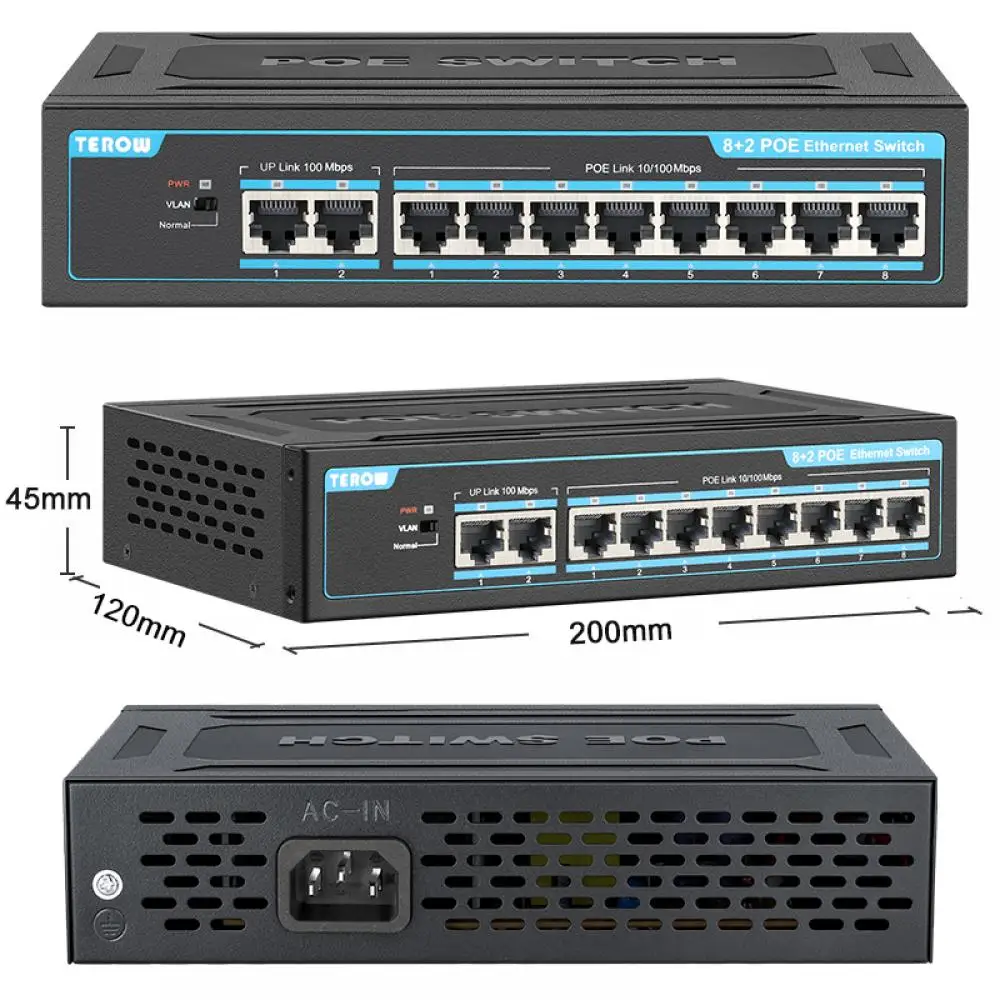

SzieL×W×H:200*120*45mm

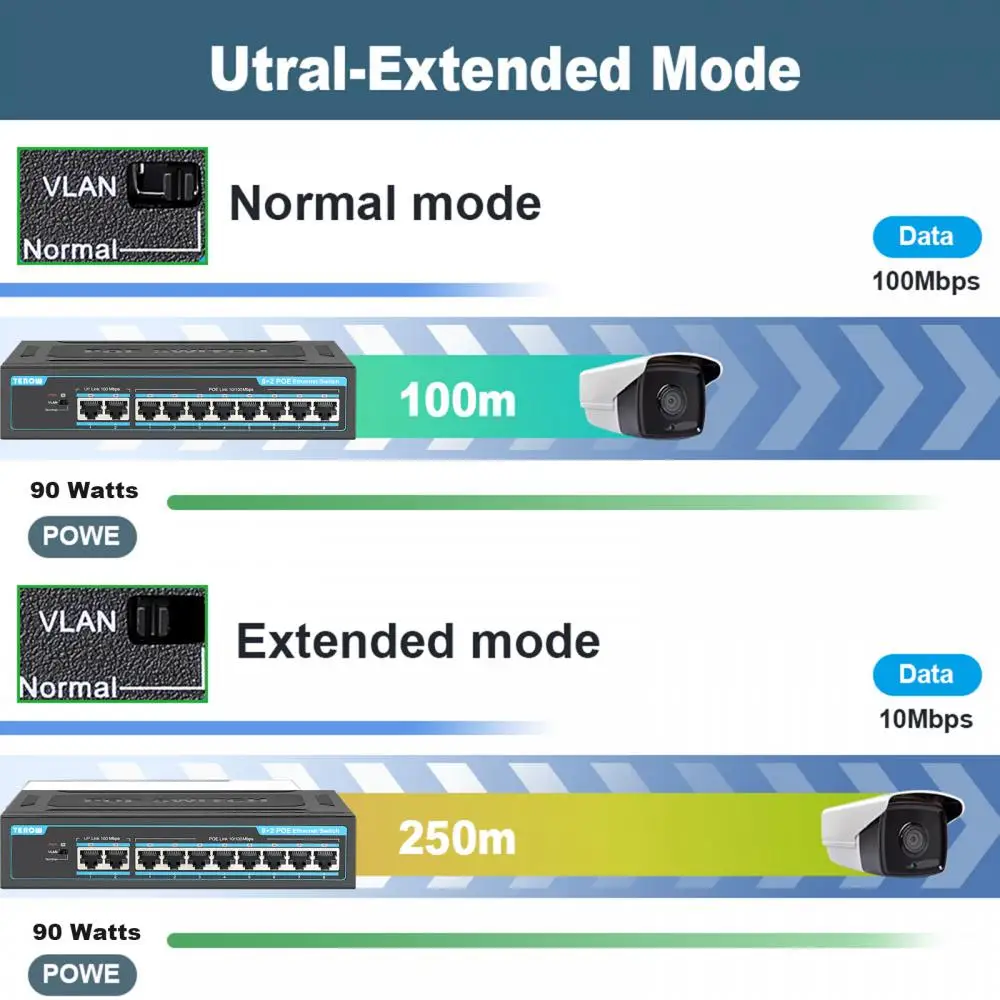

Distance:100 meters ~ 250 meters transmission
Soporte:IEEE802.3IEEE802.3iIEEE 802.3uIEEE802.3abIEEE802.3xIEEE802.1q
Power (max.):90W
Power:52V 1.78A ( Built-in power supply)
AC:100 ~ 240V/50 ~ 60Hz
Plug type:EU/US/AU/UK

Operating humidity:
10% ~ 90% without coagulation;
Storage humidity:
5% ~ 95% without coagulation;
POE standard:

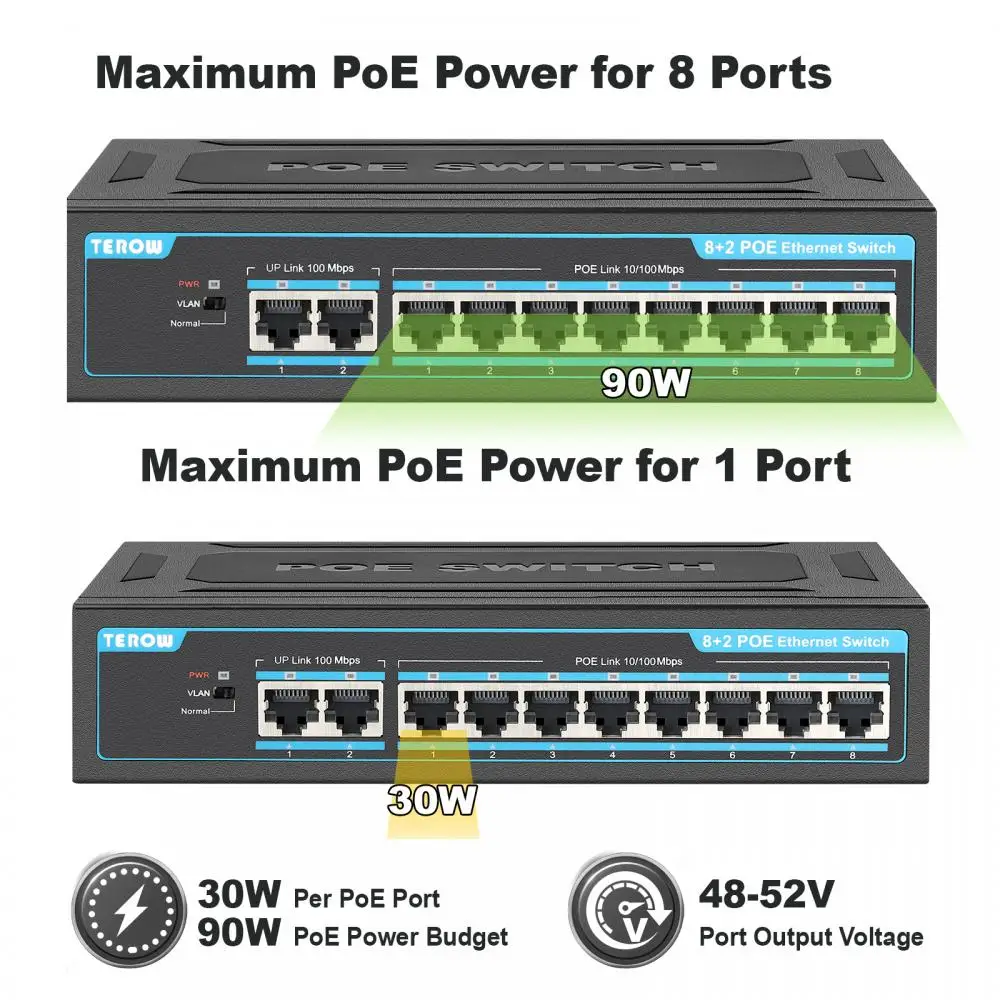

IEEE802.3af/AT, each POE PoE port PoE MAX 30W;
System mode:

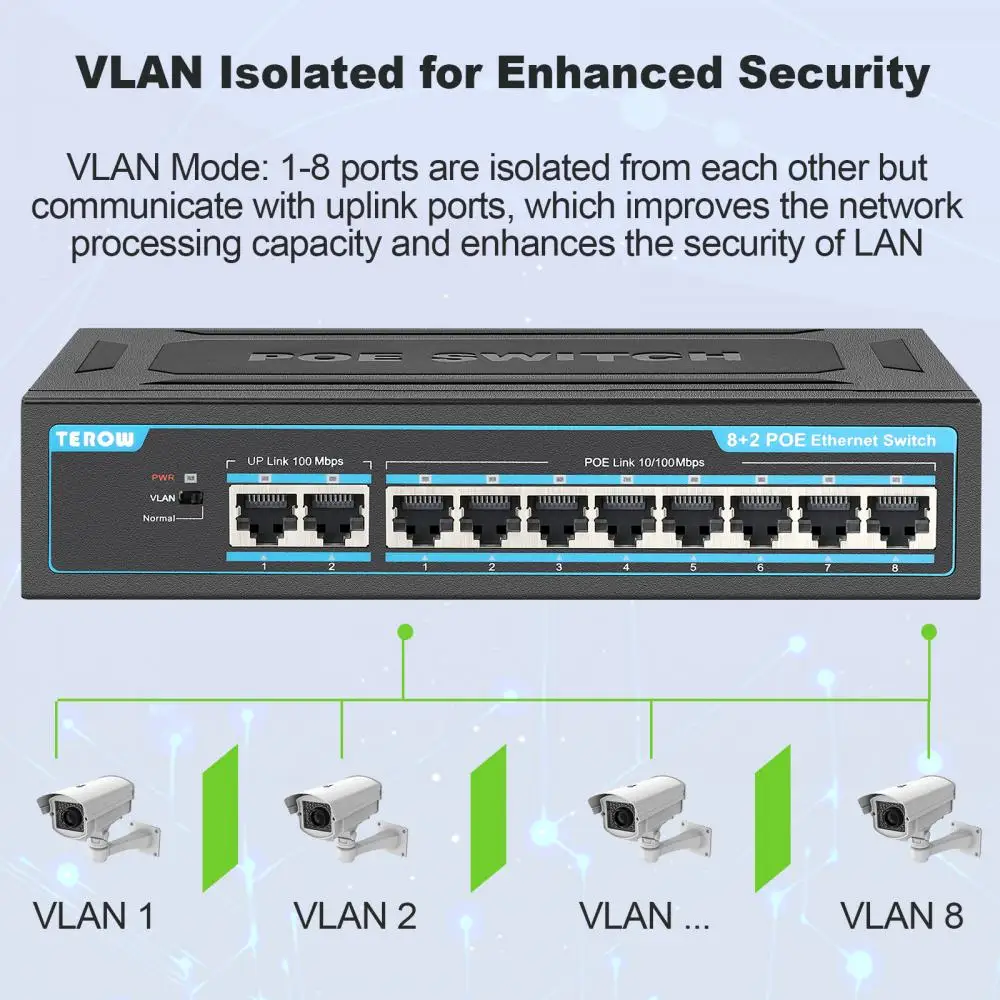

Standard default VLAN is ultra-long distance mode;
Support:
IEEE 802.3i 10BASE-T;
IEEE 802.3u 100BASE-TX;
IEEE 802.3ab 1000BASE-T;
IEEE 802. 3AF/at;
IEEE 802.3x;
IEEE 802.1Q;
Transmission:
Ethernet 10Mbps half duplex, 20Mbps full duplex speed;
Fast Ethernet 100Mbps half duplex, 200Mbps full duplex;
Gigabit Ethernet 2000Mbps Full Duplex;
Network:
10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(<250m).
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤ 150m)
1000Base-TX: Category 6(Cat6) Pair 2 and above UTP/STP(≤ 100m)
Ambient temperature:
Operating temperature 0 ℃ to 40 ℃.
Storage Temperature-40 ℃ to 70 ℃

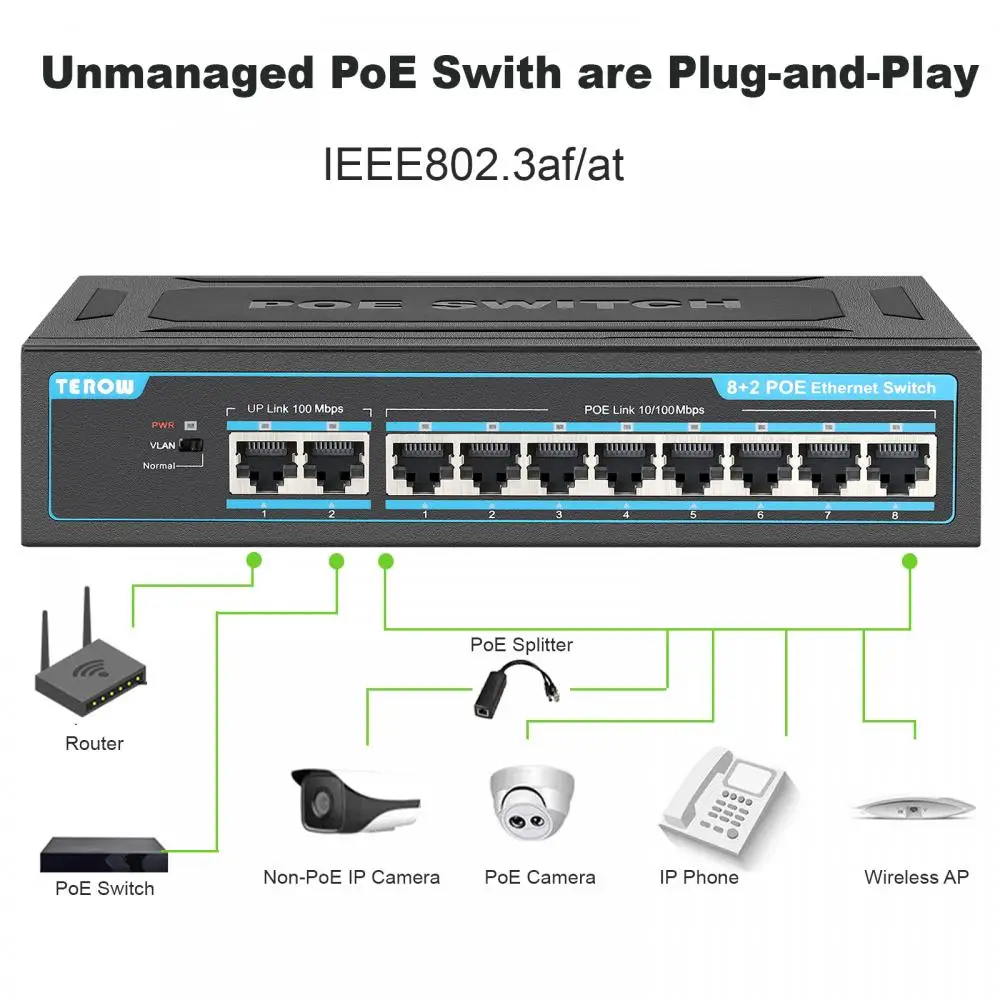

Surveillance:
Works with IP cameras, such as warehouses.
Conference calling:
Works with IP phones, such as an office telephone network.
WiFi coverage:
Works with wireless access points, such as hotels, restaurants, etc.
