TCP/IP Wiegand 26 Network Door Entry Access Control Panel For Security Solutions Access System With Software
Description
Specification:
Parameter | Single Door Control Panel | Multi Door (2) Control Panel | Multi Door (4) Control Panel |
Model # | ACB-001 | ACB-002 | ACB-004 |
Door Controler | 1 | 2 | 4 |

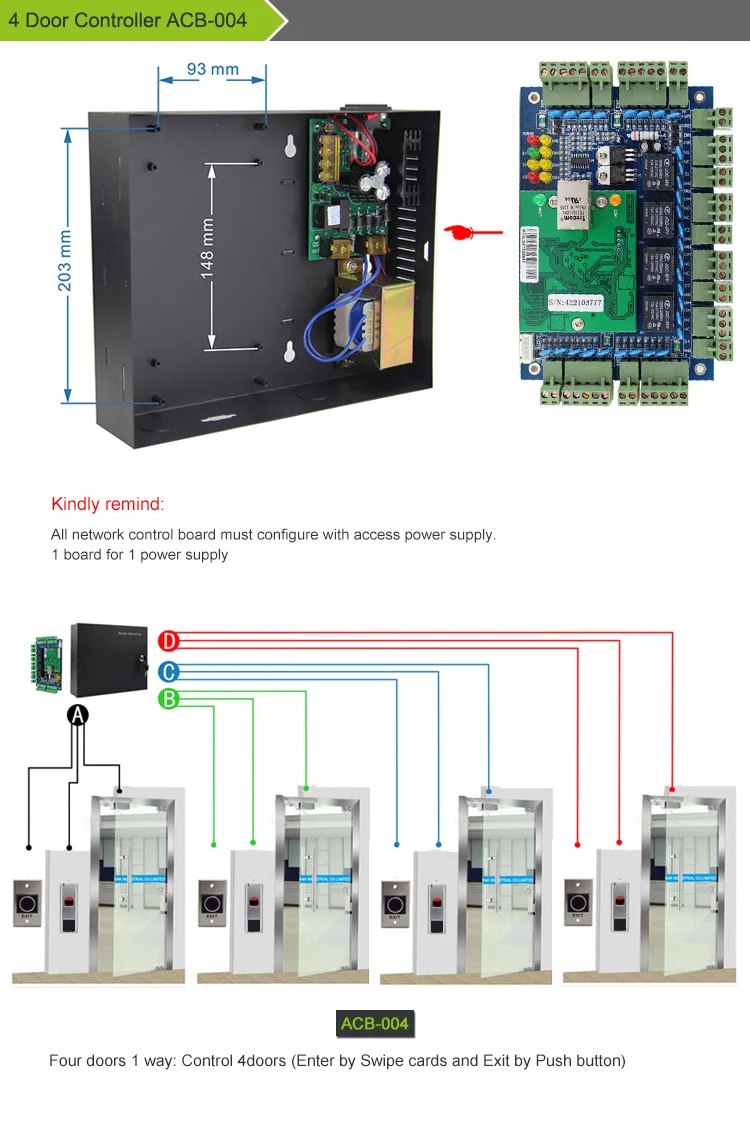

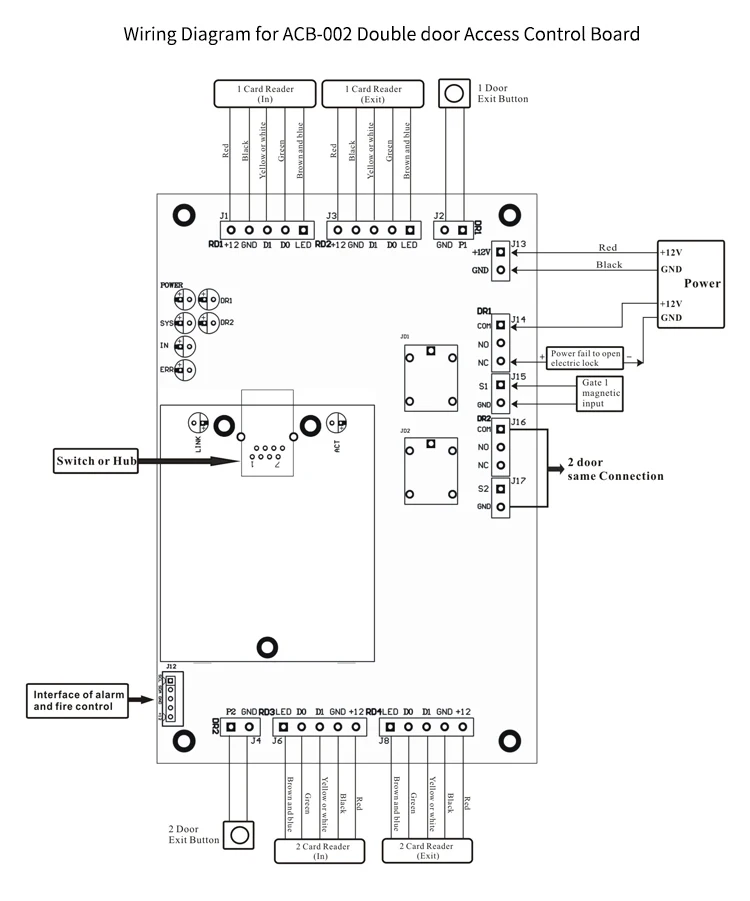

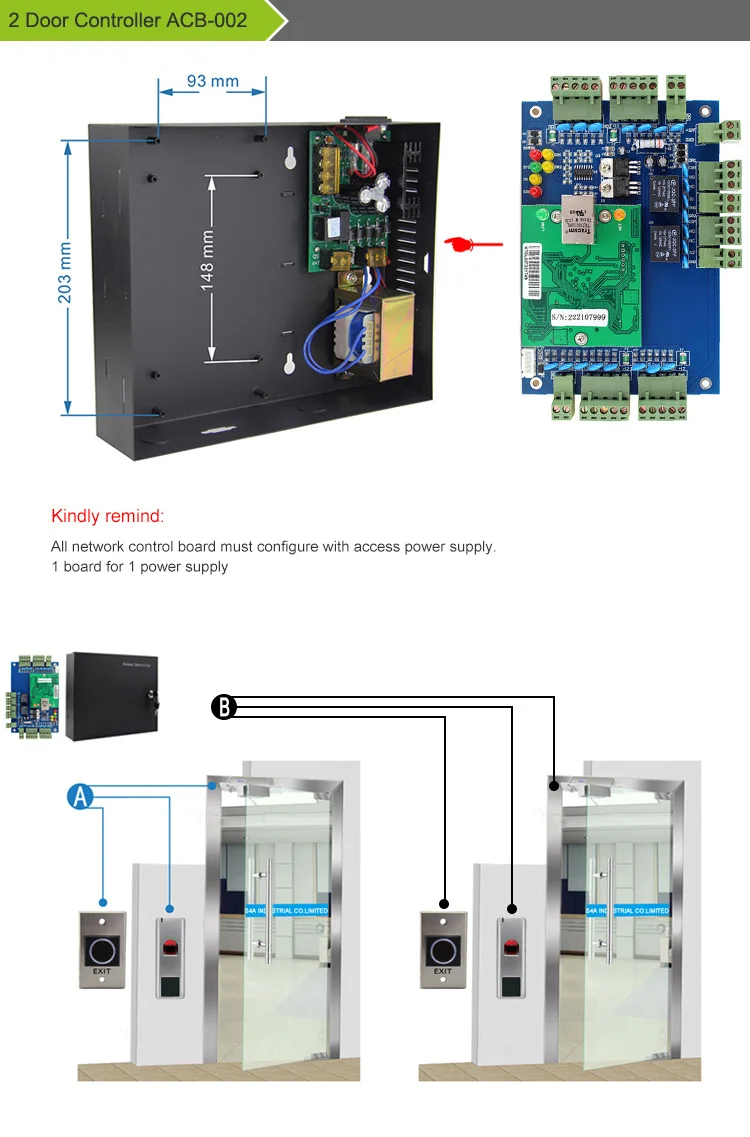

Description | Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button | Control 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button | Control 4 doors, get in the door by swiping card, and get out door by button |

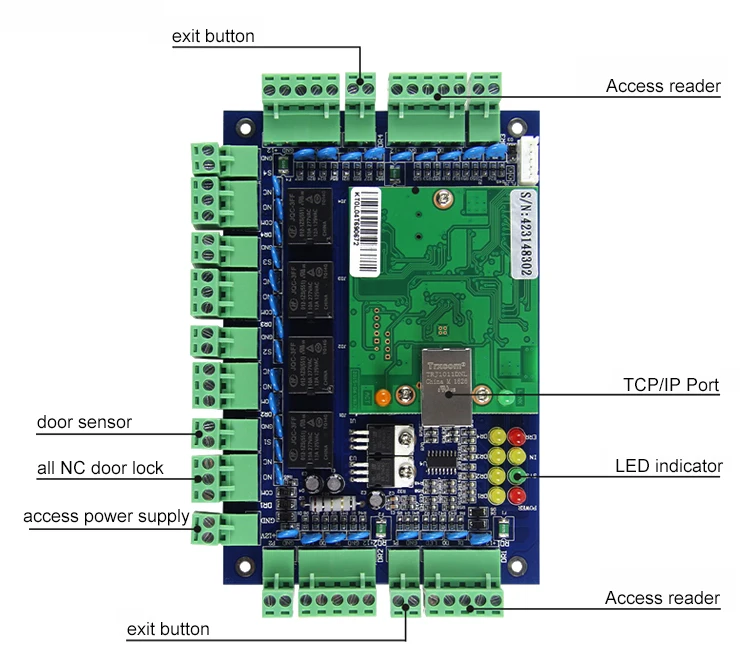

Size of PCB board | 160mm*106mm | 160mm*106mm | 218mm*106mm |
Size of Case | 273mm*228mm*65mm | ||
Quantity of Readers | 2pcs | 4PCS | 4PCS |

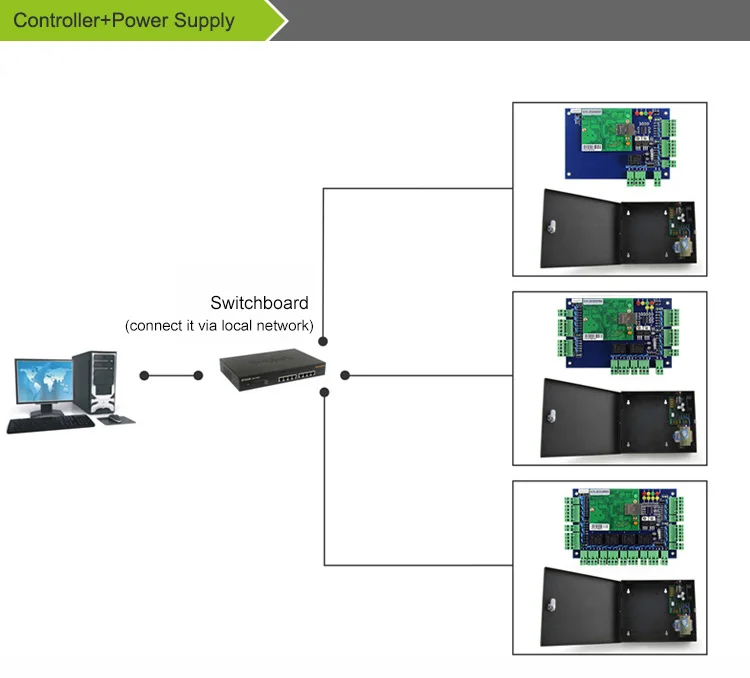

Communication | TCP/IP 10M/100M adaptive | ||
English Software supportable database: | Access and SQL | ||
Power Supply | 12VDC 4-7A | ||
Power Consumption of Circuit Board | Less than 100mA | ||
Input Format of Reader | Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc) | ||
Door opening time extending setting | 1-600 seconds(adjustable) | ||
Max q ' ty of controller | No limit | ||
Operation Temperature | -40°C-70°C | ||
Operation Humidity | 10-90 % RH , No Condensation | ||
Q ' ty of users | 20,000 Users | ||
Q ' ty of Event Buffers(offline) | 100,000 event buffers | ||
Power interruption protection measure | High Speed Memory, Records never lose | ||
Max Distance from Reader to Controller | 100m (suggestion distance 80m) | ||
Max Distance between Controllers | |||

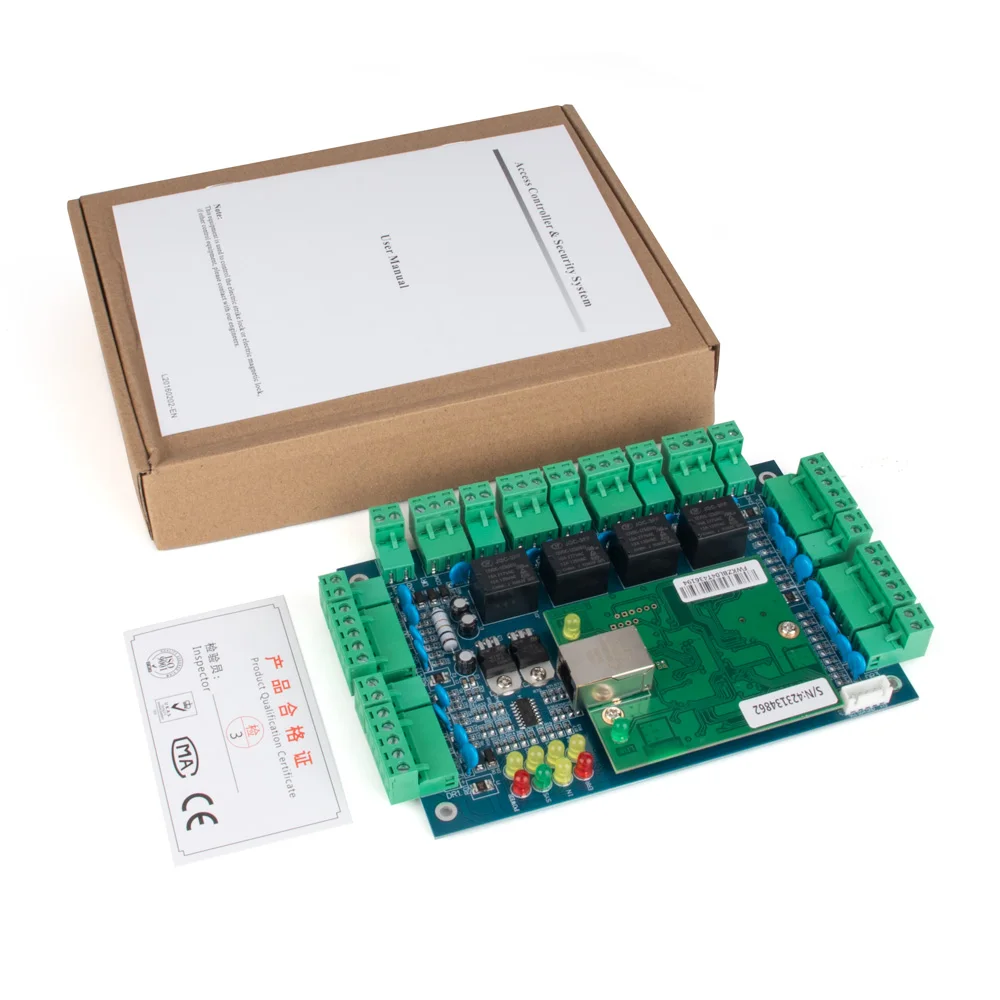

Package included | PCB board, software, manual, certificate.carton | ||
Collocations | PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton | ||
Fire and alarm linkage | If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm, Model is ACB-EA05 | ||
Alarm for long time door open, ilegal break in, intimidate | Yes | ||
Complsive open and close door at long time | Yes | ||
Open door in remote distance | Yes | ||
Inter block | NO | Yes | Yes |
Anti pass back and tail | Yes | Yes | Yes |
Multi-card open door | Yes | ||
Open long time at specified time | Yes | ||
Electronic map | Yes | ||
Urgency locking | Yes | ||
First card unlocking | Yes | ||
Unlock based on internal and external validation | Yes | ||
Keypad (card+passwor, supper password) | Yes | ||
