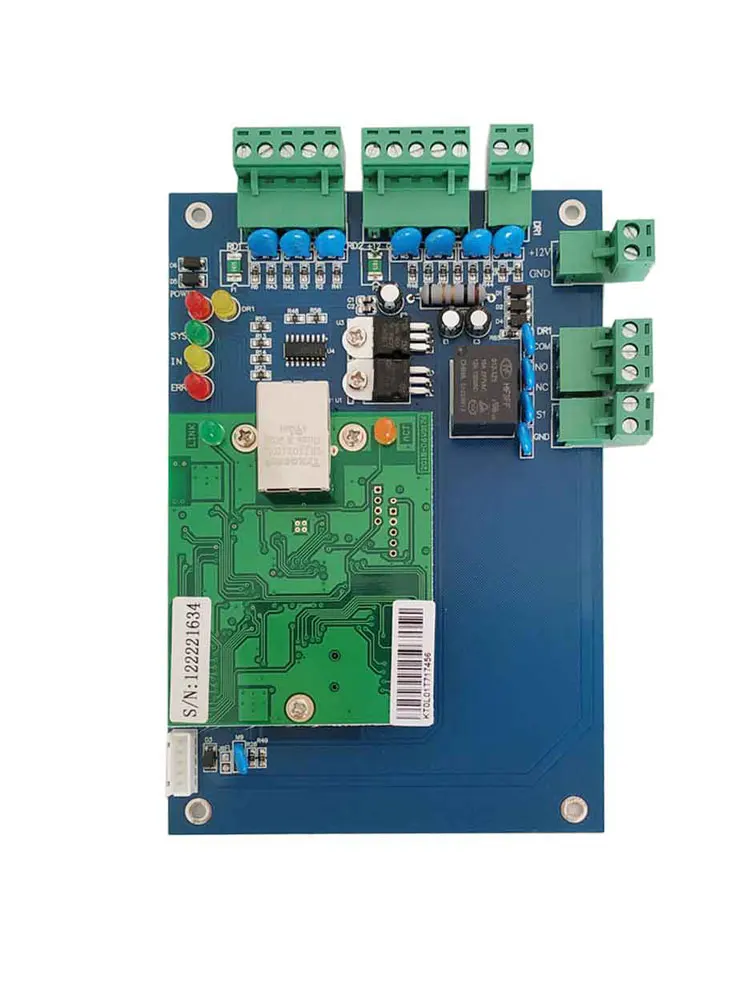

This L-serial access controller is adopted 32-bit ARM cpu, it have very stronger fucntion. Its main function include: Attendance / Access control / Access alarm / Fingerpint /  Web function  .

Attendance :support normal shif rules and Multi-shif rules ,this can meet variety of attendance needed.

Access control:suport Time profile / password manage / anti-passback / inter lock / first card / task list .

Access alarm:suport door open too long warm / door forced open / invalid card / fire alarm / Threat code / force lock

Fire alarm:Fire alarm triggered , All doors are opened automatically and alarm is output at the same time

QR  function:suport various QR code generators

web function:suport PC,tablet ,cell phone use IE or Chrome  browser etc.

Main parameters

Model:L01

Mange door: 1

Card number:20 000

store card record :100 000

Reader Input format:wiegand 26/ wiegand 34

communication: TCP/IP

Database: Access or SQL 2000,SQL2005,SQL 2010, default :Access

support OS: XP, WIN7,WIN8, WIN10

power:12V

*************************************************************************************************************************************************

Getting started guide

This software is very eays to use, only through simple four-step ,you can use it

*********************************************************************************************************************************************************

Time attendance function

*********************************************************************************************************************************************************

Access control function

the controller suport Time profile / password manage / anti-passback / inter lock / first card / task list

*********************************************************************************************************************************************************

Access Alarm function

Enble this alarm fucntion, It can add one a expandsion borad, it need that funtion. pls order the expansion board

*********************************************************************************************************************************************************

Web function

suport PC,tablet ,cell phone use IE or Chrome  browser etc
