This -serial access controller is adopted 32-bit ARM cpu, it have very stronger fucntion. Its main function include: Access control / Attendance / Access alarm / Fingerpint /  Web function  etc.

Product features：

• TCP communication, no quantity limit, no geographical restrictions limit; large storage: 40,000 users 100,000 records

• Basic functions: offline operation, real-time monitoring, photo display, flexible permission settings, remote door opening, multi-user management, batch and a small number of fast settings, convenient query, report statistical format modification and printing output to Excel file

• Access control function: password, card + password, card number + password; time profile management; anti-pass back ; interlock; multi-card open door; timing auto-operation open door; first card open door; electronic map


• Flexible attendance management: multi-shift settings to meet multi-time attendance management in a day


• Alarm function: Froced alarm; open to long alarm; threat code alarm; Invalid card swiping  alarm; fire alarm;inter link, etc.

access control detail：

• Dimension: approx. 6.3(W)x4.17(H)in / 16(W)x10.6(H)mm

• Communication: TCP/IP

• Software Supportable Database: Access and SQL server

• Power Supply Input: DC12V

• Power Consumption of Circuit Board: Less than 100mA

• Input Format of Reader: Wiegand 26 bit (All card reader with compatible protocol, such as Motorola, HID, EM, M1, etc)

• Quantity of Readers: 2 units

• Door Controlled: 1 door (Get in by swiping card, get out door by exit button)

• Door Opening Time Extending: Setting: 1~600 seconds (adjustable)

• Max Quantity of Controller: Unlimited

• Quantity of Users: 40,000 users

• Quantity of Event Buffers (offline): 100,000 event buffers

• Max Distance from Reader to Controller: 100m/328ft (suggestion distance 80m/262ft)
  Alarm for Long Time Door Open, Unlawful Entry, Intimidate

• Fire and alarm linkage: If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm

• Compulsive open and close door at long time: Yes

• Open door in remote distance: Yes

• Inter block: Yes

• Anti pass back and tail: Yes

• Multi card open door: Yes

• Open long time at specified time: Yes

• Urgency locking: Yes

• First card unlocking: Yes

• Unlock based on internal and external validation: Yes

• Keypad (Card and password, supper password): Yes

For more details, please contact us

*************************************************************************************************************************************************

Green Access control

*************************************************************************************************************************************************

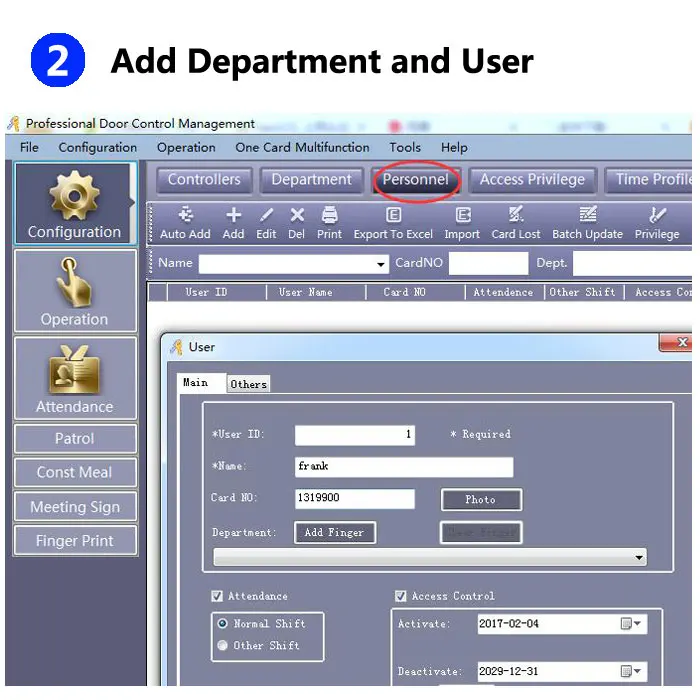

Getting started guide

This software is very eays to use, only through simple four-step ,you can use it

*********************************************************************************************************************************************************

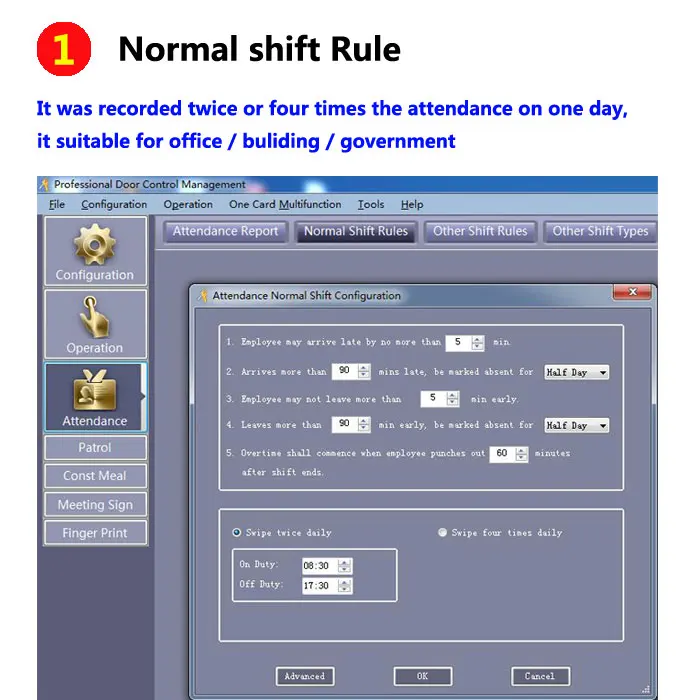

Time attendance function

*********************************************************************************************************************************************************

Access control function

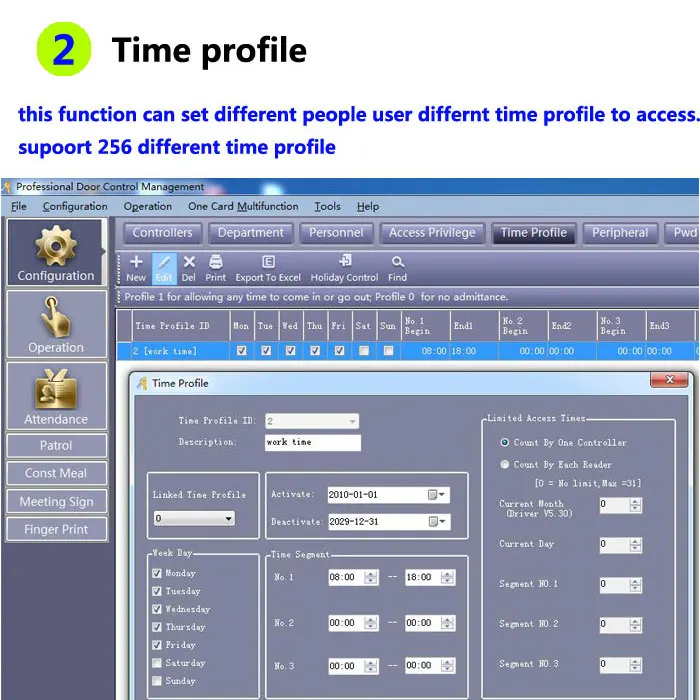

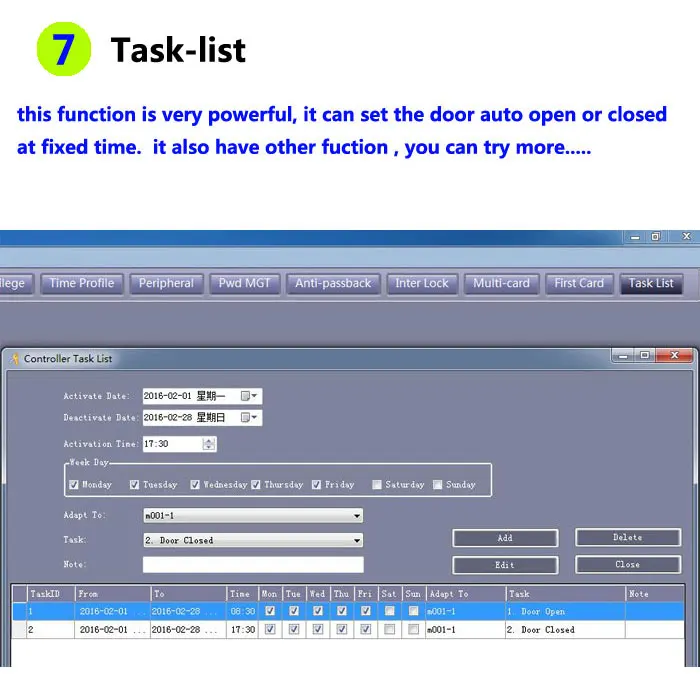

the controller suport Time profile / password manage / anti-passback / inter lock / first card / task list

*********************************************************************************************************************************************************

Access Alarm function

Enble this alarm fucntion, It can add one a expandsion borad, it need that funtion. pls order the expansion board

*********************************************************************************************************************************************************

Web function

suport PC,tablet ,cell phone use IE or Chrome  browser etc
