Description
JVLAB large volume sampler enables
Tube Material: PTFE

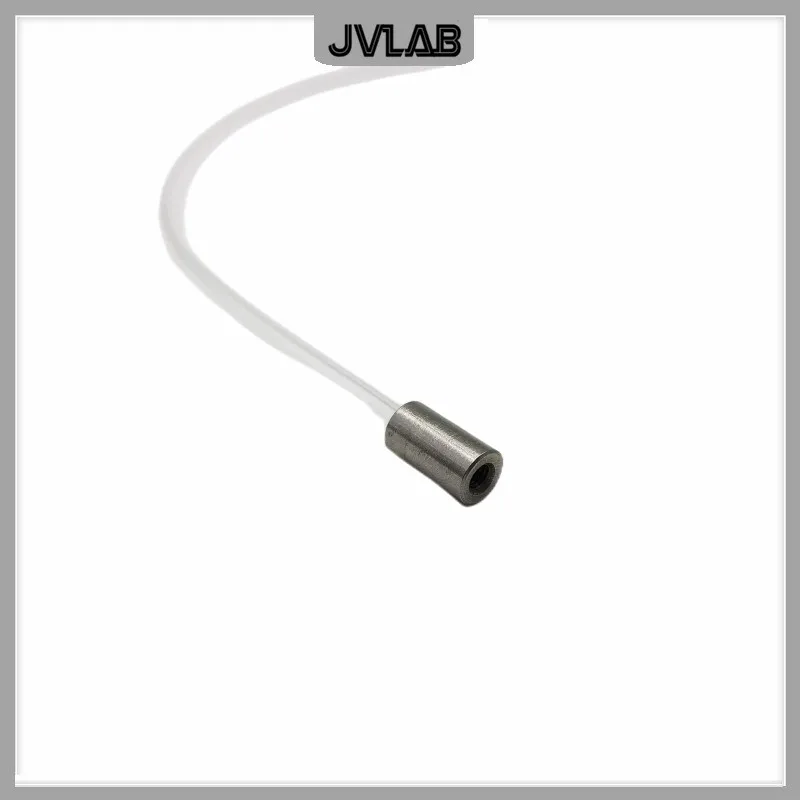

Weight material: 304 stainless steel

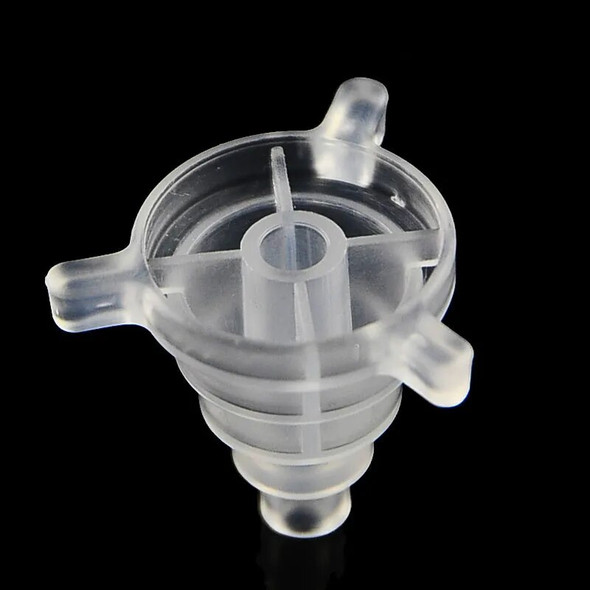

Adapter material: PTFE
Specifications and models: suitable for 1ml, 3ml, 6ml, 12ml solid phase extraction cartridges.
Standard length: 80 cm
Package: 1 EA/PK

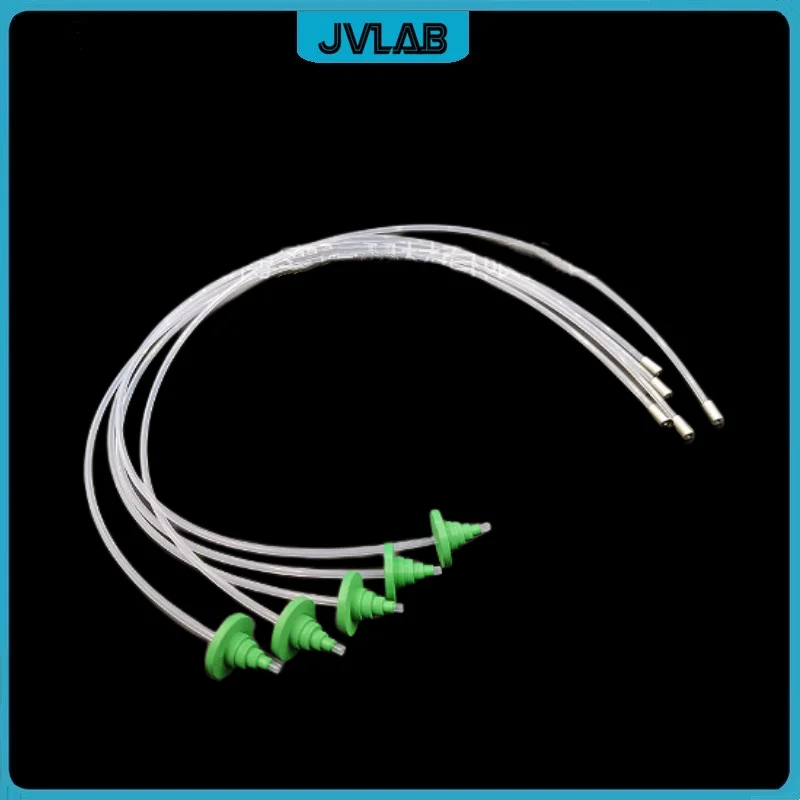

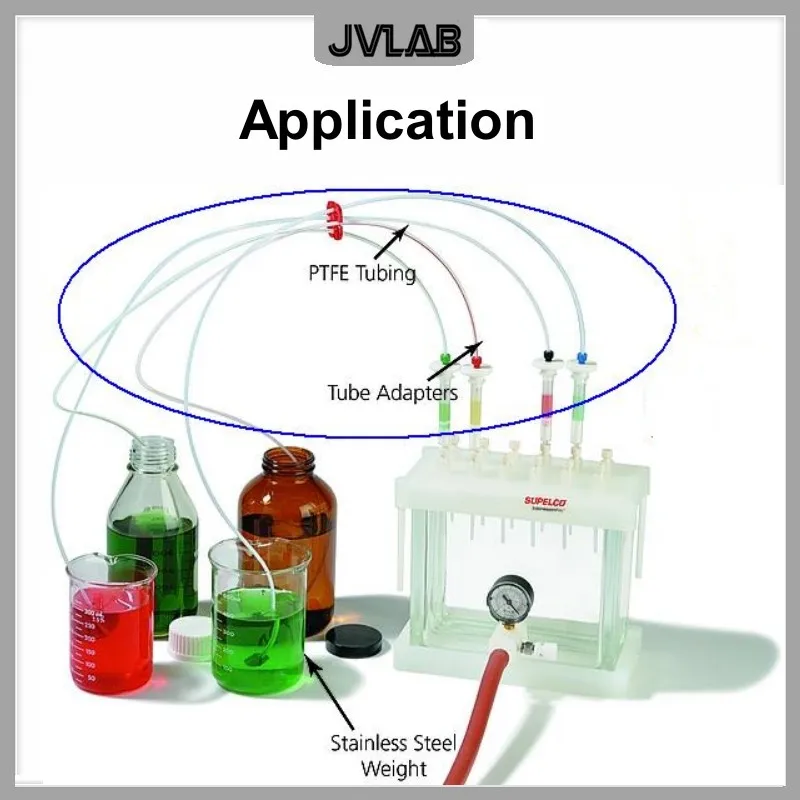

The samplers consist of 1/8-inch PTFE tubing with a screw fitting at one end and a stainless steel weight at the other end. To use the sampler, feed the weighted end into a sample container until it touches the bottom. Insert the tube adapters into the conditioned SPE tubes on your JVLAB manifold. Turn on the vacuum to the JVLAB manifold and open the manifold flow control valves, and the samples will be delivered to the SPE tubes. The flow rate of sample through each tube can be independently controlled by using the flow control valves.
Tube Material: PTFE
Weight material: 304 stainless steel
Adapter material: PTFE
Specifications and models: suitable for 1ml, 3ml, 6ml, 12ml solid phase extraction cartridges.
Standard length: 80 cm
Package: 1 EA/PK


The samplers consist of 1/8-inch PTFE tubing with a screw fitting at one end and a stainless steel weight at the other end. To use the sampler, feed the weighted end into a sample container until it touches the bottom. Insert the tube adapters into the conditioned SPE tubes on your JVLAB manifold. Turn on the vacuum to the JVLAB manifold and open the manifold flow control valves, and the samples will be delivered to the SPE tubes. The flow rate of sample through each tube can be independently controlled by using the flow control valves.
