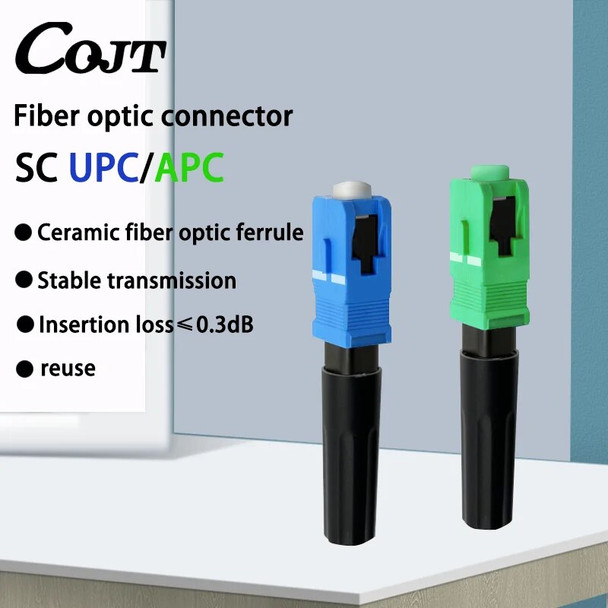

FTTH Fiber Optic Fast Connector SC-APC Single Mode Fiber Optic Adapter SC/UPC FTTH SC Field Assembly Fiber Connector SM

Description

SC embedded fiber optic connector quick connector cold, using tricyclic class A ferrule insertion loss, operability / reuse / stable performance, low cost, fast installation and so on.

Specifications:

Product Name: embedded fiber optic connector quick connector cold

Model: SC / UPC-P

The average insertion loss: ≤0.5db

Return loss: ≥48db

Temperature cycle: -40 ~ + 85 / 168h

Variation: ≤0.2db

Rally: ≥35N

Torque: ≥25N

Repeat assembly: ≥15 times

Variation: ≤0.2db

Size:60x9mm/2.36x0.35"

Carrier-class standards: Each ferrule have been detected within the optical loss -0.5db, it has reached the level of telecommunications standards

Note:

Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
