Description
Specifications:
.Working Frequency:125KHz
.Power Supply: DC 9~24V
.Current: 60mA~80mA
.Rated Power: ≤ 1W
.Read Range: 3~5cm
.Card Capacity: 2000
.Temperature: <60 degree
.Humidity: 10% ~ 95% R.H
.Size: 100*37*12mm
.Outdoor Button: 1
.Sensor Input: 1
.Electric Lock Output: 1
.With manage card to add or delete users card
.with remote switch add or delte user card (option)

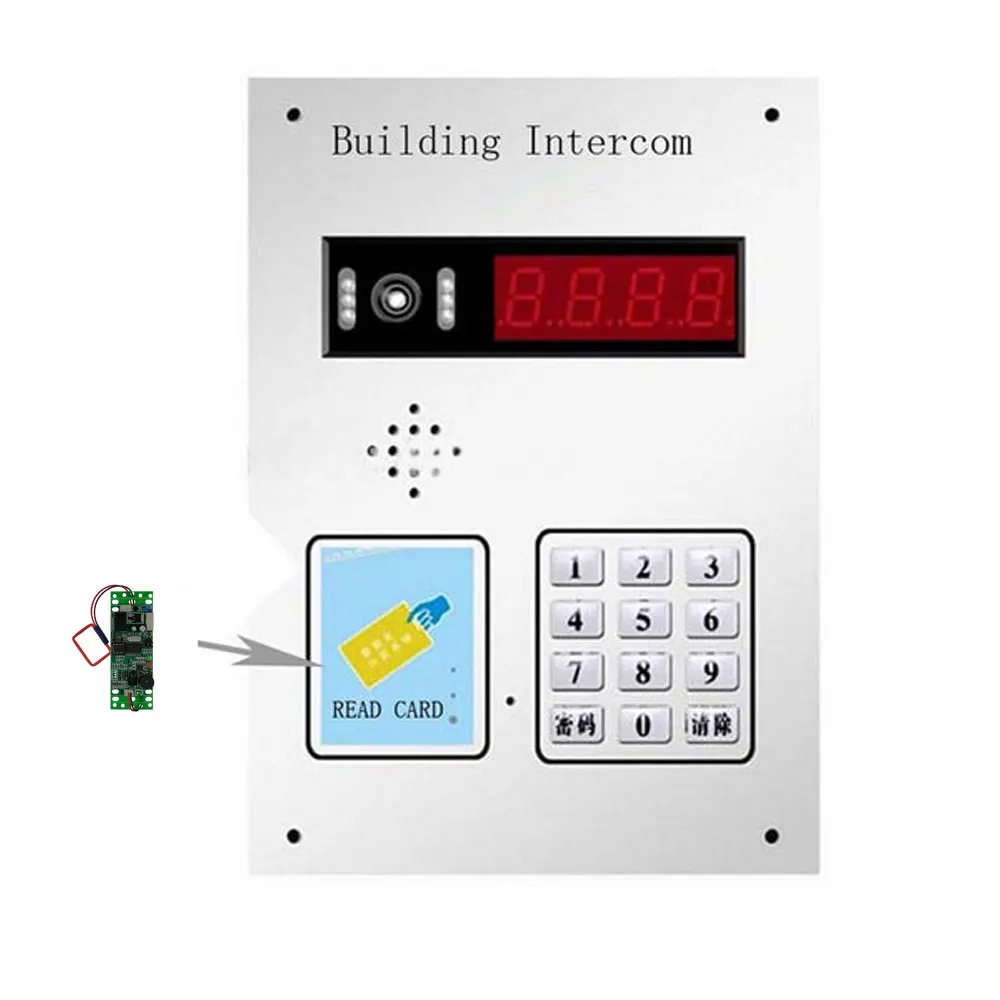

.Application Field:building intercom,Lift
***************************************************************************************************************************
Add card:
1.swipe the add card, enter add mode ,
2.then swipe the user card one by one,
3.swipe the add card again, quit 'add mode' , add user card succefully.
Delete card:
1.Dele the add card, enter delete mode ,
2.then swipe the user card one by one,
3.swipe the delete card again, quit 'delete mode' , add delete card succefully
***************************************************************************************************************************

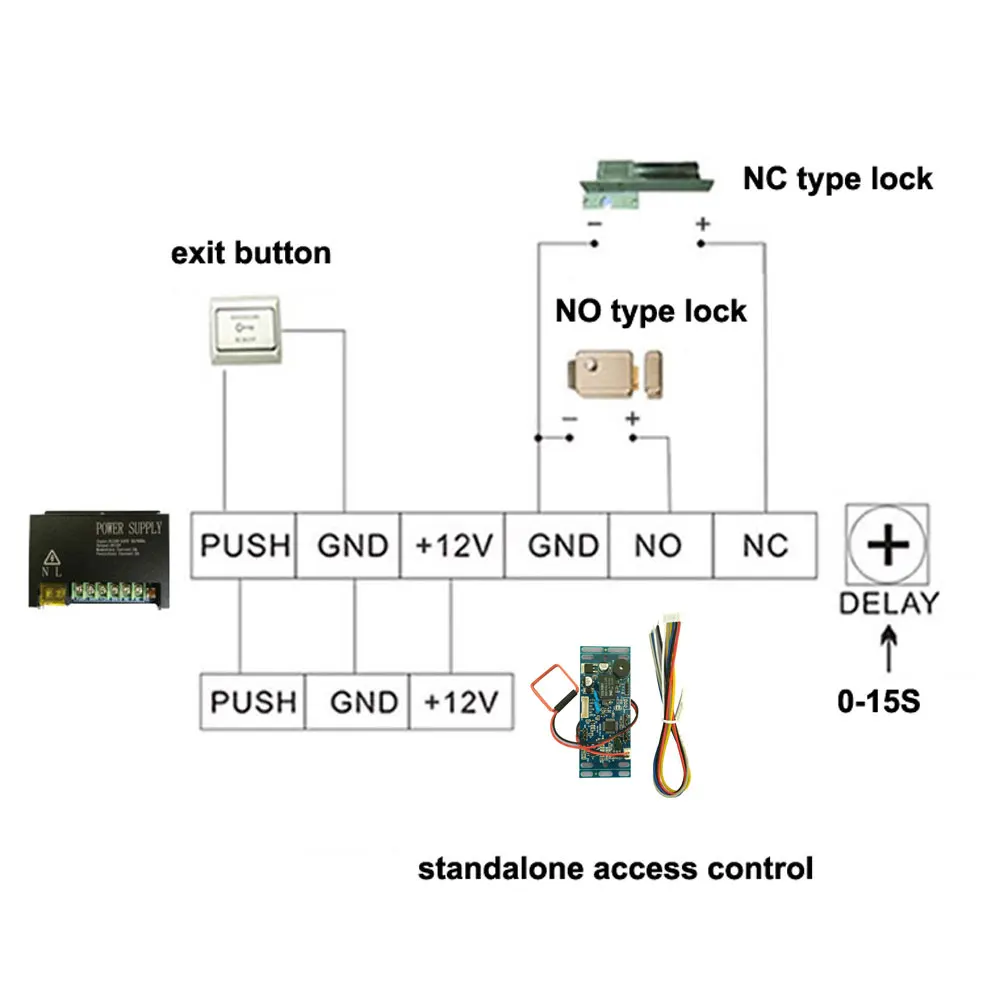

1pcs access power supply (optional)
If there is not access power supply ,you can add an accesss power supply to connect lock.
![](https://ae01.alicdn.com/kf/Hd5806d17e5004768b13ed791f935d968w.jpg)
![](https://ae01.alicdn.com/kf/He8b5fa74332046daab78eddc2ab502a4j.jpg)
![](https://ae01.alicdn.com/kf/H67459702c4184c76b7eb7152a950b2e5h.jpg)
***************************************************************************************************************************
this access control kit congiture Two master card, one add user card,another dele user card,you can use these super cards to add new users or dele old users. so this access control system is very easy to manage!
1pcs Package Included:
.1x Access Controller
.2x Master Cards
.1x Cable
.1x Handbook
.10x em key fob
