RF Test Board, RF Demo Kit, Frequency Test Board, NanoVNA RF Test Module Vector Network Analyzer Board Filter/Attenuator Module

Feature:

✿The board is totally integrated with 18 functional modules.

✿Equipped with 2 pcs of UFL patch cord for convenient use.

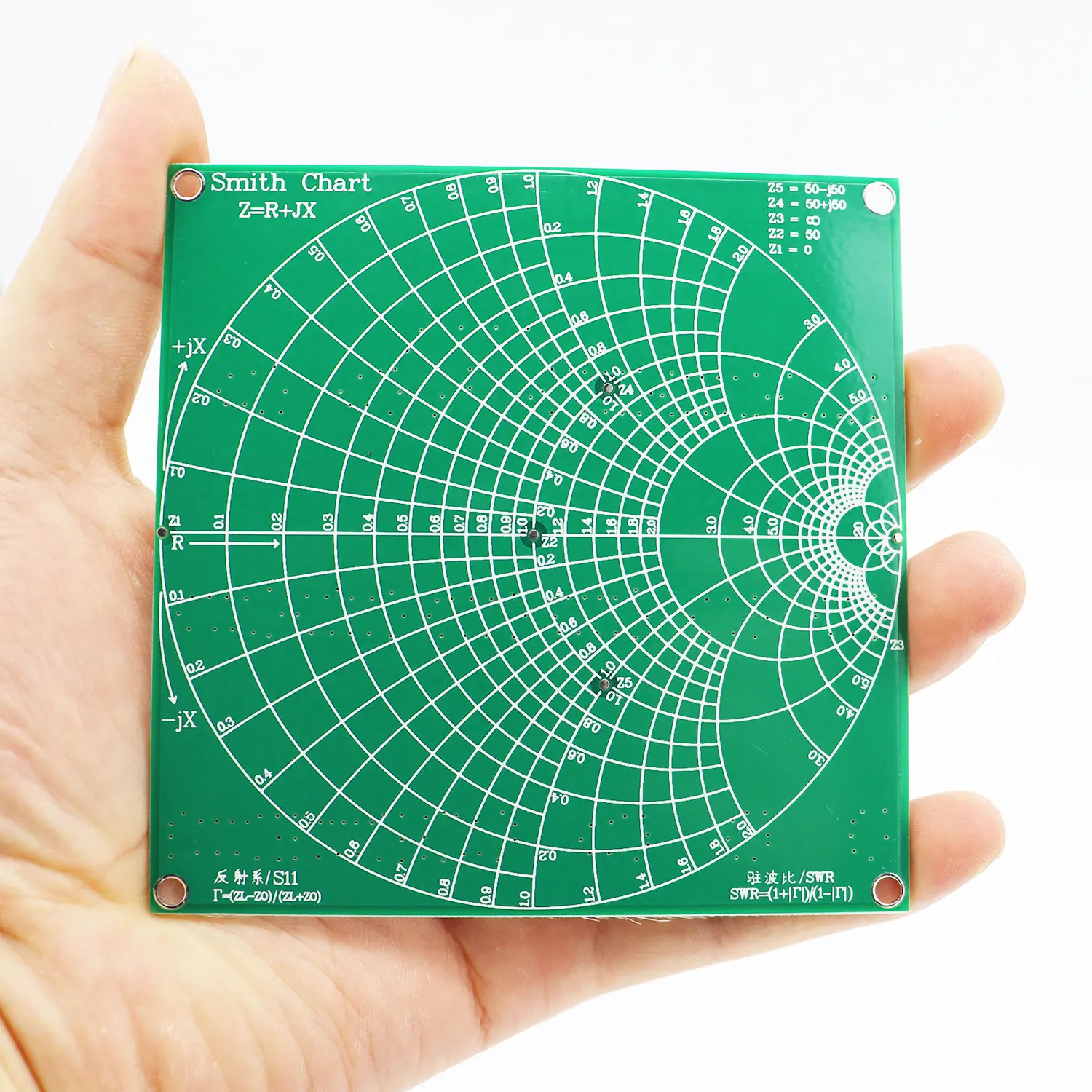

✿The board is small and light ,suitable for carrying with.

✿Each module is well selected of high quality and great reliability.

✿RF Demo Kit RF test board demo calibration board for learning Vector Network Analyzer , Antenna Analyzer test calibration learning.

Specification:

Item Type: RF Demo Kit

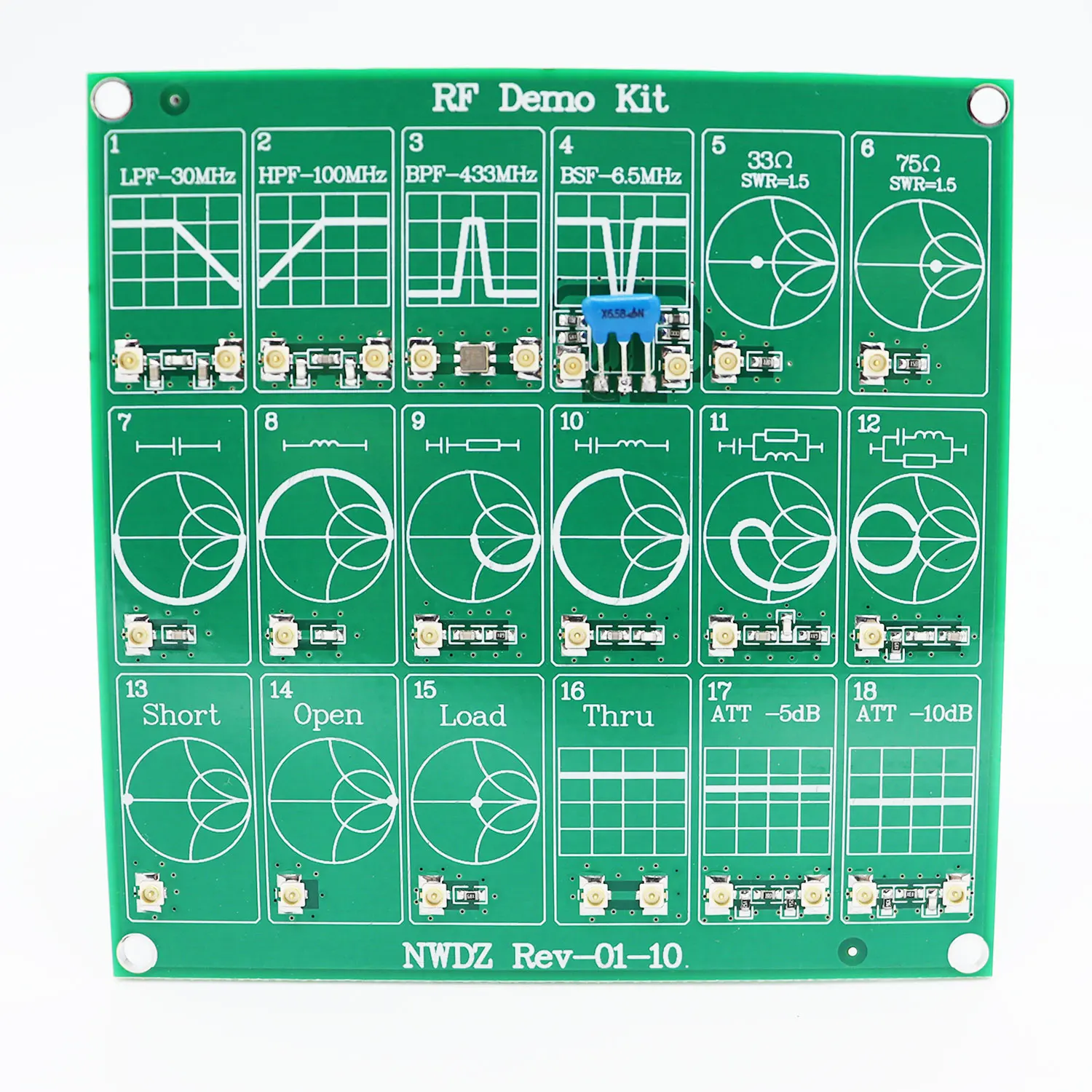

♚The filter:

◆Short-wave low-pass filter LPF: 30MHz

◆FM high-pass filter HPF: 100MHz

◆Commonly used SAW bandpass filter BPF: 433MHz

◆Video ceramic trap BSF: 6.5MHz

♚RLC series and parallel circuit

◆Includes R, L, C and combinational circuits

♚Open /short circuit and load calibration circuit

♚The attenuation circuit

Package List:

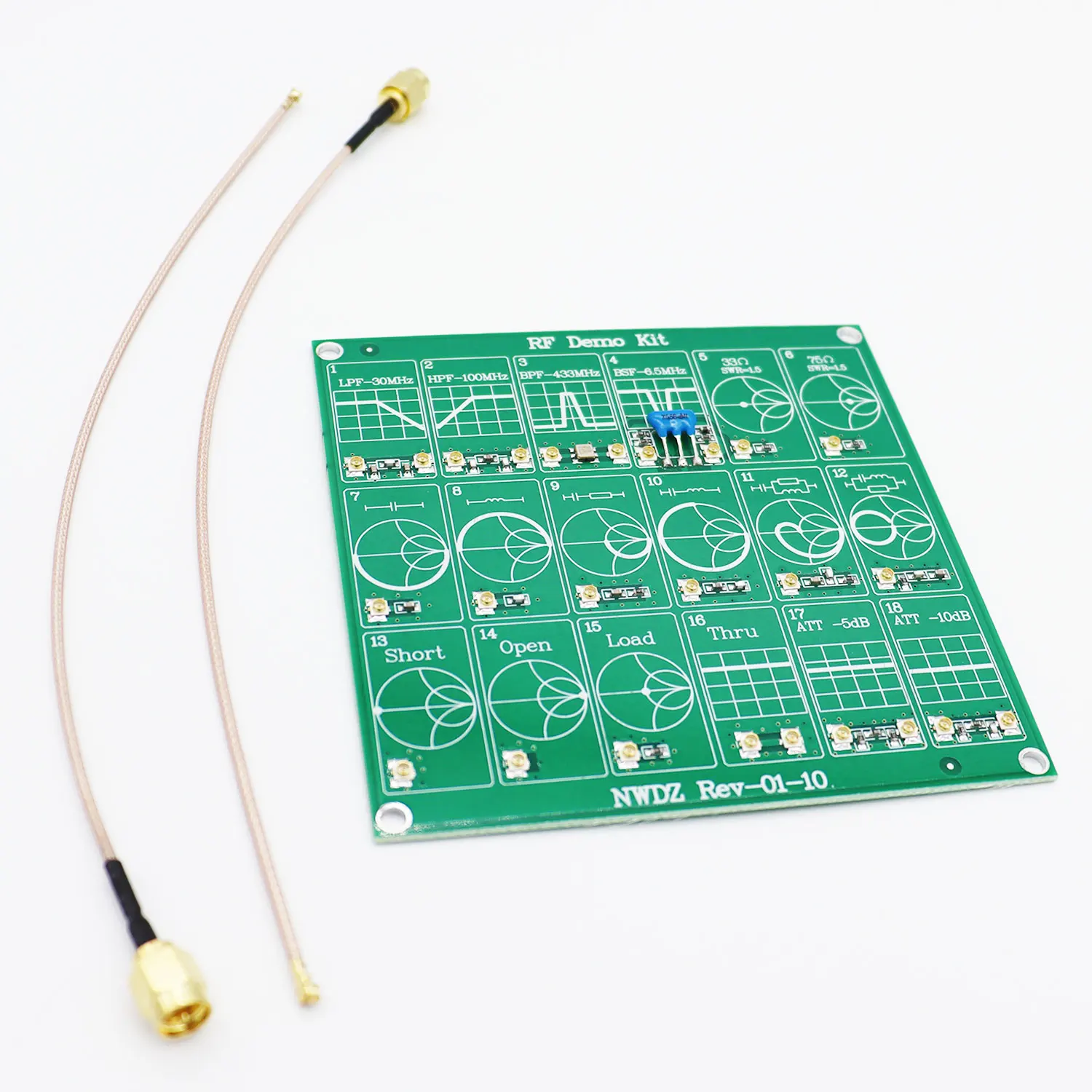

1 x RF Demo Kit Board

2 x UFL Patch Cord

Notice:

1. Dimensions are manually measured. There may be a little errors.

2. The picture may be slightly different from the actual product.

3. Each product has passed quality inspection before leaving the factory, but we cannot guarantee that the product will not be damaged during transportation. If there is a problem with your product, please feel free to let us know
