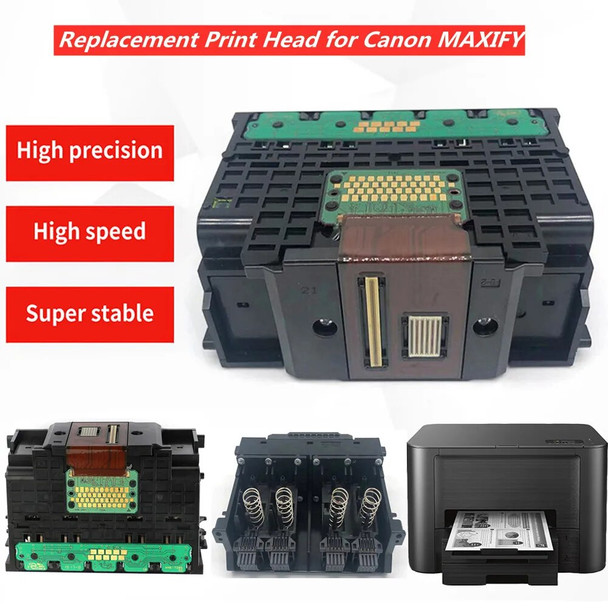

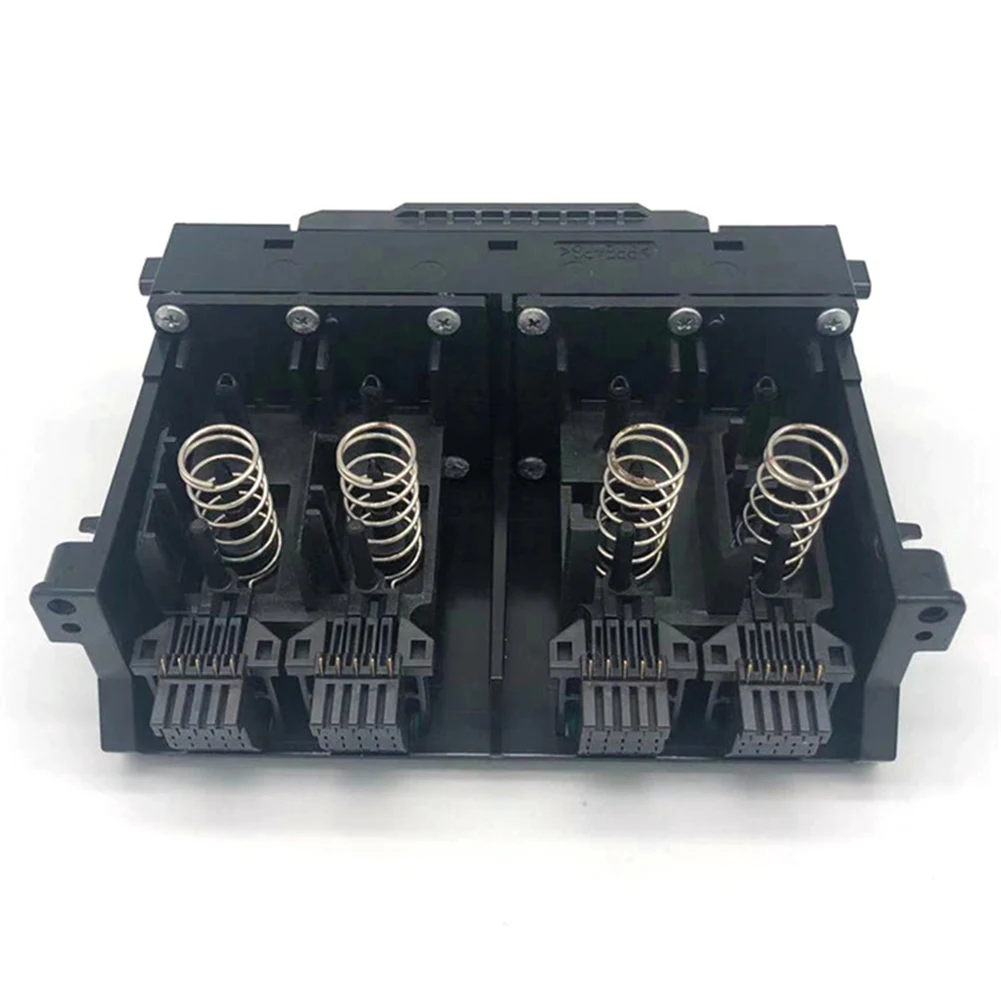

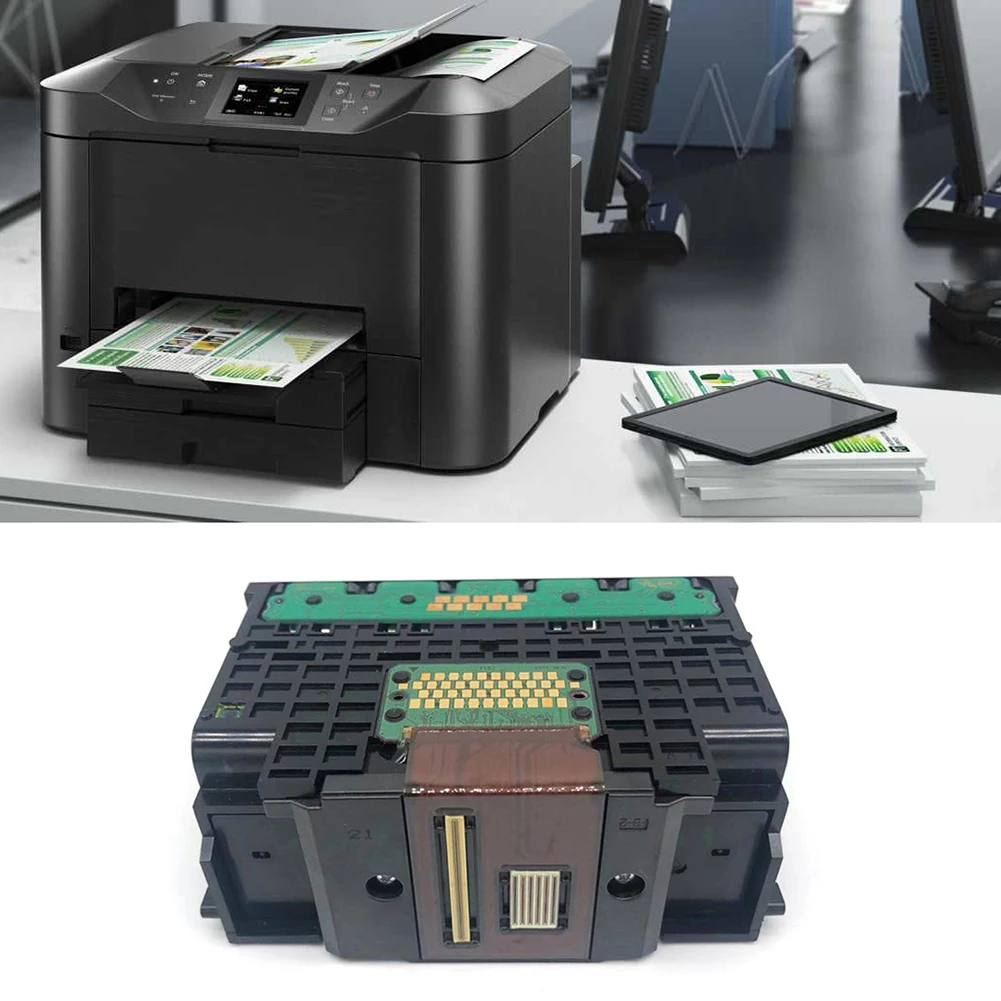

QY6-0087 Print Head Replacement Printhead for Canon MAXIFY MB2020 MB5180 MB5480 IB4020 IB4080 Office Printer Parts
Feature:
The product is made of high-quality ABS and metal materials, rust-proof, light-weight, durable and stable, with good shock resistance.
Support for color printing: You can use the printhead to print color images, photos, and documents as needed. (optional)
High performance: clear printing, high resolution and excellent performance. With this print head, the content can be clearly displayed on the paper with high image definition.
Good Stability: Fully tested and sealed printhead with no leaks and long life.
Easy to install. Installation of this product is not as difficult as you might think, and no specific tools or skills are required for installation.

Specification:
Type: print head
Model: QY6-0087
Material: ABS and Metal
Product color: black
Printing color: full color, single black (optional)
Weight: 100g
Size: 95*75mm
Applicable models:
For Canon MAXIFY MB2010 MB2710 (LA)
For Canon MAXIFY MB2020/MB2320 /MB2120/MB2720 (USA)
For Canon MAXIFY MB2330/MB2030/MB2130/MB2730 (JA)
For Canon MAXIFY MB2340/MB2040/MB2140/MB2740 (ME)
For Canon MAXIFY MB2050/MB2350/MB2150/MB2750 (EUR)
For Canon MAXIFY iB4060/MB2060/MB2360 (AU)
For Canon MB2090 MB2390 (KOR)
For Canon MB5110 MB5180 MB5080 MB5050 MB5020 MB5350
For Canon IB4020 IB4050 IB4080 IB4180 MB5320 MB5310

Notice:
1. When printing, please turn off the power of the printer, otherwise the motherboard chip will be burned.
After loading the print head, please do not install the ribbon over the 10 sheets of A4 document,
Give the new needle a break-in process, then put on the ribbon. Hope you can operate with care.
2. If the original print head is broken, especially the ink leakage, it may be that the motherboard is burnt out.
So please rule out the motherboard problem before replacing the print head.
In addition, the F1 and F2 fuze lines of the main board can only be replaced with original fuzes of the same current value and model.
If you replace the fuze with a larger current value and a different model, the print head and motherboard may be damaged.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
