Description
PCI-E X4 Quad-port Gigabit Fiber Ethernet Server Adapters Card NHI350AM4 Chipset
About Description:
Ports: SFP * 4
Bus Type: PCIe X4
Transmission Rate: 1000Mbps
Chipset: for NHI350AM4
LEDs indicators: 4 x Led for link/Activity Mode status
Management Features: IPMI pass-through via SMBus or NC-SI, WoL, PXE remote boot, ISCSI boot, VLAN filtering
Performance Features:
8 Transmit and 8 Receive queues per port
Up to 8 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems
Support PCI-SIG Single-Root I/O virtualization Rev 1.1.
• Support for up to 8 virtual function ( VFs)
• Partial replication of PCI Configuration space
Support for 8 pools (single queue) of virtual machine Device Queues (VMDq) per port
Support Direct Cache Access (DCA)
TSO interleaving for reduced latency
Minimized device I/O interrupts using MSI and MSI-X
UDP, TCP and IP checksum offload
UDP and TCP transmit segmentation offload (TSO). machine
SCTP receive and transmit checksum offload
Packet interrupt coalescing timers (packet timers) and absolute-delay interrupt timers for both transmit and receive operation
SFP Gigabit Ethernet:
Gigabit Ethernet Adapters with SFP cage support
• 1000Base-LX Fiber Gigabit Ethernet with 1000Base-LX SFP transceiver
• 1000Base-SX Fiber Gigabit Ethernet with 1000Base-SX SFP transceiver
• SFP (1000Mb/s) Copper Gigabit Ethernet with SFP transceiver
• Small Form Factor Pluggable (SFP) Cage for SFP LC connectors
4 Port Link synchronization
Common Key features:
Support PCI Express Base Specification 2.1 (5 GTs)
High performance, reliability, and low power use in i350 Quad integrated MAC + PHY and SERDES chip Controllers.
Ultra deep, packet buffer per channel lowers CPU utilization.
Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation.
Priority queuing - 802.1p layer 2 priority encoding.
Virtual LANs -802.1q VLAN tagging.
Jumbo Frame (9.5KB)
802.x flow control
Multicast/ broadcast Packet replication
Supports Vital Product Data (VPD)
LEDs indicators for link/Activity status
Network Standards: IEEE 802.3ac, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ad
Support system:
Microsoft Windows* (32 & 64 bit), SCO UnixWare 7.x , Open Unix 8.0, Novell ODI,
Novell Netware, SUSE Linux Enterprise Server 9.0, Red Hat Enterprise Linux 4.0,
Linux*, FreeBSD*, Sun Solaris*, Microsoft DOS*, VMWare ESX*

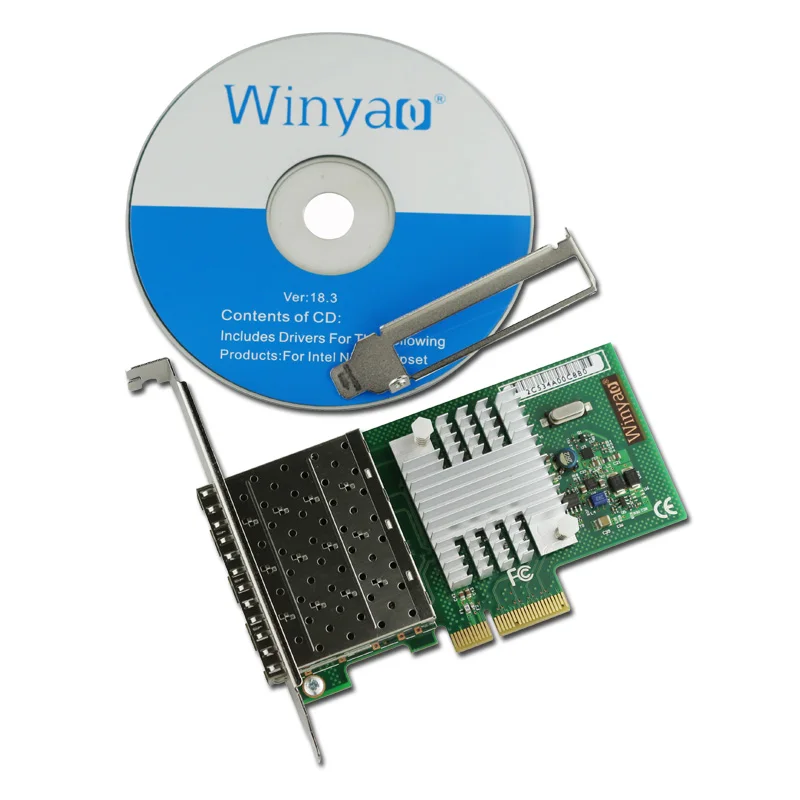

You'll receive:
1 x 4-port PCIe Gigabit FC Channel Server Card
1 x Low Bracket
1 x Driver CD

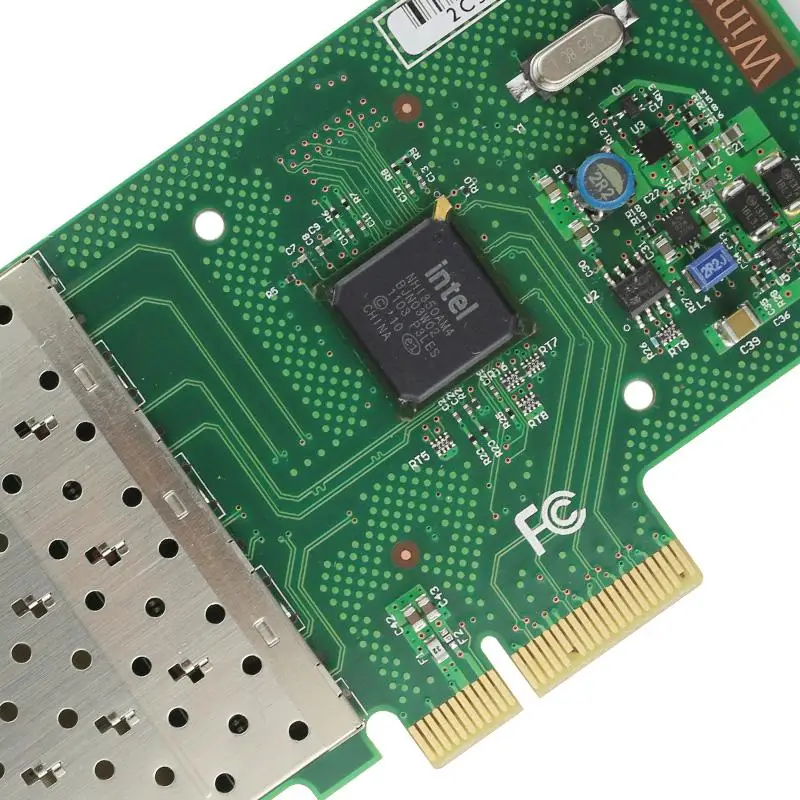

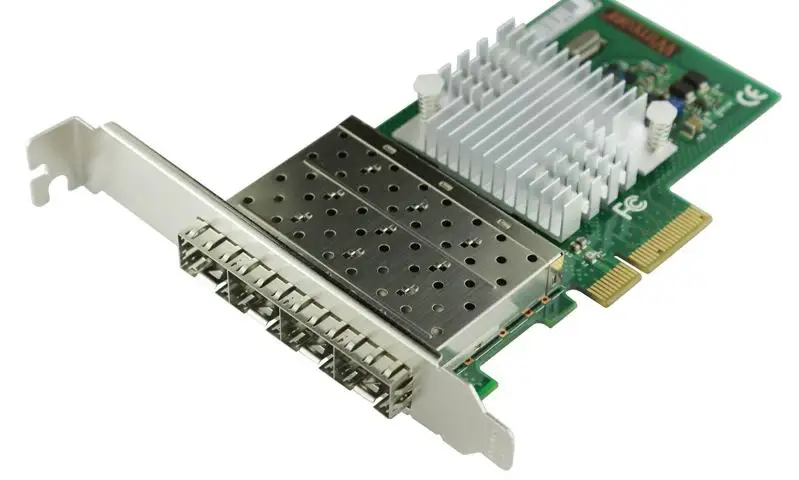

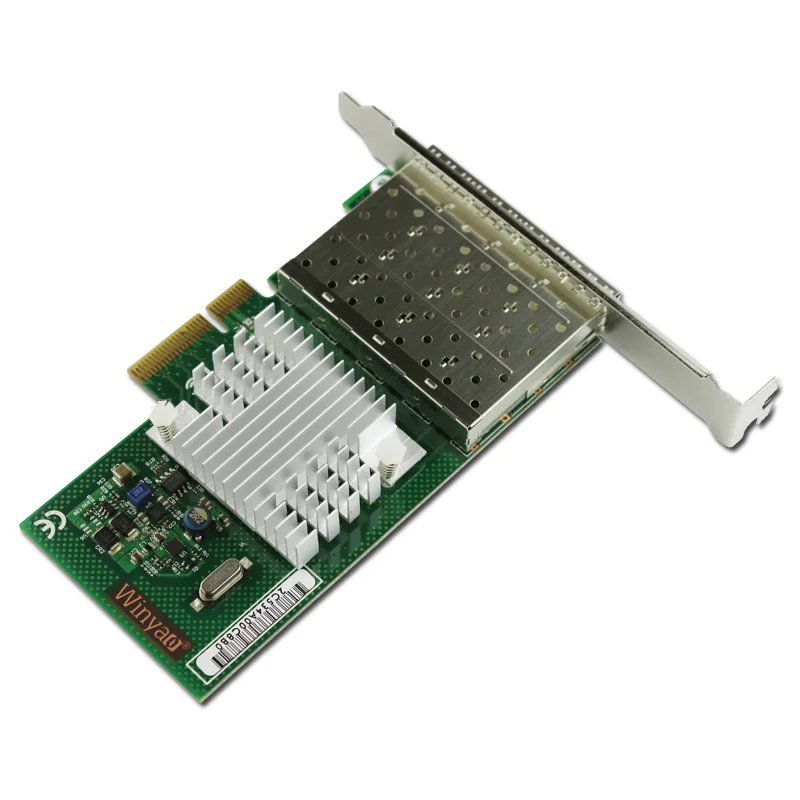

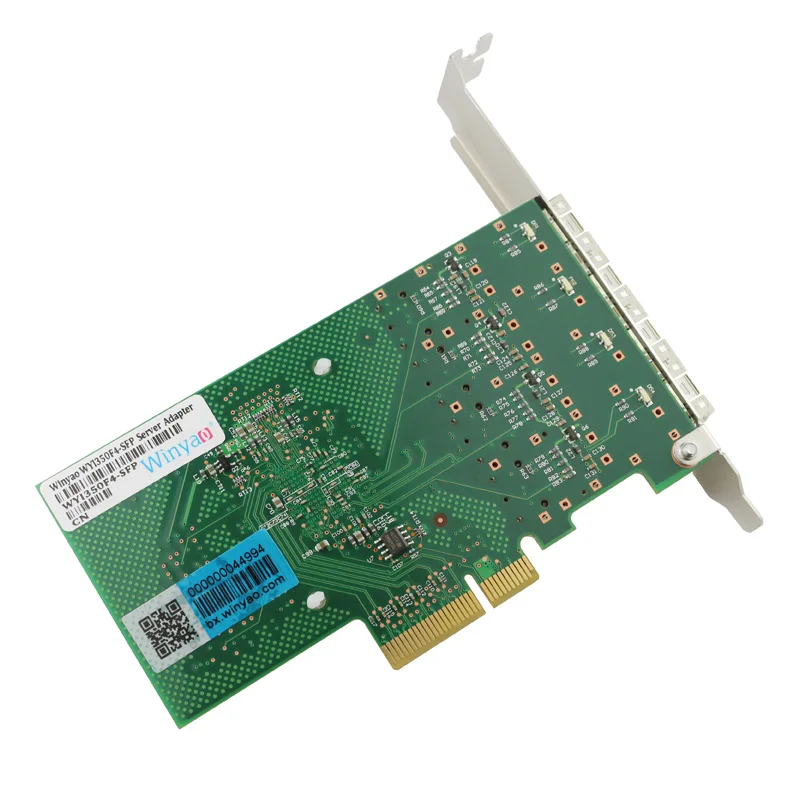

- Please check pictures for more details.
