High Temp Extruder | 20 Point Auto Leveling | Filament Runout Sensor

Newly Upgraded XYZ structure | PEI Plate | Large size | WiFi connection | 5 inch HD display

Ultra smooth printing

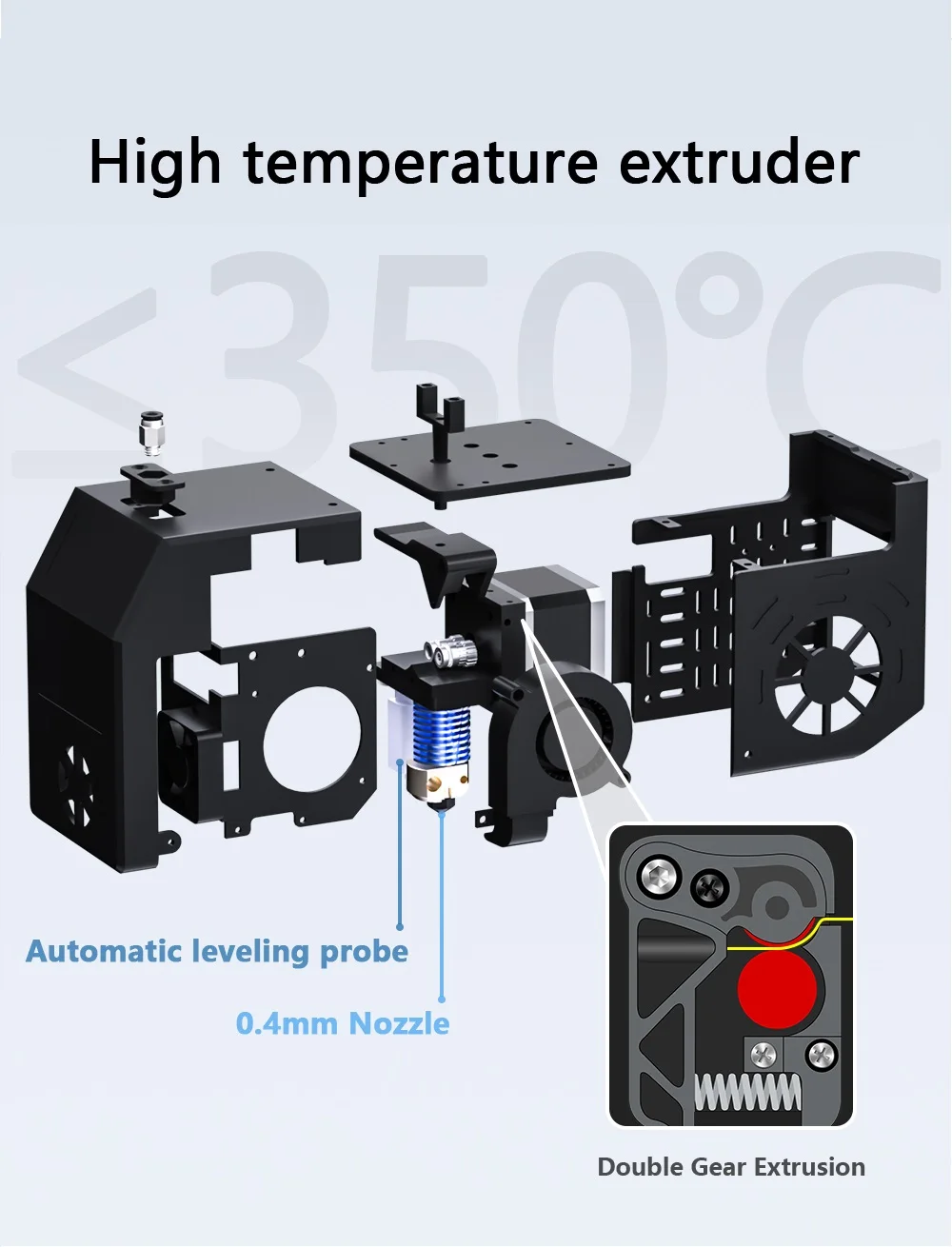

One set of high temp extruder with the latest generation single extruder system，which use high temp alloy material，dual gear extrusion，the extruder temp up to 350 degree，can solve the problem of the accuracy is not accurate and service life not long when print carbon fiber，so its specifically for printing carbon fiber，high temp nylon filaments.

Another set of normal high speed extruder can easily print PLA,ABS,PETG and other filaments.

Compatible with most filaments on the markets.

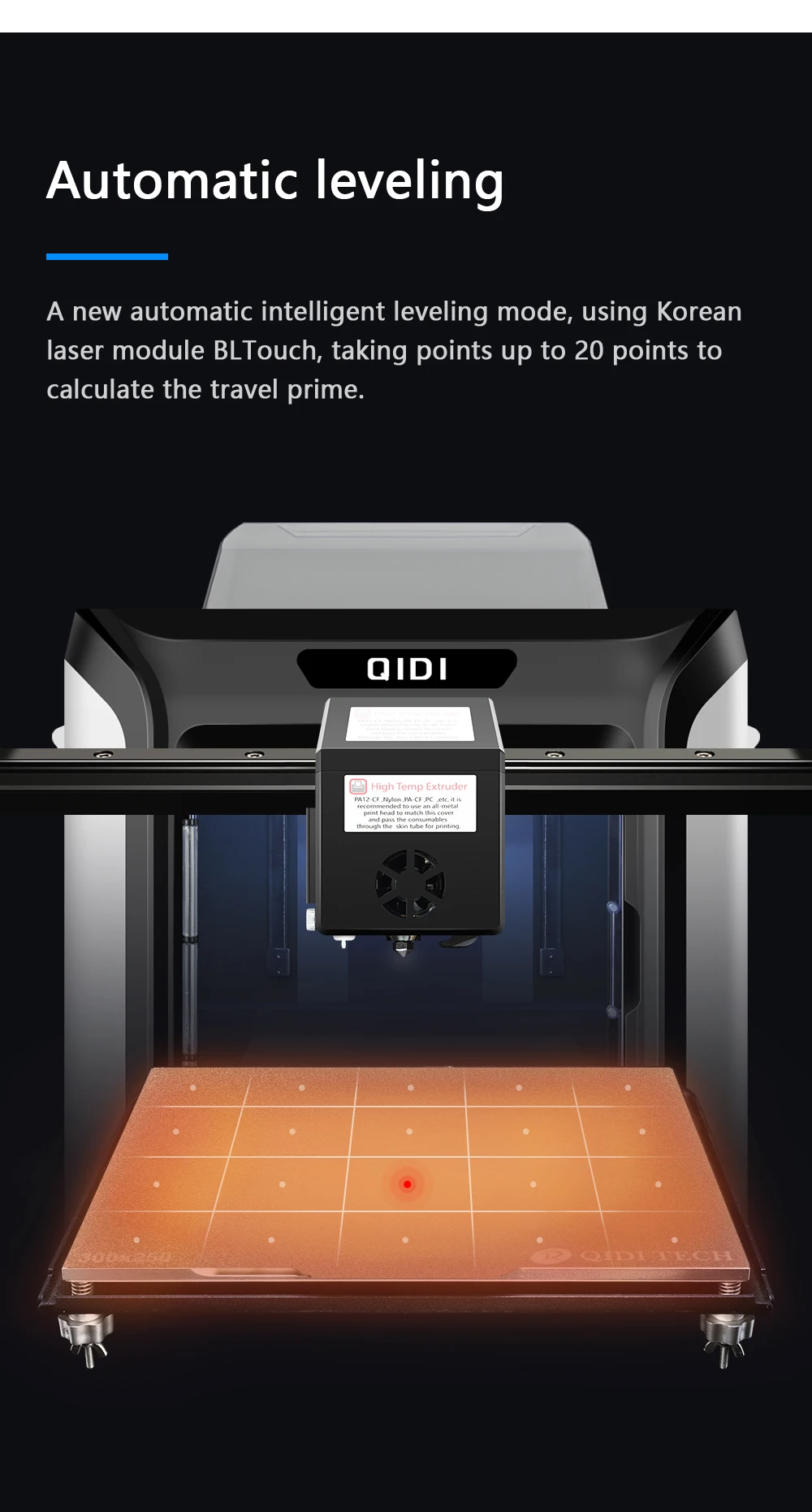

Worry-free leveling

A new automatic intelligent leveling mode，using Korean laser module BL touch，taking points up to 20 points to calculate the travel prime，dont need leveling each time.

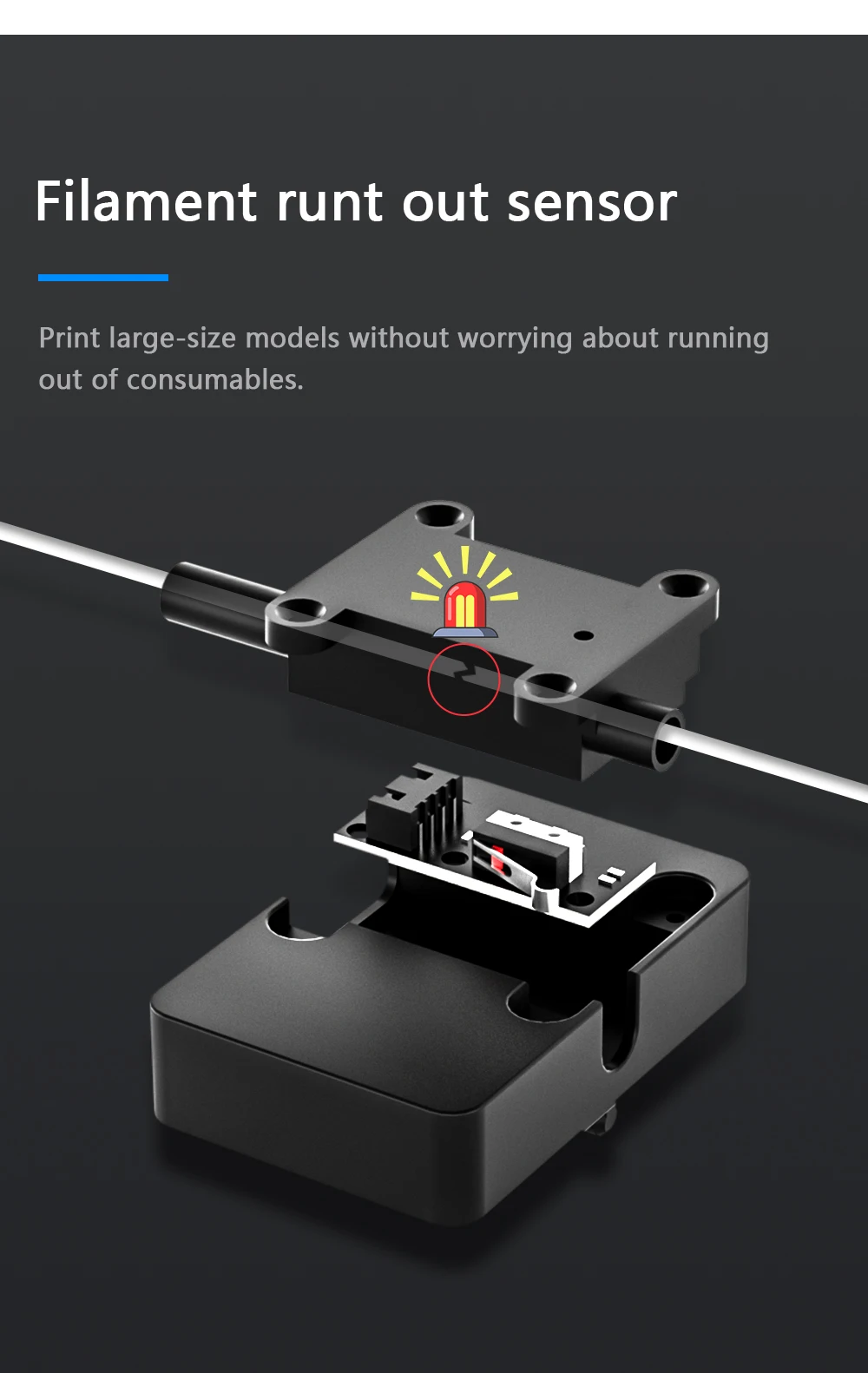

Worry-free filament running out

Detection Filaments System, more convenient, more intelligent.

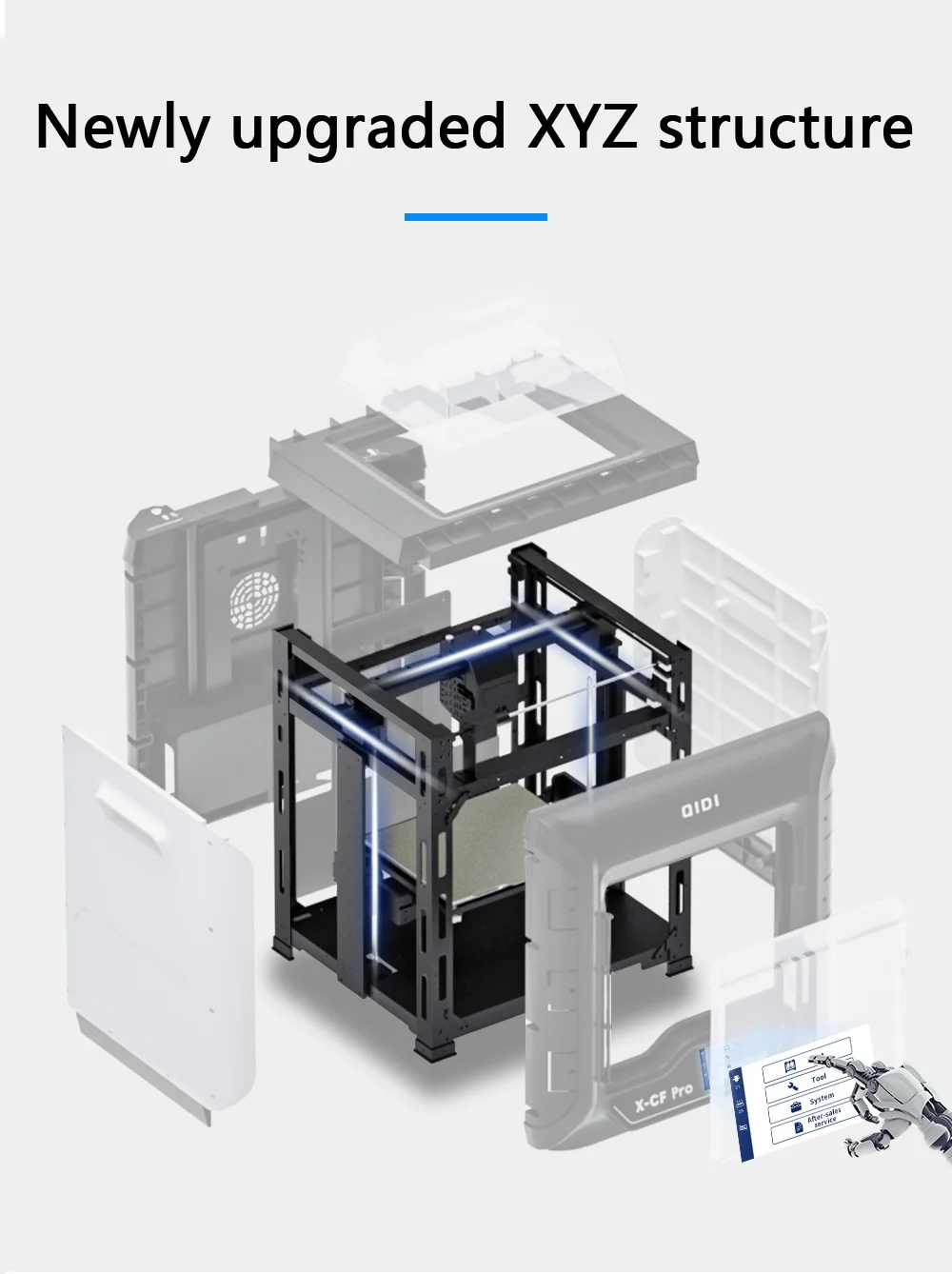

Newly Upgraded XYZ Structure

Industrial-grade manufacturing, dual z-axis and industrial guide, which can achieve high precision, fast printing. Focus on upgrading the XYZ structure, all use of industrial slides.

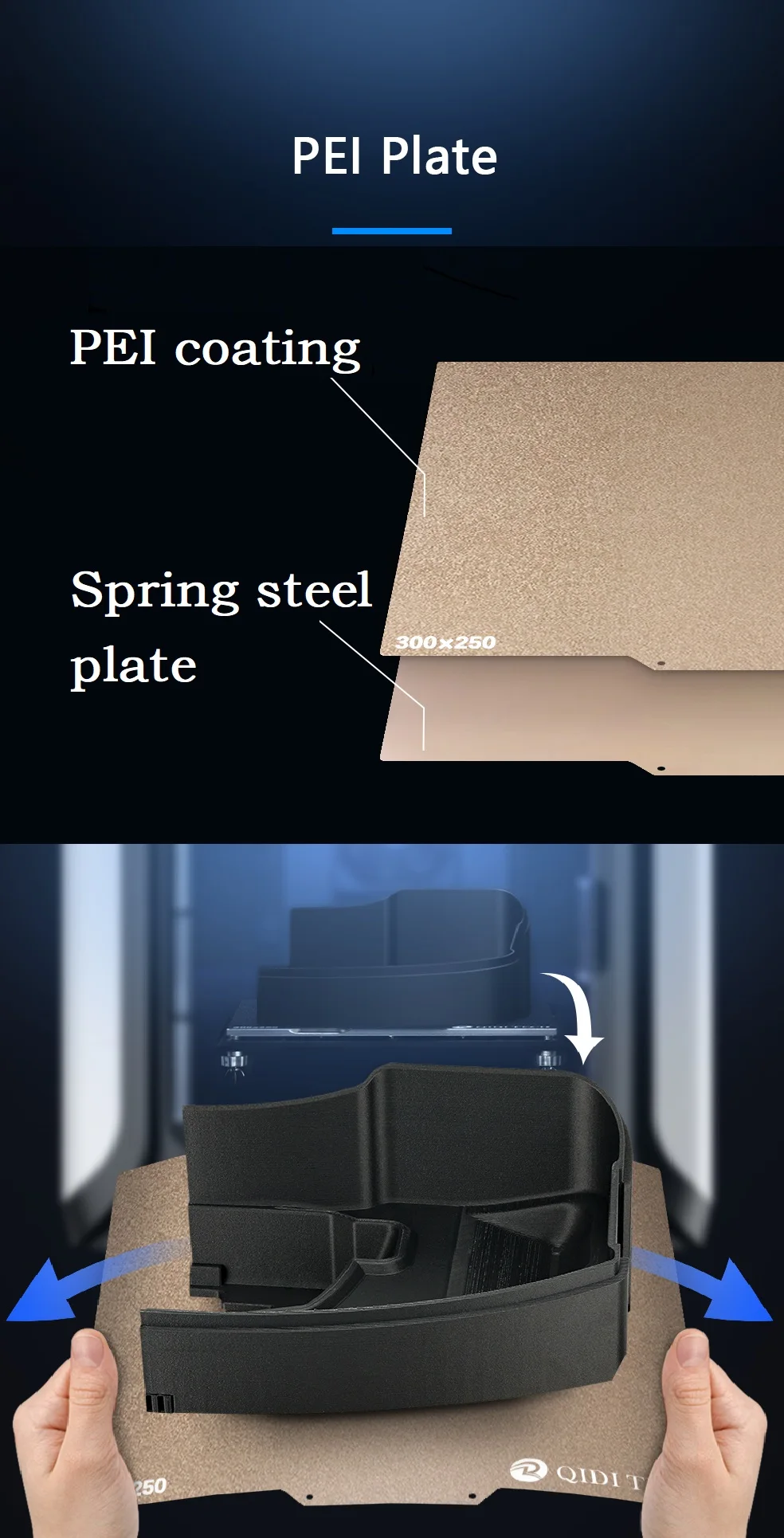

Low-maintenance platform

After printing, the models can be removed by gently bending the spring steel magnetic platform. The platform can withstand high-intensity printing and is corrosion free, saving you a lot of maintenance cost.

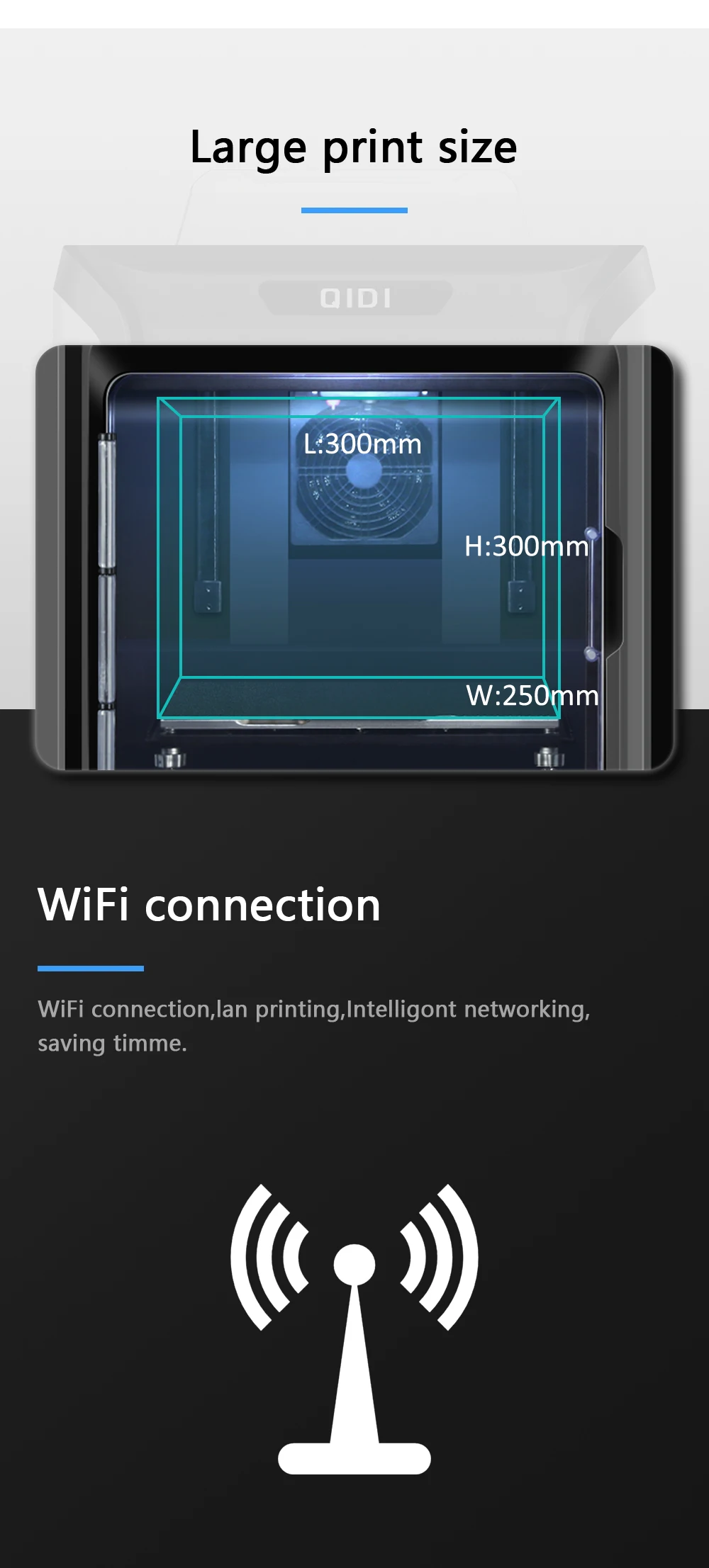

Print without limitations

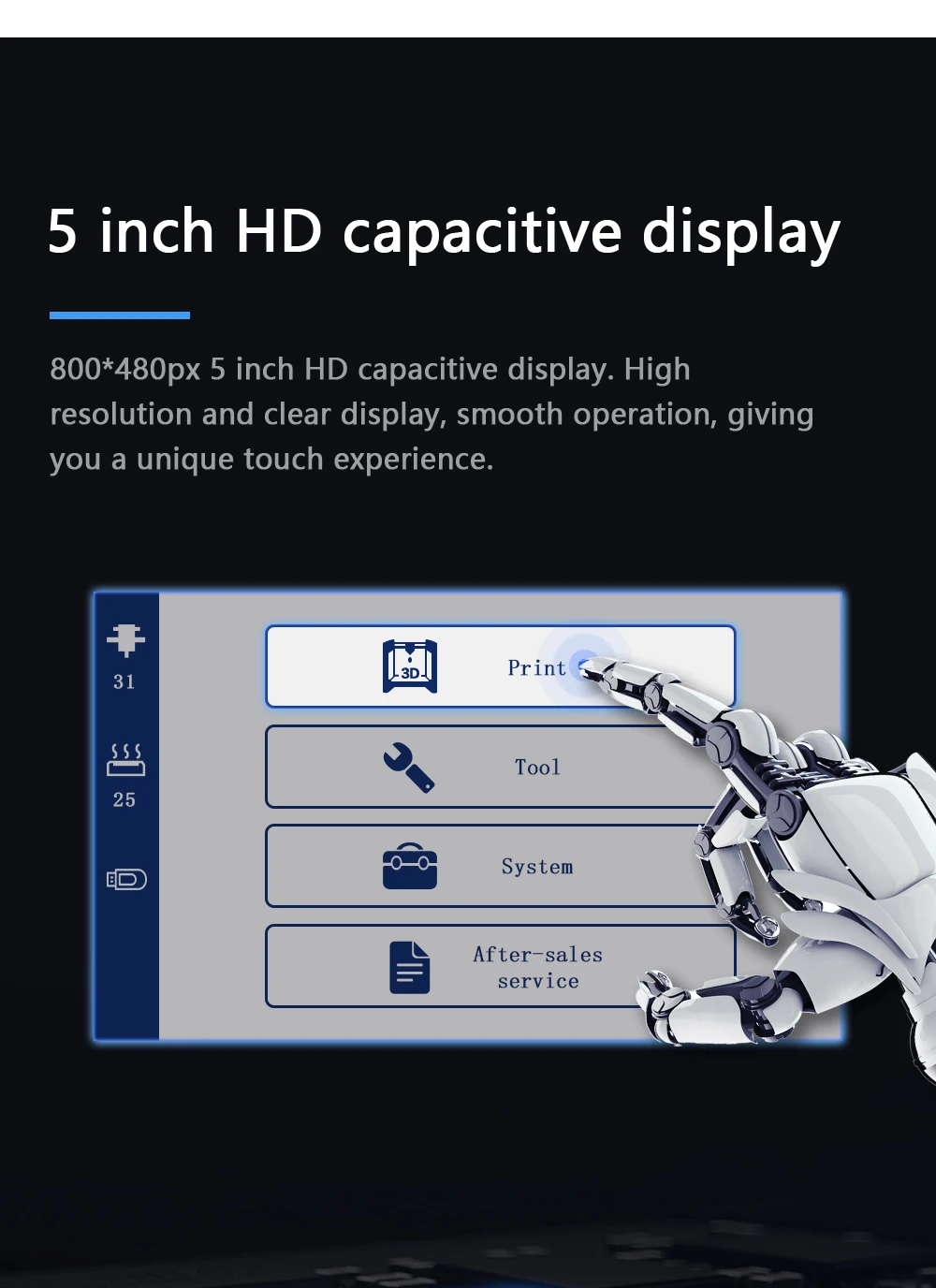

User-friendly touch screen

The printer is equipped with 5.0-inch HD capacitive display, high resolution and clear display，smooth operation，giving you a unique touch experience.

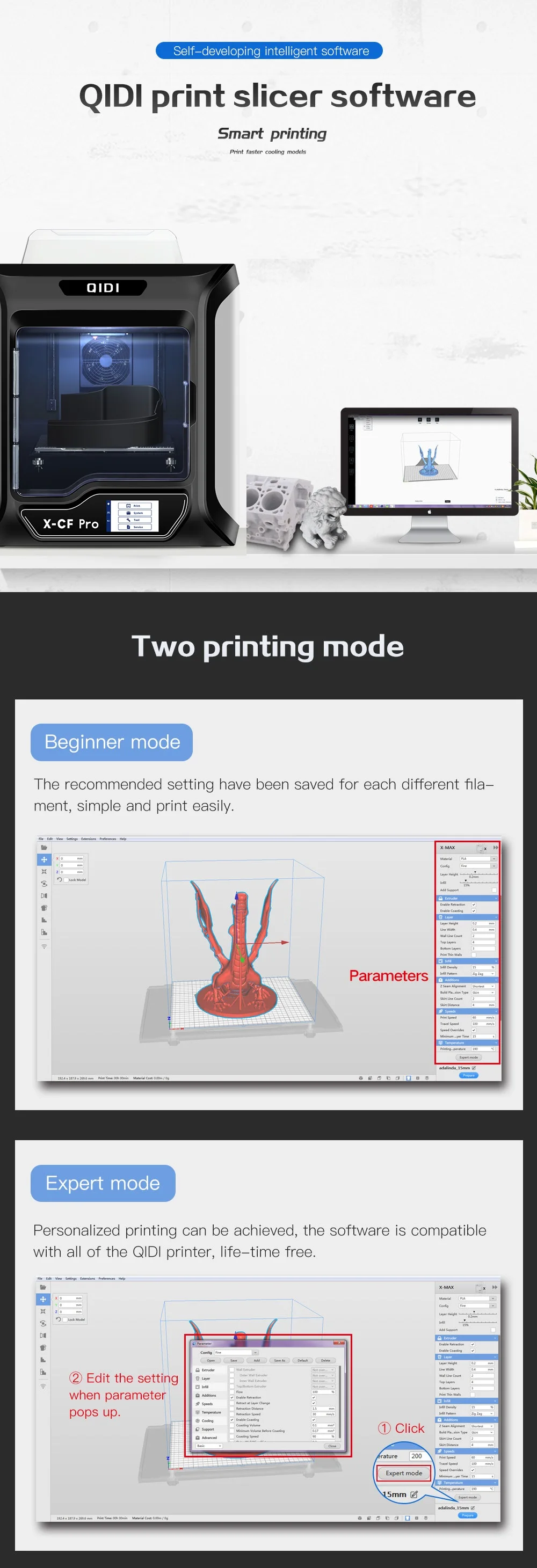

Slicing Software for professional users as well as novice users
The new upgraded software is more intelligent, especially provide more effective and accurate parameters for printing carbon fiber and nylon filaments. With the software, you can use your printer right out of the box.

No assembly , out of the box. It is easy to print according to the operating instructions. The highly praised service of QIDI TECH is the most trustworthy.

Compatible Software cura and simplify 3D

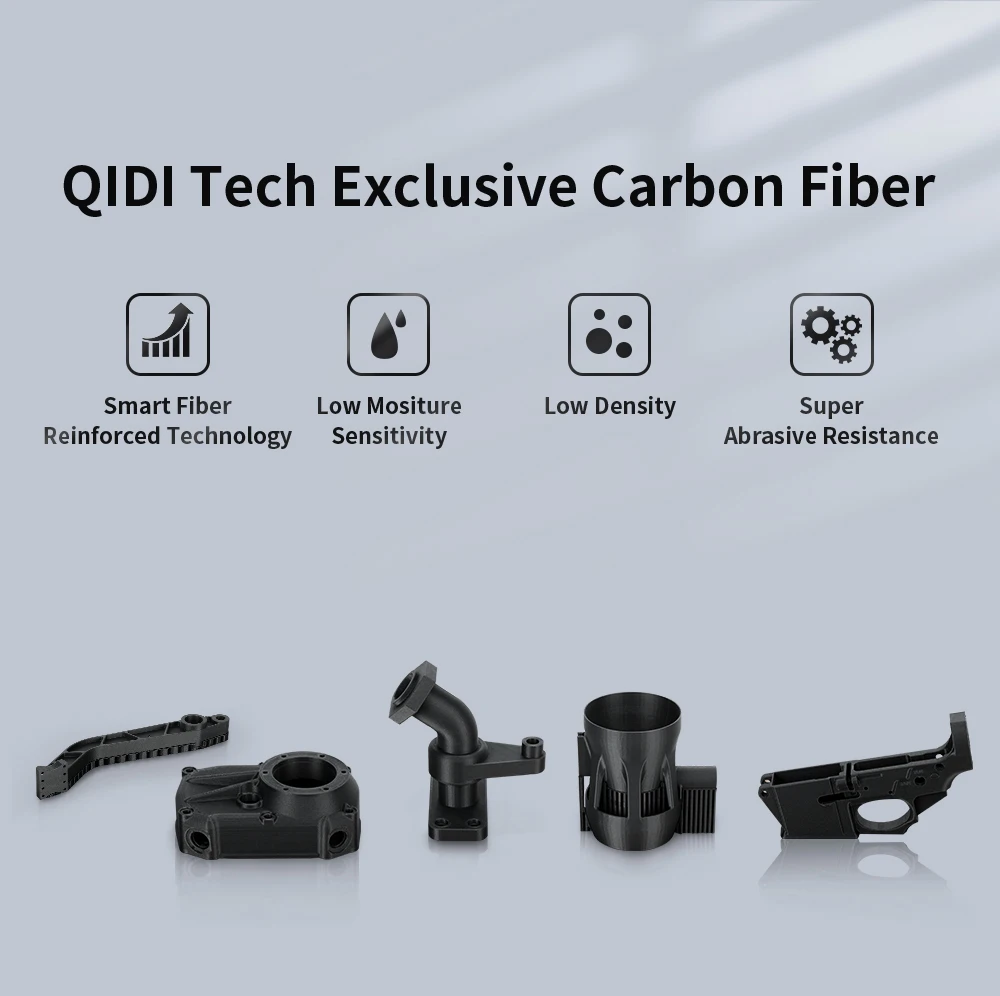

Exclusive Carbon Fiber

1. Smart Fiber Reinforced Technology

It greatly improves the mechanical properties and heat resistance of the material, and releases the internal stress during the printing process through the fiber mesh structure, resulting in good dimensional stability of the printed part and no warpage.

2.Low Moisture Sensitivity

PA12-CF based on modified PA12 long-chain nylon, whose saturated moisture absorption rate is only one tenth of ordinary PA6, completely solving the defects of the mechanical properties and dimensional stability of nylon materials that change greatly after absorbed moisture.

3.Low Density

PA12-CF is the one of the lowest density FDM industrial printing material, which can easily meet the high strength and lightweight requirements of industrial applications.

4.Super Abrasive Resistance

PA12-CF has a low coefficient of friction, self-lubricating properties and excellent wear resistance, which can easily meet all kinds of high-strength gears or industrial applications with high wear requirements.

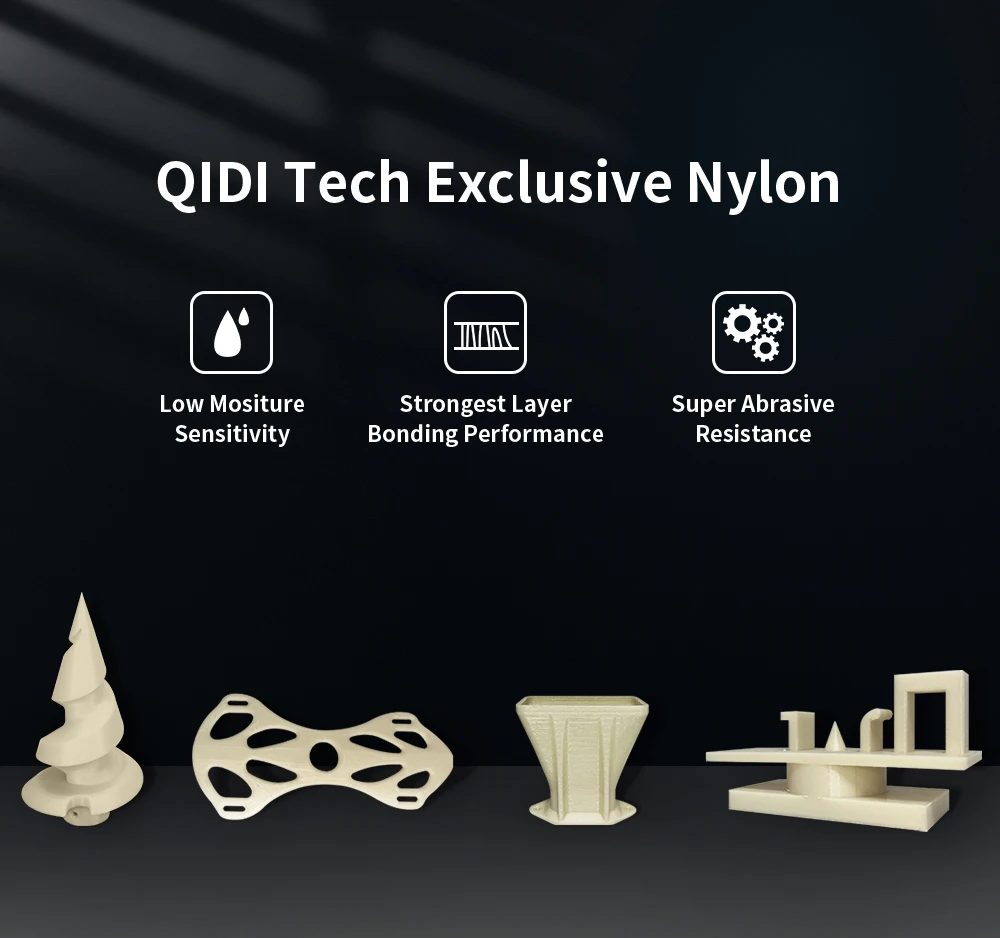

Exclusive UltraPA Nylon

1.Low Moisture Sensitivity

UltraPA based on modified high temperature nylon, whose saturated moisture absorption rate is only one tenth of ordinary PA6, completely solving the defects of the mechanical properties and dimensional stability of nylon materials that change greatly after absorbed moisture.

2.strongest layer bonding performance

UltraPA have the best layer strength,the layer adhesion of single wall structure is 2-3 times of ABS material and 1.5 times of PLA material.

3.super abrasive resistance

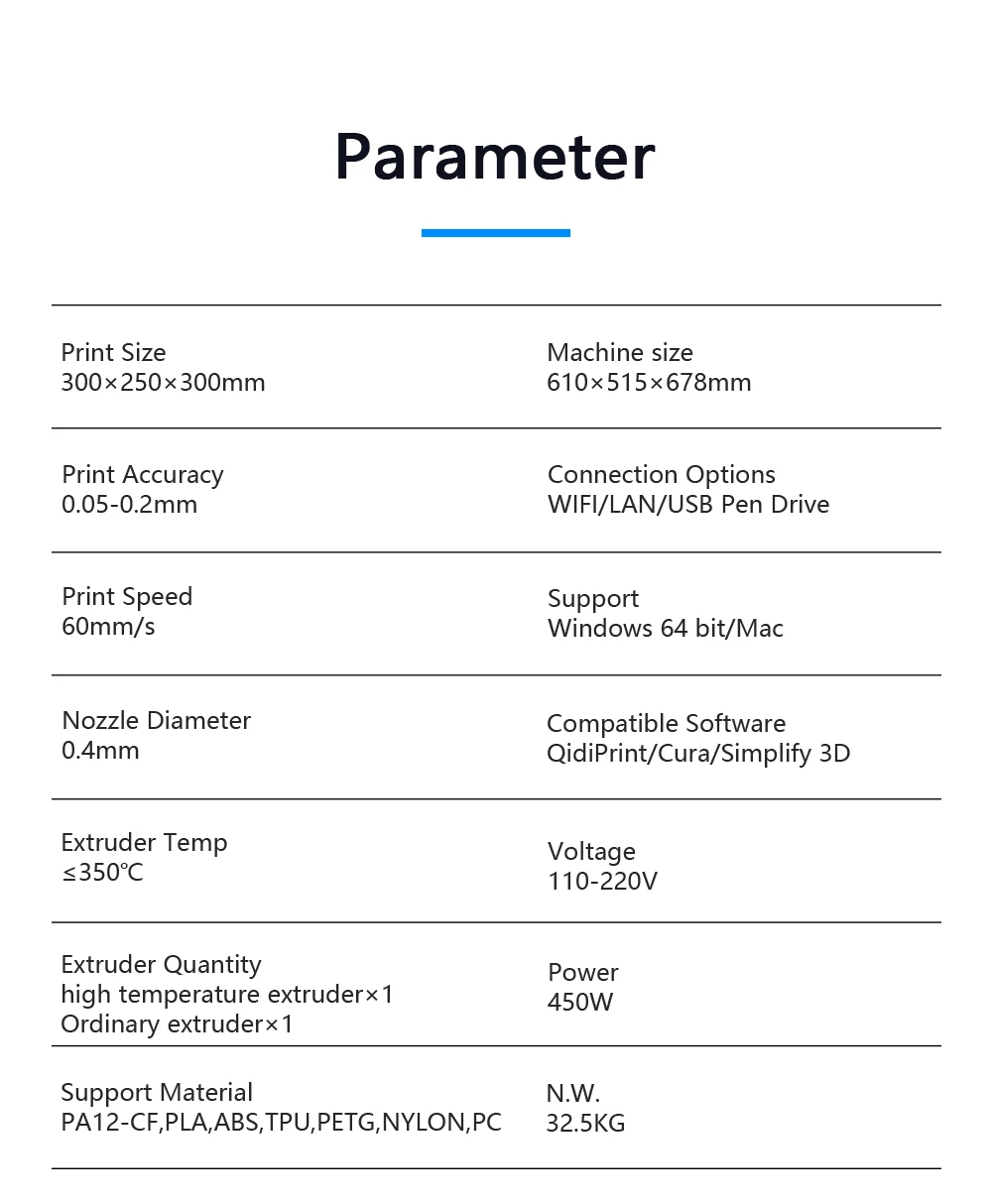

UltraPA has low coefficient of friction, self-lubricating properties and excellent wear resistance,which can easily meet all kinds of high-strength gears or industrial applications with high wear requirements.Product Parameter

Product type:  FDM

Machine size: 61 x 51.5 x 67.8cm

Printing Platform: 11.8 x 9.8 in. / 30 x 25 cm

Print size: 11.8 x 9.8 x 9.8 in. /30 x 25 x 30 cm (DWH)

Print Accuracy：0.05-0.2mm

Print Speed：120cc/h，60-120mm/s

Nozzle size: ø 0.4 mm (replaceable)

Extruder temp: ≤ 662 °F / 350 °C

Extruder quantity：High temperature single extruder*1 , Ordinary single extruder*1

Machine Leveling: 20-point auto leveling

Heated bed Temperature: ≤ 230 °F / 110 °C

Platform Material: PEI spring steel

Platform Support : Double Z axis

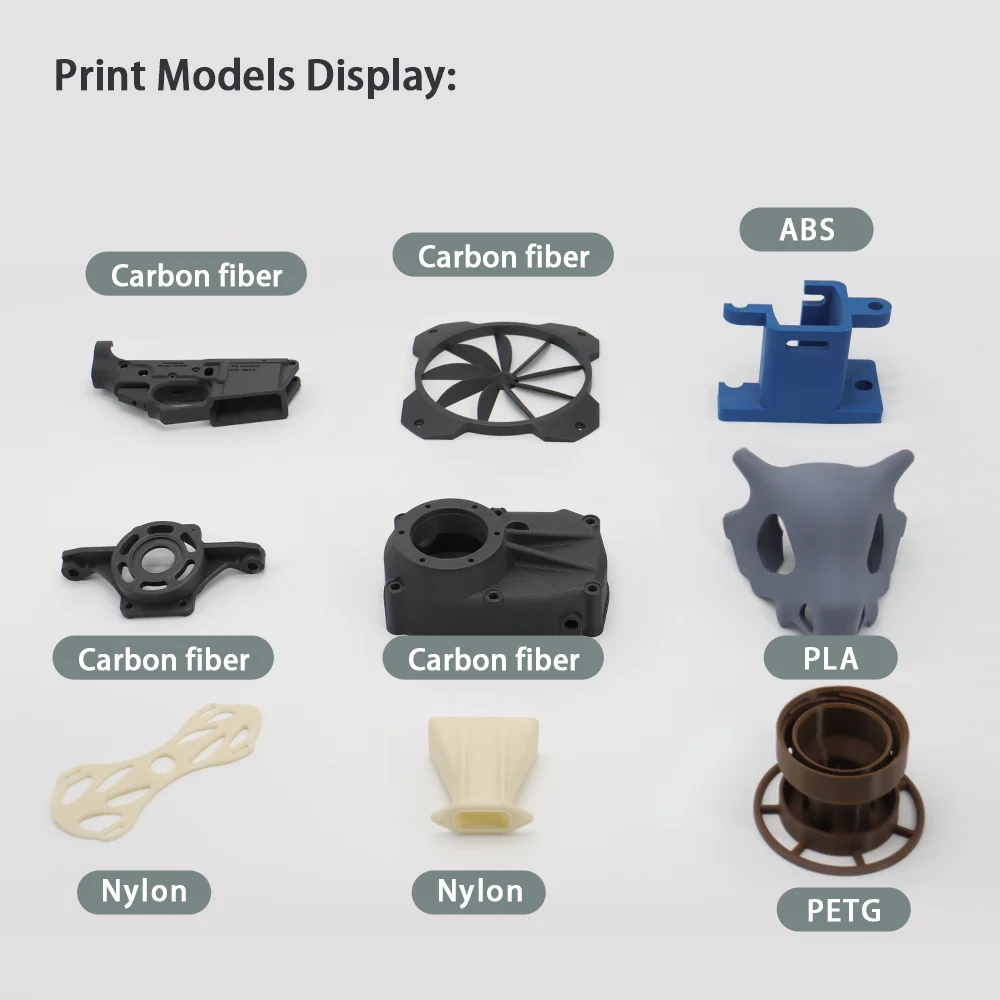

Printing material: PA12-CF, NYLON, PLA , ABS , PETG , TPU, PC

Control panel: 5.0 inch LCD touch screen

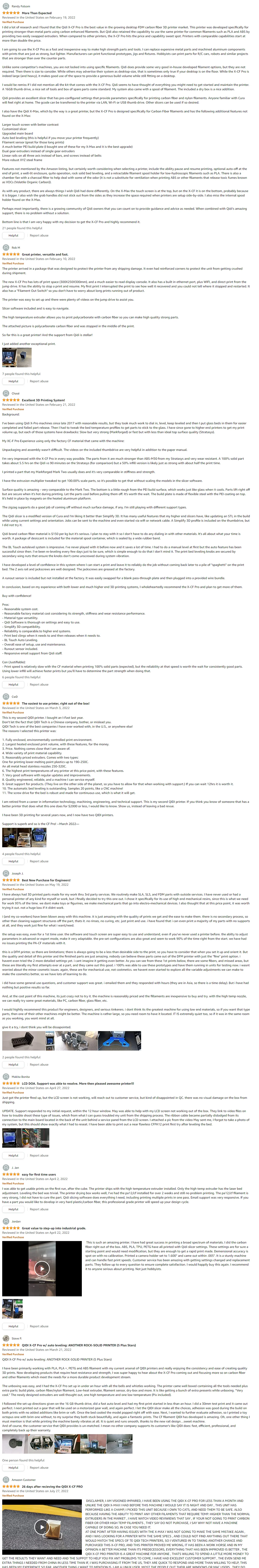

Many Customer Feedback
