QIACHIP RF 433mhz Transmitter 4 Button Remote Control + Receiver Module Fixed EV1527 Decoding 4CH Output With Learning DIY Kit
(No reviews yet)
Write a Review
Description
Please select the package you need, we will send as the option you choose.
Package Included(The 3 options are as follows):
1) Receiving Module and Remote Control
RX480E-4C Receiver Module x1 PCS
KT16-4 Remote control x1 PCS(Include battery)
2) Receiving Module and Remote Control
RX480E-4C Receiver Module x1 PCS
KT1527-4 Remote control x1 PCS(Include battery)
3) Receiving Module and Remote Control
RX480E-4 Receiver Module x1 PCS
KT02-117S-4 Remote control x1 PCS(Include battery)
Note:
*The package Included different products because you choose a different package.*
Compatible transmitter encoding type: EV1527
If your transmitters are not using the encoding EV1527,
they will not be connection to the receiver.
Application environment:
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.
Product Description:
[Receiver module] Product Model:RX480-E4
Working Voltage : DC3.3~5V
Quiescent Current : Less than 5mA
Working Frequency: 433MHz( Others can be customized )
Receive Sensitivity: -108dB
Receive Distance: 15 meters above
Frequency band: ±0.2MHz
Working Temperature : -25~75
Working mode:inching, self-locking, interlocking
The output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons.
note:
Compatible transmitter encoding type: EV1527
If your transmitters are not using the encoding EV1527,
they will not be connection to the receiver.
Pins Instruction
GND : ground or negative pole
+V : DC3.3~5V input
D0 : Data output
D1 : Data output
D2 : Data output
D3 : Data output
VT : LED and Learning button Output
Instructions
How To Programming:
1. Delete existing data:Press learning button 8 times. Response: LED flashes 7 times.
2. Learning remote code:press learning key once, twice or three times (see below).
LED turns on:learning mode is active. Press any button of the remote control.
LED indicator flashes three times:learning successfully completed.
3. Test:after the above operation , the receiver board can be controlled by the remote control .
More transmitters with different IDs can be learned and stored additionally, starting with step 2.
A mixture of different modes is possible.
Button usage (sets mode and starts pairing process):
Press once( the button on the receiver ）:Inching mode (Momentary Mode)
Press twice( the button on the receiver ）:self-Lock Mode (Toggle-Mode of the 4 Channels)
Press three times( the button on the receiver ）:interlocked mode (selected channel active and be cleared, if another channel becomes active)
(This instructions is provided by Manfred, thanks to Manfred)

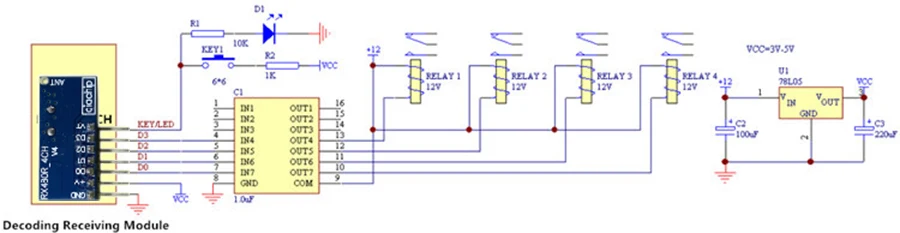

Application example
