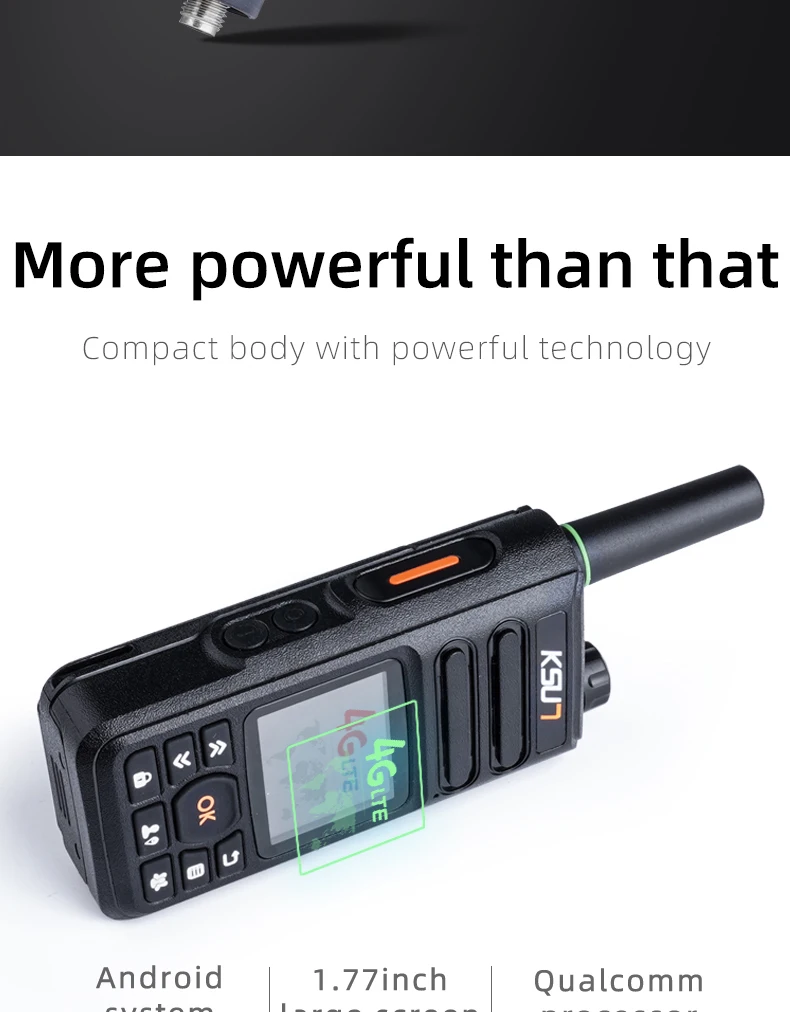

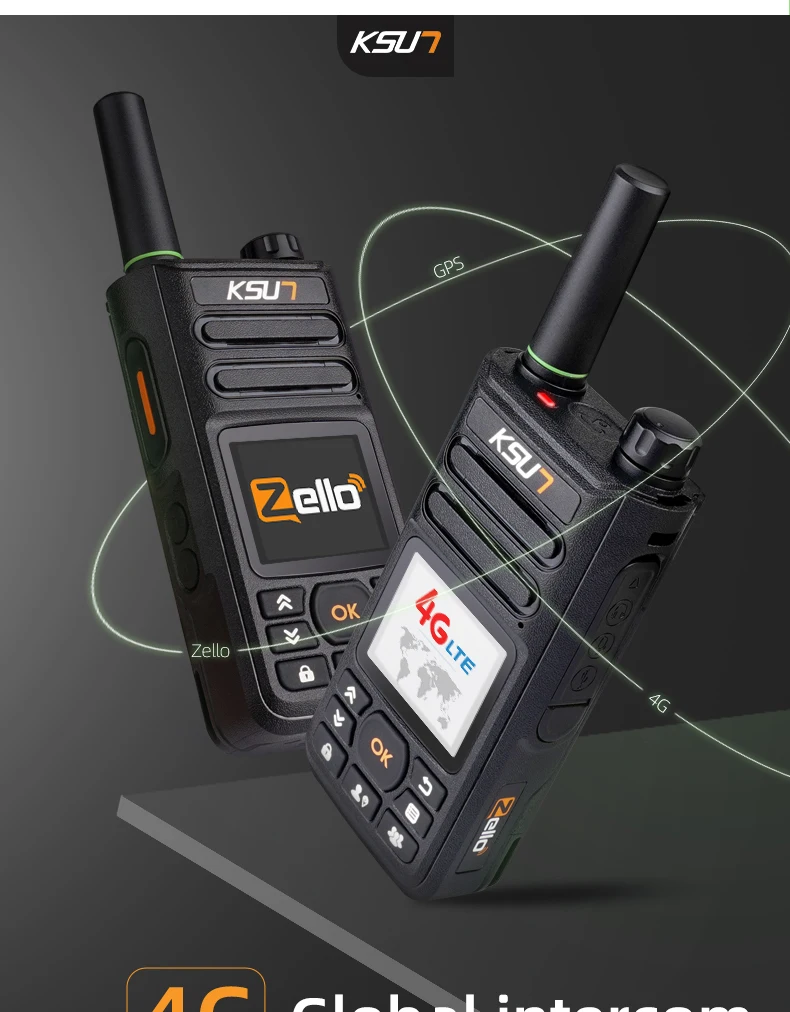

Get to know the radio zello walkie talkie ZL18

Main features

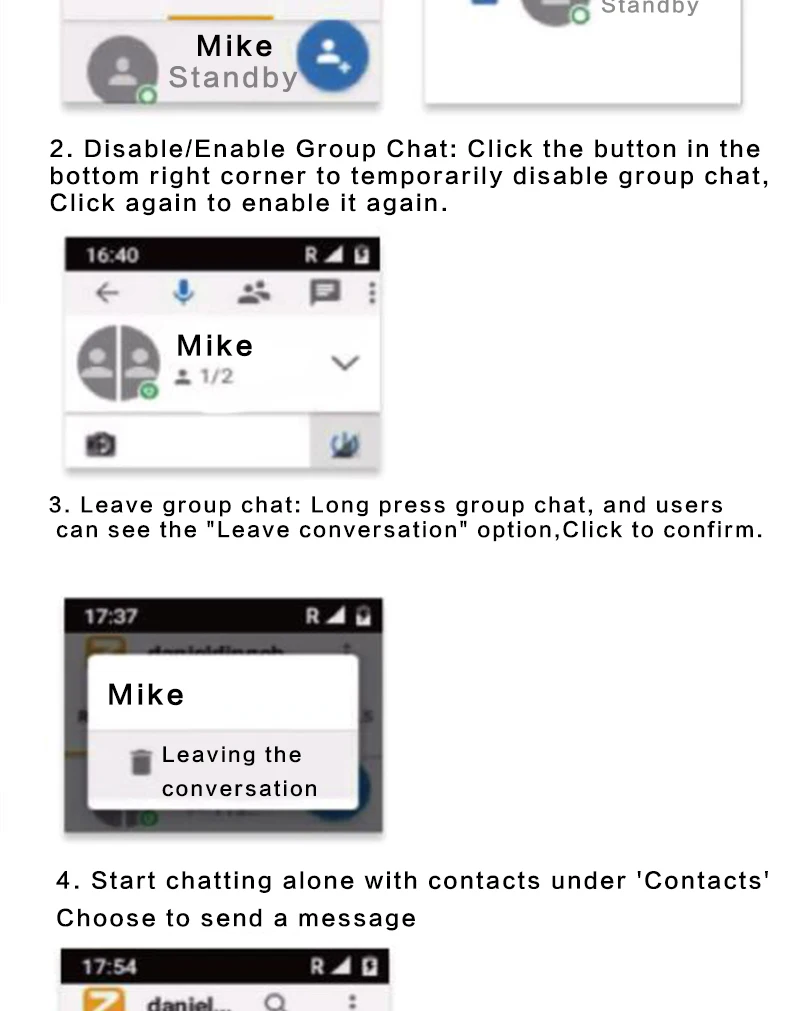

• With Installed Zello App

• Support 4G Network(WCDMA/CDMA/GSM/TDSCDMA/LTE TDD/LTE FDD)the transmiting frequency band please view the end of this page

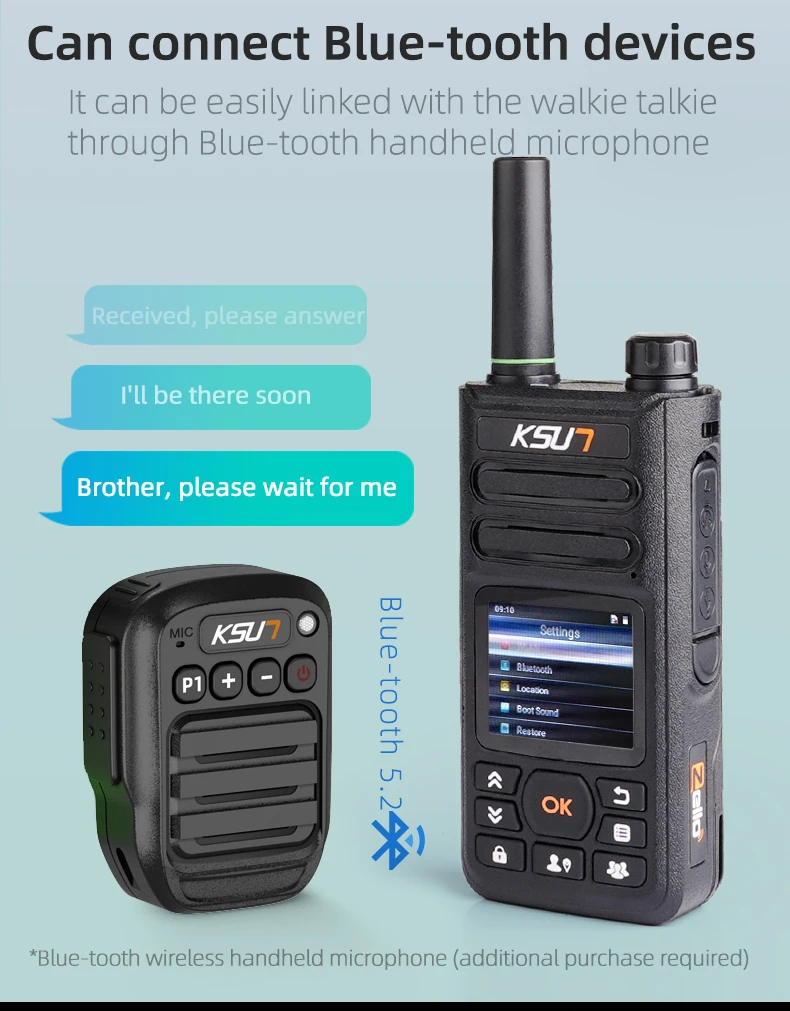

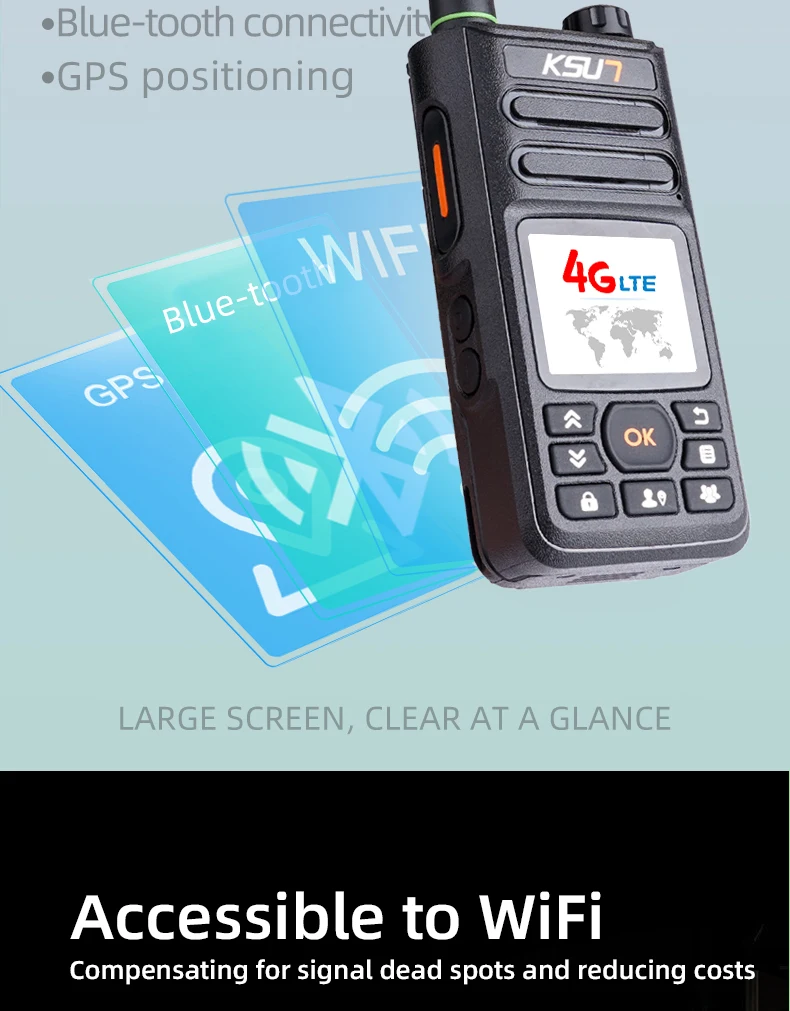

•Support Connnet to WiFiand Bluetooth

• Support GPS positioning system

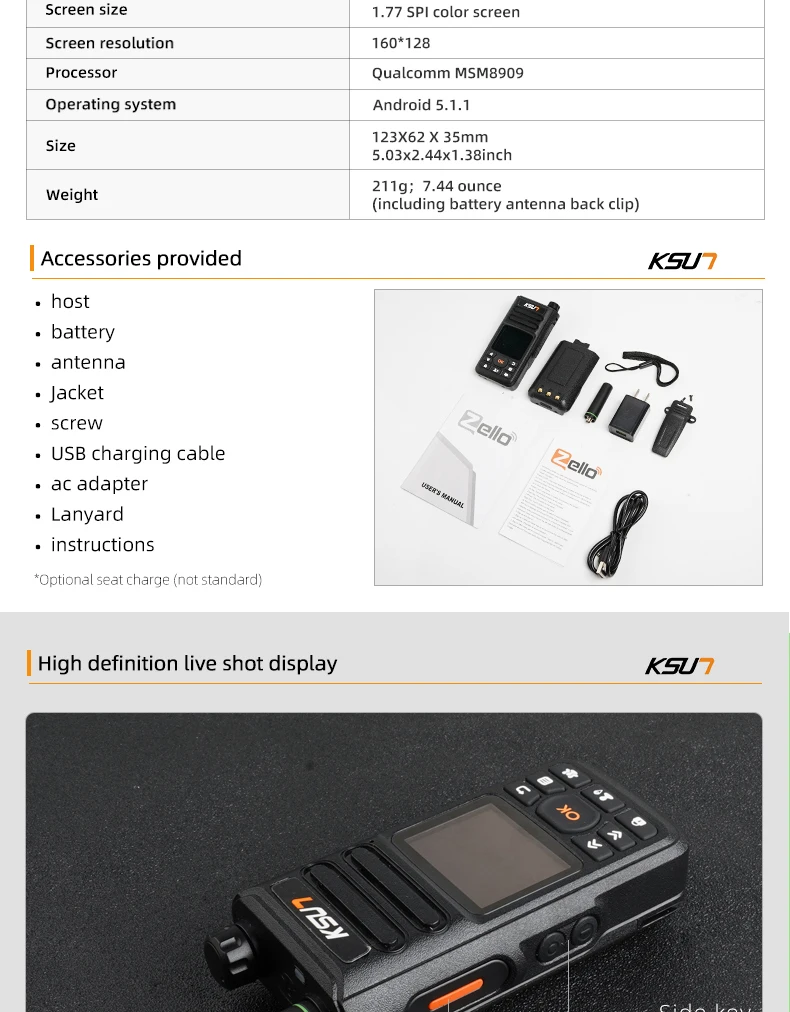

Specifications

• Operating system:Android 5.1.1

• Processor:Qualcomm MSS8909

• Operating voltage DC3.7V

• 4000mAh rechargeable battery

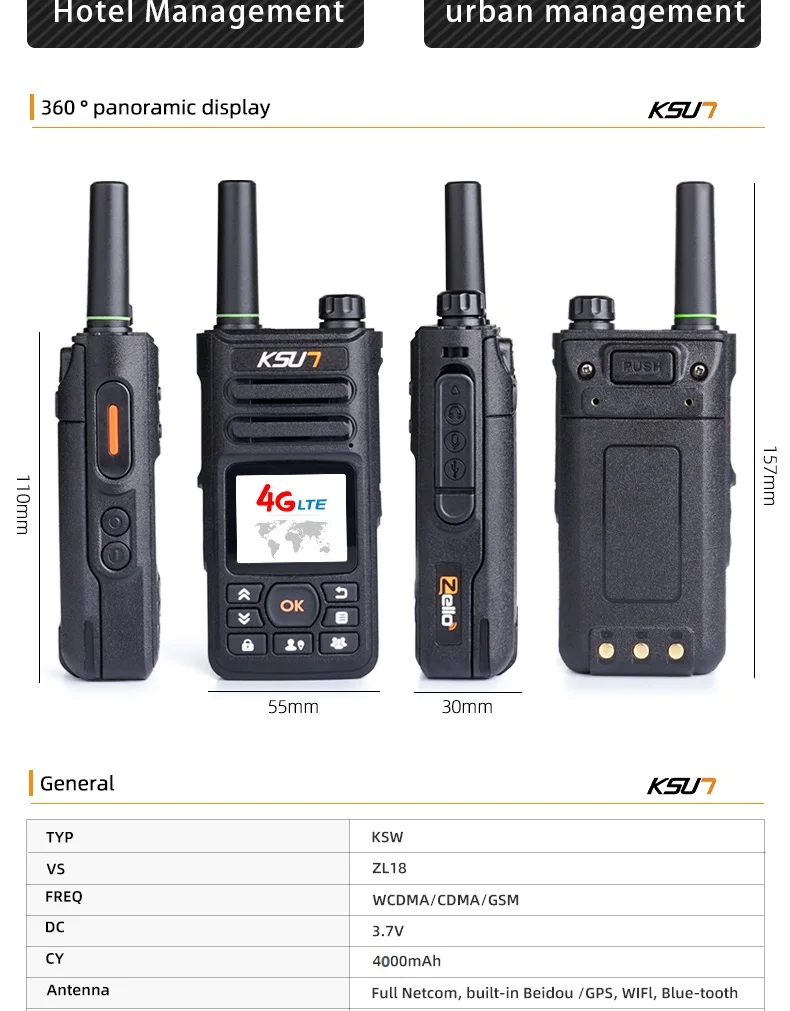

• Dimensions 123mm×62mm×35mm (Antenna excluded)

• Screen size:1.77INCH

• Weight:211g 7.44ounce

What’s in the box

1 ZL18Radio（not include barttery)

• 1 belt clip

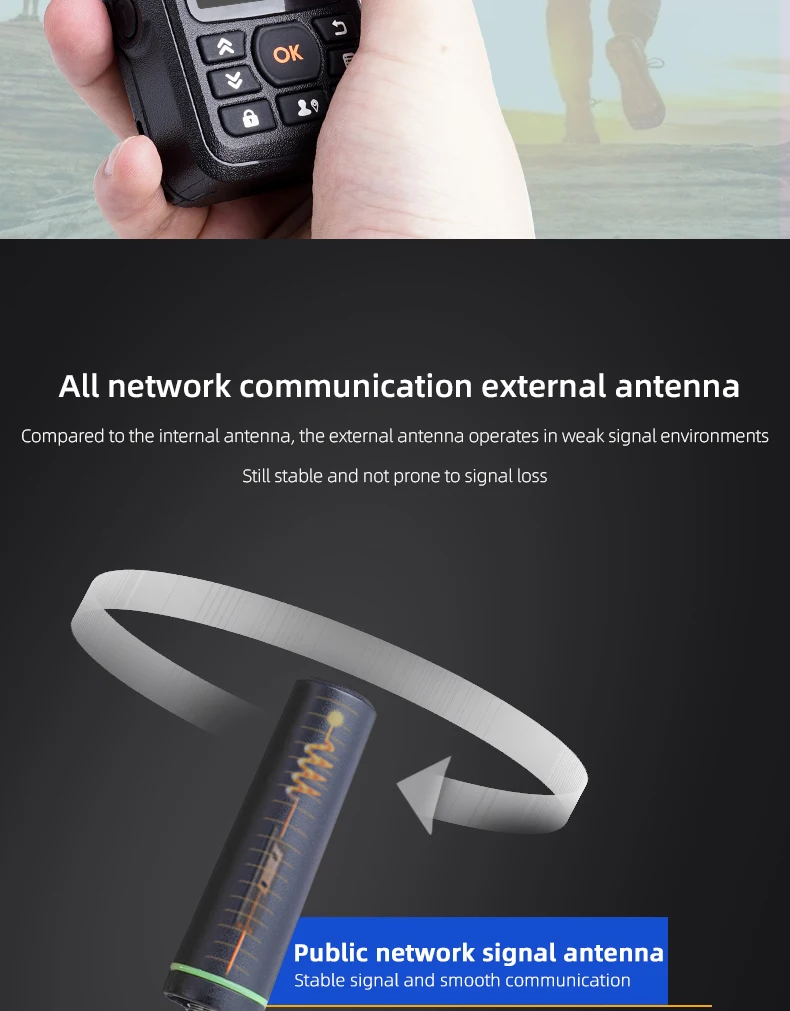

• 1 antenna

• 1 4000mAh rechargeable battery

• 1 Adaptor+USB Charging cable

• 1 lanyard

• 1 user manual

Transmitting frequency Band and Receiving Frequency Band

LTE FDD Band:

Transmitting frequency band:B1:1920-1980MHz
Receiving frequency band:2110-2170MHz

Transmitting frequency band:B3:1710-1785MHz
Receiving frequency band:1805-1880MHz

LTE TDD Band:

Transmitting frequency band:B38:2570-2620MHz
Receiving frequency band:2570-2620MHz

Transmitting frequency band:B39:1880-1920MHz
Receiving frequency band:1880-1920MHz

Transmitting frequency band:B40:2300-2400MHz
Receiving frequency band:2300-2400MHz

Transmitting frequency band:B38:2555-2655MHz
Receiving frequency band:2555-2655MHz

WCDMA spectrum:

Transmitting frequency band:B1:1920-1980MHz
Receiving frequency band:2110-2170MHz

Transmitting frequency band:B5:824-849MHz
Receiving frequency band:869-894MHz

Transmitting frequency band:B8:880-915MHz
Receiving frequency band:925-960MHz

TDSCDMA spectrum:

Transmitting frequency band:B34:2010-2025MHz
Receiving frequency band:2010-2025MHz

Transmitting frequency band:B39:1880-1920MHz
Receiving frequency band:1880-1920MHz

CDMA band：EVDO Rev.A800M

GSM band:900/1800MHz
