Polycom Baolitong GROUP310 550 Terminal Four-generation Lens HDCI Converter Proti

Polycom GRPUP terminal connected to MPTZ-10/11 camera HDCI to HDMI conversion box

Configuration: 1 power supply, 1 conversion box, 1 configuration short line

RS232 control line self-provided instructions

1. RS232 wiring sequence

DB9－－－－－DB9

2－－－－－－－2

3－－－－－－－3

5－－－－－－－5

9－－－－－－－9

2. The HDMI cable uses at least the standard HDMI version 1.4

3. If you use a matrix, please use a standard HDMI matrix, do not use a DVI matrix.

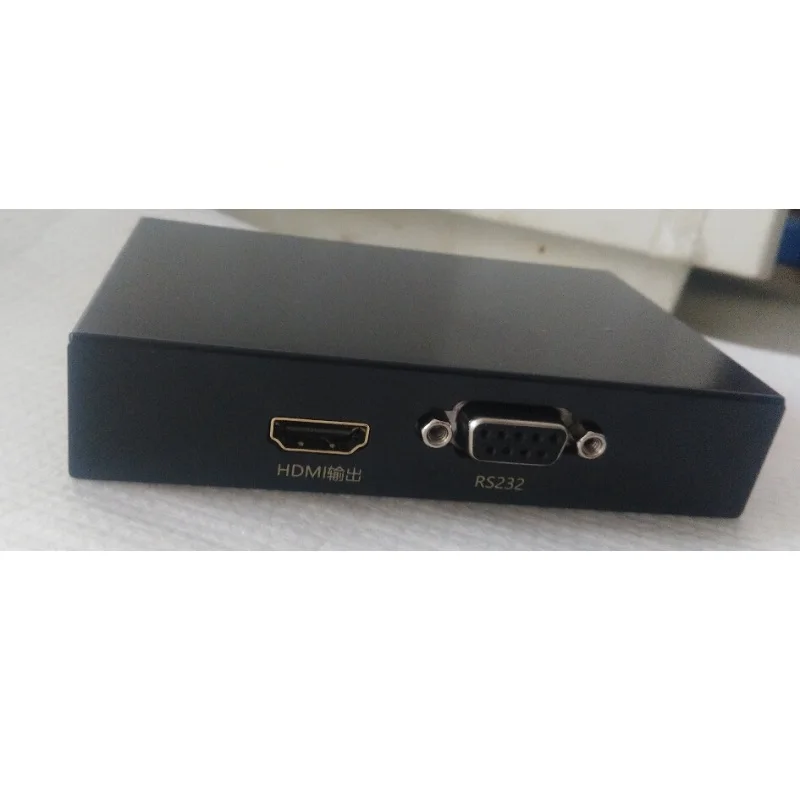

Polycom DBA four-generation lens pigtail HDCI to HDMI+DB9 converter kit

Usage:

1. HDMI cable to extend the fourth generation lens

2. The fourth generation lens is connected to the HDMI matrix

Applicable to: GROUP300 310 500 550 700, MPTZ-10 MPTZ-11
