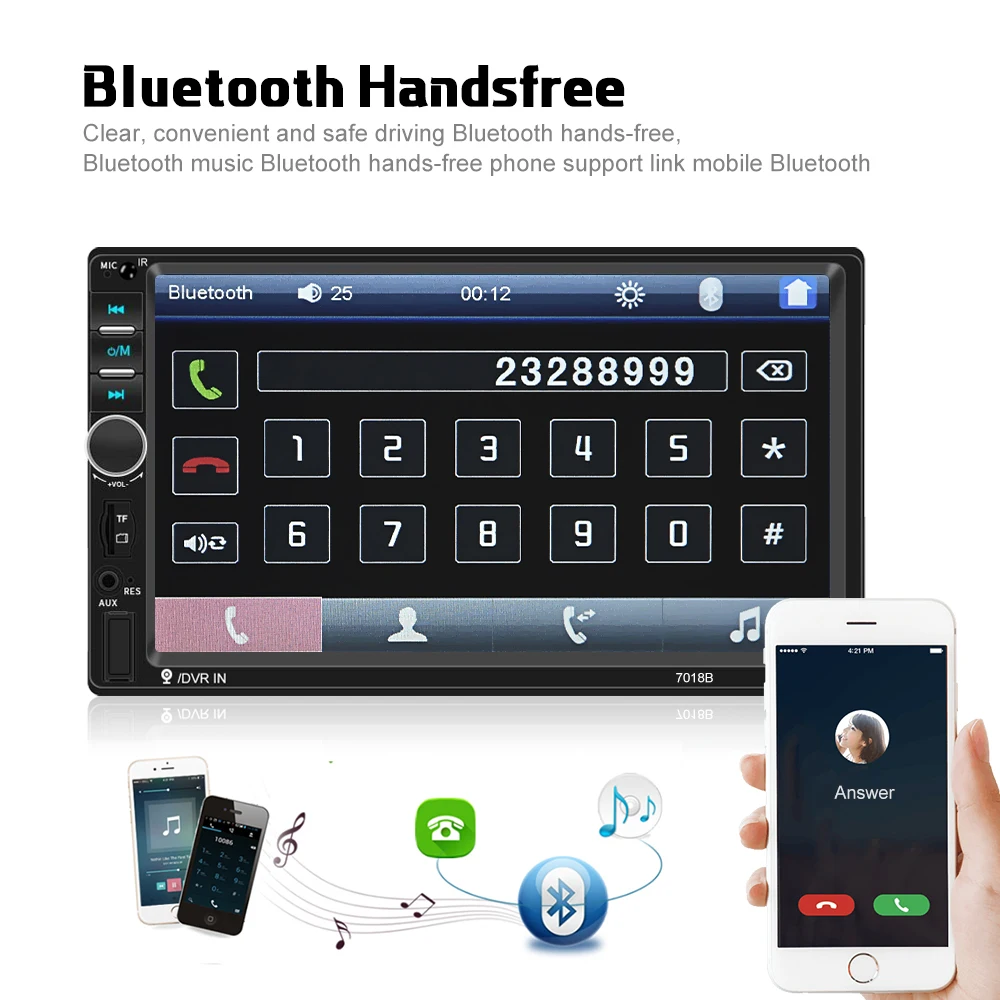

Bluetooth Specification: V2.0

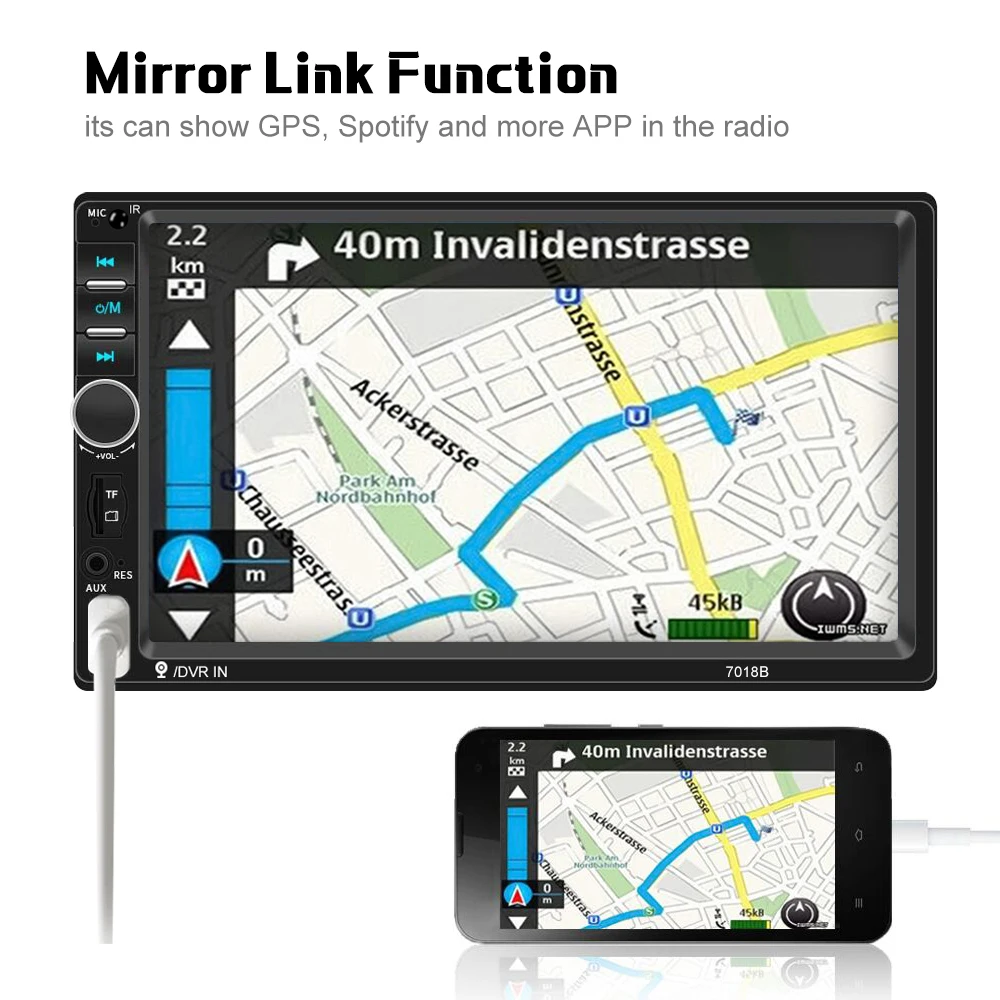

Support Mobile phone interconnection:Mirror-Link allows to synchronize mobile phone screen in the car via connecting them with USB cable.As it is very strict with the data cable.Please use the original phone USB cable.

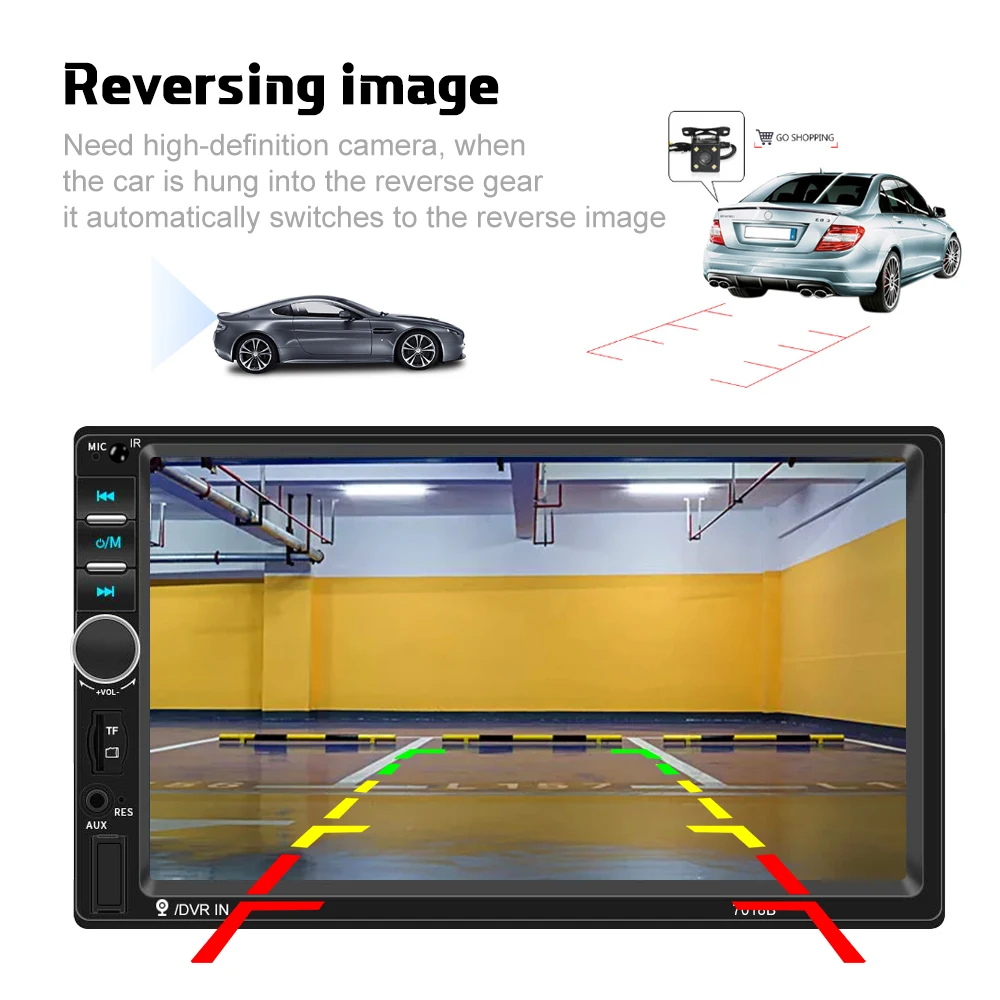

Built-in Car DVR System: it will grasp the road condition accurately after connecting with a USB camera. The records will be saved in the media card automatically and can be played on this unit directly.

Supports advanced audio distribution profile

Off time display function

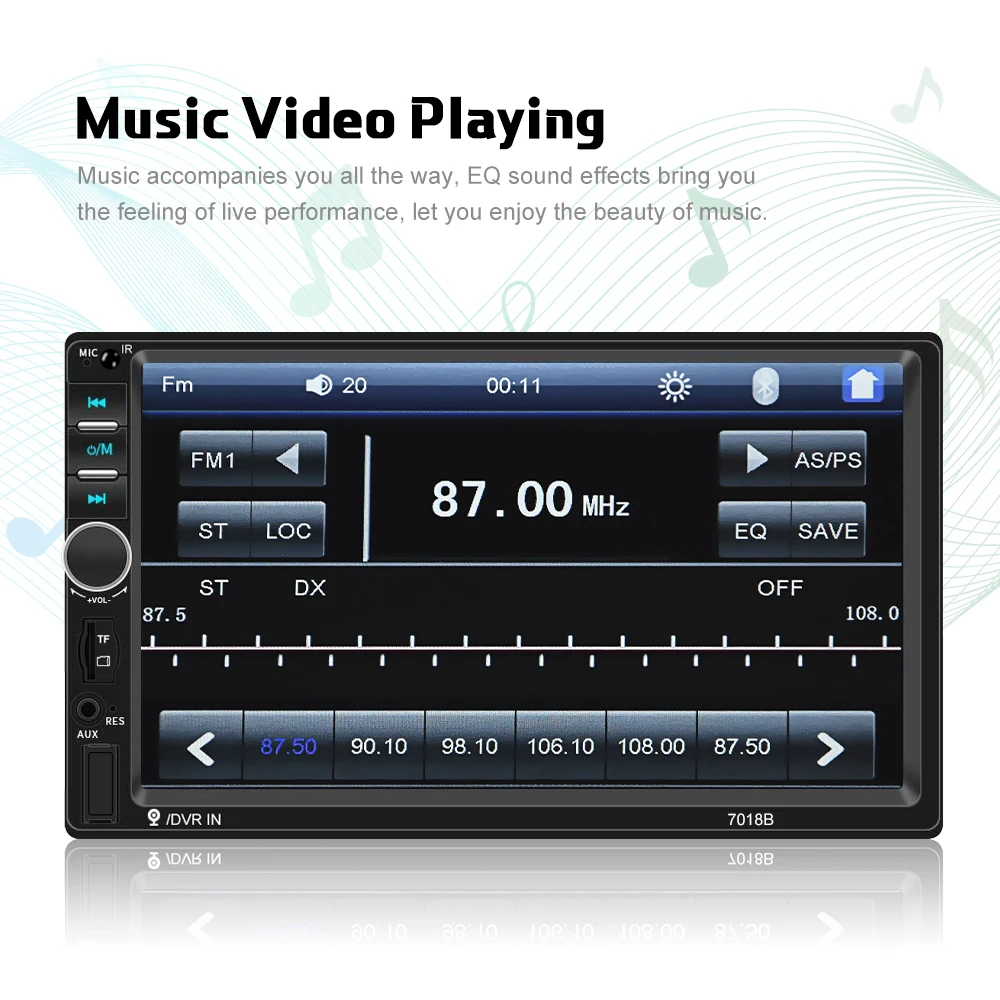

Digital high-quality FM stereo radio

Preset 18 stations ( frequency: 87.5-108 MHz )

Support USB / SD / MMC card reader

Support Audio: MP3 / WMA / APE / FLAC / WAV etc.

Support folder function

Support breakpoints and ID3 Play

Support remote control

Rotary volume control

MP3 randomized, 10 track up / down playback

Electronic control volume treble, bass, balance and fader

Multiple EQ scene selection: Jazz, rock, pop, classical, etc.

Mute and loud control

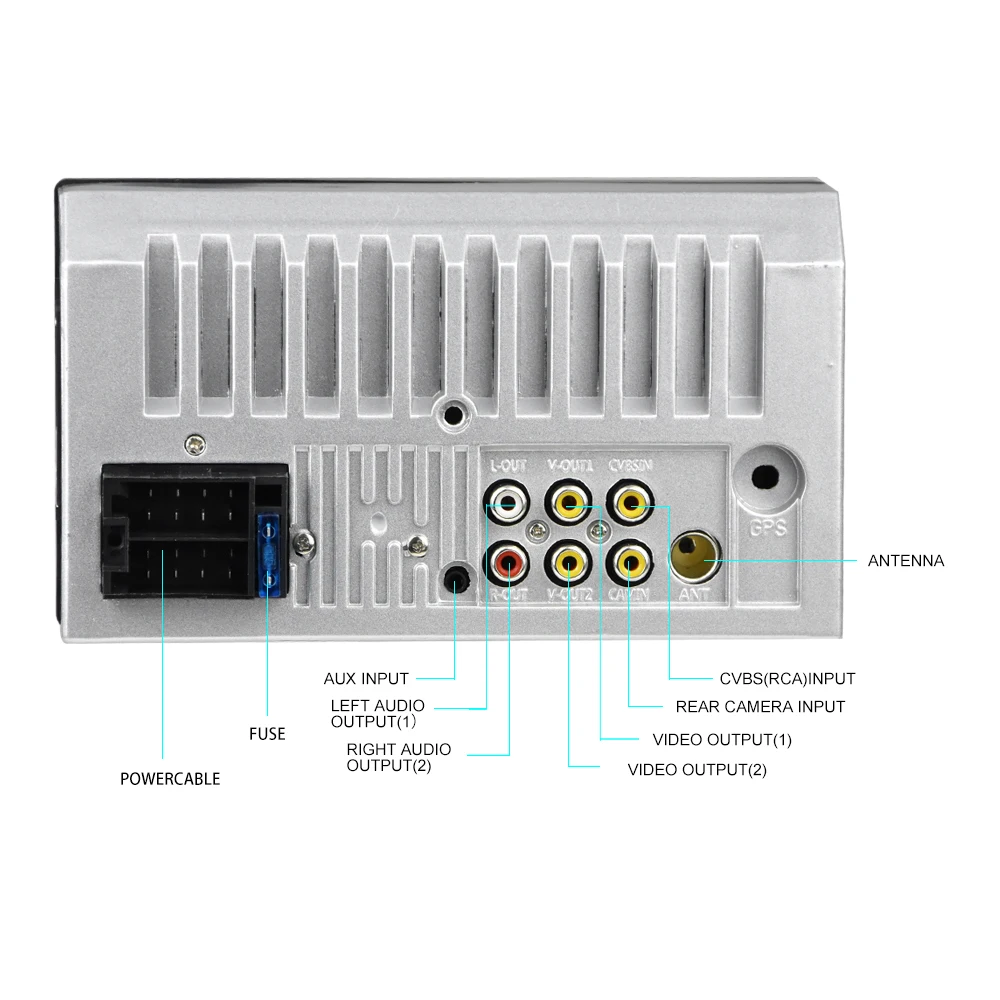

L / R RCA audio output jacks

4-channel high power output ( 4 loud speaker )

Support modes: BT / APE / WAV / WMA / MP3 / FM

The remote control battery (not included): CR2025 3V

Power Supply: 12V Machine(11 - 16V)

Language:English/Spanish/French/Portuguese/German/Italian/Russian/Turkish/Arabic/Hebrew/Polish/Japanese/Chinese

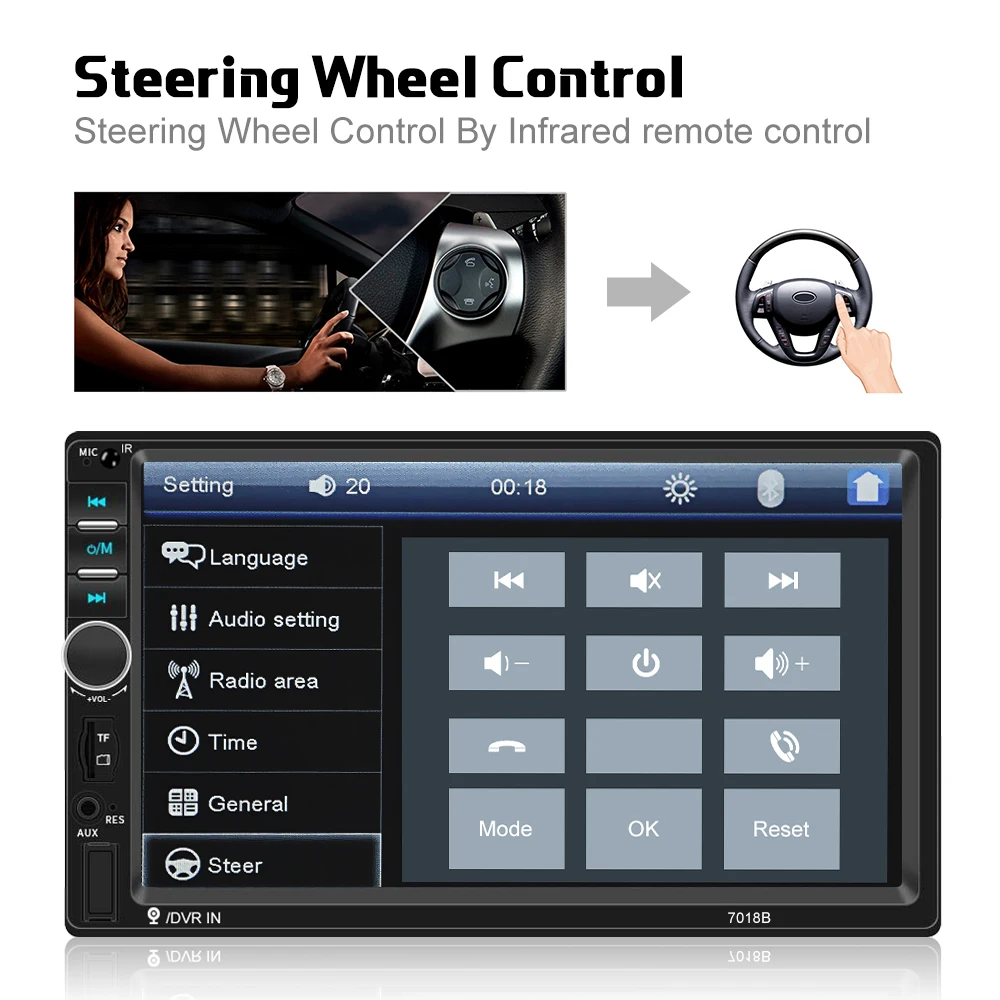

It supports Remote Control also Steering wheel remote control,whatever you choose,it's more convenience to using.

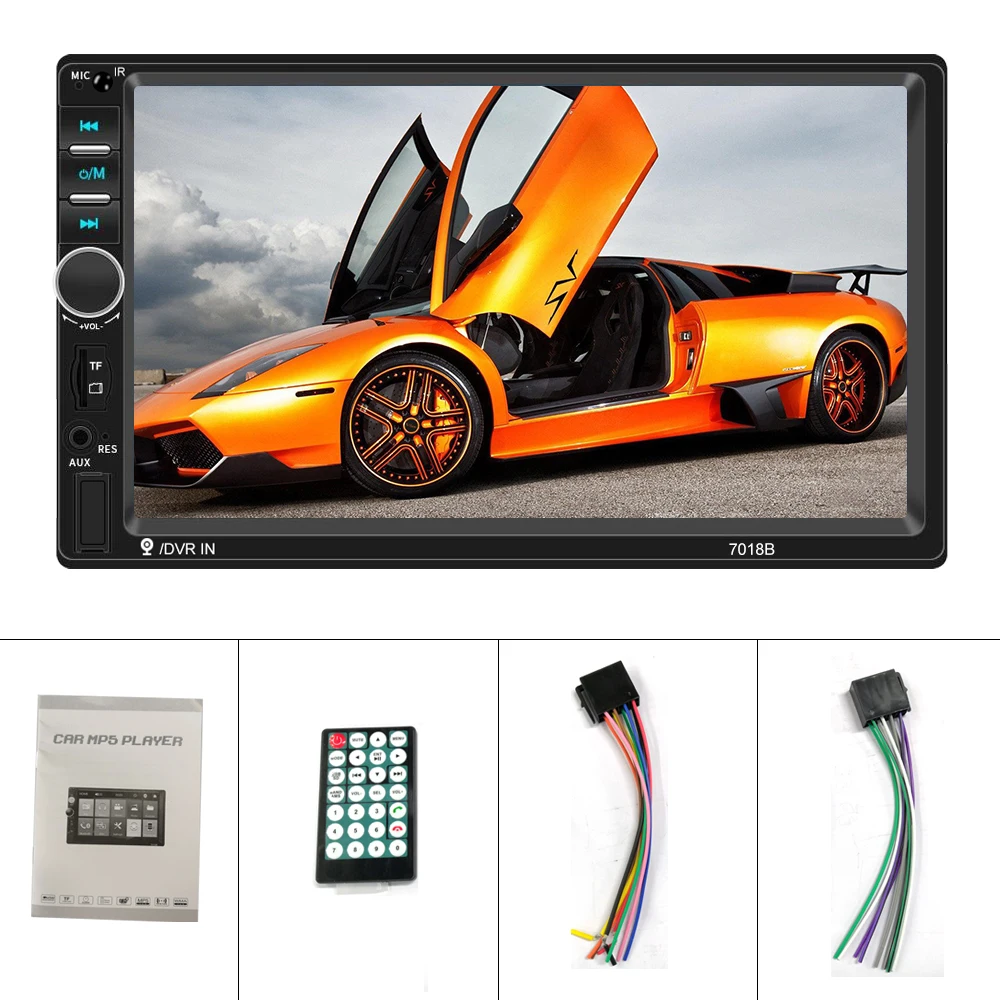

1 X Bluetooth Car Touch Screen Monitor with MP5 Player

1 x Remote Control

1 x Power Supply Wire

1 x User Manual

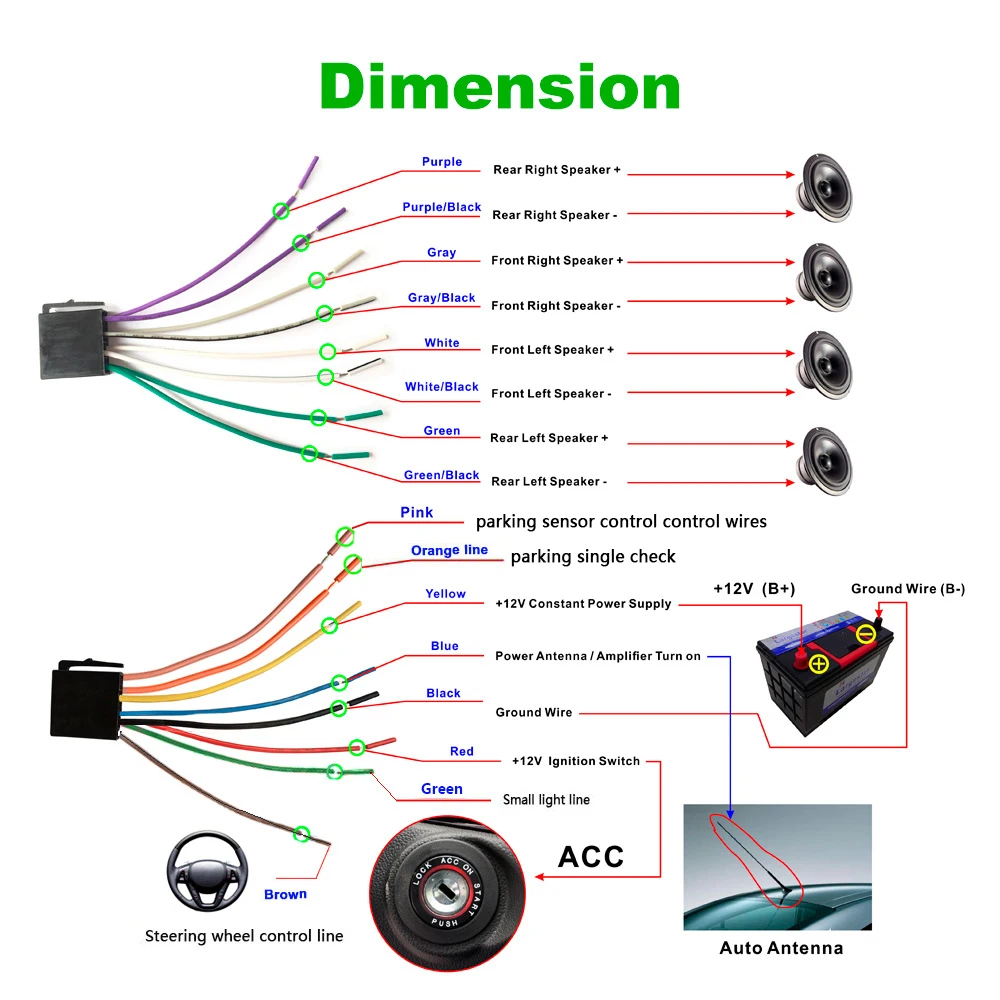

1.Yellow line (for memory wire) connected to the battery constant current positive, the machine will have memory function.

2.Red line pick the key to the ACC line, this line is also positive, control power switch. Black wire connected to the negative power supply.

3.Blue line connected lift the antenna or subwoofer REM control line, if not have do not connected, wrapped up with rubberized fabric.

4.The remaining eight wires(gray white green purple) are speaker line, a group of colors corresponding to a pair of speaker lines (positive and negative).

5.Please pay attention to check whether the original car speaker cable if contact iron (the original car speaker wire welding to the metal, or a speaker only a line thow out, called contact iron). contact iron will cause our high-power machine without sound, please test it with a multimeter before install, if contact iron, please disconnect and then install.





1. Can not use the original car plug directly connected to our new machine, do not match will lead to the machine burned, part of the machine can be shared please consult customer service.

2. If you buy a 12V voltage product do not install to 24V voltage models, otherwise it will cause the machine burned.

3. When wiring, speaker cable and power cord together, will cause a short circuit, lead the machine burned/unable to boot or machine without sound.

Note: This machine is 12V machine, not according to the 24V power supply
