Specification:

Frequency:700-2700MHZ

Polaration:Vertical

Gain:10dbi

VSWR:2.5

Radiation:Omni

Impedance:50ohm

Max Power:10W

Connector:SMA/TS9/CRC9

Product size:23*6.5*6.5cm

Package size:36*7*7cm

Cable Type:RG174

Cable Length:5m

Weight:0.5KG

Note:Before you place order ,pls choose right connector for your device.

The following are some device models:

SMA：ZTE MF28G，ZTE MF29S2，ZTEMF28D, Huawei E5186，Huawei B890，Huawei B593U-12，Huawei B593s-22，Huawei B593u-91，Huawei B593u，Huawei B315,VodafoneB4000，Vodafone B3000，Vodafone B2000,Vodafone B1000，Huawei E5172A S-22，Huawei E5172S-22，Huawei E5172,Huawei E398，E3276，E392，E3272，E8278，E5786，E5372，E5375，E1550，E156G，E160，E160E，E160G，E169，E1762，E176G，E1820，E600，E612 ，E618，E620，E630 etc

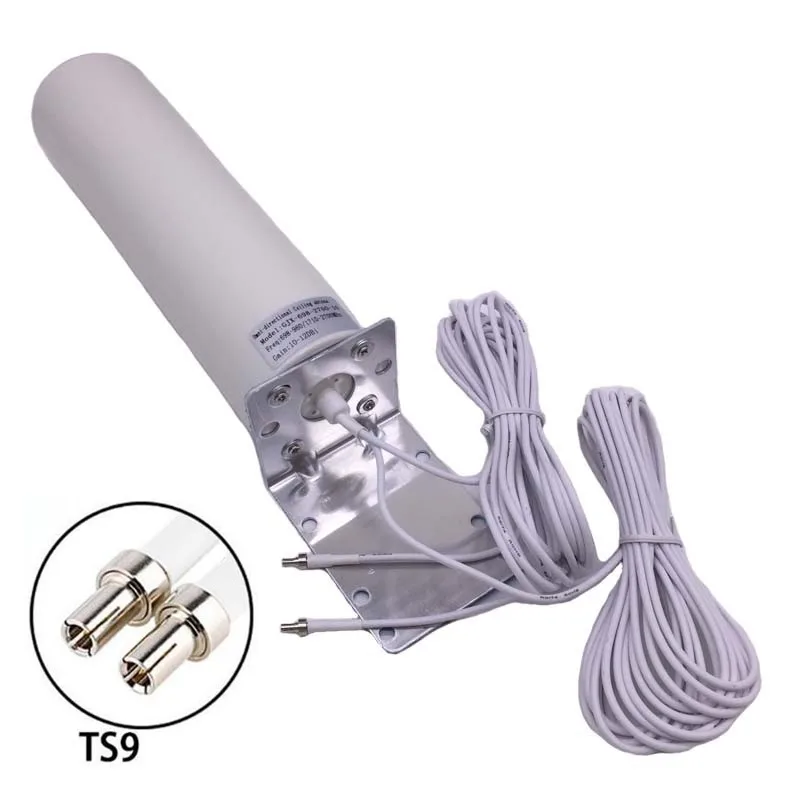

TS-9：Vodafone R215，Vodafone R212,Vodafone K5150，Vodafone K5005，Vodafone K5006Z，Vodafone R226,ZTEMF821D，ZTEMF821，ZTEMF910，ZTEMF90，ZTEMF93E,ZTEMF91D，ZTEMF91T，ZTEMF91T，ZTEMF91T MF91S ZTE Flare，ZTE MF827，ZTE MF825C ZTE MF95，ZTE MF75，Huawei E5573-852 E5573-853 E5573-856 EC5377，EC5373，E5375，E5577，E5771-852，E5571-856，E5571 -937，E8372 ETC

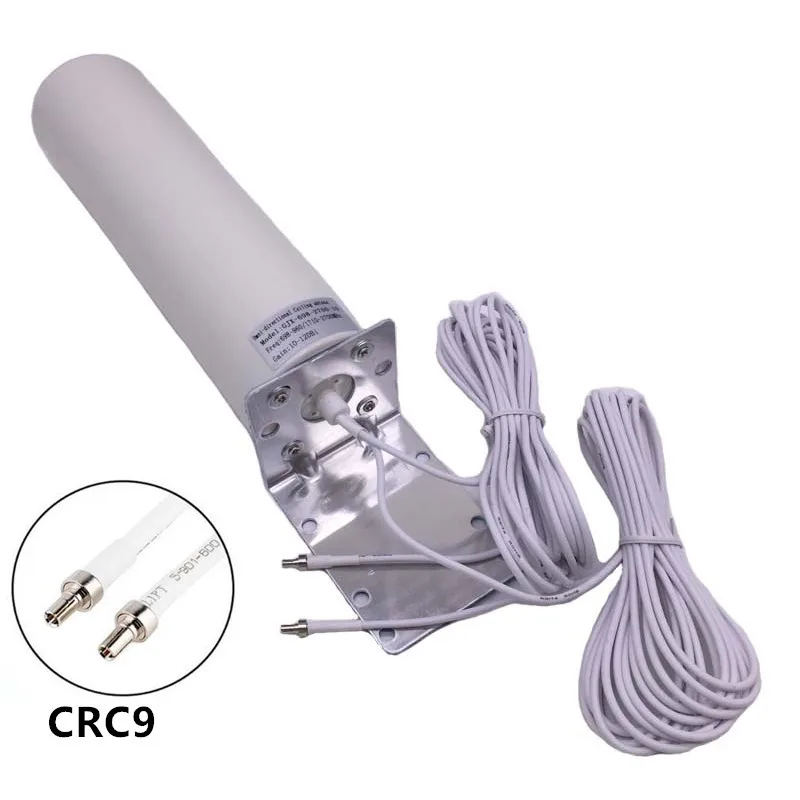

CRC9：Netgear Aircard 340u，Netgear Aircard 341u，Sierra Aircard 313u，Sierra Aircard 320u，Sierra Aircard 330u，Sierra 754s Sierra Aircard 760s，Sierra Aircard 762s，Sierra Aircard 763s Sierra Aircard 770s，Netgear Aircard 77 1s，Netgear 782 ，Netgear 785s Netgear 778s，Netgear 790S（AC790S）HUAWEI E3276，Vodafone K5007 Huawei EC3372，Huawei E3372，EC315，EC8201，E355，E353，E160，E160E，E160G，E1612，E161，E169，E176，E176，E1762，E196G E1820，EC321，EC881E，E600，E612，E618，E620，E621，E630，E660A，E660，K3520，UMG 181，UMG 1691，UMG1691，UMG181 ETC
