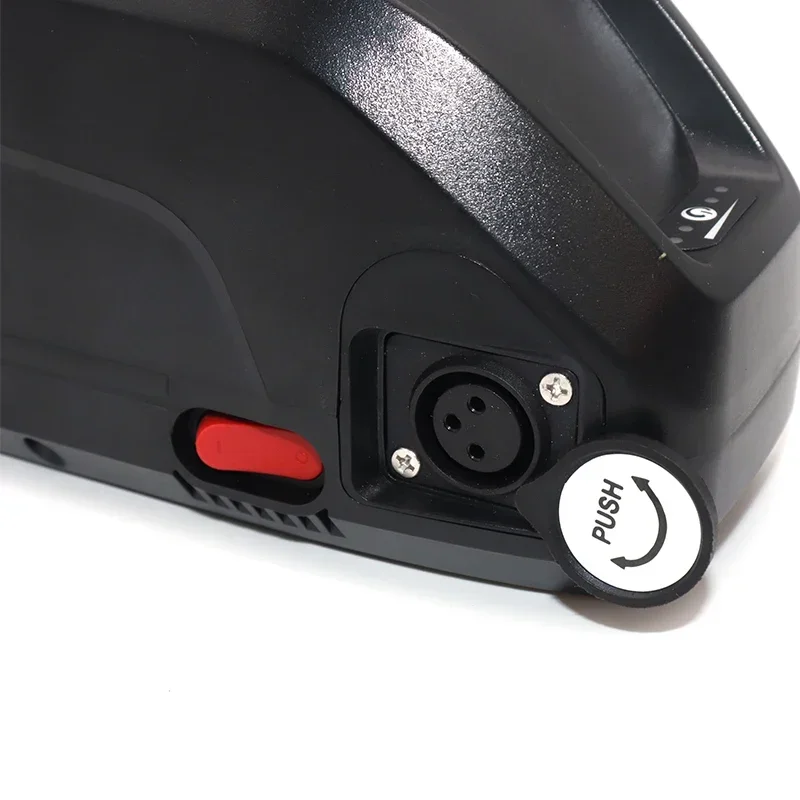

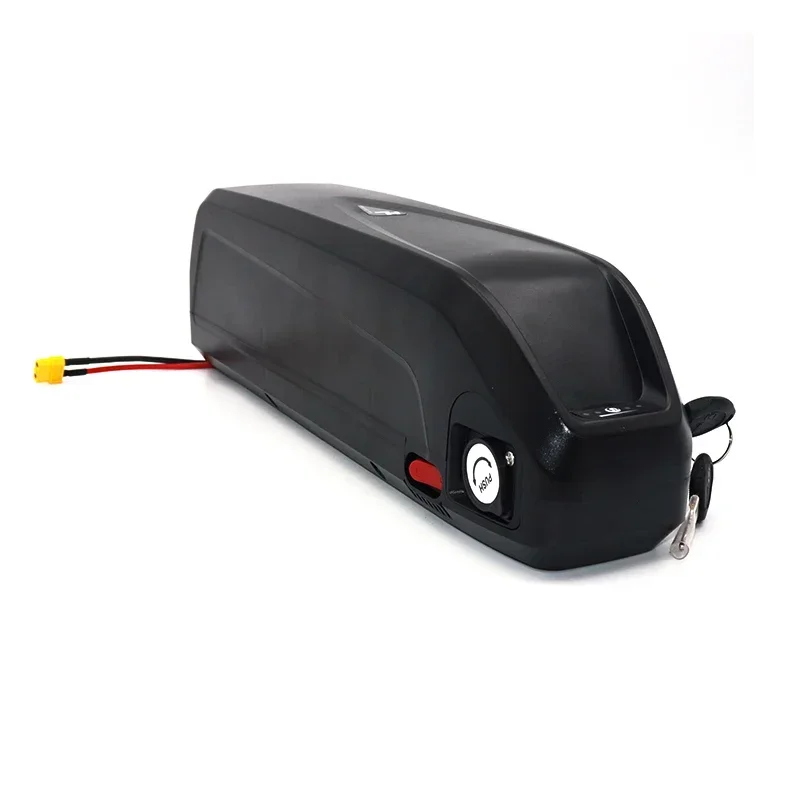

48V battery 52V 36V ebike battery Hailong tube 20 30 17Ah BMS 18650 rechargeable lithium battery for electric bicycles USB
36V 17Ah Specification:
Nominal voltage: 36V
Rated capacity: 20AH

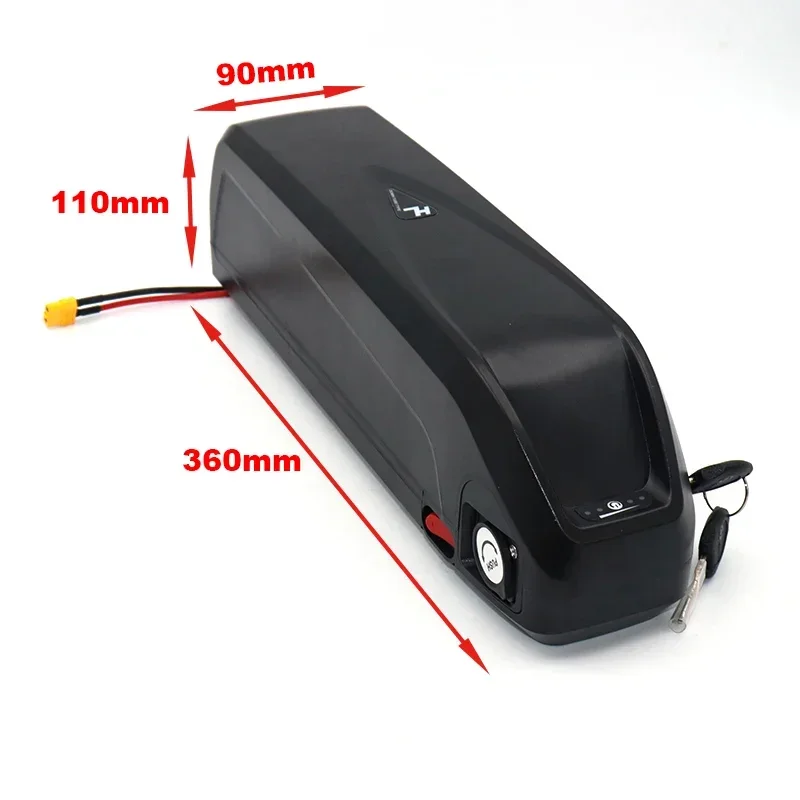

Battery size: 360 * 90 * 110mm
Maximum constant discharge current: 25A
Peak current: 60A
Charging voltage: 42V
Discharge cut-off voltage: 28V
Charging method: CC/CV
Cycle life: 1000 tims
Feeding temperature: -15-65 ℃
Discharge temperature: -15-65 ℃
Protection functions: overcharging, discharging, overcurrent, short circuit, balance
36V 30Ah Specification:
Nominal voltage: 42V
Rated capacity: 30AH
Battery size: 360 * 90 * 110mm
Maximum constant discharge current: 25A

Peak current: 60A
Charging voltage: 42V
Discharge cut-off voltage: 28V
Charging method: CC/CV
Cycle life: 1000 tims
Feeding temperature: -15-65 ℃
Discharge temperature: -15-65 ℃
Protection functions: overcharging, discharging, overcurrent, short circuit, balance
48V 20Ah Specification:
Normal voltage: 48V
Rated capacity: 20AH
Battery size: 360 * 90 * 110mm
Maximum constant discharge current: 30A
Peak current: 60A
Charging voltage: 54.6V
Discharge cut-off voltage: 36.4V
Charging method: CC/CV
Cycle life: 1000 times
Feeding temperature: -15-65 ℃
Discharge temperature: -15-65 ℃

Protection functions: overcharging, discharging, overcurrent, short circuit, balance
48V 30Ah Specification:
Normal voltage: 48V
Rated capacity: 30AH
Battery size: 360 * 90 * 110mm
Maximum constant discharge current: 30A
Peak current: 60A
Charging voltage: 54.6V
Discharge cut-off voltage: 36.4V
Charging method: CC/CV
Cycle life: 1000 times
Feeding temperature: -15-65 ℃
Discharge temperature: -15-65 ℃
Protection functions: overcharging, discharging, overcurrent, short circuit, balance

52V 20Ah Specification:
Normal voltage: 52V
Rated capacity: 20AH
Battery size: 360 * 90 * 110mm
Maximum constant discharge current: 30A
Peak current: 60A
Charging voltage: 58.9V
Discharge cut-off voltage: 39V
Charging method: CC/CV
Cycle life: 1000 times
Feeding temperature: -15-65 ℃
Discharge temperature: -15-65 ℃
Protection functions: overcharging, discharging, overcurrent, short circuit, balance

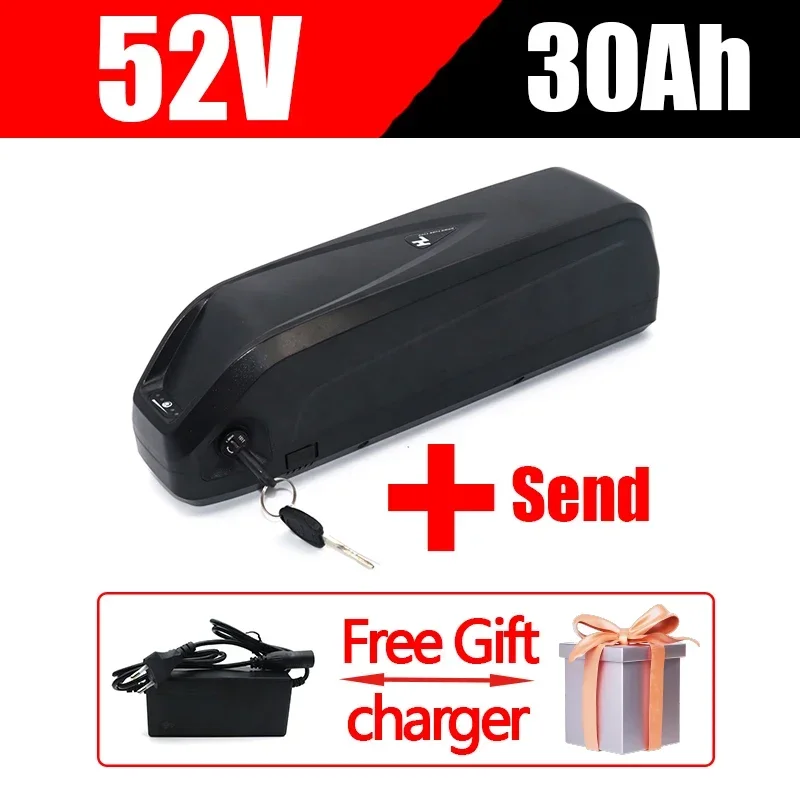

52V 300Ah Specification:
Normal voltage: 52V
Rated capacity: 30AH
Battery size: 360 * 90 * 110mm
Maximum constant discharge current: 30A
Peak current: 60A
Charging voltage: 58.9V
Discharge cut-off voltage: 39V
Charging method: CC/CV
Cycle life: 1000 times
Feeding temperature: -15-65 ℃
Discharge temperature: -15-65 ℃
Protection functions: overcharging, discharging, overcurrent, short circuit, balance
Packing list:
1 * Electric bicycle battery (optional)

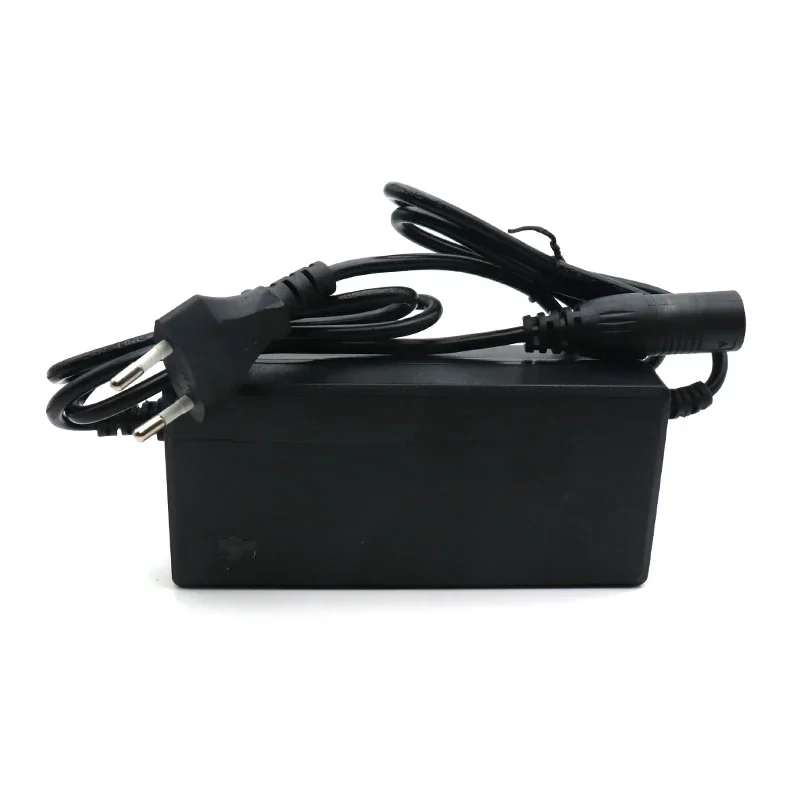

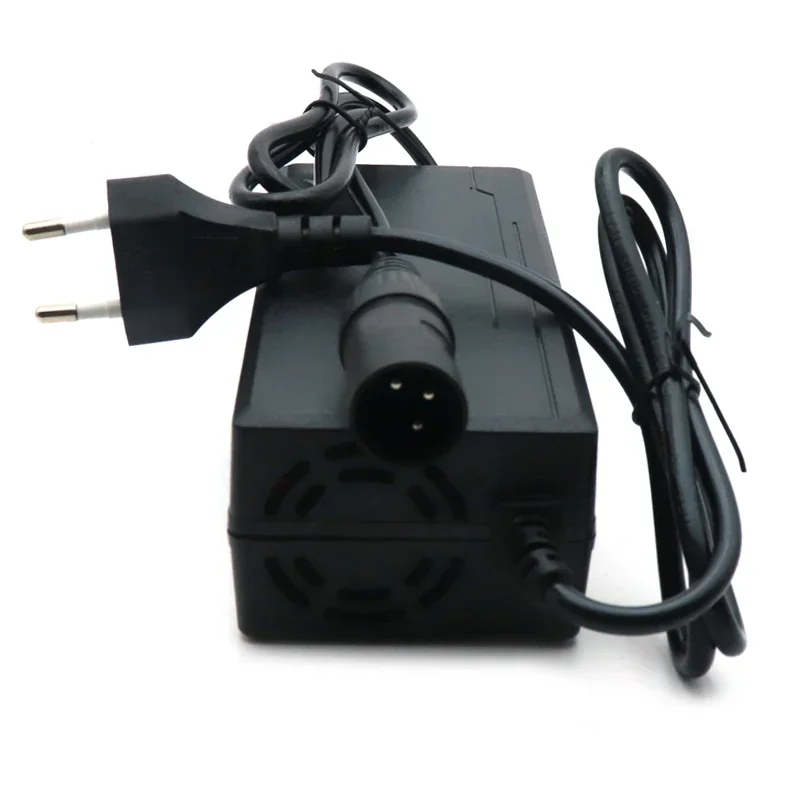

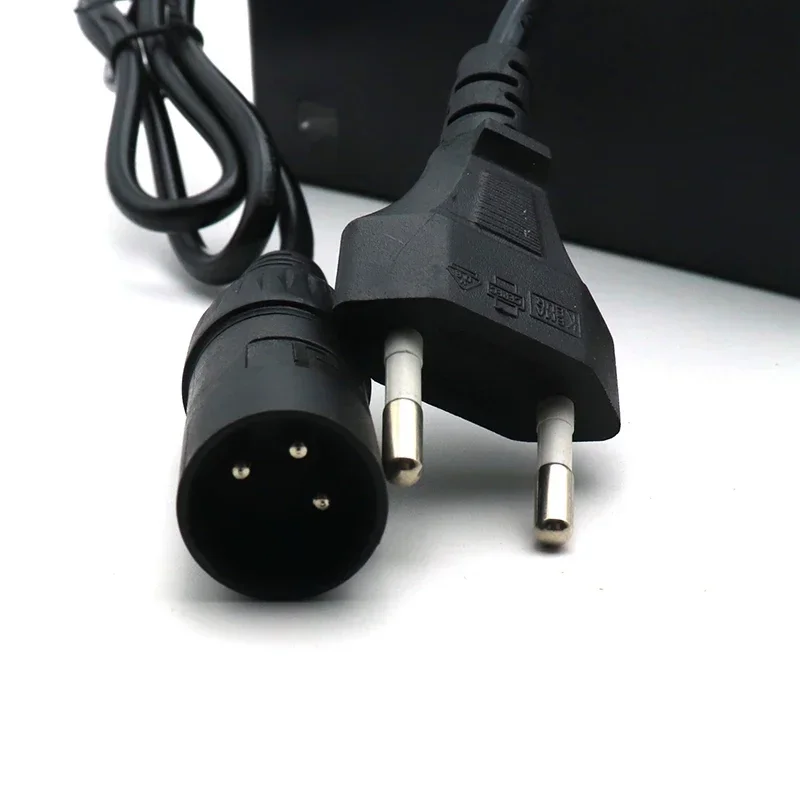

1 * Charger (European standard)

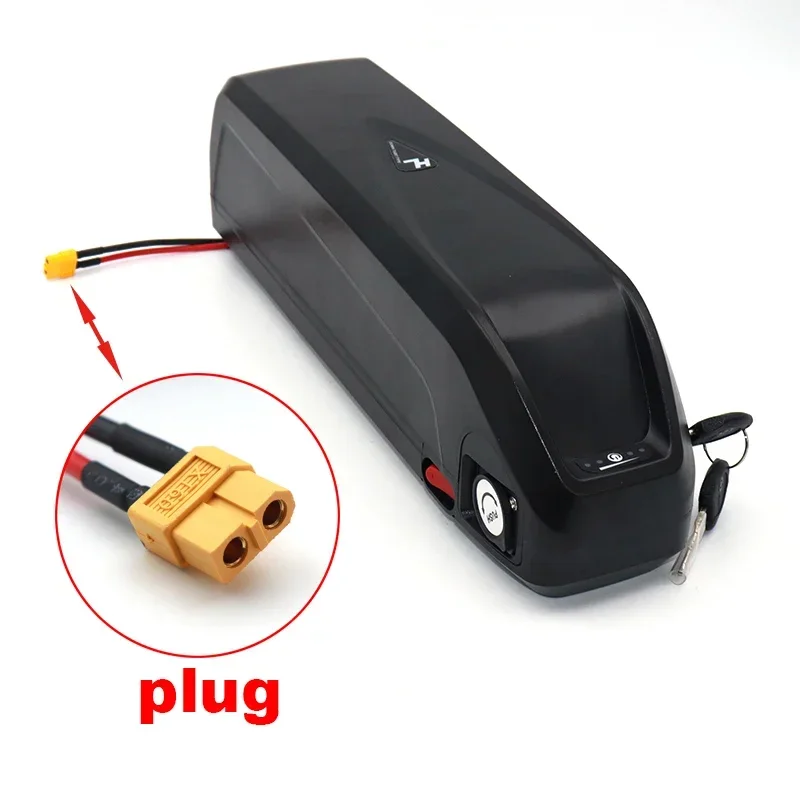

1 * Motor battery connection cable (default XT60 interface) (If you need a T-type or XT90 interface, please contact us.
