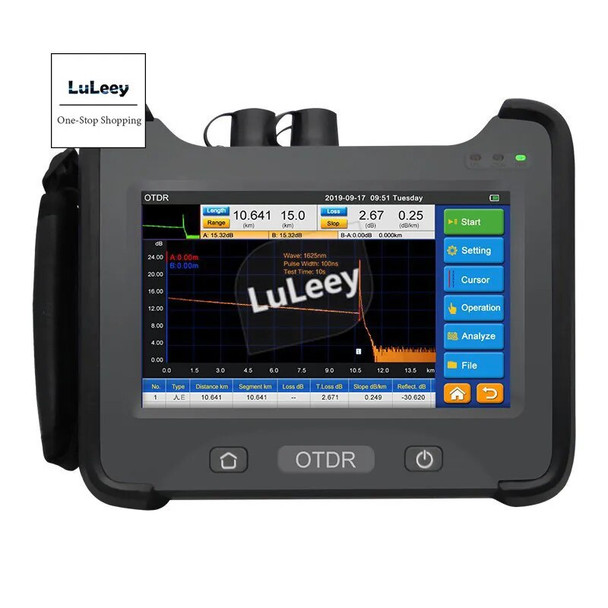

Optical Time Domain Reflectometer (OTDR) 850/1300/1310/1550nm Four-Wavelength Single Multi-Mode Integrated
(No reviews yet)
Write a Review
Description
Product Features
- Pulse Width:3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs,20μs.
- Testing Distance:500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km.
- Measurement Time: Use defined (smart link) ; with real time measurement function.
- Linearity:<0 05dB/dB.
- Loss Threshold:0.01dB.
- Loss Resolution:0.001dB.
- Distance Resolution:0.01m.
- Sampling Resolution:minimum 0.25m.
- Sampling Point:Maximum 128,000 points.
- Distance Accuracy:+/-(1m+measuring distancex3x 105+sampling resolution ).
- Intermnal visual source:10mw, CW/2Hz .
- Stable laser source:>- 5dBm.
- DataStorage :80000 groups of curve.
- Interface:3 USB port.
- Display:7 inch capacitive touching screen.Battery:7.4V/66Ah lithium battery, continuous 8 10 hours.
- Working Temp:-10C~ +50 degrees Celsius.
- Storage Temp :-20C~ +75 degrees Celsius.
- Relative Humidity:≤90%, non-den.
- Dimension :230*185*70mm/ 1.5kg.
- Option:SC/ST, Bare fiber adapter.
Package Include
Main unit, 8. 4V power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case
Store service & Delivery
1. Any quality problem can be returned or replaced within 7 days.
2. We guarantee our products within one year.
3. Customers' questions will be answered within 24 hours.
4. Most products will be shipped within 48 hours.
About Payment
visa card/master card/bank card / paypal...
About feedback
If you are satisfied with the item while it is in good condition. we sincerely to invite you to leave us all 5-star rating positive feedback.
If you are disatisfied with the item or service,please contact us first, we will supply the best solution and work harder to give you more excellent service.
Contact us
E-mail: sales@luleey.com
We work 6 Days a week at 7:00 - 23:00 from Monday - Saturday Beijing Time.
Related Products

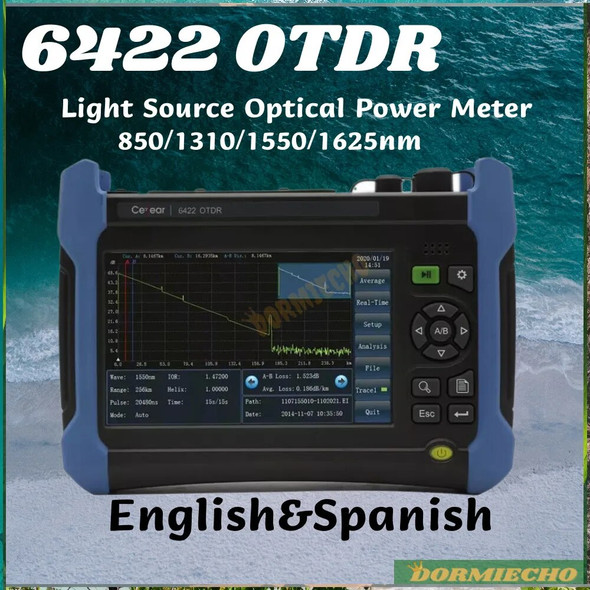

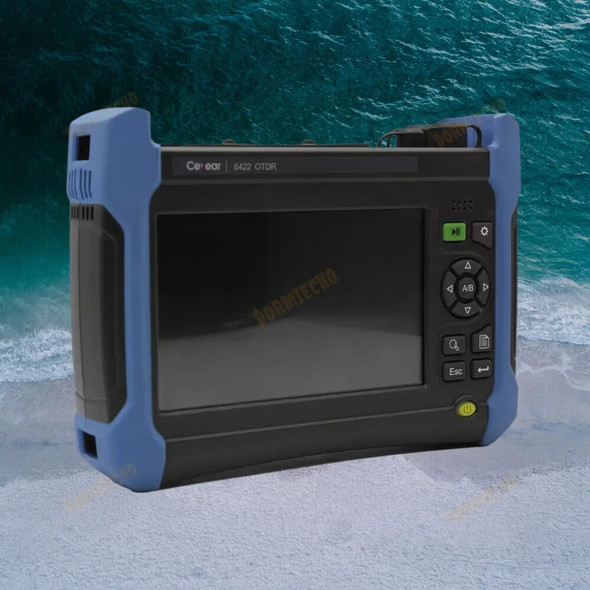

High Precision OTDR Ceyear 6422 Light Source Optical Power Meter 850/1310/1550/1625nm English&Spanish Time-Domain Reflectometer
