Description
* High Precision and Low Splicing Loss *
* Real Core Alignment *
* Low Splicing Loss <0.02dB *

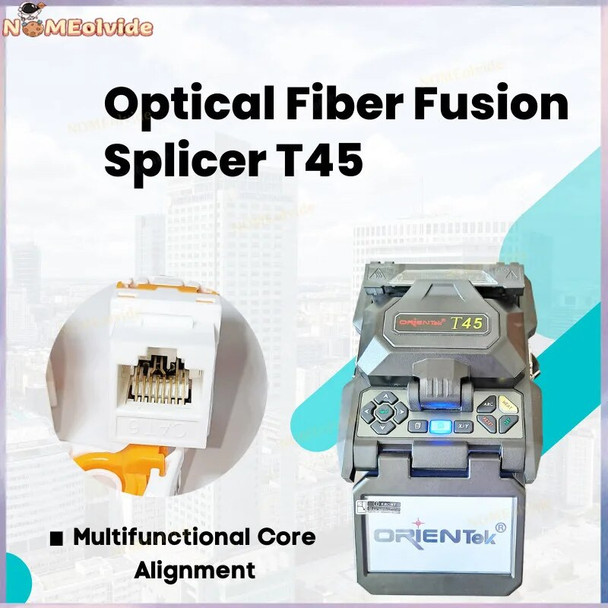

Orientek T45 combines the functions of both splicing and heating for those cables which are popular in FTTx: 250μm fber, 900μm fber, flat cable, fber jumper. This splicer is the smallest, lightest and fastest among all the existing core alignment splicers . Performs 330 cycles of fusion splicing and sleeve heating with the standard battery . Core-to-Core alignment system, Keep the ultra-low splicing loss.Fiber identification, AUTO splicing mode. can display the real fiber core .
Support English, Spanish, Portuguese, French .
Features:
1)Real fiber core visualization technology
2)Take only 7 Seconds for Splicing, 18 Seconds for Heating
3)Average Splicing Loss: 0.01dB
4)Up to 330 times of continuous splices and heat
5)HD CMOS sensor and HD aligner for duble seperate optical fibers
6)Splice 0.25mm/0.9mm/3.0mm/ Flat cable
7)4.3 Huge Color LCD Monitor
8)Ideal for both indoor and outdoor splicing
9)Electrode Life: 4,000 times splicing
10)Attached Night Light
Specifications:
Alignment | IPAS Core to Core Alignment (Image Pattern Analysis Alignment System) |
Applicable fibers | SMF(ITU-T G.652), MMF(ITU-T G.651), DSF(ITU-T G.653), NZDSF(ITU-T G.655), EDFA, EI980, Splicing available with different type fiber(SM/MM), ITU-T G.657 |
Compatible Fiber / Cable | 0.25mm/0.9mm/3.0mm/ Flat/Drop cable |
Fiber cleave length | 250 (Coat) : 8 ~ 16mm, 900 : 16mm |
Typical splice loss | SMF : 0.02dB, MMF : 0.01dB, DSF : 0.04dB, NZDSF : 0.04dB |
Typical splicing time | SPLICE : Typical 8sec, Tube Heat : Typical 25sec with S-160(60mm) Tube |
Return loss | >60dB |
Program | SPLICE Mode : 100, Heat Mode : 50 |
Storage of splice result | 4,000 results |
Operating altitude | 0 ~ 5000m above sea level |
Operating condition | -10 to 50 , humidity : 95%, non-Condensing |
Storage condition | -40 to 80 , 0 to 95% RH |
Protection | Wind 15 , shock proof, water proof, dust proof |
SIZE, Weight | 138W 160L 135H (include Monitor), 2.3Kg (include Battery) |
Terminal | USB, VGA, External Power |
Power | DC 14.8V Battery (7800mAh), 100 ~ 240V AC Adapter |
Additional power | DC 12V automobile power outlet available |
No of splice/Heating with Battery | 330cycle, lithium polymer batteries |
Electrode | 4,000 times splicing without exchange |
Mechanical proof test | 2N / 4.4N (OPTION) |
Display | Two CMOS cameras and 5.7 color LCD monitor |
Fiber view and magnification | X/Y 300X, 170X |
Dimension | 138(W) 160(L) 135(H) |
