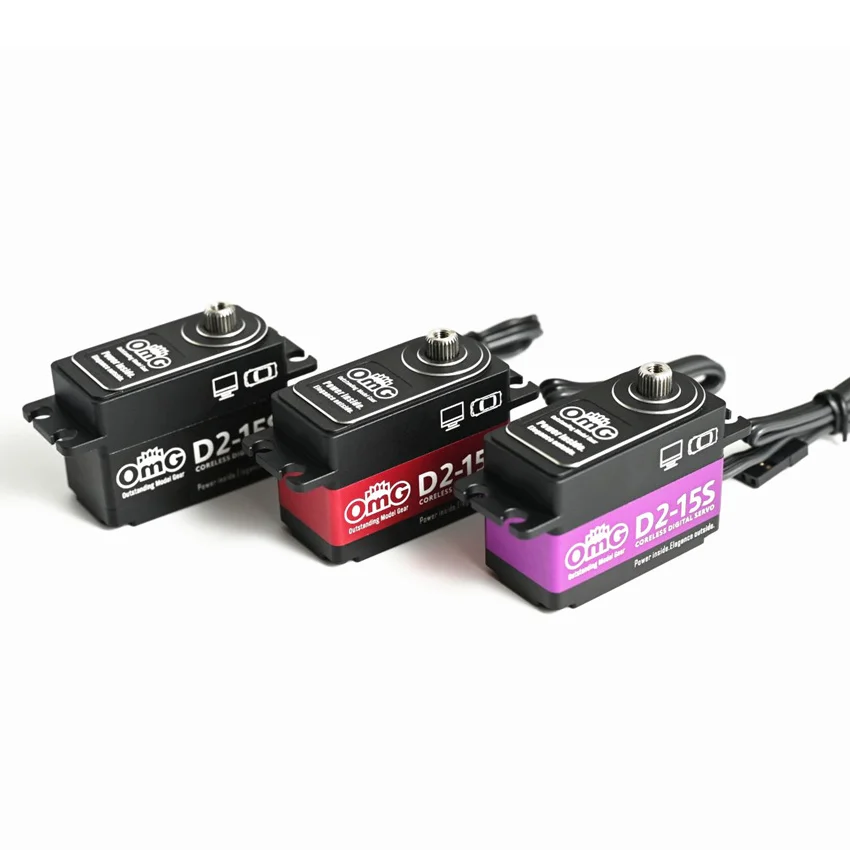

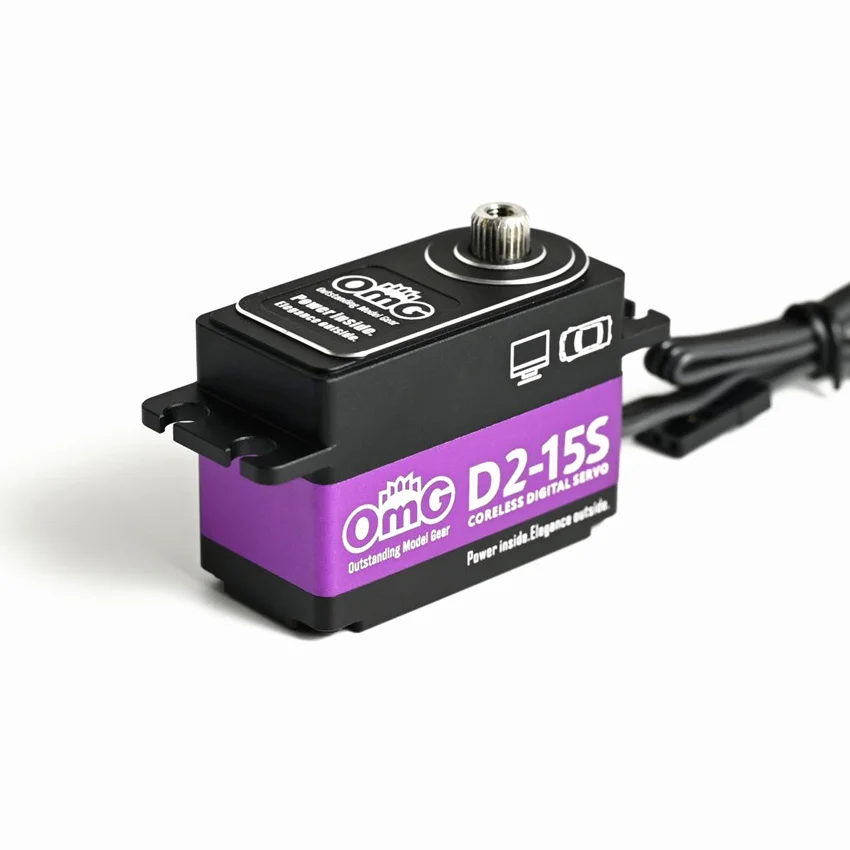

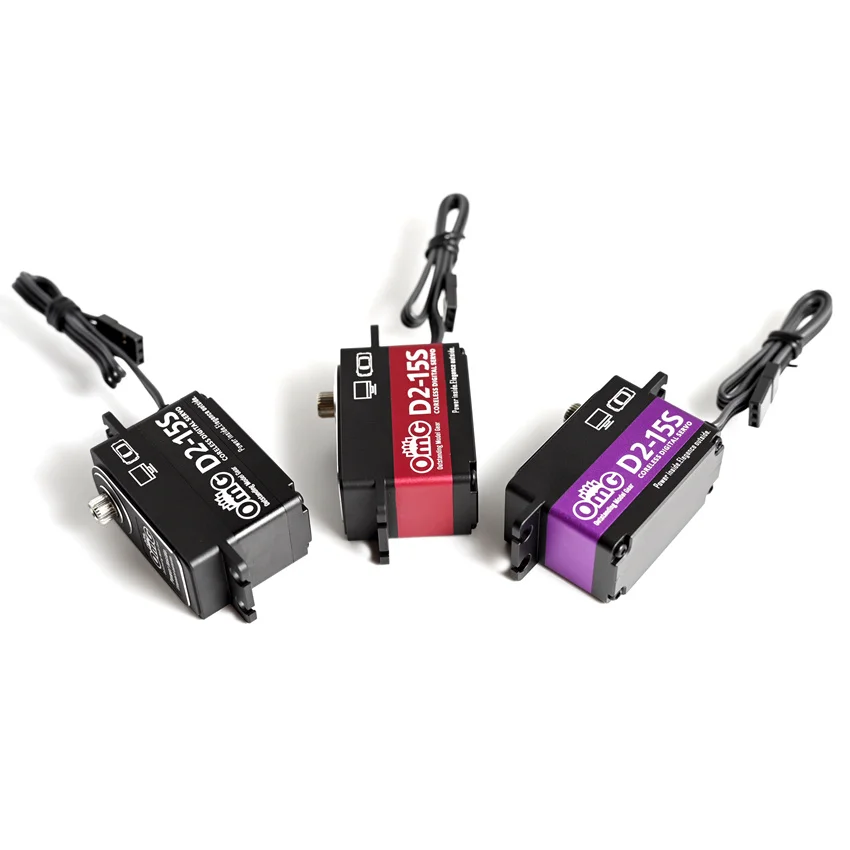

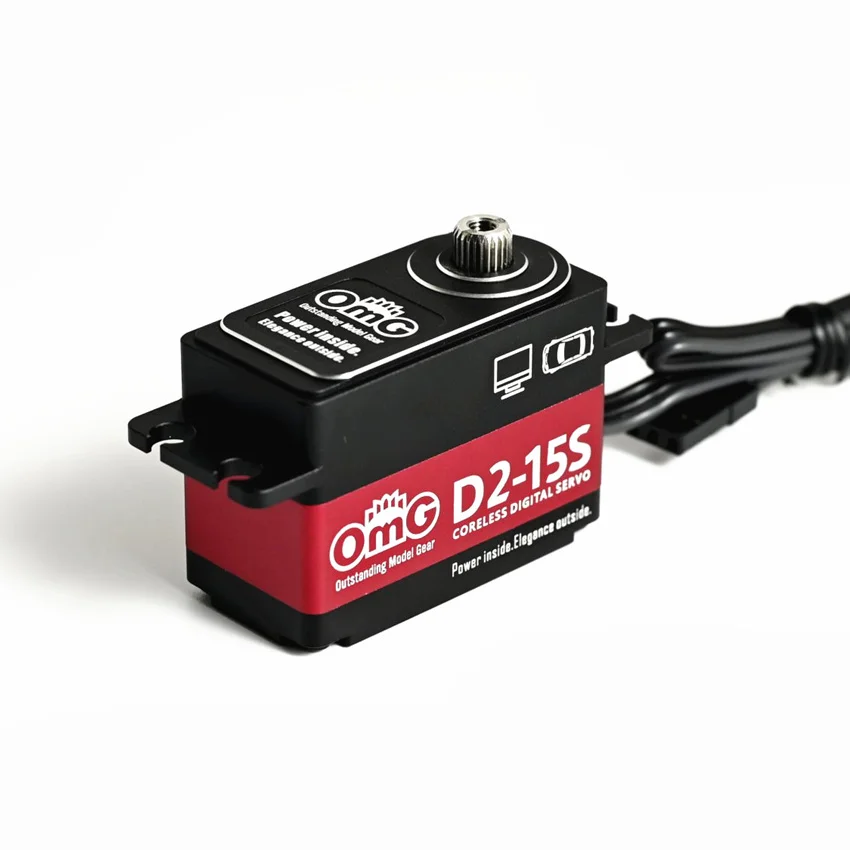

OmG D2-15S 15kg Programmable Coreless Digital Servo 1:10 Rc Touring Car/Vehicle Metal High Voltage Standard Servo For Rc Car

The USB setting card is connected to the computer to adjust the parameters. It supports FUTABA SR and SANWA SSR signal modes.

It is suitable for 1/10 drifting car touring car racing and other equipment suitable for this size and torque.

OMG-D2-15S parameters:
[Voltage] 5.0－8.4V
[speed]
6.0V:0.070sec/60°
7.4V:0.065sec/60°
8.4V:0.058sec/60°
[Torque]
6.0V: 14kgf.cm
7.4V: 15kgf.cm
8.4V: 16.50kgf.cm
[Gear] Steel gear
[Motor] Coreless motor
[Size] Standard size servo 41X20.5X29mm
[Weight] 60g

A brief description about tuning parameters:

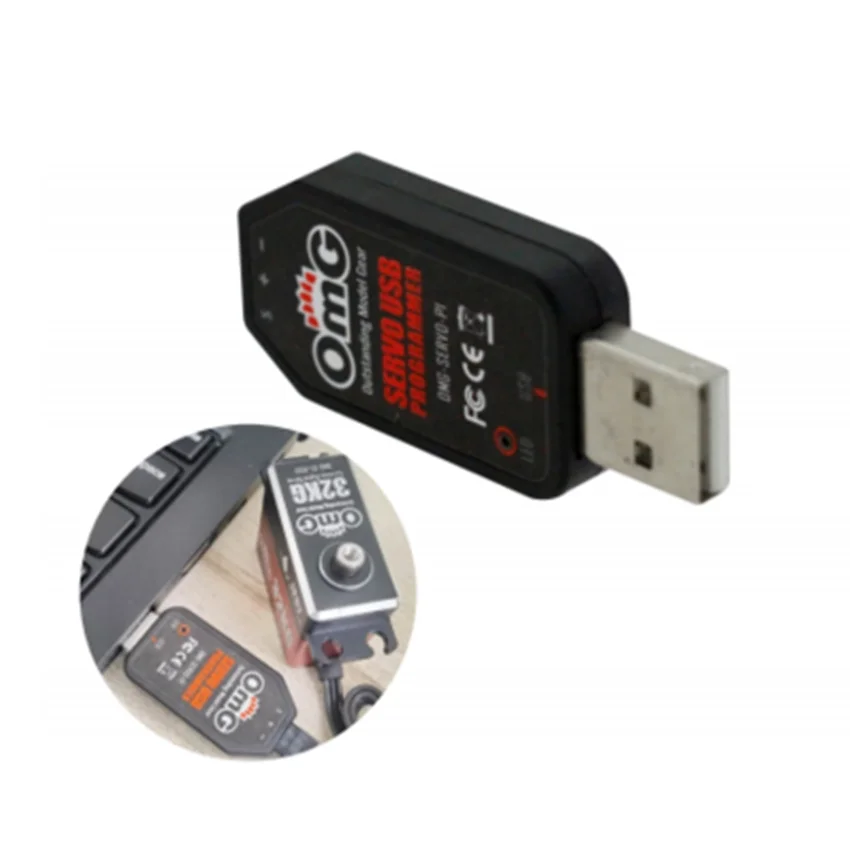

1. The product with a computer icon on the top cover of the steering gear means that the steering gear can be connected to a PC (computer) through a USB setting card for tuning. A setting card is required for tuning.
USB setting card voltage: 5V/500mA
Computer operating system: Windows XP/Vista/Windows7/Windows8/Windows10 (32/64bit)

4. The adjustable parameters of the setting card are as follows:
Servo Angle: Set the rotation angle of the servo.
Servo Neutral: Set the position of the center point of the servo.
PWM Power: Adjust the output power of the servo.
Damping Factor: Set the damping of the steering gear.
Sensitivity: Adjust the dead zone (sensitivity) of the servo.
Soft Start: The slow reset function of the servo after power-on.
Inversion: Set the forward and reverse rotation of the servo.
Narrow Band: FUTABA SR signal mode.
SANWA SSR: SANWA SSR signal mode.
Lost PPM Protect: Lost signal protection function.
Over Load Protect: Steering gear locked-rotor protection setting.
