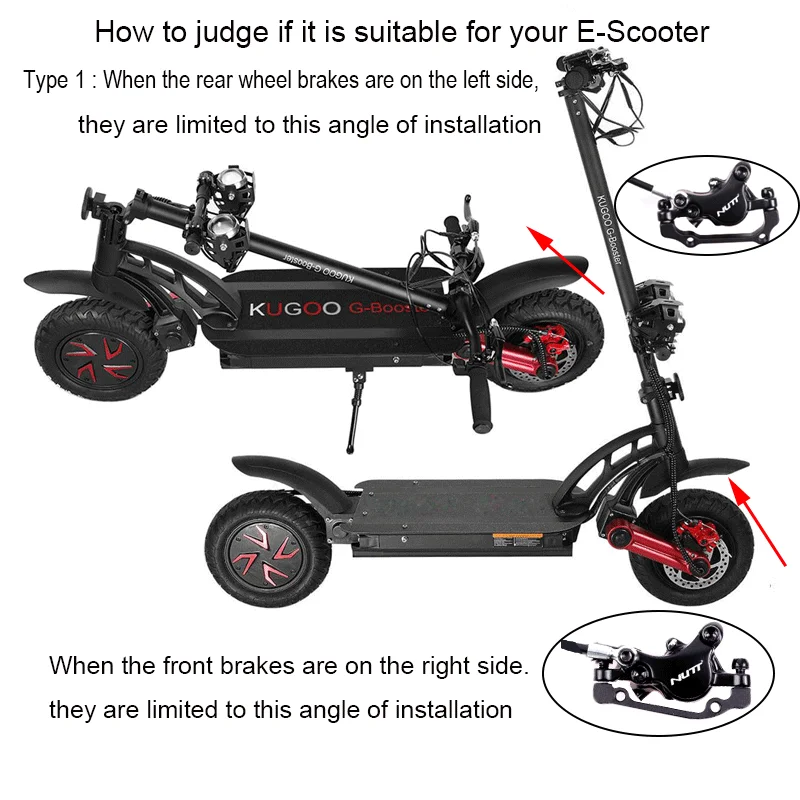

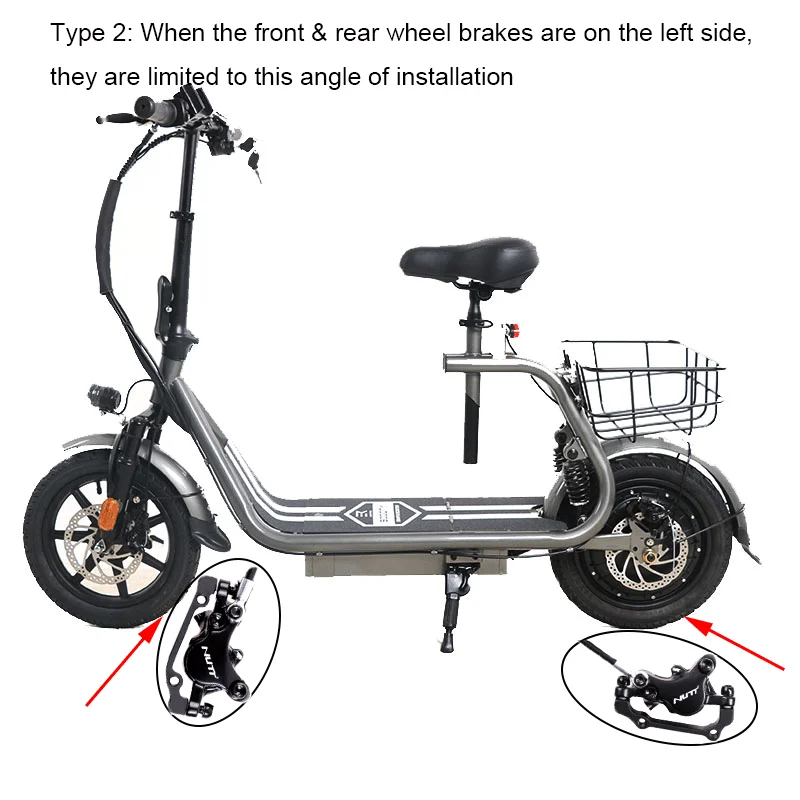

The brake kit is mainly compatible with KUGOO G-Booster and the same mounting direction and Angle (see the details below). Be sure to mark the model of your e-scooter when you buy it, so that we can deliver the scooter accurately and quickly.

---（Not suitable for scooter installation on the right side of rear wheel）

---(Some scooters need to be installed with gaskets, we do not provide this kind of gaskets, please solve by yourself)

For electric scooters model?

In addition to being suitable for E-bike, it is also suitable for the following models of scooters:

KUGOO G-Booster / KUGOO ES3 / dualtron ultra / dualtron eagle pro / Ultron t11 / FLJT113 / Speedway 5/ vmax r55 / ultron t108 / IO Hawk Legend (base: Kaabo Mantis) /speedway 4 / blade 10 / Minimotors /Kaabo Mantis 10

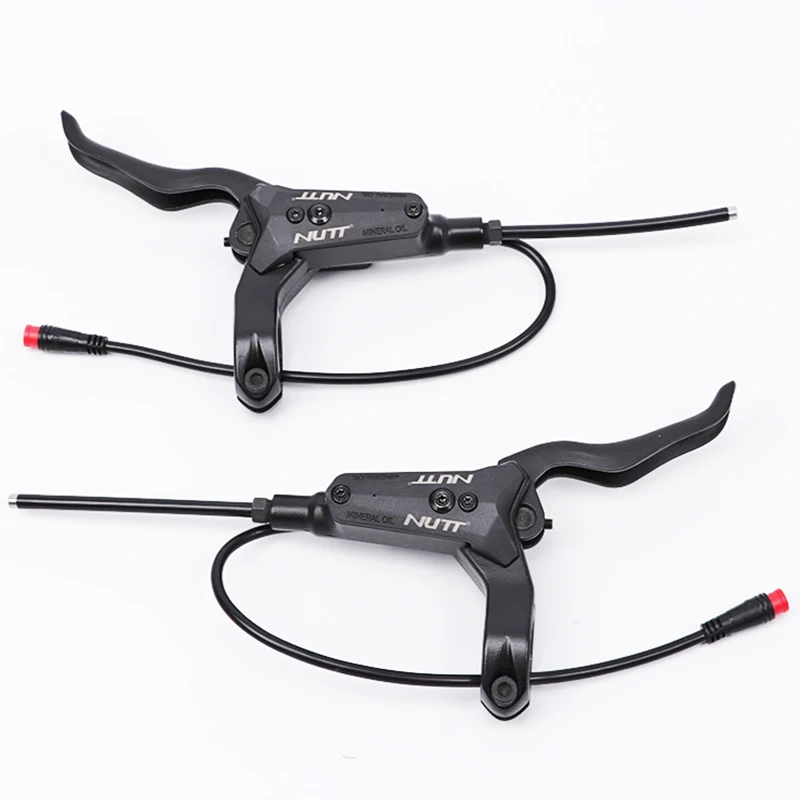

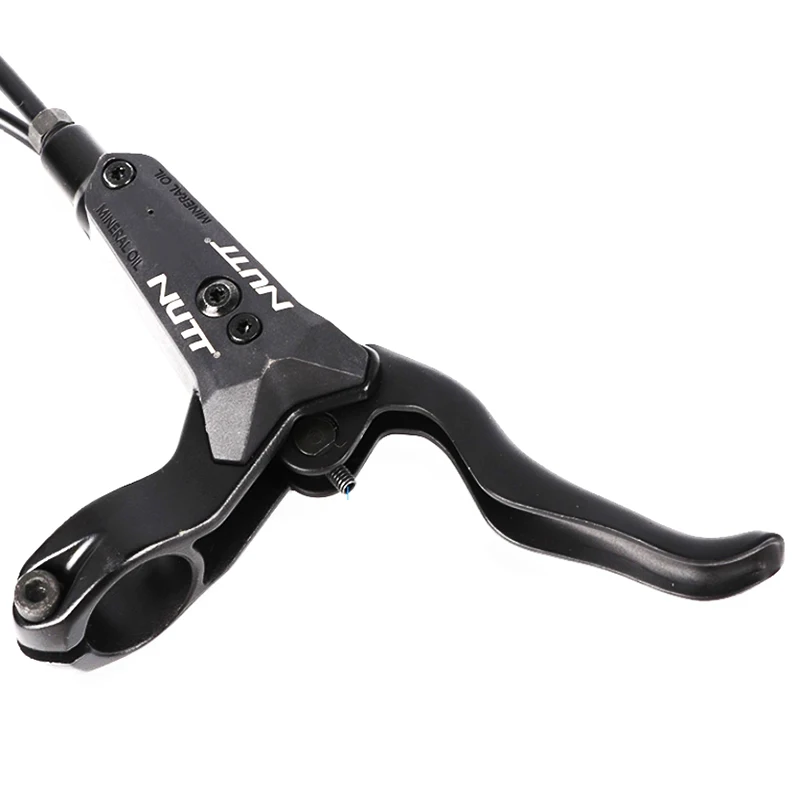

About the brake lever?

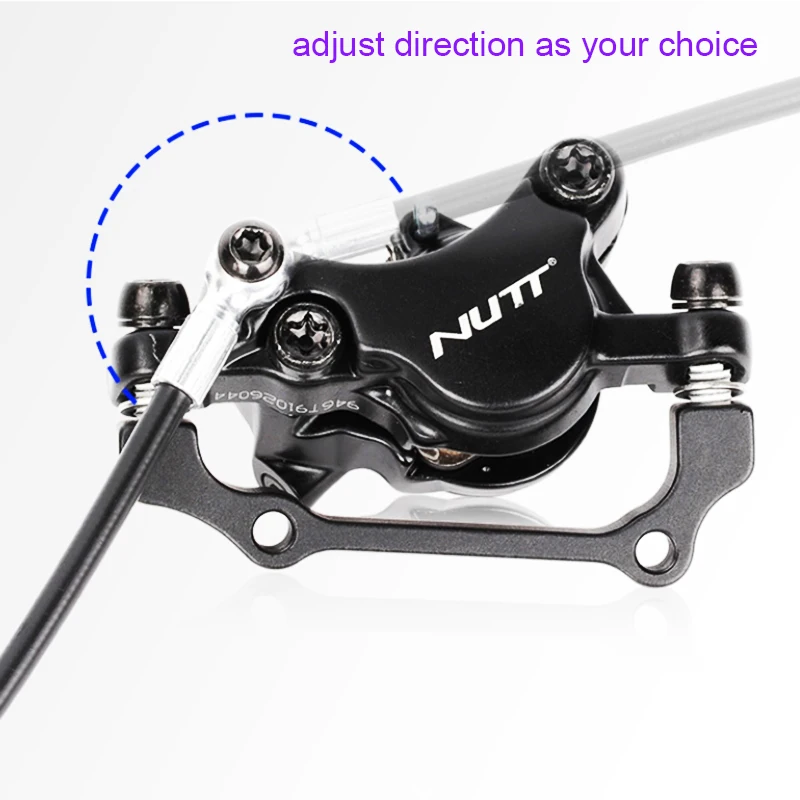

Because the brake lever and the tubing are separated, so you can install the brake lever according to the control direction you want : right front left rear, left front right rear, it can be.

About oil tubing?

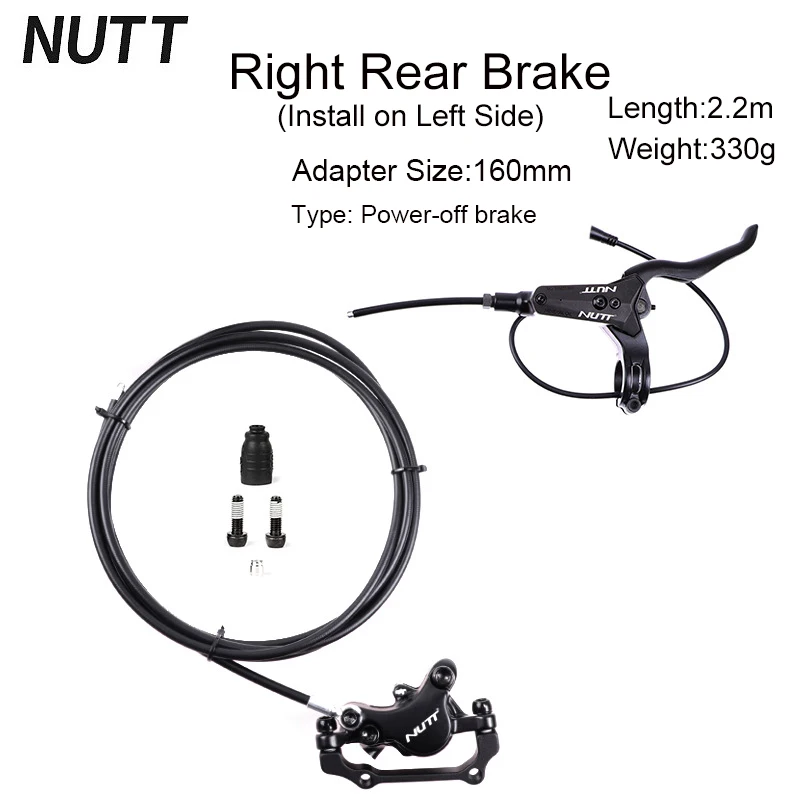

The front brake length is 1.25m, the rear brake length is 2.2m

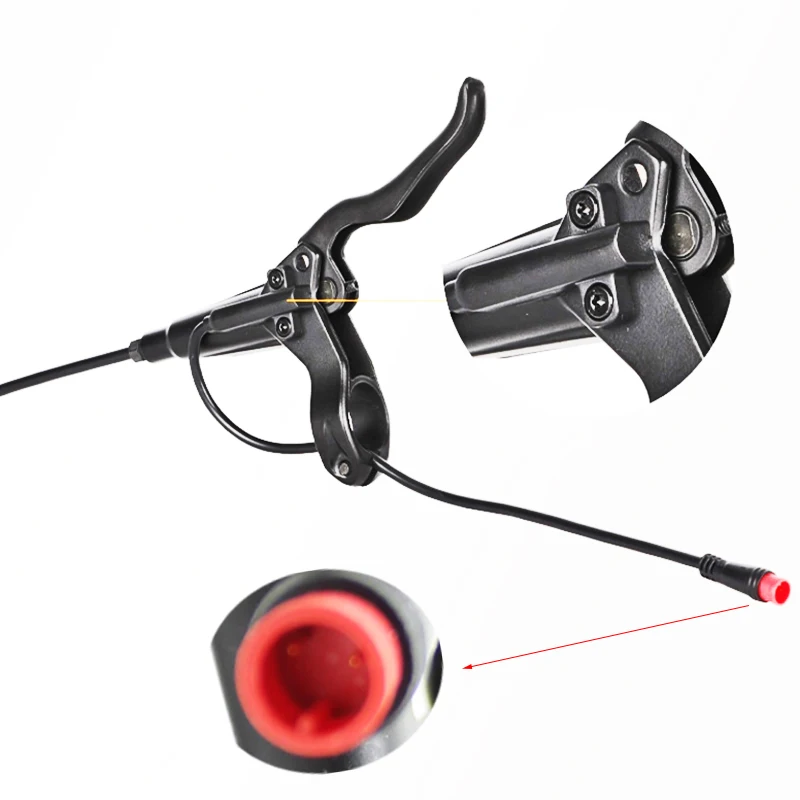

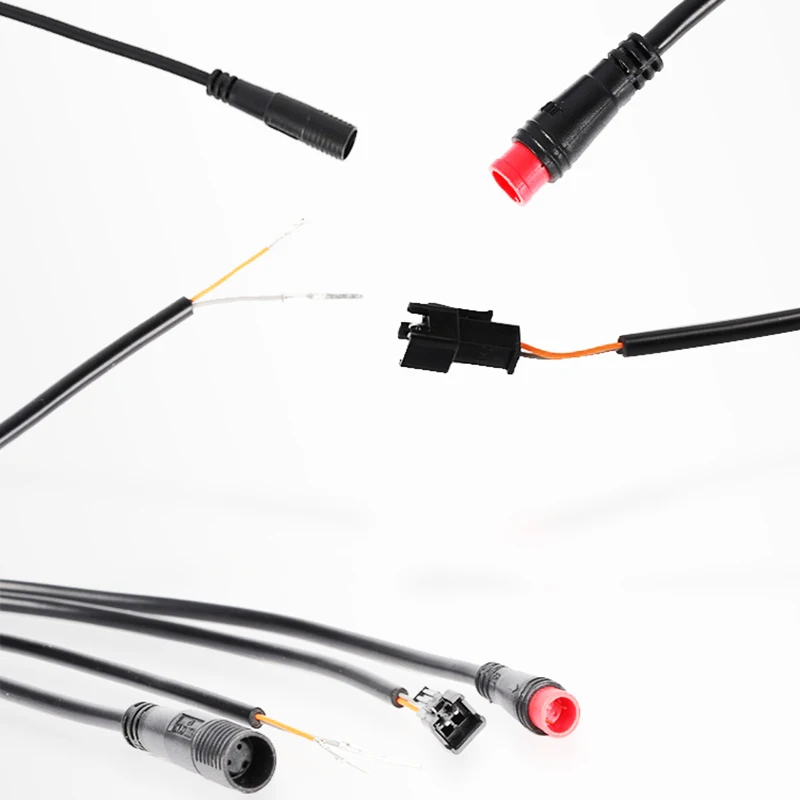

About broken wire interface?

The default wire is a waterproof interface===JULET 2 pin connector (male) . The default is 30 cm.

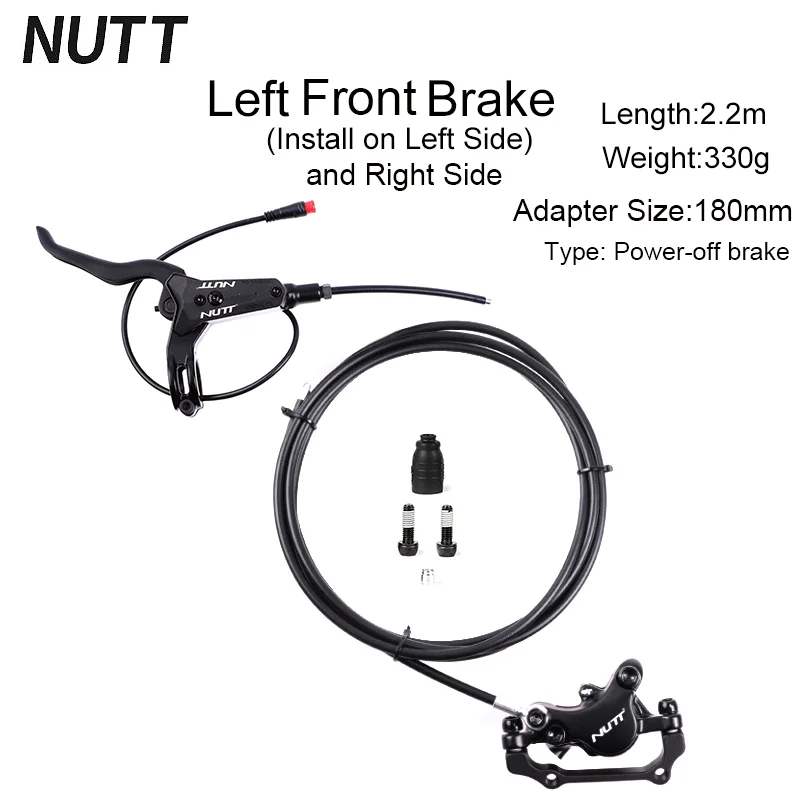

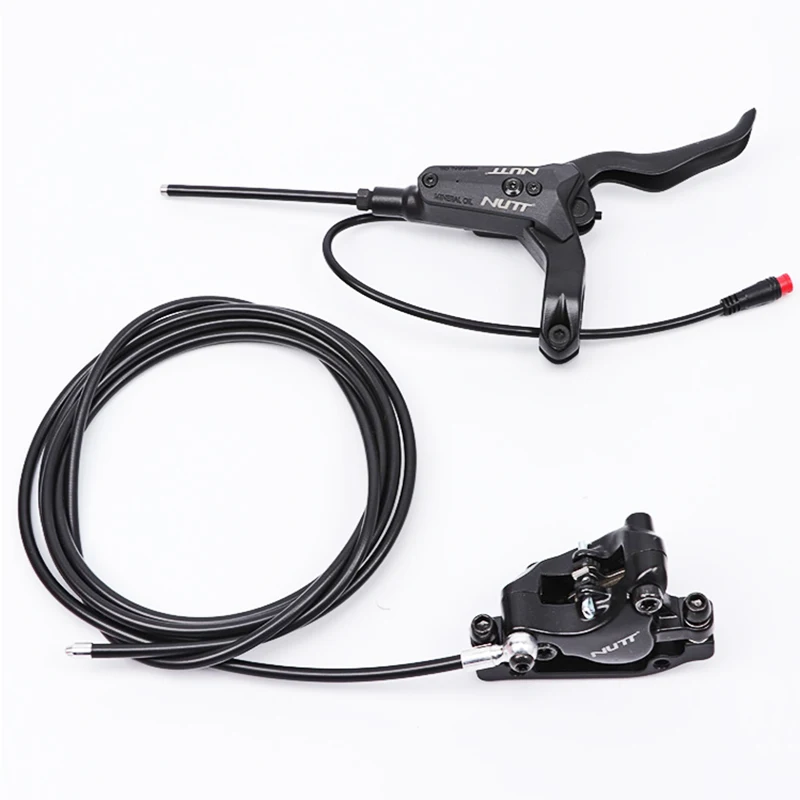

Feature

Model: NUTT-A5

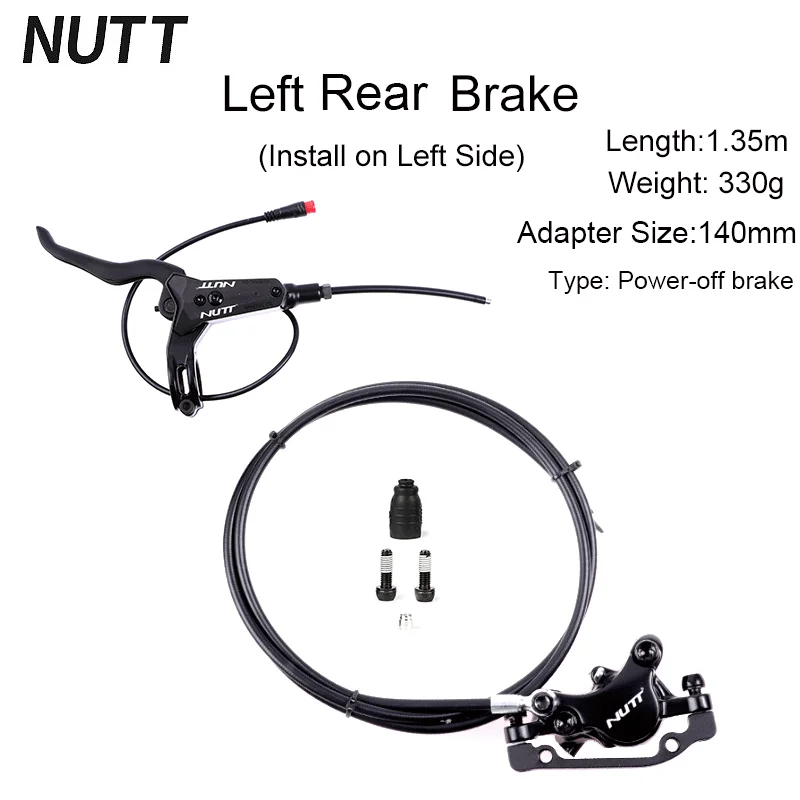

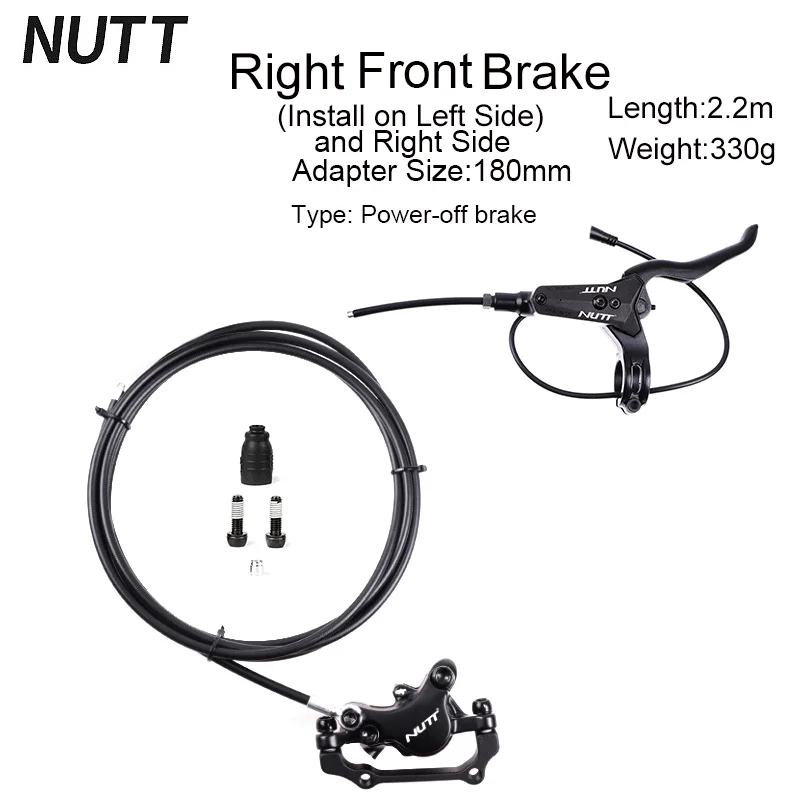

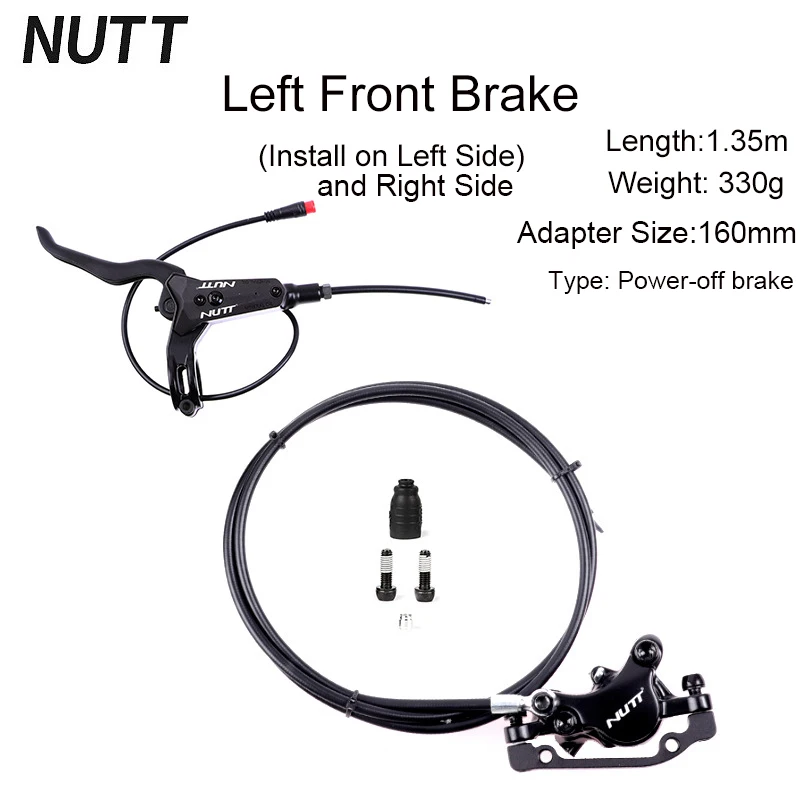

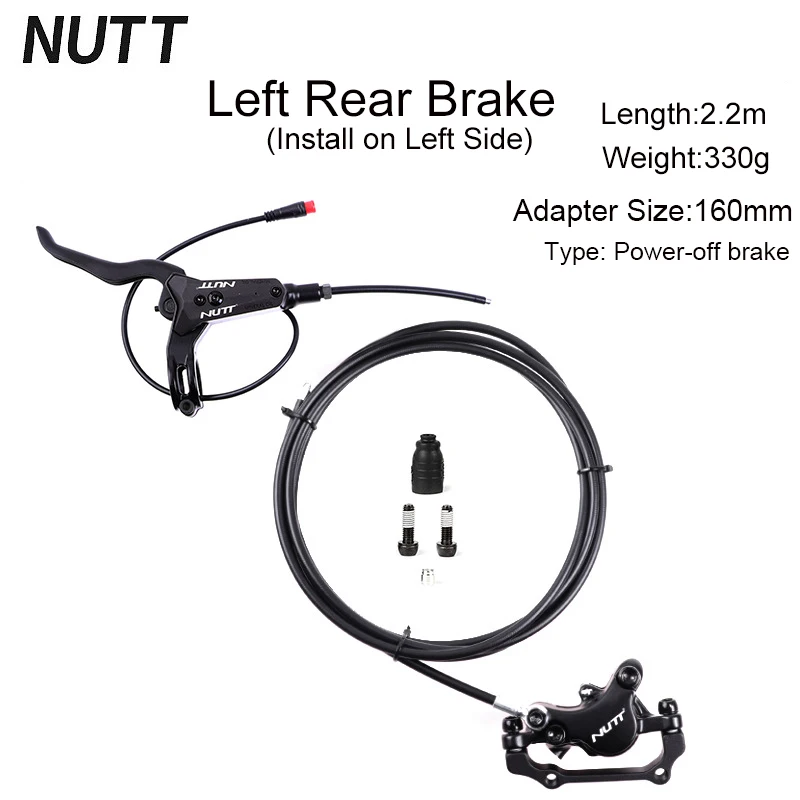

Brake Direction: Right brake lever control Front brake, Left Brake lever control Rear Brake. ( they are can be changed according to your perfer)
Matterial: Aluminum Alloy

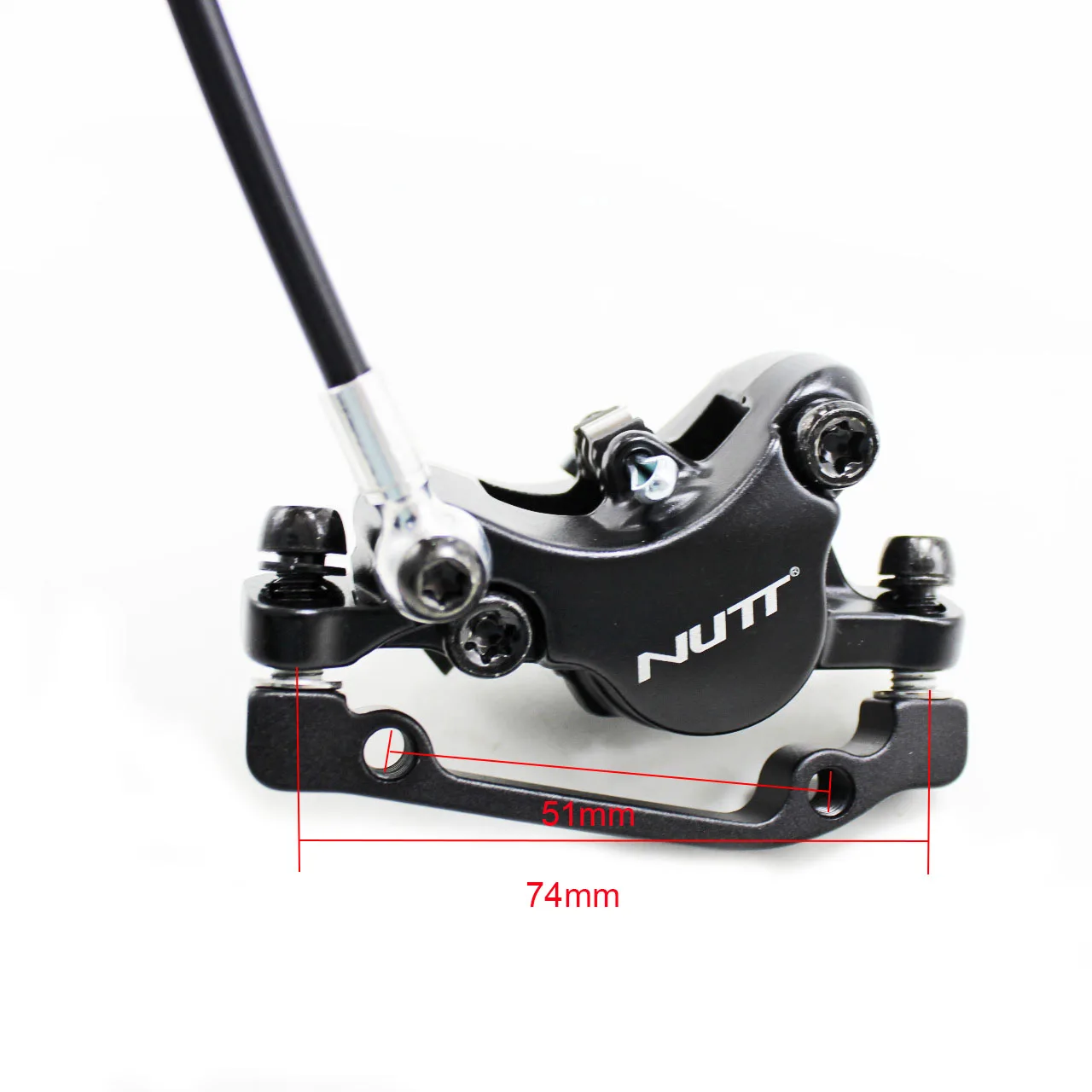

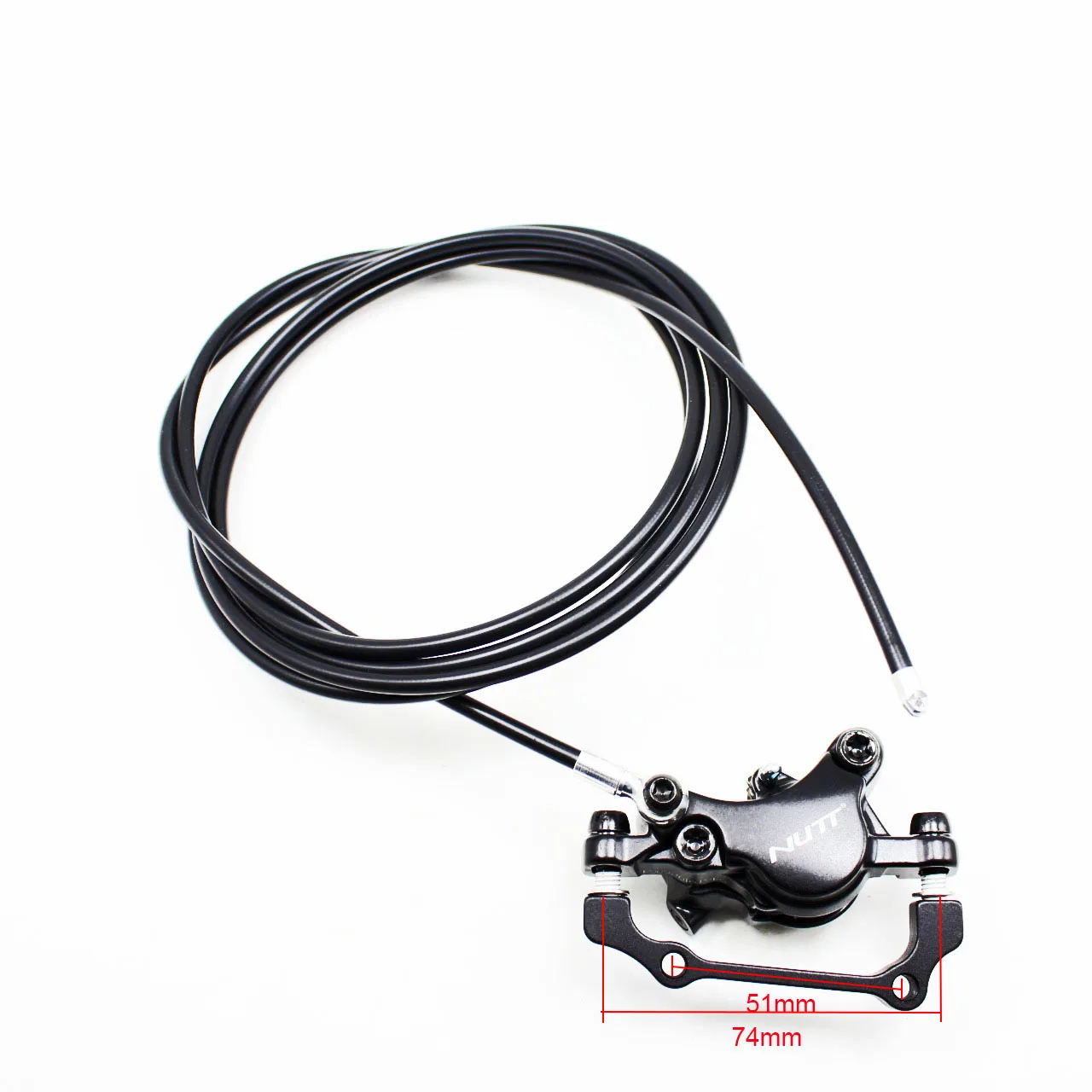

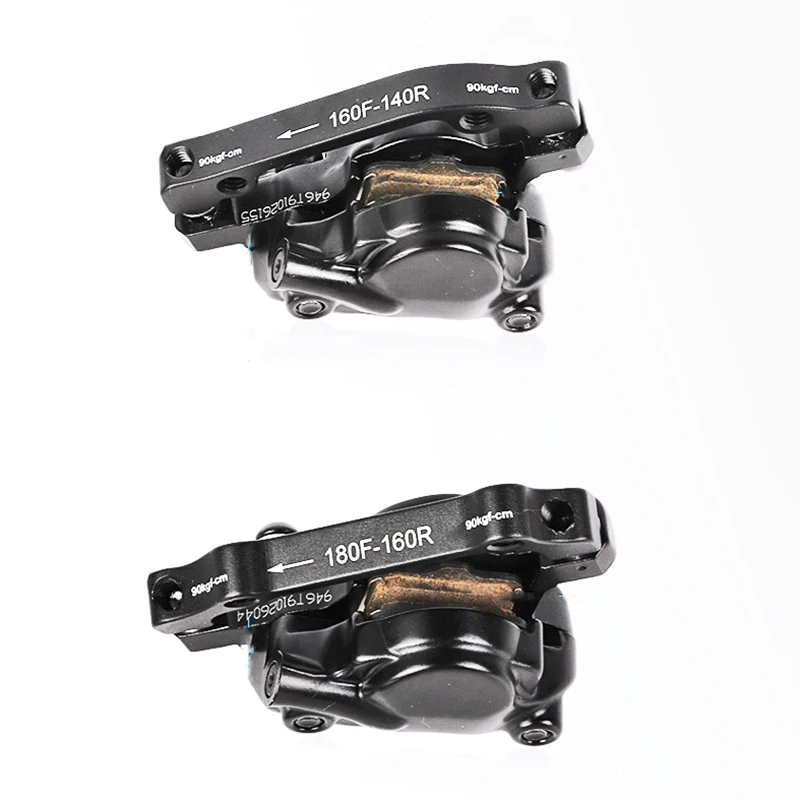

Suit for : 160mm or 180mm Rotors
Brake Type: Double Side Force

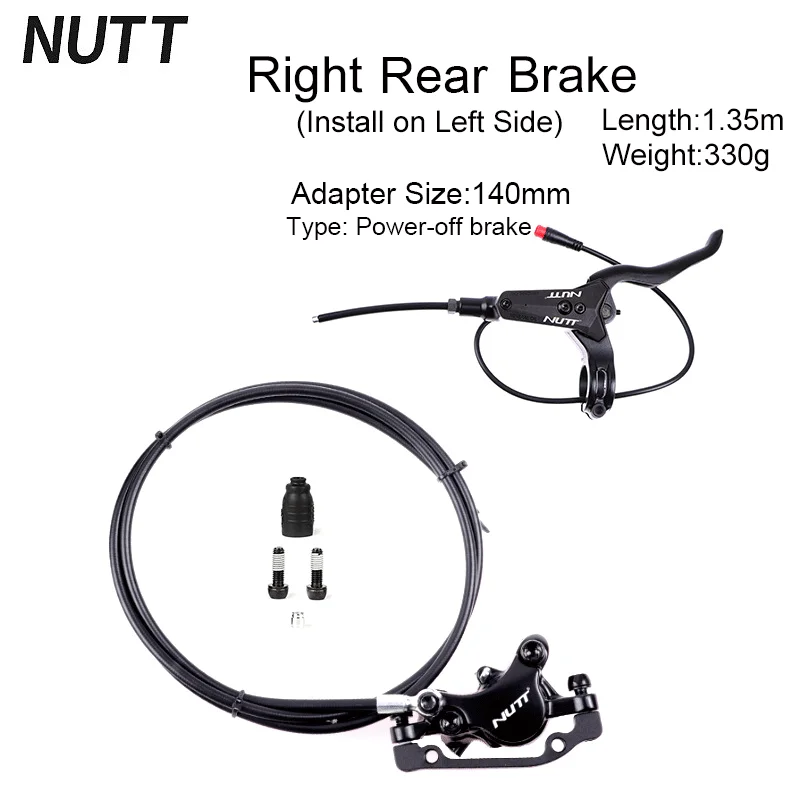

Length: The front brake length is 1.35m. rear brake tube is 2.2m, it is very long. you can cut to the desired length yourself and connect them.

Suit for: KUGOO G-booster

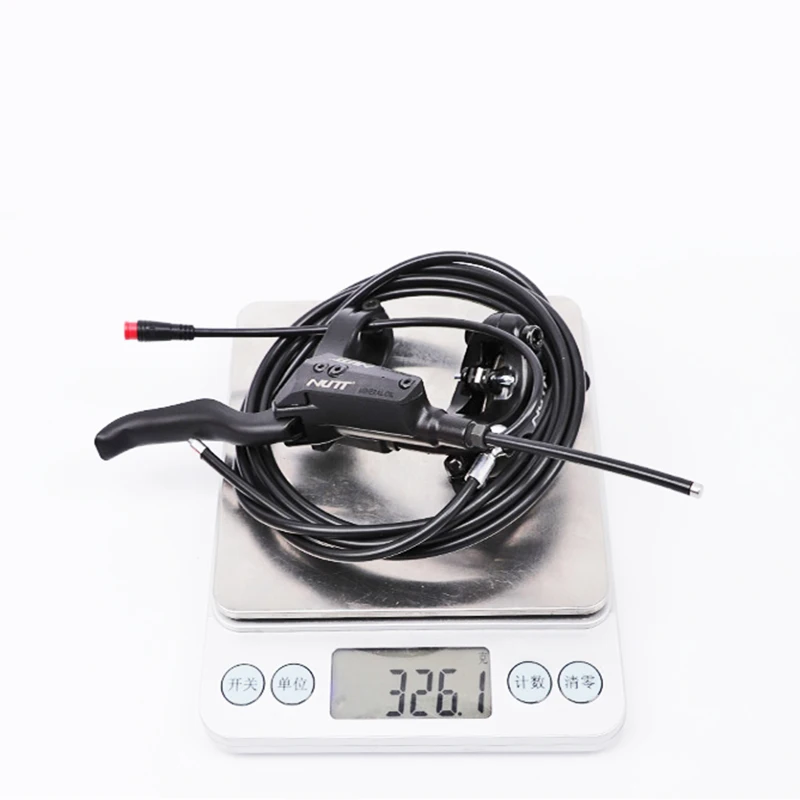

Weight: 327.4g for Front brake.
330g for Rear brake
