New upgrades MUSILAND Monitor 07MP portable HIFI sound card HD audio self display screen DSD lossless player full compatible
(No reviews yet)
Write a Review
Description
Monitor 07 MP typical parameters
Analog Output
Dynamic Range (D / A): 116dB
Signal to noise ratio (D / A): 116dB
Total harmonic distortion (D / A): 0.002%
Frequency response (20Hz ~ 20KHz): + - 0.3dB
Line Output Level: 2Vrms
Line Output Impedance: 10kΩ
Headphone output power: 2x100mW / 300Ω
Digital Output
Dynamic range: 144dB
SNR (A-weighted): 144dB
Total harmonic distortion: 0.00001%
Frequency response (20Hz ~ 20KHz): + - 0dB
Other
Input interface: MICRO USB, voltage is greater than 4.5V, the current is greater than 1500mA
Power: ≤1.5W
Key Features
Analog output: 32bit / 384kHz
Digital output: 32bit / 384kHz

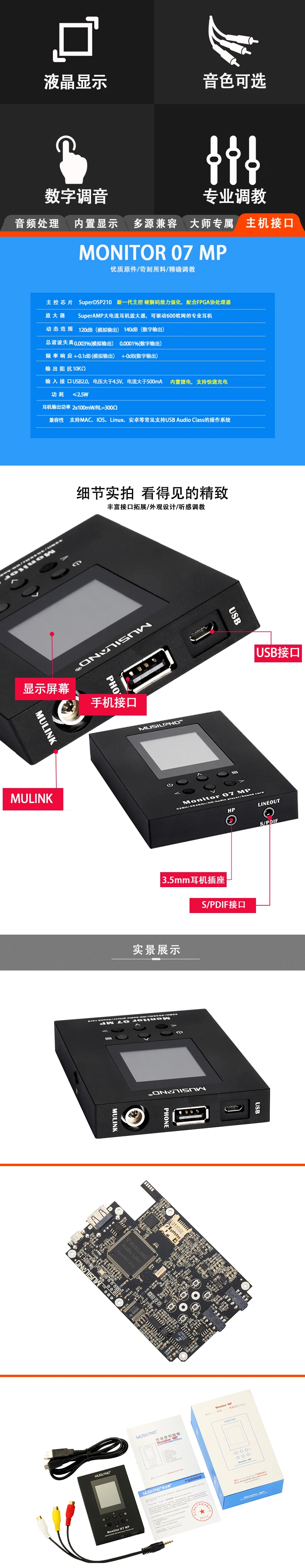

Product Type: Monitor 07 MP
Category: Sound + Player -> listen (Monitor)
Specifications: With the screen 32Bit / 384kHz HD sound and HD audio player one machine. Built-in lithium battery, can play HD files offline for more than 10 hours. And supports DSD playback.
As a versatile star maverick, Monitor 07 MP, Monitor 08 MP sound more Guards, we humbly accept the proposal put forward by Monitor 06 MX users, conducted eight quality-related improvements, so the sound is more delicate, dynamic pressure when loud More Foot:
1, the dual-core processor upgrade SuperDSP200, zero errors audio clock accurate synthesis under each sample rate, and has a more powerful audio processing capabilities.
2, a special low resistance lithium polymer battery designed specifically for audio applications, the discharge current is large, dynamic response faster.
3, intelligent power path management, the USB power supply is not sufficient, battery automatic intervention, carried out "USB + Battery" hybrid power, ensure that any mode, any power supply situation has abundant power supply.
4, improved power charging circuit, completely isolated from the power supply circuit with the audio, audio power more pure.
5, improved high-speed response frequency power, so loud, it has fast dynamic response when pressed listen.
6, MUSILAND Audio Labs specifically for the player application, and the design of intelligent power management PMU, significantly reduce the power part of PCB area, allowing audio circuits with greater space for wiring, will interfere with digital radio section better isolation.
7, MUSILAND Audio Labs specifically for the player application, designed for high-definition intelligent super audio amplifier --SuperAMP100, small size, low distortion, and with intelligent load impedance determination function. When driving headphones can provide up to 800mA drive current transient; driving circuit load, 2V RMS output level, distortion as low as 0.0001% or less and keep more than 120dB dynamic range and signal to noise ratio, accurate playback Direct DSD Each trace details.
8, regardless of the player mode, or USB soundcard mode, supports DSD playback. For Monitor 07 MP, Monitor 08 M two products, more use of native Direct DSD DSD playback mode, external lossless analog volume control, so that DSD playback more pleasant.
In addition to these eight quality-related improvements also improved 10 man-machine control, convenience, security:
1, built-in battery, no need to worry about the battery will affect the sound quality, for more than 10 hours of continuous playback.
2, speed charging technology. Under the power supply adequacy, Monitor 08 MP only about 2.5 hours to fully charge, and 06 MP and 07 MP only about 4.5 hours, then fully charged.
3, the volume of the Monitor 06 MX 22270 cm3 (12.3cm x 7.1cm x 2.55cm) down to 10884cm3 (10.5cm x 7.1cm x 1.46cm), reduced by half the size, more portable, and even far less than with other brands of pure Listen sound products.
4, compatible UAC2.0 the USB asynchronous protocol, in addition to supporting Windows operating system, adds support for almost all common operating systems MAC, IOS, Linux, Android and so on.
5, ad hoc intelligent equipment interface for connection to mobile phones and tablet devices without an interface adapter (using the dedicated USB cable).
6, intelligent power management, automatic distribution charge and supply current, without human intervention charging and discharging process.
7, increasing the LCD, and the use of super-console display, parameters and playback information at a glance.
8, easy manipulation designed to quickly open files, folders, and support for multiple playlists.
9, more comprehensive protection circuit, short circuit protection, high temperature protection (50 ° C), low temperature protection (0 degrees Celsius), static pulse protection (air discharge 5000V, contacts 300V, 1 millisecond) readily available.
10, support TF card to, to 64GB, support for the directory to 4 directory.
