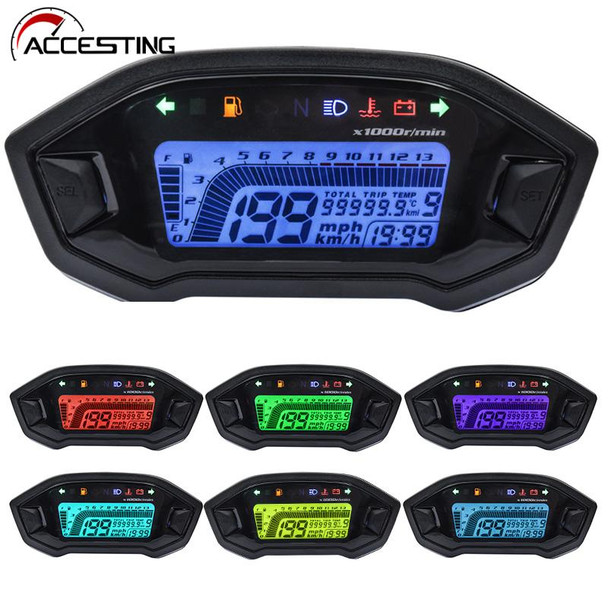

New Universal Motorcycle LCD Digital 13000rpm Speedometer Backlight Motor Vehicle for 2-4 Cylinders Odometer 7 Colors Adjust

Universal Motorcycle LCD Digital 13000rpm Speedometer Backlight Motor cycle for 2-4 Cylinders meter Odometer Dropshipping

NOTICE: Please connect the black positive pole and the green negative pole in the 9th hole, connect first, then connect other wires

Feature:

-- As a practical equiment for your Motorcycle.

-- Engine trouble light reminding.

-- Displaying time.

-- Total travel distance.

-- Waterproof, sun-proof, durable.

-- Easy installation and simple operation.

--Easy to Install

--High Quality

Description:

Product Name: Motorcycle Odometer

Black: positive yellow

Red: battery positive blue/red

Blue: High beam, 12V is controlled Green/Black

Blue and white: fuel signal line

Black and white: sensor signal

Operating voltage: 10V-15V

Speed calibration: 42.5Hz corresponds to 60KM/H

Green: negative sensor

Speed calibration: 166Hz corresponds to 13*1000r/min

LCD screen: 7 colors backlight short press to switch

Voltage: Less than 11.3V undervoltage symbol flashes, higher than 11.7V undervoltage symbol is not displayed

Fuel calibration: E point 98Ω, F point 8Ω

Orange: Left turn, 12V positive control yellow/white

Light blue: Turn right, 12V is controlled Green/Red

Including:

as shown in the picture
