New Tiny Spectrum Analyzer TinySA ULTRA 4" Display 100kHz To 5.3GHz With 32GB Card Version V0.4.5.1 Network Internal Lan Tester
Description
2023 New Handheld Tiny Spectrum Analyzer TinySA ULTRA 4" Display 100kHz to 5.3GHz with 32GB Card Version V0.4.5.1
Specification：
Parameter | Specification |
Display size | 4” TFT LCD (480×320) |
Max low input frequency | 800MHz, 6GHz in Ultra mode |
Resolution filters in 1,3,10 steps | from 200Hz to 850kHz |
Max output frequency | Sinus up to 800MHz, Square wave up to 4.4GHz |
output level | -104dBm to -16dBm |
Ultra mode | Level calibrated up to 5.3GHz |
Internal LNA gain | 20dB up to 4GHz |
Displayed points per scan | max 450 |
0-350MHz scan time | 165ms |
Shortest zero span time | 17ms |
DANL at 100MHz | -153dBm/Hz (LNA Off) / -169dBm/Hz (LNA On) |
DANL degrading in ultra mode | 10dB above 2.5GHz, 25dB above 5.3GHz |
Phase noise at 10kHz offset | -92dBc/Hz |
Phase noise at 100kHz offset | -110dBc/Hz |
Input 1dB compression level | +0.5dBm (LNA Off) / -26.5dBm (LNA On) |
IIP3 without LNA | +18dBm (at least 2MHz apart) / 0dBm (500Hz apart) |
IIP3 with LNA | -8dBm (at least 2MHz apart) |
Frequency stability | <1ppm ( -10℃ ~ +55℃) |
SD card slot | micro SD card |
Audio out | 3.5mm headphone plug |
FW update mode activation | Push jog button before switch on |
Maximum current consumption | 330mA |
Maximum charging current | 1300mA |
Battery | Li-polymer 3.7V 3000mAh |
RF connectors | SMA female |
Communication Interface | USB-CDC(Type-C)，UART-TTL(2.54mm Connector) |
Appearance Size | 117x72x23mm (Excluding protruding parts) |
TinySA model comparison table：
tinySA | tinySA Ultra | |
Display size | 2.8 inch | 4 inch |
Max low input frequency | 350MHz | 800MHz, 6GHz in Ultra mode |
High input range | 240MHz - 960MHz | Not available |
Resolution filters in 1,3,10 steps | from 3kHz to 600kHz | from 200Hz to 850kHz |
Max low output frequency | 350MHz | Sine wave up to 800MHz, Square wave up to 4.4GHz |
Low output level | -76dBm to -7dBm | -104dBm to -16dBm |
High output frequency range | 240MHz - 960MHz | Not available |
High output level | -32dBm to 16dBm | Not available |
Ultra mode | Not available | Level calibrated up to 6GHz |
Internal LNA gain | Not available | 20dB up to 4GHz |
Internal step attenuator | Normal: 0-31dB, High: NA | 0-31dN |
Displayed points per scan | max 290 | max 450 |
0-350MHz scan time | 405ms | 165ms |
Shortest zero span time | 1.8ms | 17ms |
DANL low input at 100MHz | -146dBm/Hz | -153dBm/Hz (LNA Off) / -169dBm/Hz (LNA On) |
DANL high input at 880MHz | -163dBm/Hz | Not available |
DANL degrading in ultra mode | 10dB above 2.5GHz, 25dB above 5.3GHz | |
Phase noise at 10kHz offset | -83dBc/Hz | -92dBc/Hz |
Phase noise at 100kHz offset | -98dBc/Hz | -108dBc/Hz |
Low input 1dB compression level | -0.5dBm | +0.5dBm (LNA Off) / -26.5dBm (LNA On) |
IIP3 without LNA | +24dBm | +18dBm (at least 2MHz apart) / 0dBm (500Hz apart) |
IIP3 with LNA | Not available | -8dBm (at least 2MHz apart) |
SD card slot | Not available | micro SD card |
Audio out | Not available | 3.5mm headphone plug |
FW update mode activation | Via DFU menu | Push jog button before switch on |
AM modulation depth | Fixed 30% | 10% and 100% |
FM deviation | 4kHz or 75kHz | 1kHz to 300kHz |
Modulation frequency | 50Hz to 5kHz | 50Hz to 5kHz(AM) or 1kHz(FM) |

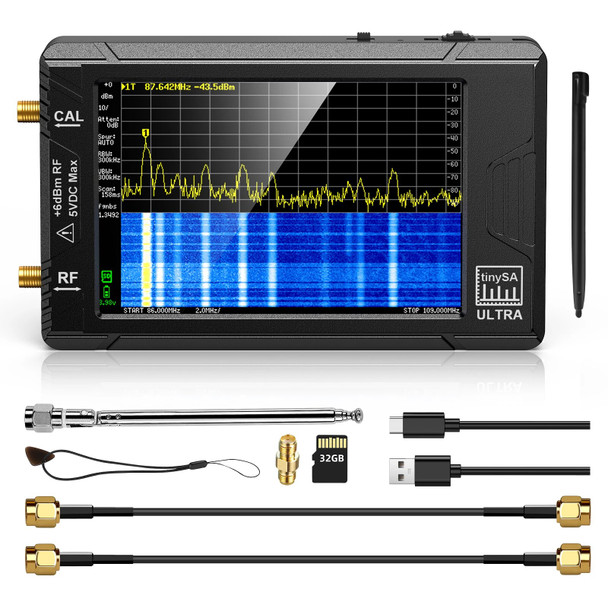

Package includes:
Host (with 3000mAh battery, 4"display) x 1
USB Type-C data cable x1
30cm ALSR100 SMA cables x2
SMA-SMA barrel connector x1
Antenna with SMA connector x1
Lanyard and touch plectrum x1
32GB MicroSD card(plugged in the host) x1
